Panorama Antennas DWMM4[G]-6-60 network antenna Omni-directional antenna SMA 7 dBi

Panorama Antennas DWMM4[G]-6-60 network antenna Omni-directional antenna SMA 7 dBi

DWMM4-6-60-5SP

£180.84 GBP£150.70 GBP
£0.00 GBP £180.84 GBP£150.70 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

15 in stock

Delivery & lead times

Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.

Buying 5 or more? Volume pricing

We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.

Returns & warranty

See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

  • 4x4 MiMo Omnidirectional Antenna
  • Multiple Mounting Options
  • 4G/5G LTE Ready
4x4 MiMo Omnidirectional, 4G/5G LTE Ready - SMA (m), No GPS/GNSS, 5m (16')

The DWMM4[G]-6-60 Antenna Provides a 4x4 MiMo Solution for Global 4G/5G Networks from 617-6000MHz.

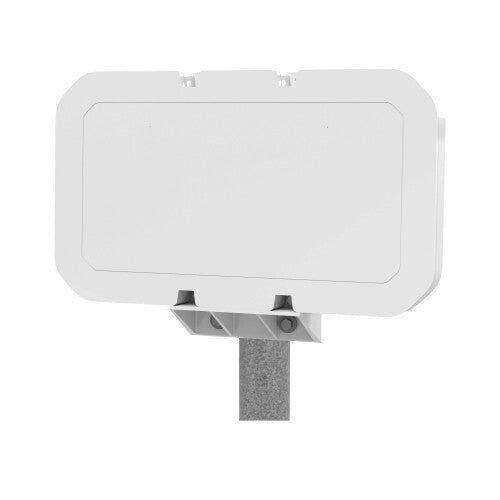

Incorporating four separately fed ultra wideband elements in a single housing the DWMM4[G] is suitable for a huge range of fixed site and failover applications. The supplied mounting bracket enables simple wall mounting using the supplied screws and wall plugs and mast mounting using the supplied clamps.

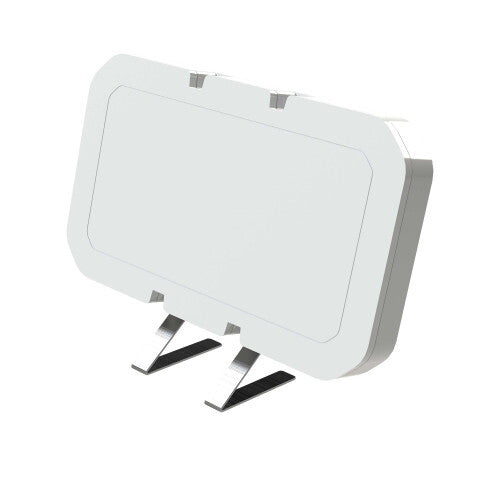

The antenna can also be mounted with screws directly to non-conductive panels or internal walls or stood on a desk using supplied mounting feet. The omnidirectional radiation pattern allows easy placement of the antenna without requiring directional alignment. The DWMM4G type is supplied with an integrated GPS/GNSS module with 26dB LNA gain and advanced filtering to combat noise.

The antenna is fitted with an integrated flame retardant CS32 cable (FR CS29 for GPS/GNSS) which minimises exposed connector joints and simplifies cable management for easy installation.

Performance
Antenna gain level (max) 7 dBi
Frequency band 617-960 / 1427-6000, 1559-1612 GHz
Impedance 50 Ω
Features
Antenna type Omni-directional antenna
Connector gender Male
Antenna connector type SMA
International Protection (IP) code IP66
Type of clamp U-bolt
Mounting pipe 0 - 50 mm
Cable type CS32
Cable length 5 m
Mounting Wall/Pole
Purpose Indoor & outdoor
Product colour White
Power
Power consumption 20 mA
Input voltage 3 - 5 V
Operational conditions
Operating temperature (T-T) -40 - 85 °C
Weight & dimensions
Width 371 mm
Depth 40 mm
Height 221 mm
Packaging content
Quantity per pack 1 pc(s)
Cables included Coaxial
Stand included Yes
Mounting kit Yes
