Panorama Antennas
Panorama Antennas BRACKET MOUNT ANTENNA network antenna Omni-directional antenna SMA 5 dBi
Panorama Antennas BRACKET MOUNT ANTENNA network antenna Omni-directional antenna SMA 5 dBi
Couldn't load pickup availability
SKU:B4BE-6-60-2SP
11 in stock
- Omni-directional antenna SMA Black
- 5 dBi
- 0.617 - 6 GHz
- 50 Ω
- Vertical polarization
- Universal

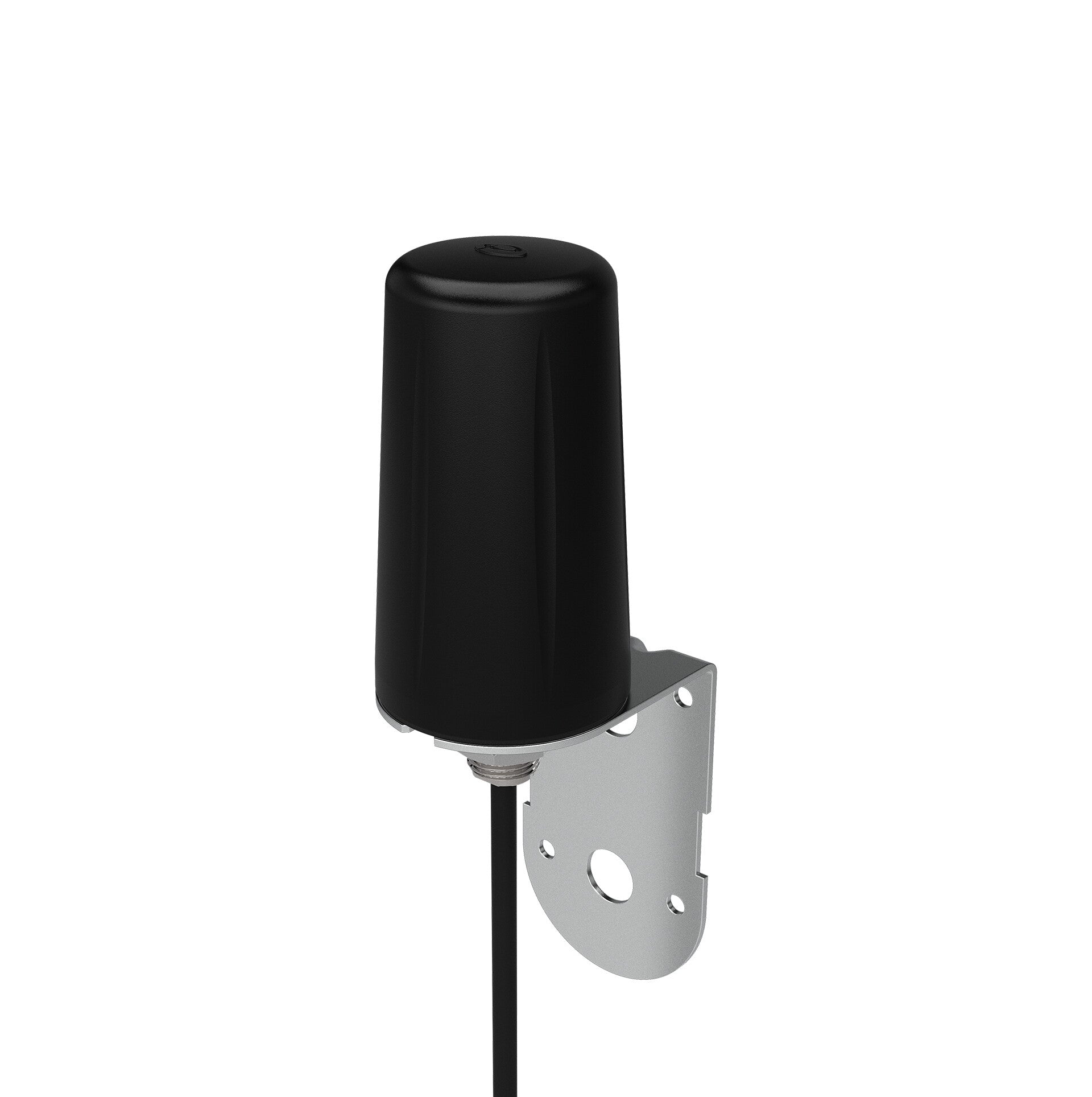

The Panorama B4BE is a robust bracket mount antenna for LTE, M2M and IoT applications.
The B4BE range has been designed to provide cost effective coverage booster antennas for 2G/3G/4G and 5G devices. The antennas are designed for wall or mast mounting and are weather proof which allows the device to reap the benefits of an antenna mounted in an elevated or external location where the signal is strongest.
The omni-directional radiation pattern allows the antenna to be quickly installed while the global Cellular/GSM/LTE coverage provided by the antenna allows it to be utilised for 2G/3G/4G and 5G applications the world over.
The antenna range is supplied in two variants the B4BE-6-60 is fitted with 5mm double shielded CS29 cable and the B4BEE-6-60 variant is fitted with 2.8mm RG174 cable,
| Performance | |
|---|---|
| Antenna gain level (max) | 5 dBi |
| Frequency band | 0.617 - 6 GHz |
| Impedance | 50 Ω |
| Features | |
|---|---|
| Antenna type | Omni-directional antenna |
| Antenna connector type | SMA |
| Polarization | Vertical polarization |
| Voltage Standing Wave Ratio (VSWR) | 2.5:1 |
| International Protection (IP) code | IP66 |
| Cable length | 2 m |
| Mounting | Universal |
| Housing material | Acrylonitrile styrene acrylate (ASA), Aluminium |
| Product colour | Black |
| Weight & dimensions | |
|---|---|
| Height | 164 mm |
| Diameter | 4.8 cm |
