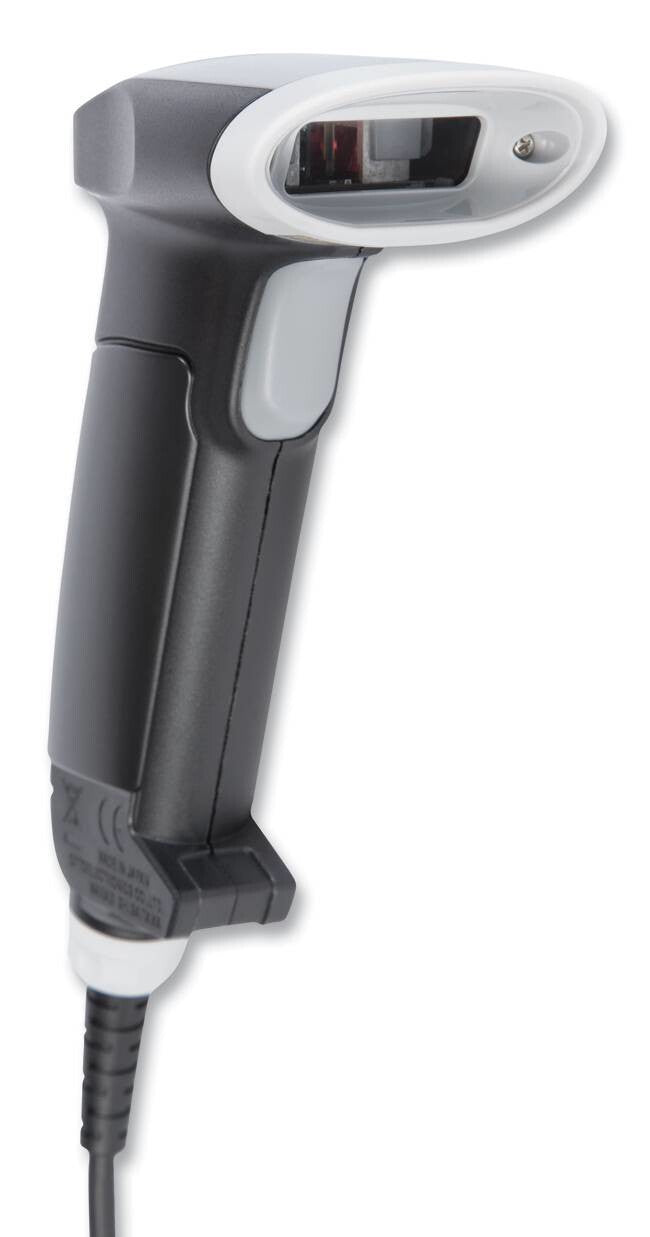

Opticon OPR3201 Handheld bar code reader 1D Laser Black

Opticon OPR3201 Handheld bar code reader 1D Laser Black

11789

£89.00 GBP£74.17 GBP
£0.00 GBP £89.00 GBP£74.17 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Low stock: 6 left

Delivery & lead times

Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.

Buying 5 or more? Volume pricing

We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.

Returns & warranty

See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

  • Handheld bar code reader Black
  • Scanner type: 1D Sensor type: Laser
  • Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128)
  • Tilt reading angle: -20 - 20°
  • Wired Standard interfaces: USB
  • Power source type: AC
OPR3201, 1 LED (red/green/orange), Buzzer, 1 scan key, 650 nm visible laser diode, Bi-directional scanning, 100 scans/sec, Ver. 1.1, HID/VCP, USB-A connector

OPR3201

This 1D barcode laser scanner with pistol grip enables reliable scanning. The OPR3201 weighs only 80 grams, which is extremely light for a gun type scanner. This solid scanner withstands drops up to 1.5 meter onto concrete.

The scanning parts of the OPR3201 are positioned near the central core of the grip to stabilize the hand movement while scanning. Together with the large grip, this makes it easier and more comfortable to target the barcodes.

Plug & scan

The auto-trigger feature of the OPR3201 and the complementing stand initiates automatic scanning and allows the user to operate instantly and hands free. Available in USB, RS232 and Keyboard Wedge connectivity options, the OPR3201 can be easily integrated into any host computer system as a plug and play device.

Scanning
Type Handheld bar code reader
Scanner type 1D
Linear (1D) barcodes supported Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128)
Sensor type Laser
Read rate (max) 100 reads/s
Light levels (direct sunlight) 0 - 50000 lx
Wavelength 650 nm
Tilt reading angle -20 - 20°
Pitch reading angle -35 - 35°
Yaw reading angle -50 - 50°
Ports & interfaces
Connectivity technology Wired
Standard interfaces USB
USB version 1.1
Cable length 1.5 m
Performance
Product colour Black
International Protection (IP) code IP42
LED indicators Yes
Buzzer Yes
Power
Power source type AC
Power consumption 100 mA
Weight & dimensions
Width 56 mm
Depth 109 mm
Height 149 mm
Weight 80 g
Operational conditions
Operating relative humidity (H-H) 5 - 95%
Storage temperature (T-T) -20 - 60 °C
Operating temperature (T-T) -5 - 50 °C
Logistics data
Harmonized System (HS) code 84716070
