Opticon OPR2001 Handheld bar code reader 1D Laser Black, Grey

Opticon OPR2001 Handheld bar code reader 1D Laser Black, Grey

11645

£136.28 GBP£113.57 GBP
£0.00 GBP £136.28 GBP£113.57 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

45 in stock

Delivery & lead times

Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.

Buying 5 or more? Volume pricing

We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.

Returns & warranty

See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

  • Handheld bar code reader Black, Grey
  • Scanner type: 1D Sensor type: Laser
  • Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128)
  • Tilt reading angle: -20 - 20°
  • Wired Standard interfaces: USB
OPR2001, 1 LED (red/green/orange), DB9 PTF connector with external power supply, USB connector, Light source 650 nm visible laser diode

OPR2001

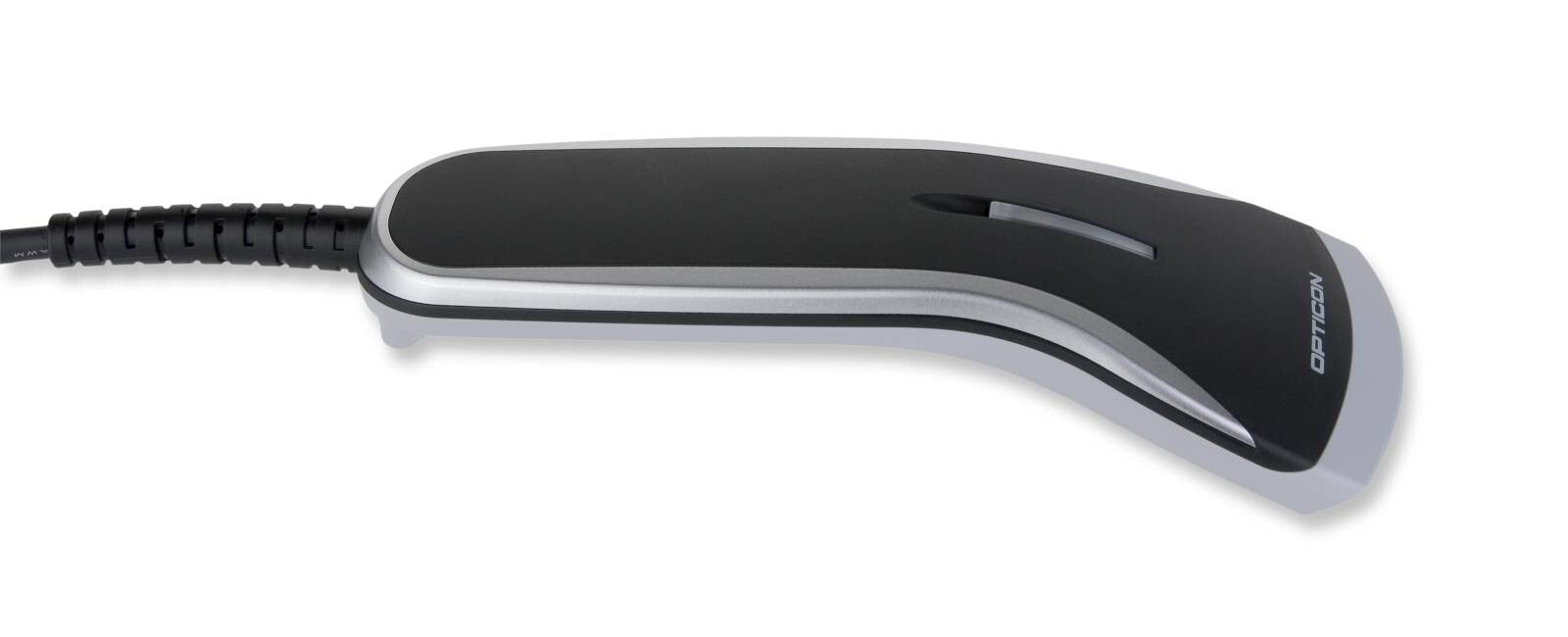

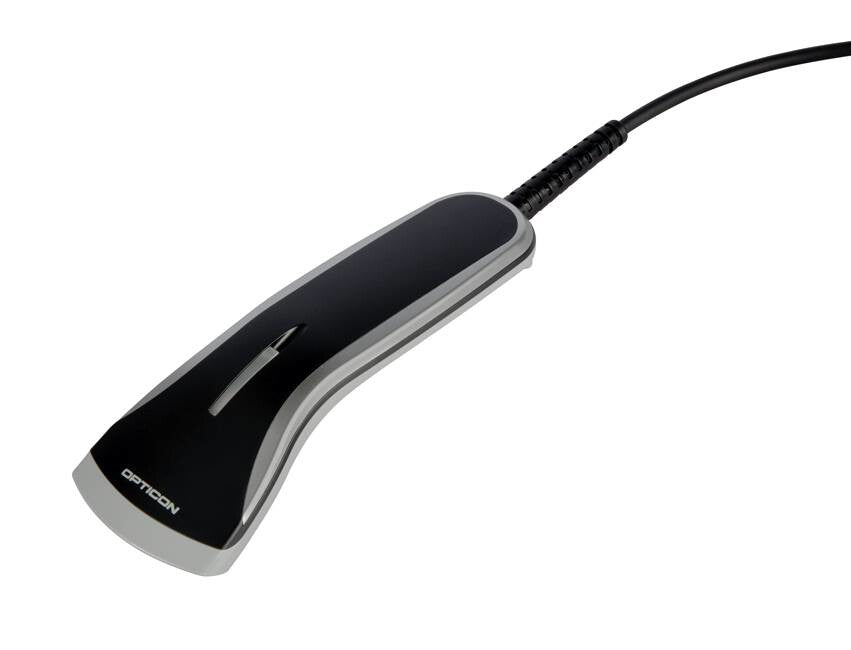

This sleek barcode reader features a compact and stylish yet lightweight design. The OPR2001's uniquely ergonomic design and comfortable housing not only makes it a natural fit to your hand, but also gives it a comfortable feel.

The OPR2001 features a speed of 100 scans per second. This high performance laser scanner provides a fast and accurate scan, even when barcodes are printed with low contrast.

Easy scanning

The integrated auto trigger mode together with the dedicated stand enables hands-free operation. Available in black and white, the OPR2001 uses very little counter space and blends well with other office furniture. This ultra-lightweight, yet solid scanner withstands drops up to 1.5 meter onto concrete.

Plug & play

Available in USB, RS232 and Keyboard Wedge connectivity options, the OPR2001 can easily be integrated into any host computer system as a plug and play device.

Scanning
Type Handheld bar code reader
Scanner type 1D
Linear (1D) barcodes supported Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128)
Sensor type Laser
Read rate (max) 100 reads/s
Light levels (direct sunlight) 0 - 50000 lx
Wavelength 650 nm
Tilt reading angle -20 - 20°
Pitch reading angle -35 - 35°
Yaw reading angle -20 - 20°
Ports & interfaces
Connectivity technology Wired
Standard interfaces USB
USB version 1.1
Cable length 1.5 m
Performance
Product colour Black, Grey
International Protection (IP) code IP42
LED indicators Yes
Buzzer Yes
Power
Power consumption 150 mA
Weight & dimensions
Width 56 mm
Depth 31 mm
Height 151 mm
Weight 60 g
Operational conditions
Operating relative humidity (H-H) 20 - 85%
Storage temperature (T-T) -20 - 60 °C
Operating temperature (T-T) -5 - 50 °C
Logistics data
Harmonized System (HS) code 84716070
