Opticon

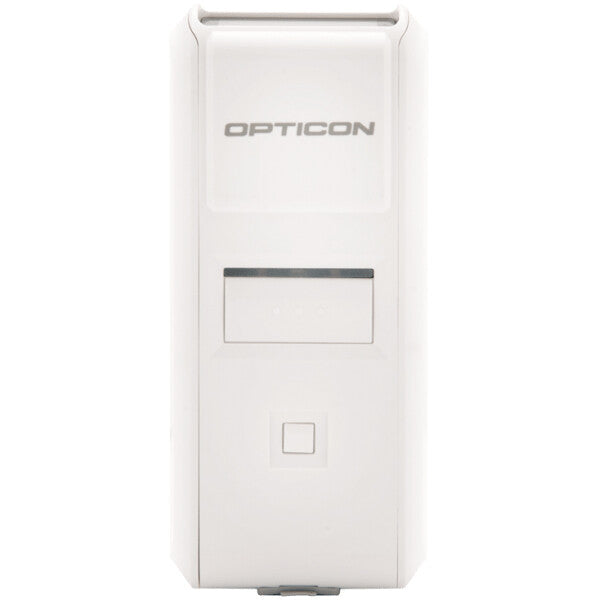

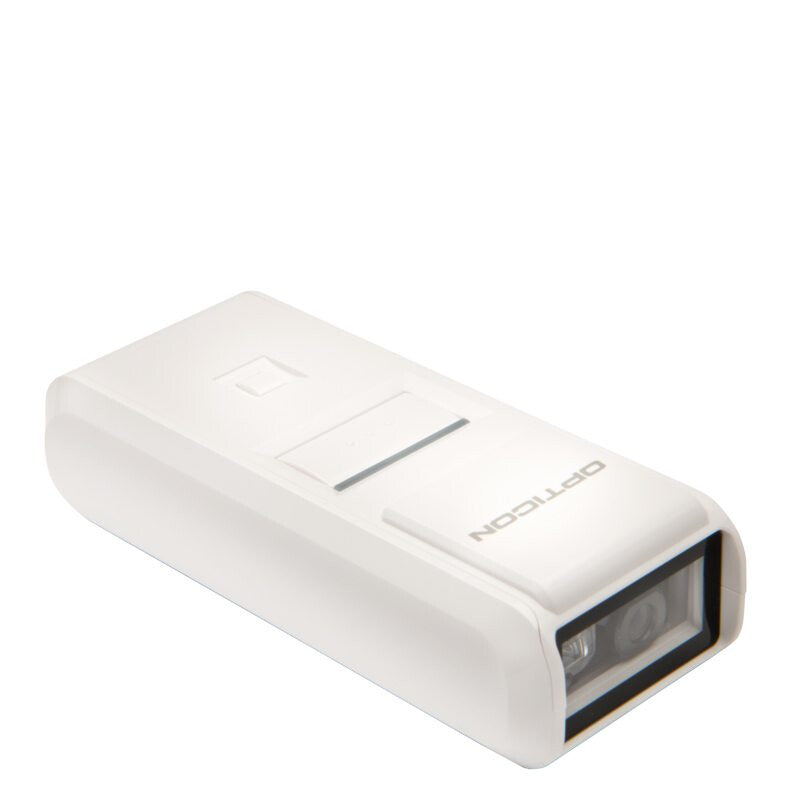

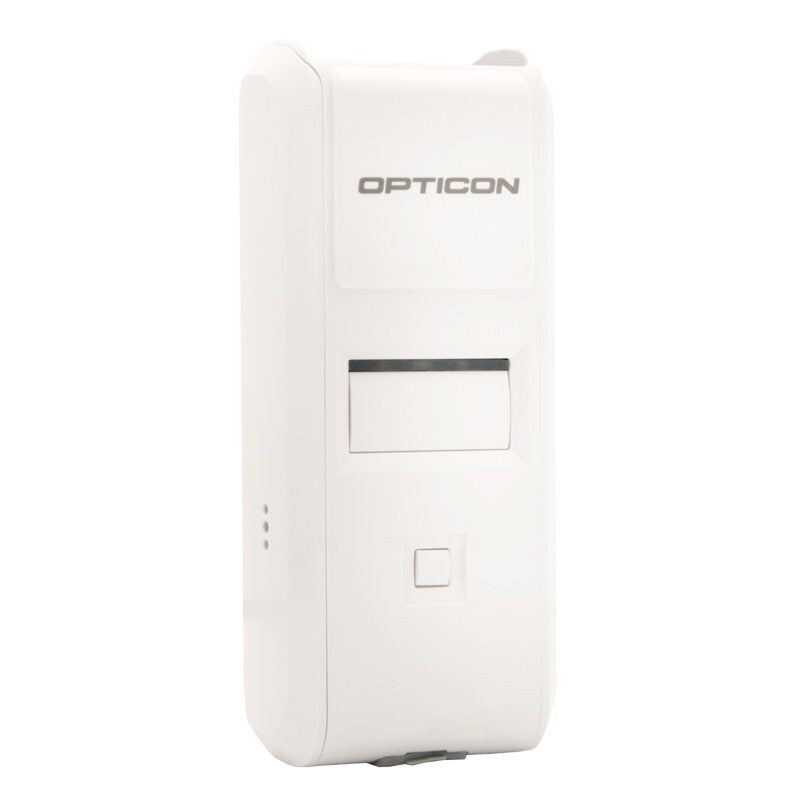

Opticon OPN-4000n Handheld bar code reader 1D CCD White

Opticon OPN-4000n Handheld bar code reader 1D CCD White

Regular price £126.25 GBP
Regular price Sale price £126.25 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:13443

Low stock: 10 left

  • Handheld bar code reader Acrylonitrile butadiene styrene (ABS) White
  • Scanner type: 1D Sensor type: CCD
  • Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, JAN, MSI, Plessey, Telepen, Trioptic, U.P.C.
  • Tilt reading angle: -25 - 25°
  • Built-in processor 96 MHz
  • Wireless Standard interfaces: Bluetooth
  • Power source type: Battery Lithium Polymer (LiPo) 600 mAh
CCD, 1D, LED, 1 MB Flash ROM, 96 kB SRAM, mini USB, Bluetooth 2.1, 36 x 83 x 21.5 mm

The OPN-4000 is a compact lightweight companion scanner that is easy to take with you and can connect to other devices through Bluetooth. The clean white design and the compact dimensions make this product look and feel state of the art. And rightfully so, as the CCD engine is powerful and the data transfer is fast.

Applications
The OPN-4000 enables organizations to integrate barcode scanning in their business process or service with a simple and to the point companion. Some of the uses include: Sales and service, retail point-of-sale, inventory management, asset tracking, visitor registration and inventory. Clearly a wide audience for such a versatile product.

How we describe the OPN-4000
This device is a CCD scanner with a very intuitive interface, is lightweight and fits in the palm of your hand. The Bluetooth enables the device for real-time data transfer. The scanner comes in two versions: version i and version n. The n is purely the OPN-4000 in all its glory, the I is the OPN-4000 with an special addition; It is Apple MFi certified. This means that it can connect to Apple products like the iPhone, iPod and iPad. When no Bluetooth connection can be made the OPN-4000 will store the data on the device until there is an connection again or when plugged in with an USB-cable.

Using the scanner is straightforward. No special training is needed as users only need to press a trigger key to operate and a reset key to control mistakes.

Features

A few highlights why the OPN-4000 should be in your hands:

- CCD scanning
- Apple MFi certified
- Bluetooth connection
- Lightweight

Scanning
Type Handheld bar code reader
Scanner type 1D
Linear (1D) barcodes supported Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, JAN, MSI, Plessey, Telepen, Trioptic, U.P.C.
2D (matrix & stacked) barcodes supported Not supported
Sensor type CCD
Tilt reading angle -25 - 25°
Pitch reading angle -50 - 50°
Yaw reading angle -65 - 65°
Optical sensor resolution 1500 pixels
Ports & interfaces
Connectivity technology Wireless
Standard interfaces Bluetooth
Bluetooth version 2.1+EDR
Performance
Product colour White
Housing material Acrylonitrile butadiene styrene (ABS)
International Protection (IP) code IP42
Keys quantity 4 keys
LED indicators Yes
Buzzer Yes
Internal memory 1 MB
Built-in processor Yes
Processor frequency 96 MHz
Certification CE, FCC, VCCI, IEC62471-1, EN60950-1, IEC60950-1, EN55022, EN 55022, EN 301 489-1 V1.9.2, EN 301 489-17 V2.1.1, EN 300 328 V1.7.1
Power
Power source type Battery
Battery technology Lithium Polymer (LiPo)
Number of batteries supported 1
Battery capacity 600 mAh
Battery voltage 3.7 V
Battery life 25 h
Weight & dimensions
Width 36 mm
Depth 21.5 mm
Height 83 mm
Weight 53 g
Packaging data
Cables included USB
Operational conditions
Operating relative humidity (H-H) 20 - 85%
Storage temperature (T-T) -20 - 60 °C
Operating temperature (T-T) 0 - 50 °C
Technical details
Compliance certificates RoHS
