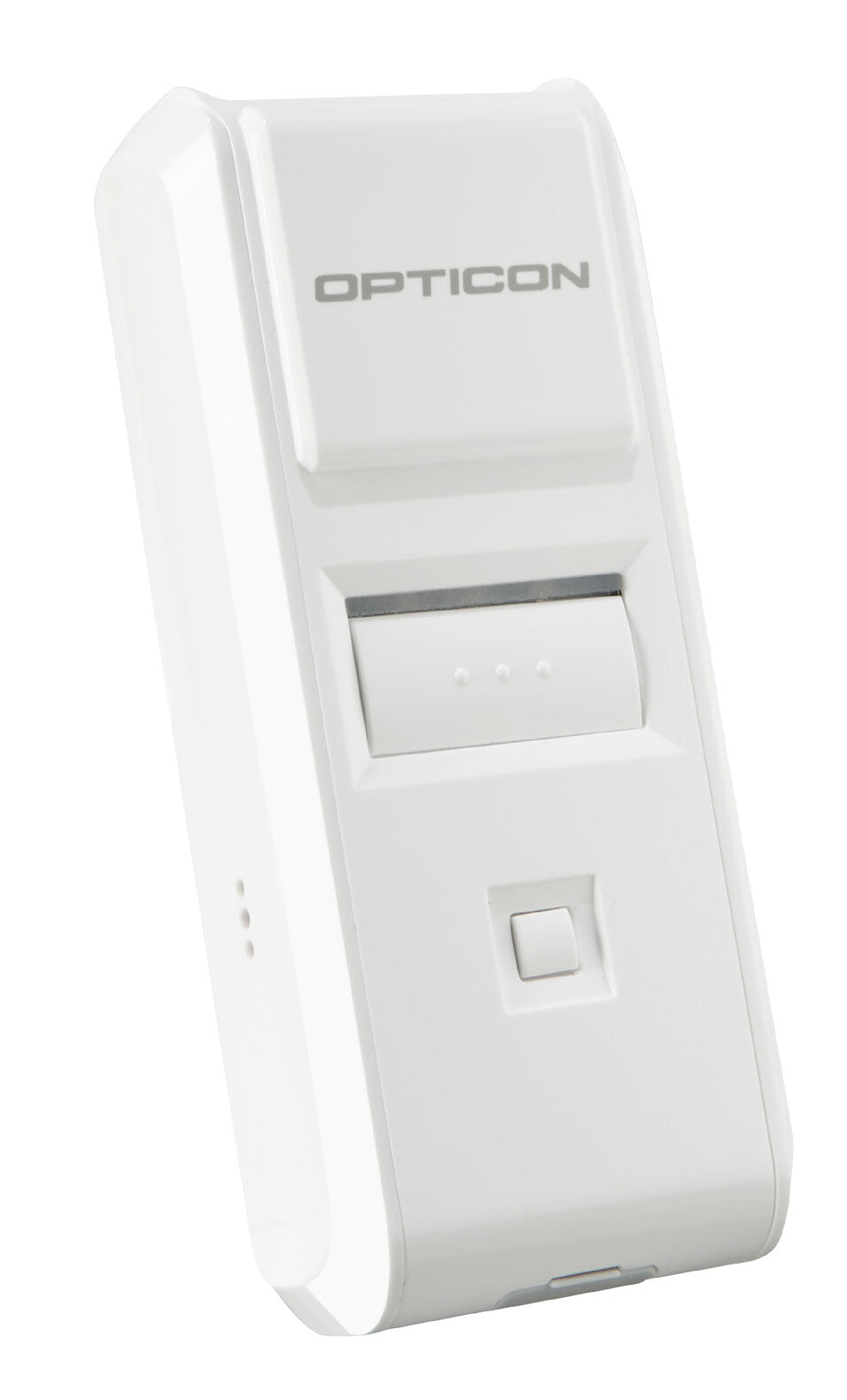

Opticon OPN-4000i Handheld bar code reader 1D CCD White

Opticon OPN-4000i Handheld bar code reader 1D CCD White

Regular price £136.82 GBP
Regular price Sale price £136.82 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:13442

Low stock: 7 left

  • Handheld bar code reader Acrylonitrile butadiene styrene (ABS) White
  • Scanner type: 1D Sensor type: CCD
  • Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1-128 (UCC/EAN-128), JAN, MSI, Plessey, S-Code, Telepen, Trioptic, U.P.C.
  • Tilt reading angle: -25 - 25°
  • Built-in processor 96 MHz
  • Wireless Standard interfaces: Bluetooth
  • Power source type: Battery Lithium Polymer (LiPo) 600 mAh
CCD, 1D, LED, 1 MB Flash ROM, 96 kB SRAM, mini USB, Bluetooth 2.1, 36 x 83 x 21.5 mm

The OPN-4000i Bluetooth Companion Scanner (CCD Linear Sensor) enables real-time barcode scanning into any Bluetooth ready device including Apple, Android and Windows. The OPN-4000i scanner is extremely small, easily sliding into a pocket or on a keychain making it an ideal solution for field sales and service, retail point-of-sale (POS), inventory management, asset tracking and many more.

Even though it features one of the industry’s most technically advanced CCD Linear Sensor scan engines, the OPN-4000i comes at a very affordable price point that enables any business to integrate barcode scanning into their mobile applications.

Product highlights include:

- CCD linear sensor rapidly scans and decodes 1D barcodes
- Ready-to-go out of the box, just pair it with your Bluetooth device
- Supports Apple MFi, SPP and HID Bluetooth profiles for added flexibility
- Memory: 1 MB Flash ROM, 96 kB SRAM
- Small form factor: weighs only 1.87 oz, 3.27 x 1.42 x 0.85 in (LxWxD)
- Audible and visible feedback after a successful scan
- USB rechargeable, high capacity Lithium-Ion battery
- Extremely durable and reliable with a comprehensive two-year warranty that protects your investment

Scanning
Type Handheld bar code reader
Scanner type 1D
Linear (1D) barcodes supported Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1-128 (UCC/EAN-128), JAN, MSI, Plessey, S-Code, Telepen, Trioptic, U.P.C.
2D (matrix & stacked) barcodes supported Not supported
Sensor type CCD
Tilt reading angle -25 - 25°
Pitch reading angle -50 - 50°
Yaw reading angle -65 - 65°
Optical sensor resolution 1500 pixels
Ports & interfaces
Connectivity technology Wireless
Standard interfaces Bluetooth
Bluetooth version 2.1+EDR
Performance
Product colour White
Housing material Acrylonitrile butadiene styrene (ABS)
International Protection (IP) code IP42
Keys quantity 4 keys
LED indicators Yes
Buzzer Yes
Internal memory 1 MB
RAM capacity 0.096 MB
Built-in processor Yes
Processor frequency 96 MHz
Certification CE, FCC, VCCI, IEC62471-1, EN60950-1, IEC60950-1, EN55022, EN 55022, EN 301 489-1 V1.9.2, EN 301 489-17 V2.1.1, EN 300 328 V1.7.1
Power
Power source type Battery
Battery technology Lithium Polymer (LiPo)
Number of batteries supported 1
Battery capacity 600 mAh
Battery voltage 3.7 V
Battery life 25 h
Weight & dimensions
Width 36 mm
Depth 21.5 mm
Height 83 mm
Weight 53 g
Packaging data
Cables included USB
Operational conditions
Operating relative humidity (H-H) 20 - 85%
Storage temperature (T-T) -20 - 60 °C
Operating temperature (T-T) 0 - 50 °C
Technical details
Compliance certificates RoHS
Logistics data
Harmonized System (HS) code 84716070
