Opticon
Opticon OPL-6845S Handheld bar code reader 1D Black
Opticon OPL-6845S Handheld bar code reader 1D Black
SKU:14164
17 in stock
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Up to a 100 scans per second
- Beautiful design
- Exchangeable cable
- Stand included

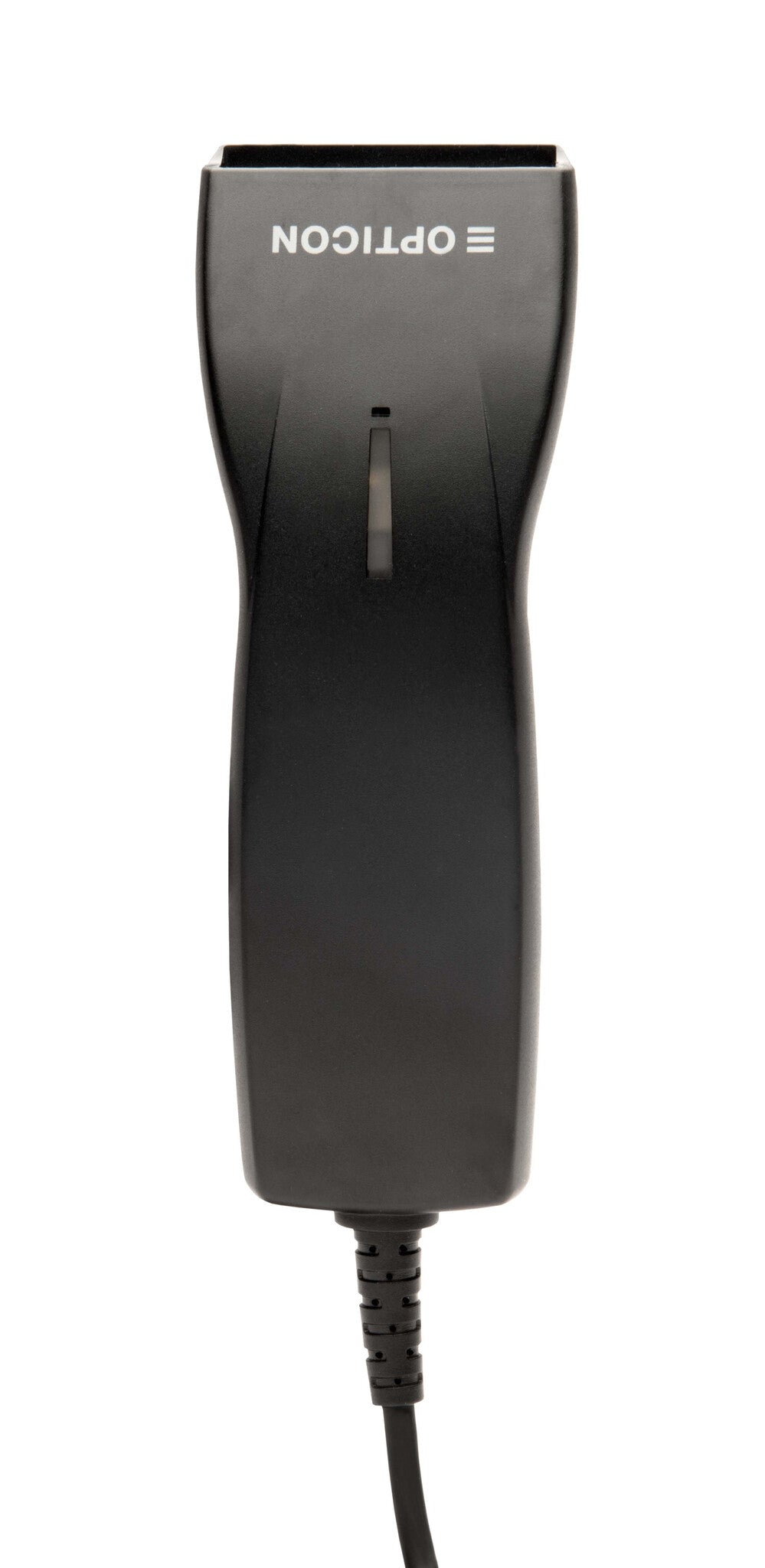

The OPL-6845S is an elegantly designed handheld scanner with a modern look and feel, and the option for hands-free scanning. It is the scanner that will look good on a check-out counter or service desk while providing rapid and accurate scanning.
Applications
The OPL-6845S is used in service and retail oriented environments due to the scanner being reliable to scan with and being non-reliant of a battery. This scanner is often bought to be used on service counters, retail check-out counters and smaller warehouses.
How we describe the OPL-6845S

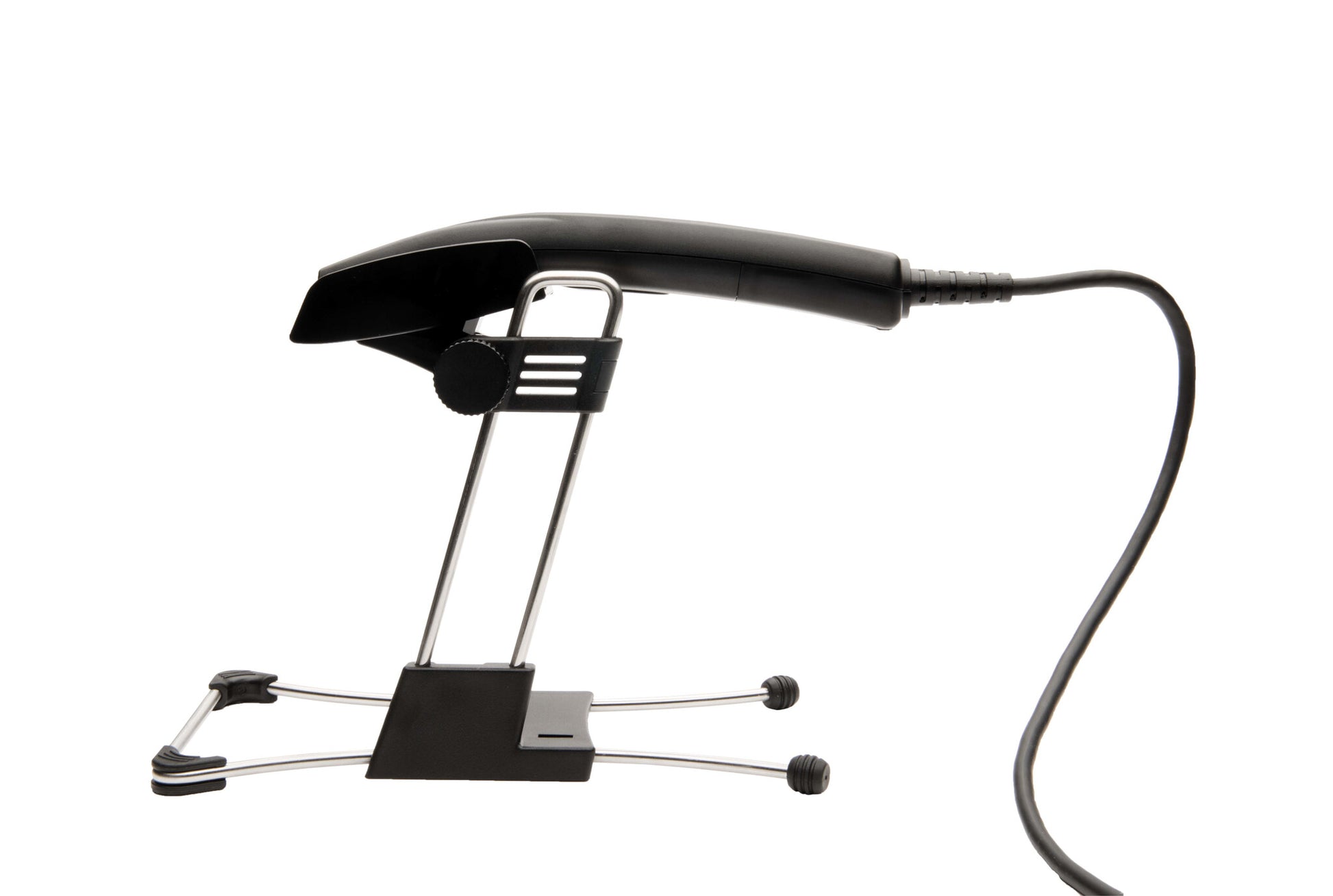

The OPL-6845S is a powerful laser scanner with a speed of a 100 scans per second. With an ergonomically sleek design this scanner is made to hold comfortably in your hand while scanning. The scanner has a manual trigger modus and an auto-trigger modus that, with the separately sold stand, can enable hands-free scanning. The plated base ensures motion stability during scanning and this scanner is IP42 rated; withstanding drops up on concrete from 1.5 meters.
| Scanning | |
|---|---|
| Type | Handheld bar code reader |
| Scanner type | 1D |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), Interleaved 2 of 5, JAN, MSI, Plessey, Telepen, Trioptic, U.P.C. |
| 2D (matrix & stacked) barcodes supported | Not supported |
| Read rate (max) | 100 reads/s |
| Wavelength | 650 nm |
| Tilt reading angle | -20 - 20° |
| Pitch reading angle | -35 - 35° |
| Yaw reading angle | -50 - 50° |
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| Standard interfaces | USB |
| USB version | 2.0 |
| Cable length | 2 m |
| Performance | |
|---|---|
| Product colour | Black |
| Housing material | Acrylonitrile butadiene styrene (ABS) |
| International Protection (IP) code | IP42 |
| Keys quantity | 1 keys |
| LED indicators | Yes |
| Buzzer | Yes |
| Certification | CE, FCC, VCCI, JIS-C-6802 2, IEC60825-1 2, FDA CDRH, II, EN55032, EN61000 B |
| Power | |
|---|---|
| Power source type | USB |
| Input voltage | 5 V |
| Power consumption | 135 mA |
| Weight & dimensions | |
|---|---|
| Width | 56.3 mm |
| Depth | 31.5 mm |
| Height | 161.1 mm |
| Weight | 75 g |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -30 - 60 °C |
| Operating temperature (T-T) | -5 - 50 °C |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Sustainability certificates | RoHS |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84716070 |
