Opticon

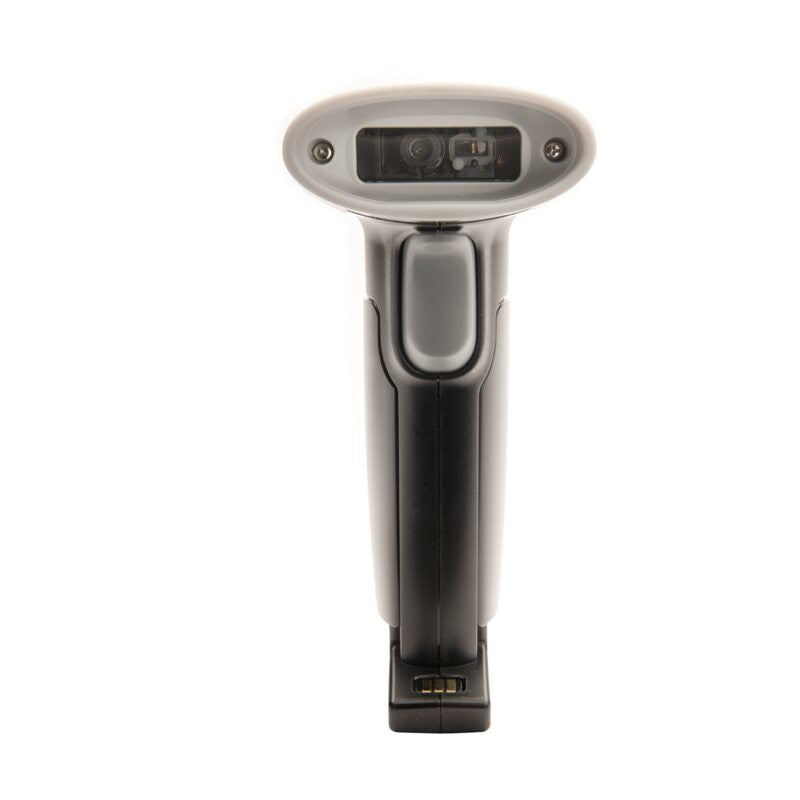

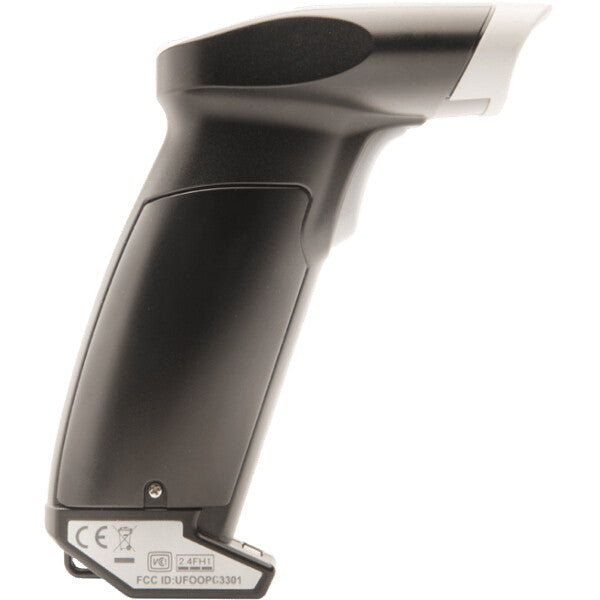

Opticon OPC-3301i Handheld bar code reader 1D CCD Black

Opticon OPC-3301i Handheld bar code reader 1D CCD Black

Regular price £144.07 GBP
Regular price Sale price £144.07 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:13724

Low stock: 10 left

  • 1D Scanning
  • Bluetooth connection
  • Lightweight
  • Plug and play
Wireless bluetooth, IP42, CCD (1D), black

The OPC-3301i is a compact wireless handheld CCD scanner that uses Bluetooth for real-time data transfer. It is easy to use and makes the user mobile while scanning. It can be connected to any Apple product due to the MFi certification. The OPC-3301i is a CCD scanner well worth its name.

Applications
This product is used in service environments, kiosks, store counters, warehouses, administrative services or tasks and retail. The OPC-3301i has a modern classic and clean look that fits perfectly on a counter or desk where no cables are desired. The CCD is more resistant to breaking since it has no oscillating mirrors.

How we describe the OPC-3301i
The OPC-3301i has a strong CCD scan engine and can read low-contrast, high density and regular barcodes. The scanner is Apple MFi certified which means it can connect to your iPad, iPhone or iPad. The CCD engine scans up to 300 scans per second which will improve productivity greatly. The scanners design is ergonomic with a comfortable scanning experience in mind. The scanner weighs only 120 grams and is IP 42 resistant. This is the CCD scanner version of the OPI-3301i

The operator of this scanner does not require any training in detail, the minimum guidance is sufficient. This device is a scanner that looks good in any store, office or warehouse.

Scanning
Type Handheld bar code reader
Scanner type 1D
Linear (1D) barcodes supported Code 128, Code 39, Code 93, GS1 DataBar Expanded, GS1-128 (UCC/EAN-128), Interleaved 2 of 5, Plessey, S-Code, Telepen, Trioptic
Sensor type CCD
Read rate (max) 300 reads/s
Tilt reading angle 0 - 25°
Pitch reading angle -50 - 50°
Yaw reading angle -65 - 65°
Ports & interfaces
Connectivity technology Wireless
Standard interfaces Bluetooth
Wireless range 10 m
Bluetooth version 2.1+EDR
Performance
Product colour Black
Housing material Acrylonitrile butadiene styrene (ABS)
International Protection (IP) code IP42
Buzzer Yes
Built-in display No
RAM capacity 1 MB
Certification CE, FCC, VCCI, MFi, RoHS, IEC 62471, IEC60950-1
Power
Power source type Battery
Battery technology Lithium-Ion (Li-Ion)
Battery capacity 1100 mAh
Battery voltage 3.7 V
Battery life 72 h
Charging time 3 h
Power consumption 15 mA
Weight & dimensions
Width 113 mm
Depth 56 mm
Height 132 mm
Weight 127 g
Packaging data
Charging base No
Package width 130 mm
Package depth 32 mm
Package height 116 mm
Package weight 41 g
Operational conditions
Storage relative humidity (H-H) 20 - 85%
Operating relative humidity (H-H) 20 - 85%
Storage temperature (T-T) -20 - 60 °C
Operating temperature (T-T) 0 - 50 °C
Logistics data
Harmonized System (HS) code 84716070
