Opticon

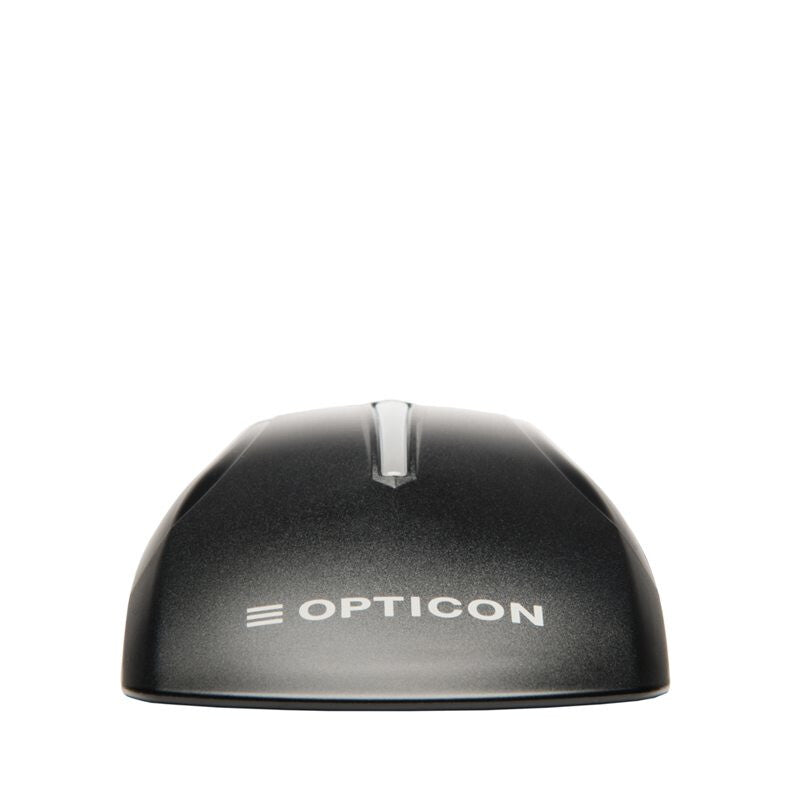

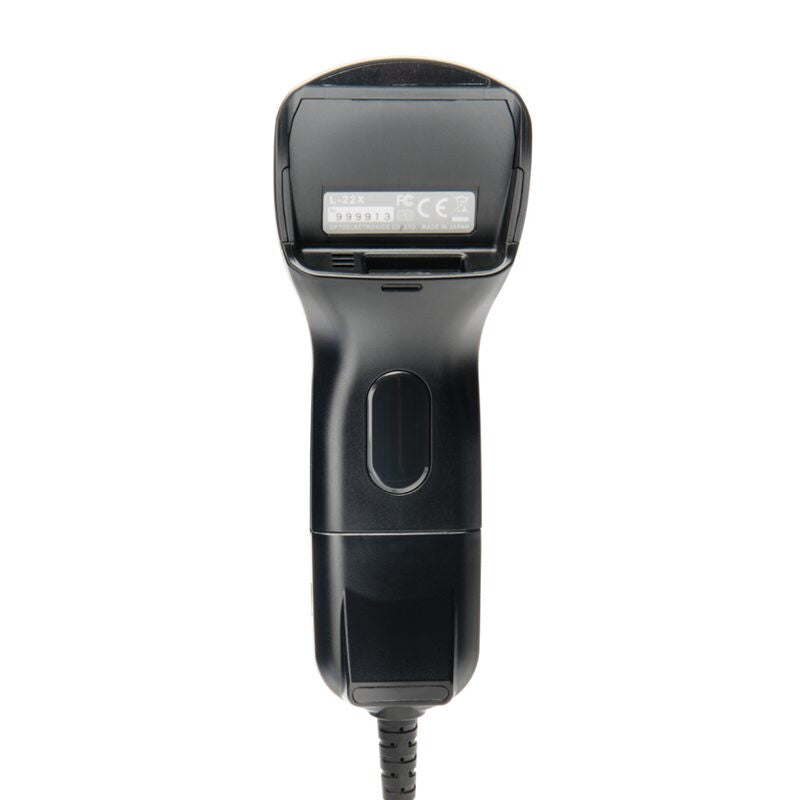

Opticon L-22X Handheld bar code reader 2D CMOS Black

Opticon L-22X Handheld bar code reader 2D CMOS Black

Regular price £162.41 GBP
Regular price Sale price £162.41 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:14009

Low stock: 1 left

  • Handheld bar code reader Black
  • Scanner type: 2D Sensor type: CMOS
  • Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1-128 (UCC/EAN-128), JAN, U.P.C. Codablock, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code
  • Wired Standard interfaces: USB, RS-232
  • Power source type: AC
ARM Coretex-A7, 800MHz, 165.3 × 62.2 × 31.4 mm

The L-22X is a welcome addition to our cabled scanners product range. The 2D image scanner has a modern design, scans at a speed of 100 fps and is designed to balance perfectly in your hand. As a result the scanner delivers a comfortable scan experience.

Applications
The L-22X is a cabled scanner that scans both 1D and 2D at a fast speed. Therefor this scanner is very suitable for retail and service tasks, like a check-out counter or on a service desk. This scanner is also used in some postal appliances, warehouses and healthcare business processes.

How we describe the L-22X
The L-22X is a fast 2D imager that scans at a fast speed of 100 frames per second. The scanner is lightweight and ergonomically designed so it balances perfectly in your hand.Furthermore, the cabled scanner comes with USB or RS-232 and in either black or white. The black or white combined with the sleek design will make sure that the scanner will look good on any counter or service desk.

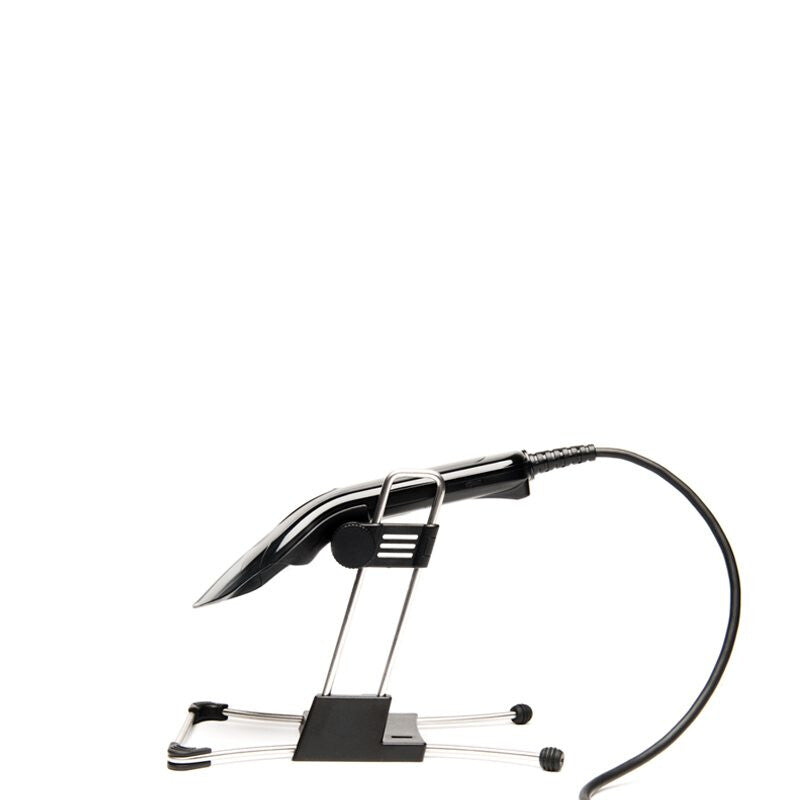

In addition, the device is delivered with a stand that activates the auto-trigger enabling hands free scanning action. Moreover the device is sealed up to IP42 and is resistance to drop of 1.5 meters onto a concrete floor.

Features
The L-22X should be your next cabled scanner and here is why:

- 1D & 2D scanning at 100 fps
- Ergonomic design
- Auto trigger modus
- Delivered with stand

Scanning
Linear (1D) barcodes supported Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1-128 (UCC/EAN-128), JAN, U.P.C.
Sensor type CMOS
2D (matrix & stacked) barcodes supported Codablock, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code
Scanner type 2D
Type Handheld bar code reader
Ports & interfaces
Standard interfaces USB, RS-232
Connectivity technology Wired
Performance
Certification CE, FCC, VCCI Class B, RoHS, IEC-61000-4-2,EN55032, EN55024 (EN61000-6-1) Class-B
International Protection (IP) code IP42
Product colour Black
Power
Input voltage 5 V
Power source type AC
Weight & dimensions
Weight 150 g
Height 62.2 mm
Depth 31.4 mm
Width 165.3 mm
Operational conditions
Operating temperature (T-T) -5 - 50 °C
Storage temperature (T-T) -30 - 60 °C
