Opticon C37 CCD Black
Opticon C37 CCD Black
SKU:12305
Low stock: 2 left
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Black
- Sensor type: CCD
- Tilt reading angle: -20 - 20°
- Standard interfaces: USB, RS-232

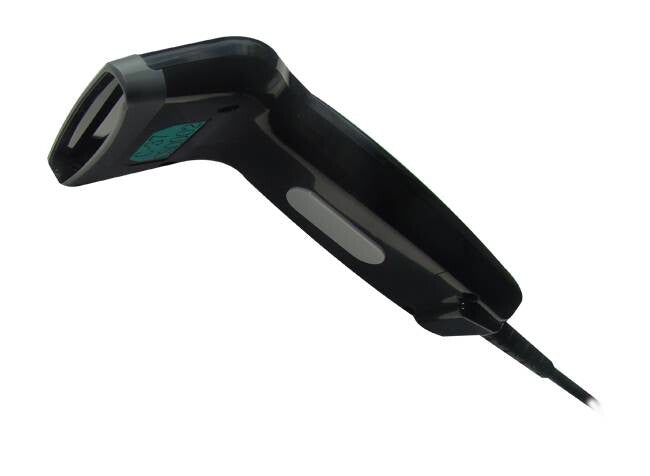

The C37 is a durable CCD scanner with a wide optical window. With its aggressive scan engine the C37 operates at a speed of 200 scans per second. Available in black and white, this sleek scanner fits on every desk.
This lightweight and ergonomically shaped device fits comfortably in anyone's hand, making it suitable for all-day scanning applications.
The C37 is available with the most popular interfaces: USB, Keyboard Wedge and RS232. This device is easily programmable to suite your application.
| Scanning | |
|---|---|
| Decoding standards | JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 Databar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSM-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic,UK/PlesseyChinese Post, Korean Postal Authority code |
| Yaw reading angle | 20 - 70° |
| Pitch reading angle | -35 - 35° |
| Tilt reading angle | -20 - 20° |
| Wavelength | 650 nm |
| Read rate (max) | 200 reads/s |
| Sensor type | CCD |
| Ports & interfaces | |
|---|---|
| Bluetooth | No |
| Standard interfaces | USB, RS-232 |
| Performance | |
|---|---|
| Certification | CE, FCC, VCCI, RoHS |
| Buzzer | Yes |
| International Protection (IP) code | IP42 |
| Product colour | Black |
| Power | |
|---|---|
| Input voltage | 6 V |
| Weight & dimensions | |
|---|---|
| Weight | 90 g |
| Packaging data | |
|---|---|
| Package height | 60 mm |
| Package depth | 130 mm |
| Package width | 240 mm |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84716070 |
| Other features | |
|---|---|
| Dimensions (WxDxH) | 53 x 150 x 75 mm |
| Light source | LED |
