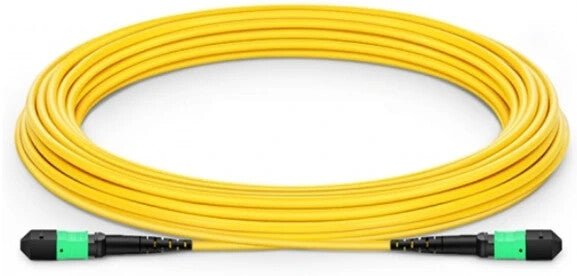

Nvidia MFP7E30-N015 InfiniBand/fibre optic cable 15 m MPO OFNR Yellow

• Flexible round outer jacket for easier installation
• Push-pull latching for quick release
• Female-to-Female connectors
• 9/125 µm Single-Mode fibers
• 150m max reach
• Telcordia GR-1435 compliant
• IEC Standard Connectors:
• MPO: IEC 61754-7 and ANSI/TIA/EIA 604-5-199
• OFNR/LSZH (low smoke zero halogen) jacket
• Supports InfiniBand, Ethernet and NVLink protocols

The NVIDIA MFP7E30-Nxxx, MPO-12/APC-to-MPO12/APC (8 fibers) passive optical single-mode cable, is designed for linking InfiniBand and Ethernet multimode twin-port OSFP and single-port OSFP and QSFP112 transceivers together.

The Multiple Push On, 12 fiber, Angled Polished Connectors (MPO-12/APC) uses 8 active fibers to transmit light and 4 inactive fibers as strength members. The Angled Polished Connector has a 8-degree polished angle to deflect internal optical back reflections from entering the transceivers and distorting the signal quality.

Twin-port OSFP 800Gb/s transceivers support two, 4-channel fibers which are linked to other twin-port OSFP, single-port OSFP or QSFP112 400Gb/s transceivers.

The fibers are “crossover”, Type-B cables, which enables directly attaching two transceivers together and allow the transmit laser fiber on pin 1 to “crosses over” and align with pin 12 of the opposite fiber end transceiver photodetector.

A typical usecase is linking twin-port OSFP switches to each other, and to ConnectX-7® network adapters and/or BlueField-3® Data Processing Units (DPUs) in compute and storage servers.

Rigorous cable production testing ensures best out-of-the-box installation experience, performance, and durability. Mellanox optical solutions provide short, medium, and long reach scalability for all topologies, utilizing innovative optical technologies to enable high signal integrity and reliability.
