Newland

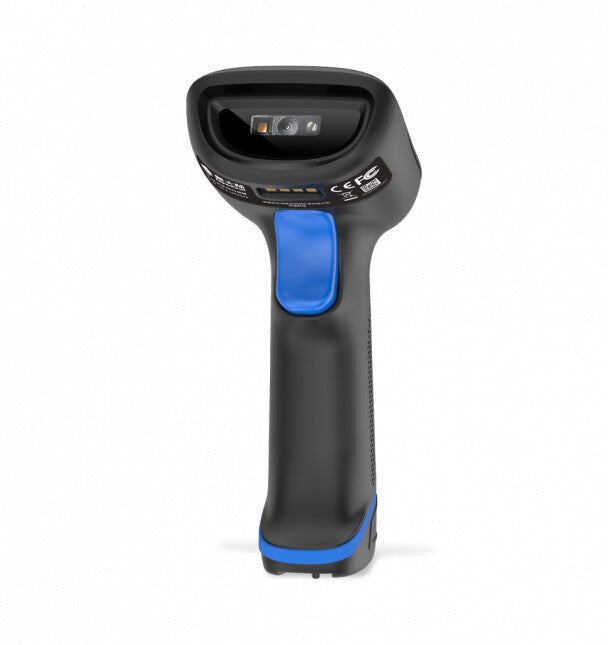

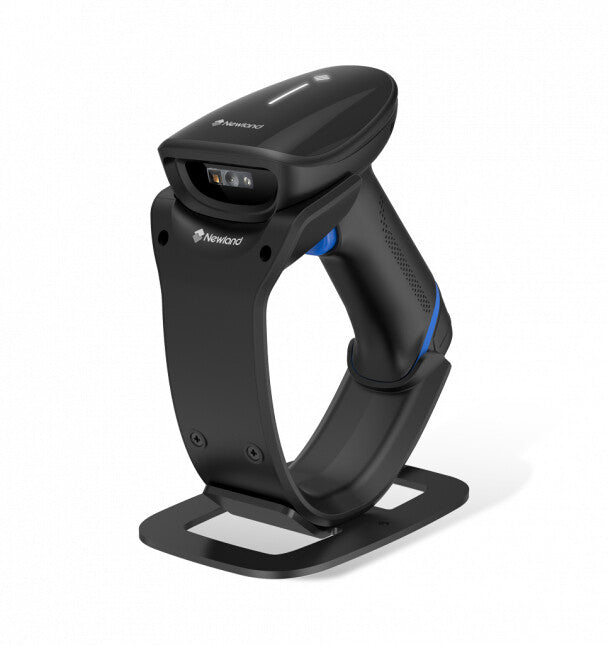

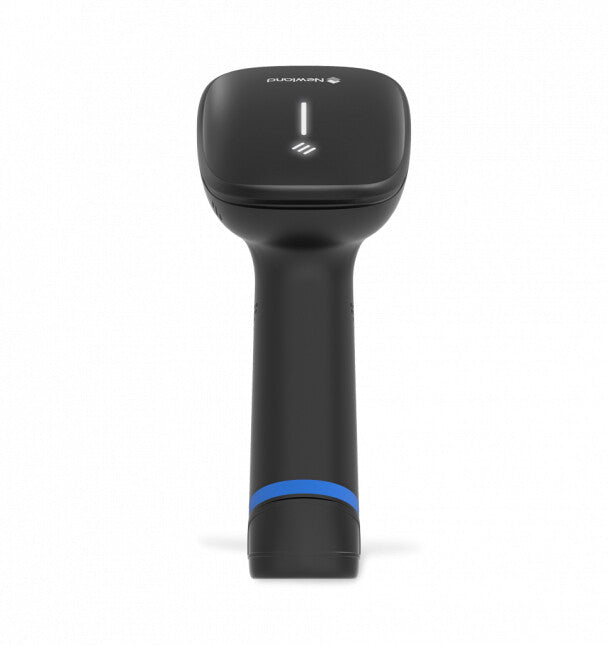

Newland HR22 Dorada II 2D CMOS Handheld bar code reader 1D/2D Black

Newland HR22 Dorada II 2D CMOS Handheld bar code reader 1D/2D Black

Regular price £127.49 GBP
Regular price Sale price £127.49 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:NLS-HR2300-BT

41 in stock

  • Handheld bar code reader Black
  • Scanner type: 1D/2D Sensor type: CMOS
  • AIM-128, Codabar, Code 11, Code 128, Code 39, EAN-13, EAN-8, GS1 Databar RSS14, ISBN, ISSN, ITF-14, ITF-6, Interleaved 2 of 5, MSI-Plessey, Matrix 2 of 5, Plessey, UPC-A, UPC-E Aztec Code, Data Matrix, Micro QR Code, MicroPDF417, PDF417, QR Code
  • 640 x 480 pixels
  • Built-in processor
  • Wireless Standard interfaces: Bluetooth
  • Power source type: Battery Lithium-Ion (Li-Ion) 2600 mAh
1D & 2D, 2600 mAh, CMOS, Bluetooth 5.0, USB, IP52, EasySet

The HR23 Dorada Bluetooth offers the best cordless 2D scanning at the price of a 1D scanner, thanks to Newland’s advanced decoding technology. With its blended ergonomics and creative design, the HR23 Dorada offers comfort and productivity for quickly capturing barcodes. The HR23 Dorada Bluetooth is ideal for intensive handheld scanning, from high-density to damaged, vague, and distorted barcodes.

Dorada’s replaceable Battery
If the 12 hours of continuous use the battery gives the HR23 is not enough, the latest Bluetooth device in the Dorada series comes with an easily removable battery, which allows for uninterrupted usage and enhances operational efficiency. Furthermore, the device has a new charging contact design ensures reliable and long-lasting connections, significantly improving the battery life-cycle compared to its predecessor.

Enhanced Connectivity
The HR23 Dorada, like the HR22, comes with Bluetooth 5.0 connectivity. However, we have taken it up a notch and increased its wireless range up to 100 meters in open spaces to enhance our customers' flexibility. Moreover, the HR23 Dorada ensures seamless synchronous, asynchronous, and batch communication modes for all scanning requirements.

Rugged Reliability
With an IP52 rating and the ability to survive a 1.5m drop onto concrete, the HR23 Dorada is well-suited to any environment and is an ideal companion for demanding scanning tasks.

Advanced Scanning
The HR23 Dorada is a scanning device equipped with the latest Newland key decoding technology. It can scan all types of barcodes, even those that are distorted, damaged, or high-density. The device's field of view covers both horizontal and vertical directions. Additionally, the HR23 Dorada offers a seamless scanning experience, allowing for a smooth transition from 1D to 2D scanning. All these features come at an entry-level price, making it an affordable option for those looking for a reliable and efficient scanning device.

Stylish and comfortable
The HR23 Dorada boasts a well-balanced and ergonomic design, allowing the scanner to fit perfectly in the user's hand. Its lightweight and simple yet innovative design provides comfort and high productivity for tasks performed with efficiency.

Easyset Compatible
The HR23 Dorada comes with EasySet, a configuration software developed by Newland. This software simplifies the scanner configuration process, making it easy and efficient for users. They can send the configuration directly to the scanner, save it for future deployment on other scanners, or display it as a series of barcodes in a single document.

Scanning
Type Handheld bar code reader
Scanner type 1D/2D
Linear (1D) barcodes supported AIM-128, Codabar, Code 11, Code 128, Code 39, EAN-13, EAN-8, GS1 Databar RSS14, ISBN, ISSN, ITF-14, ITF-6, Interleaved 2 of 5, MSI-Plessey, Matrix 2 of 5, Plessey, UPC-A, UPC-E
2D (matrix & stacked) barcodes supported Aztec Code, Data Matrix, Micro QR Code, MicroPDF417, PDF417, QR Code
Sensor type CMOS
Optical sensor resolution (W x H) 640 x 480 pixels
Pitch reading angle -60 - 60°
Ports & interfaces
Connectivity technology Wireless
Standard interfaces Bluetooth
Wireless range 100 m
Bluetooth version 5.0
Performance
Product colour Black
International Protection (IP) code IP52
Built-in display No
Print contrast 20%
Built-in processor Yes
Power
Power source type Battery
Battery technology Lithium-Ion (Li-Ion)
Battery type Built-in battery
Number of batteries supported 1
Battery capacity 2600 mAh
Battery voltage 5 V
Charging time 6 h
Weight & dimensions
Width 117.5 mm
Depth 67.5 mm
Height 144 mm
Base weight 340.5 g
Weight 209 g
Packaging data
Charging base Yes
Operational conditions
Storage relative humidity (H-H) 5 - 95%
Operating relative humidity (H-H) 5 - 95%
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) -10 - 50 °C
Technical details
Sustainability compliance Yes
Other features
Quick start guide Yes
