Netgear

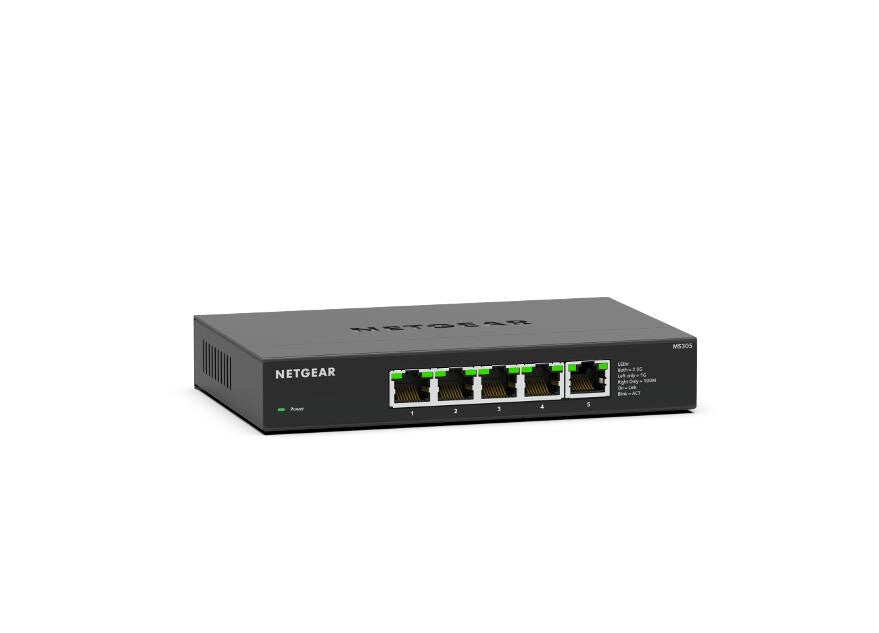

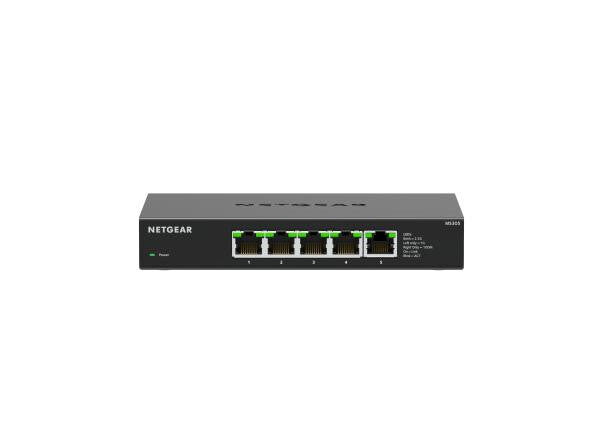

NETGEAR MS305-100EUS network switch Unmanaged 2.5G Ethernet (100/1000/2500) Black

NETGEAR MS305-100EUS network switch Unmanaged 2.5G Ethernet (100/1000/2500) Black

Regular price £178.08 GBP
Regular price Sale price £178.08 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:MS305-100EUS

Low stock: 1 left

  • Unmanaged
  • Quality of Service (QoS) support
  • Basic switching RJ-45 Ethernet ports quantity: 5
  • DC Power supply included
5-Port, 2.5 G, 9.24W, 158 x 101 x 29 mm, 480 g

The NETGEAR 5-port Multi-Gigabit Unmanaged Switch, MS305, helps businesses cost-effectively expand their networks with multi-gig speeds. The MS305 Multi-Gigabit Ethernet switch comes with five (5) 2.5G ports in a metal case and can be placed on a desk or mounted on a wall with the included wall mount kit. This switch is energy efficient, built to last, and rigorously tested to provide the reliability businesses need. 802.1p traffic prioritization and jumbo frame support allow for seamless integration with more sophisticated networks.

RELIABLE PERFORMANCE
Superior network performance at non-blocking rate delivers true Multi-Gig speed with no compromise

ENERGY EFFICIENT
Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected

PLUG-AND-PLAY
No software to install. No configuration needed. Zero maintenance required

SILENT OPERATION
The fanless design means zero added noise wherever its located, making it ideal for noise-sensitive environments

VERSATILE MOUNTING OPTIONS
Install your switch on your desktop, or mount it to your wall with the hardware provided in the box.

Management features
Quality of Service (QoS) support Yes
Switch type Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports type 2.5G Ethernet (100/1000/2500)
Basic switching RJ-45 Ethernet ports quantity 5
Network
Cable length detection Yes
Head-of-line (HOL) blocking Yes
Auto MDI/MDI-X Yes
Ethernet LAN data rates 100,1000,2500 Mbit/s
Half duplex Yes
Full duplex Yes
Networking standards IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
Data transmission
Packet buffer memory 1 MB
Jumbo frames 9720
Jumbo frames support Yes
Latency (1 Gbps) 2458 µs
Forwarding rate 3.72 Mpps
Design
Number of fans 0 fan(s)
Wall mountable Yes
LED indicators Yes
Housing material Metal
Product colour Black
Stackable No
Rack mounting No
Performance
Mean time between failures (MTBF) 1401743 h
Fanless Yes
Noise level 0 dB
Technical details
Compliance certificates CCC, Low Voltage Directive (LVD)
Power
Power consumption (max) 9.24 W
Power consumption (typical) 4.6 W
Input voltage 12 V
Input current 1 A
DC input voltage 12 V
Power supply included Yes
Power source DC
Power over Ethernet (PoE)
Power over Ethernet (PoE) No
Operational conditions
Operating altitude 0 - 3000 m
Storage relative humidity (H-H) 0 - 95%
Operating relative humidity (H-H) 0 - 90%
Storage temperature (T-T) -20 - 70 °C
Operating temperature (T-T) 0 - 40 °C
Weight & dimensions
Weight 480 g
Height 29 mm
Depth 101 mm
Width 158 mm
View full details
