Energy Efficient Ethernet for maximum power savings
Dynamic fans for quiet operation
Rackmount or desktop

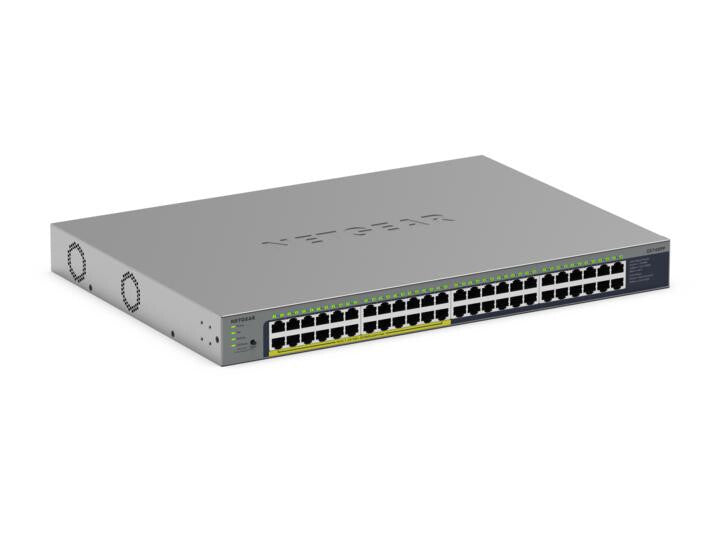

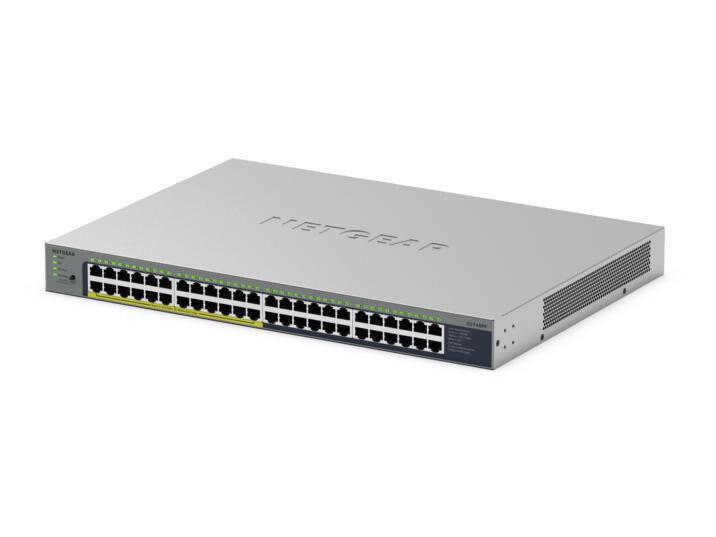

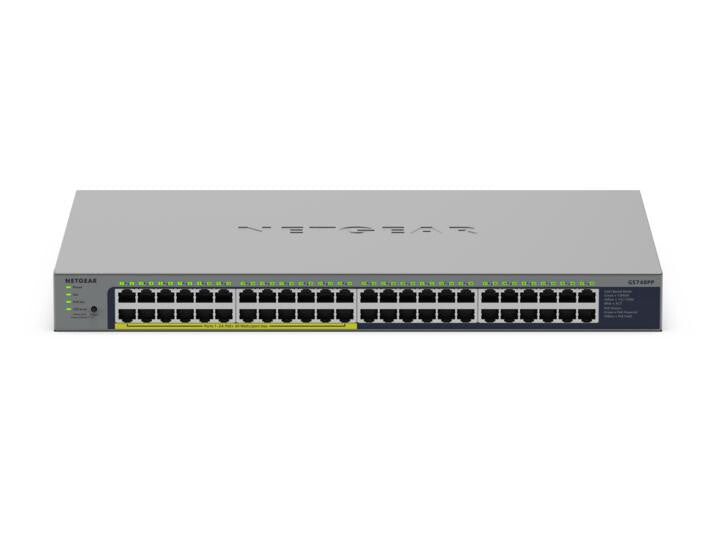

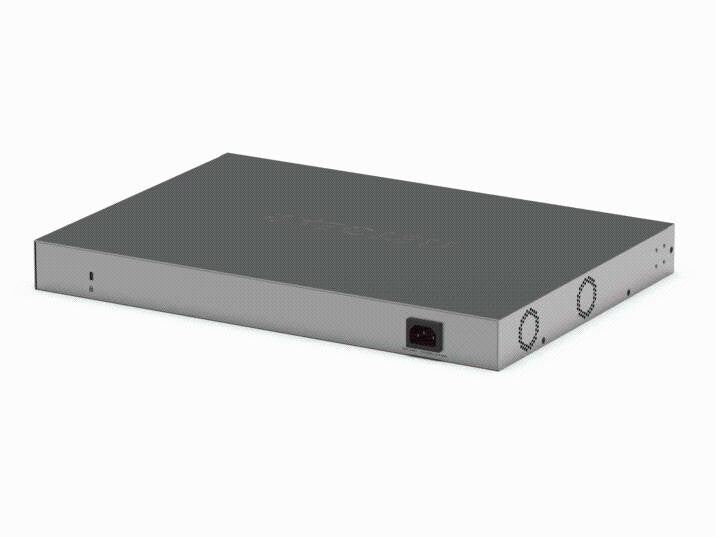

48-Port, 1 Gbit/s, 8K, 1.5 MB, 380 W, 0-50°C, Grey, 440 x 310 x 43 mm, 4.6 kg
POWER-OVER-ETHERNET
24 PoE+ ports delivering up to 30W per port with a 380W total power budget for wireless APs, IP Cameras, IP Phones and much more. Dynamic PoE maximizes usage of PoE budget.
PLUG-AND-PLAY
Simple set up with no software to install or configuration needed
NON-BLOCKING SWITCHING
Non-blocking switching architecture for maximum throughput at wire speed
DYNAMIC FANS
Optimal balance between noise and performance.
VERSATILE MOUNTING OPTIONS
Install your switch on your desktop or mount it to your rack with the hardware provided in the box
ENERGY EFFICIENT
Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected
Management features
MIB support
RFC 1213 MIB II, RFC 1643, RFC 1493
Quality of Service (QoS) support
Yes
Switch type
Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity
48
Network
Flow control support
Yes
Link aggregation
Yes
Ethernet LAN data rates
1000 Mbit/s
Full duplex
Yes
Copper ethernet cabling technology
10BASE-T
Networking standards
IEEE 802.1p, IEEE 802.3az
Data transmission
Packet buffer memory
1.5 MB
Jumbo frames
12.288
Jumbo frames support
Yes
Maximum data transfer rate
1 Gbit/s
MAC address table
8000 entries
Design
Safety
CE mark, cUL IEC950/EN60950
Number of fans
2 fan(s)
Redundant fans support
Yes
Product colour
Grey
Rack mounting
Yes
Performance
Mean time between failures (MTBF)
570972 h
Technical details
Compliance certificates
CB, CE, Federal Communications Commission (FCC), KC, Low Voltage Directive (LVD), RCM, UL, VCCI
Warranty period
2 year(s)
Power
Power consumption (max)
410 W
Input current
8 A
AC input frequency
50/60 Hz
AC input voltage
100 - 240 V
Power source
AC/DC
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget
380 W
Power over Ethernet (PoE) power per port
30 W
Power over Ethernet (PoE)
Yes
Operational conditions
Heat dissipation
34.2 BTU/h
Operating altitude
0 - 3000 m
Operating relative humidity (H-H)
10 - 90%
Storage temperature (T-T)
-20 - 70 °C
Operating temperature (T-T)
0 - 50 °C
Weight & dimensions
Weight
4.6 kg
Height
43 mm
Depth
310 mm
Width
440 mm
Other features
I/O ports
48 x 10/100/1000 Mbps4 x SFP
Electromagnetic emissions
CE mark, FCC Part 15 Class A, VCCI Class A, C-Tick
