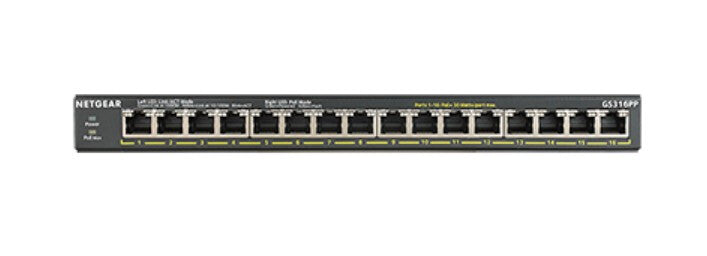

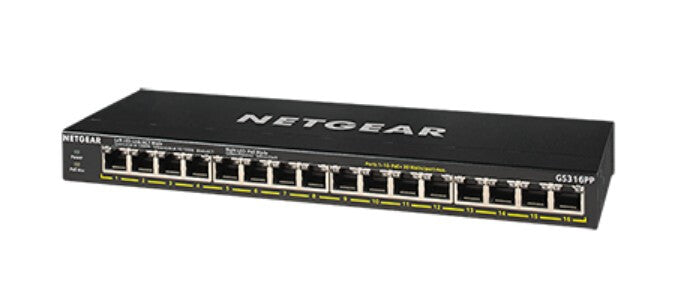

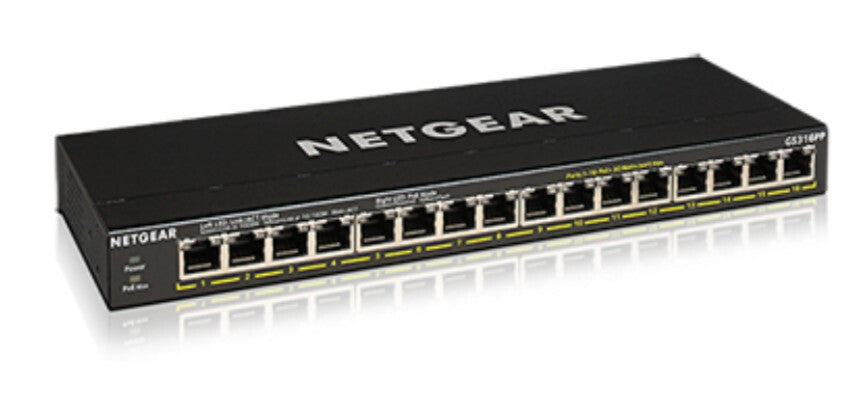

NETGEAR GS316PP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

NETGEAR GS316PP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Regular price £222.60 GBP
Regular price Sale price £222.60 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:GS316PP-100EUS

Low stock: 6 left

  • ETHERNET PORT CONFIGURATION: 16 Gigabit ports
  • POWER-OVER-ETHERNET: 16 PoE+ ports with 183W total power budget for high-power PoE devices
  • POE POWER AUTO-BALANCE AND ALLOCATION - NETGEAR’s unique PoE technology automatically balances the PoE power at the most granular level on each port, depending on the device needs
  • PLUG-AND-PLAY: Simple set up with no software to install or configuration needed
  • VERSATILE MOUNTING OPTIONS: Supports desktop, wall or rackmount placement, and includes all the necessary mounting hardware in the box
  • Energy-efficient technology for power savings
  • Auto-MDI/MDIX eliminates the need for crossover cables
  • Non-blocking switching architecture for maximum throughput at wire speed
  • Auto-negotiation for automatic connection at the highest common speed between switch and an end device
GS316PP - 16-Port GB PoE+ unmanaged Switch 183W FlexPoE

NETGEAR 300 Series Gigabit Ethernet Unmanaged Switches with PoE provide easy, reliable, and affordable network connectivity for home and small offices. With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly.

The unmanaged switches provides power and data from a single Ethernet (CAT-5e) cable to devices such as IP cameras, VoIP/ Internet-based phones, wireless access points, etc. The majority of these models also support PoE power auto-balance and allocation feature.

NETGEAR’s unique PoE technology automatically balances the PoE power based on the device needs independent of PoE class detected. These switches deliver the power the device needs, at the most granular level.

Management features
Quality of Service (QoS) support Yes
Switch type Unmanaged
Ports & interfaces
Power connector DC-in jack
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity 16
Network
Auto-sensing Yes
Flow control support Yes
Auto MDI/MDI-X Yes
Auto-negotiation Yes
Full duplex Yes
10G support No
Networking standards IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Data transmission
Packet buffer memory 1 MB
Packet forwarding rate (1 Gbps) 1448000 pps
Jumbo frames 9216
Jumbo frames support Yes
Latency (1 Gbps) 3.7 µs
Switching capacity 32 Gbit/s
MAC address table 4000 entries
Security
Queue scheduling algorithms Weighted Round Robin (WRR)
Design
Certification CE, FCC Part A, IC A, RCM, VCCI, BSMI, KC, CB, CE LVD
Wall mountable Yes
LED indicators Activity, Link, PoE, Power, Speed
Housing material Metal
Product colour Black
Rack mounting No
Performance
Mean time between failures (MTBF) 2362192 h
Power
Power consumption (max) 195.9 W
Input current 3.7 A
DC input voltage 54 V
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget 183 W
Power over Ethernet (PoE) power per port 30 W
Power over Ethernet plus (PoE+) ports quantity 16
Power over Ethernet (PoE) Yes
Operational conditions
Heat dissipation 669.9 BTU/h
Operating altitude 0 - 3000 m
Operating relative humidity (H-H) 0 - 90%
Storage temperature (T-T) -20 - 70 °C
Operating temperature (T-T) 0 - 40 °C
Weight & dimensions
Weight 880 g
Height 27 mm
Depth 102 mm
Width 286 mm
Logistics data
Harmonized System (HS) code 85176990
