SKU: GS316P-100EUS
Low stock: 6 left
Choice of Fast Ethernet and Gigabit Ethernet connectivity
Energy-efficient technology for power savings
Auto-MDI/MDIX eliminates the need for crossover cables
Non-blocking switching architecture for maximum throughput at wire speed
Auto-negotiation for automatic connection at the highest common speed between switch and an end device
Power-over-Ethernet (PoE) option available for powering IP Security Cameras, VoIP phones, wireless access points, and other PD-powered devices
Fanless design for silent operation
Desktop, wall-mountable or rack-mountable (GS324, GS348)

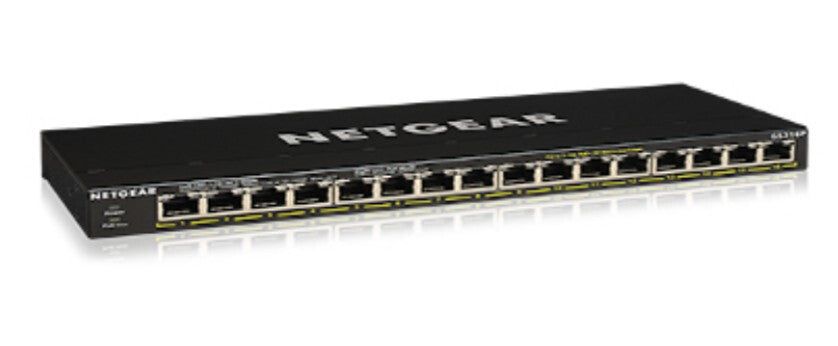

GS316P - 16-Port Gigabit Ethernet Unmanaged PoE+ Switch,Port-Gigabit-Ethernet-PoE + Switch, 115W PoE + Budget
NETGEAR 300 Series Gigabit Ethernet Unmanaged Switches with PoE provide easy, reliable, and affordable network connectivity for home and small offices. With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly. The unmanaged switches provides power and data from a single Ethernet (CAT-5e) cable to devices such as IP cameras, VoIP/ Internet-based phones, wireless access points, etc. The majority of these models also support PoE power auto-balance and allocation feature. NETGEAR’s unique PoE technology automatically balances the PoE power based on the device needs independent of PoE class detected. These switches deliver the power the device needs, at the most granular level.
Management features
Switch type
Unmanaged
Quality of Service (QoS) support
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
16
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Power connector
DC-in jack
Network
Networking standards
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G support
No
Full duplex
Yes
Auto MDI/MDI-X
Yes
Flow control support
Yes
Data transmission
MAC address table
4000 entries
Switching capacity
32 Gbit/s
Latency (1 Gbps)
3.7 µs
Jumbo frames support
Yes
Jumbo frames
9216
Packet forwarding rate (1 Gbps)
1448000 pps
Packet buffer memory
1 MB
Design
Rack mounting
No
Product colour
Black
Housing material
Metal
LED indicators
Yes
Wall mountable
Yes
Performance
Mean time between failures (MTBF)
2362192 h
Power
DC input voltage
54 V
Input current
2.4 A
Power consumption (max)
127.9 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
16
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
0 - 90%
Operating altitude
0 - 3000 m
Heat dissipation
437.42 BTU/h
Weight & dimensions
Width
286 mm
Depth
102 mm
Height
27 mm
Weight
880 g
Logistics data
Harmonized System (HS) code
85176990
