Netgear

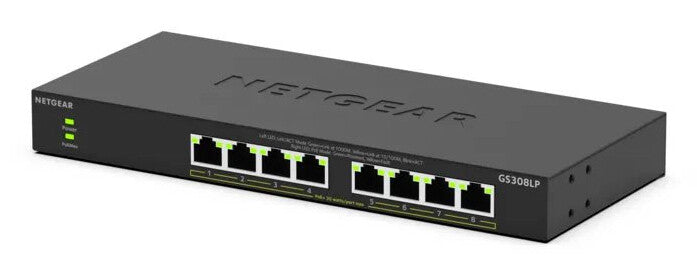

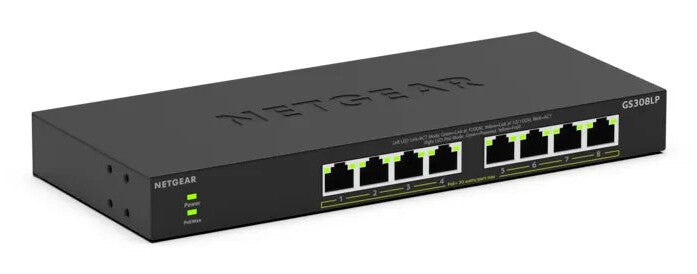

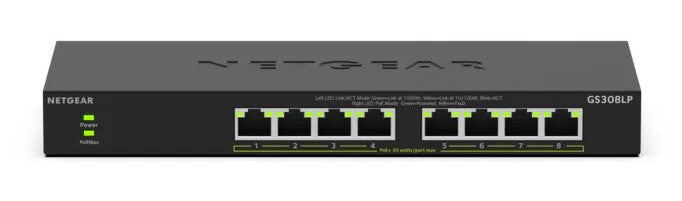

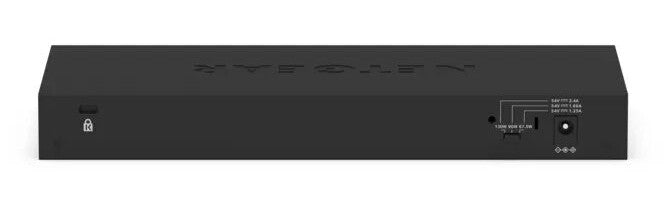

NETGEAR GS308LP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Desktop Black
NETGEAR GS308LP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Desktop Black
SKU:GS308LP-100EUS
Low stock: 5 left
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Unmanaged
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 8
- Cat5e 10BASE-T, 100BASE-TX, 1000BASE-T
- MAC address table: 4000 entries Switching capacity: 16 Gbit/s
- Desktop Rack mounting
- DC Power supply included Power over Ethernet (PoE)
PLUG-AND-PLAY
Simple set up with no software to install or configuration needed
NON-BLOCKING SWITCHING
Non-blocking switching architecture for maximum throughput at wire speed
FANLESS DESIGN
Silent operation makes this switch perfect for noise-sensitive environments
VERSITILE MOUNTING OPTIONS
Install your switch on your desktop or mount it to your wall with the hardware provided in the box
ENERGY EFFICIENT
Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected
FLEX PoE
Easily increase you power budget on this switch to meet your changing power needs.
| Management features | |
|---|---|
| Traffic classification | Yes |
| Quality of Service (QoS) support | Yes |
| Switch type | Unmanaged |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Network | |
|---|---|
| Auto-sensing | Yes |
| MAC address auto-aging supported | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| MAC address auto-learning supported | Yes |
| Auto-negotiation | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Half duplex | Yes |
| Full duplex | Yes |
| Cable types supported | Cat5e |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| 10G support | No |
| Networking standards | IEEE 802.3az, IEEE 802.1p, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at |
| Data transmission | |
|---|---|
| Packet buffer memory | 0.192 MB |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Jumbo frames | 9216 |
| Jumbo frames support | Yes |
| Number of queues | 8 |
| Latency (1 Gbps) | 2.6 µs |
| Forwarding rate | 1.488 Mpps |
| Throughput | 16 Gbit/s |
| Switching capacity | 16 Gbit/s |
| MAC address table | 4000 entries |
| Security | |
|---|---|
| MAC address entries | Dynamic MAC address entries |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| Design | |
|---|---|
| Wall mountable | Yes |
| LED indicators | Yes |
| Housing material | Metal |
| Product colour | Black |
| Form factor | Desktop |
| Stackable | No |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 2752476 h |
| Fanless | Yes |
| Technical details | |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC), RCM, VCCI, KC, CB, Low Voltage Directive (LVD) |
| Power | |
|---|---|
| Power consumption (max) | 67.5 W |
| Input voltage | 54 V |
| Input current | 1.25 A |
| DC input voltage | 54 V |
| Number of power supply units | 1 |
| Power supply included | Yes |
| Power source | DC |
| Power over Ethernet (PoE) | |
|---|---|
| Total Power over Ethernet (PoE) budget | 60 W |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) type supported | PoE+ |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Heat dissipation | 230.85 BTU/h |
| Operating altitude | 0 - 3000 m |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 600 g |
| Height | 27 mm |
| Depth | 102 mm |
| Width | 236 mm |
