Netgear

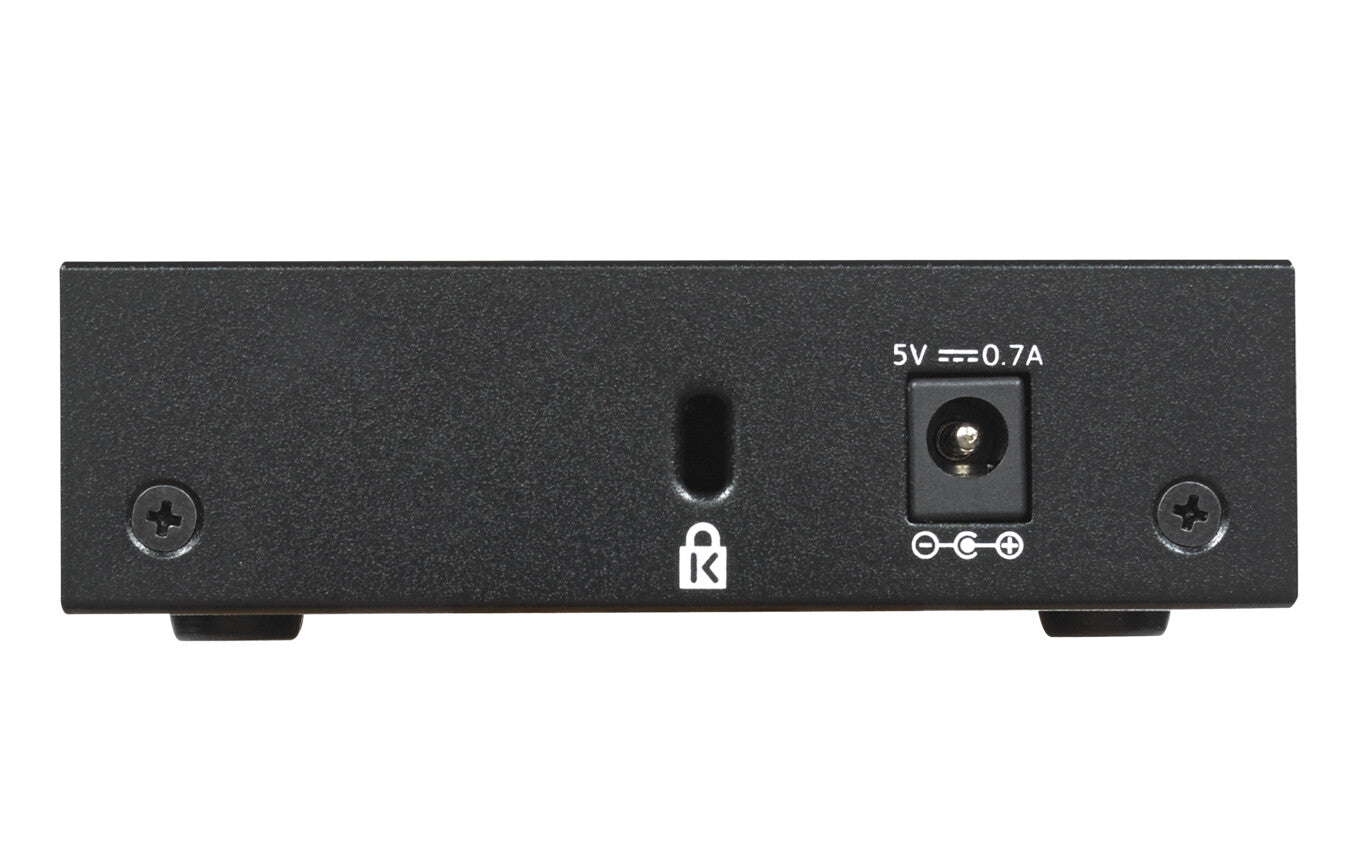

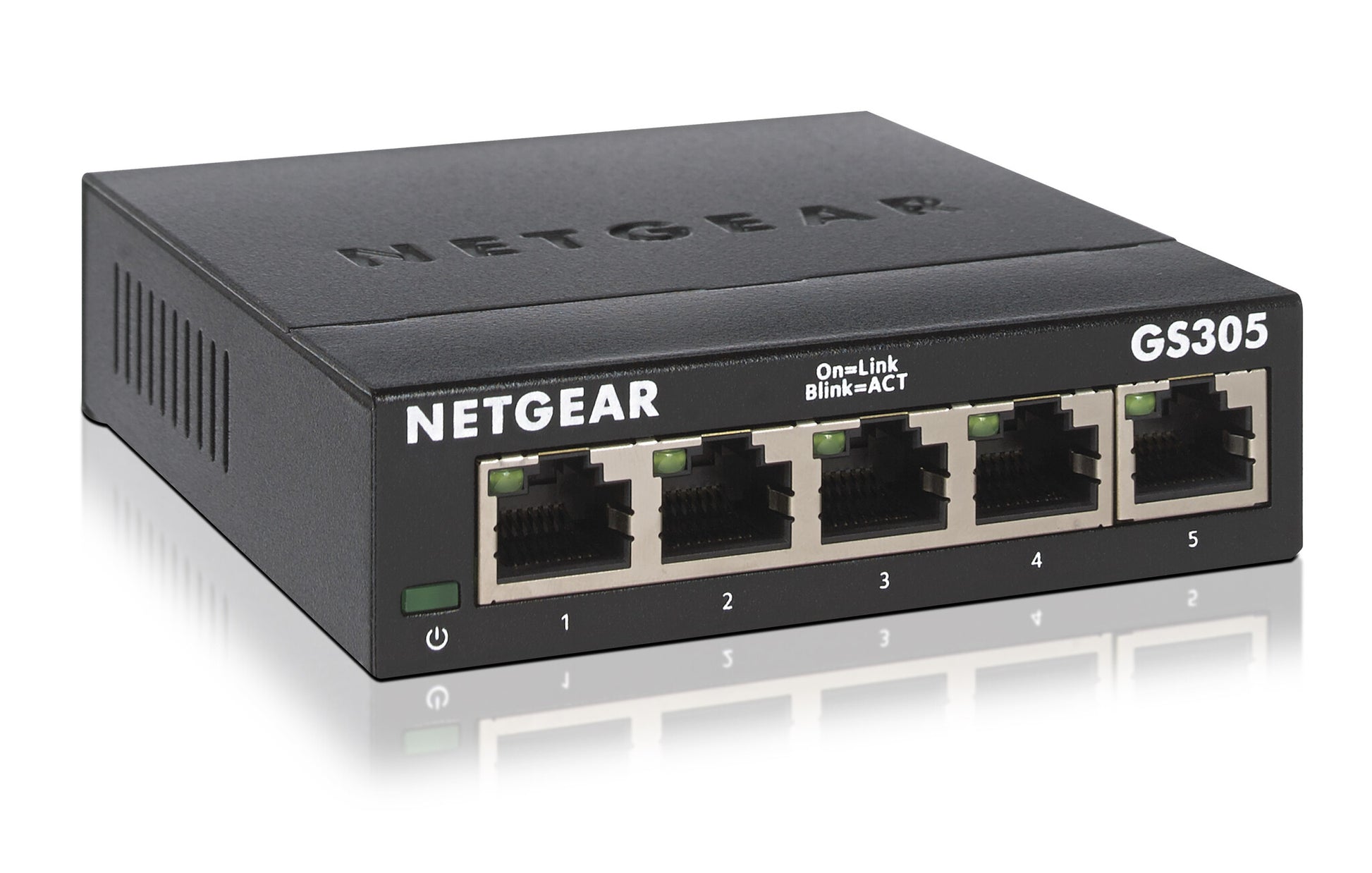

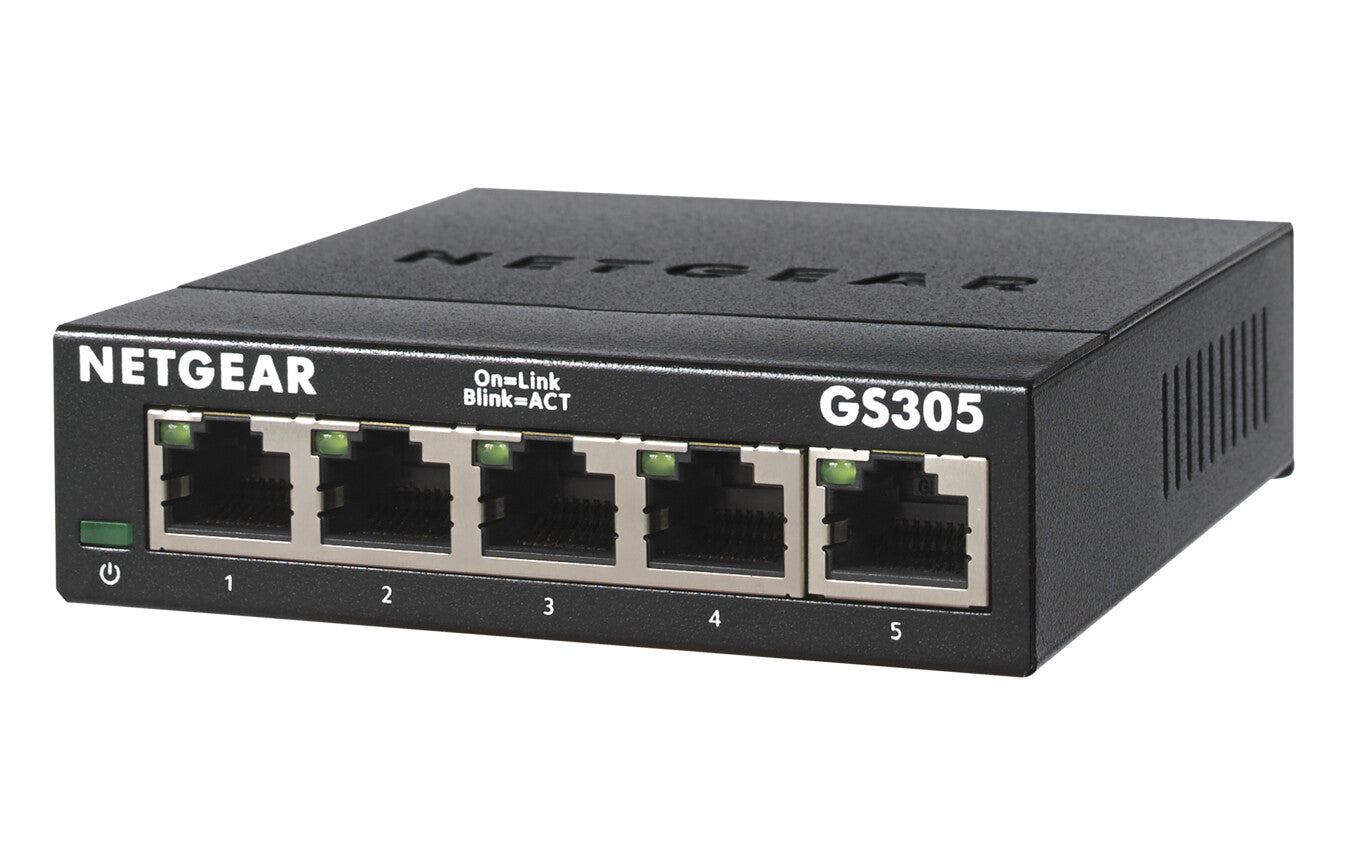

NETGEAR GS305 Unmanaged L2 Gigabit Ethernet (10/100/1000) Black

NETGEAR GS305 Unmanaged L2 Gigabit Ethernet (10/100/1000) Black

Regular price £26.68 GBP
Regular price Sale price £26.68 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:GS305-300PES

22 in stock

  • Auto-MDI/MDIX eliminates the need for crossover cables
  • LED indicators for ease of use
  • Energy-efficient technology for power savings
  • Fanless design for silent operation
  • Auto-negotiation for automatic connection at the highest common speed between switch and an end device
  • Non-blocking switching architecture for maximum throughput at wire speed
  • 802.1p QoS for traffic/frame prioritization
  • Plug-and-play; no setup required
  • Durable and rugged metal case
  • Ideal for small office and home networks
  • Standards-based technology ensures interoperability with any standards-based devices in the existing network
GS305v3, 5x RJ-45, 10/100/1000Mbps, 2K, 128 KB, 10 Gbps, metal

NETGEAR 300 Series Gigabit Ethernet Unmanaged Switches provide easy, reliable, and affordable network connectivity for home and small offices. With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly. The GS305P and GS308P with Power-over-Ethernet (PoE) provides power and data from a single Ethernet (CAT-5) cable to devices such as IP cameras, VoIP/Internet-based phones, wireless access points, etc. With these unmanaged plug-andplay switches, you can expand your network connections to multiple devices instantly. Just step up to GS316, GS324 or GS348 directly to avoid congestion due to stacking up lower port count switches and be ready for future expansion.

Management features
Switch type Unmanaged
Switch layer L2
Quality of Service (QoS) support Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 5
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity 5
Power connector DC-in jack
Network
Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support No
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
Cable length detection Yes
Auto-sensing Yes
Auto MDI/MDI-X Yes
Flow control support Yes
Data transmission
MAC address table 2000 entries
Switching capacity 10 Gbit/s
Forwarding rate 1.448 Mpps
Latency (1 Gbps) 2.6 µs
Jumbo frames support Yes
Jumbo frames 9216
Packet buffer memory 128 MB
Design
Rack mounting No
Product colour Black
Housing material Metal
LED indicators Activity, Link, Power
Wall mountable Yes
Certification CE MarkFCC Part 15 Class BIC Class BRCMVCCI
Performance
Mean time between failures (MTBF) 3831422 h
Technical details
Warranty period 3 year(s)
Products per shipping (inner) case 20 pc(s)
Shipping (inner) case net weight 10.7 kg
Shipping (inner) case length 31.8 cm
Shipping (inner) case width 49.9 cm
Shipping (inner) case height 35.7 cm
Power
Power consumption (max) 2.15 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) No
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -20 - 70 °C
Operating relative humidity (H-H) 0 - 90%
Storage relative humidity (H-H) 0 - 95%
Operating altitude 0 - 3000 m
Heat dissipation 7.35 BTU/h
Weight & dimensions
Width 101 mm
Depth 94 mm
Height 29 mm
Weight 250 g
Logistics data
Harmonized System (HS) code 85176990
