NETGEAR GS110TP Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
NETGEAR GS110TP Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
SKU:GS110TP-300EUS
190 in stock
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- 8-port switches
- Managed switches
- Smart managed pro switches
- Gigabit Ethernet switches
- PoE switches
- PoE+ switches
- Cloud managed switches

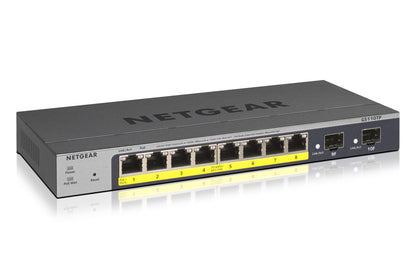

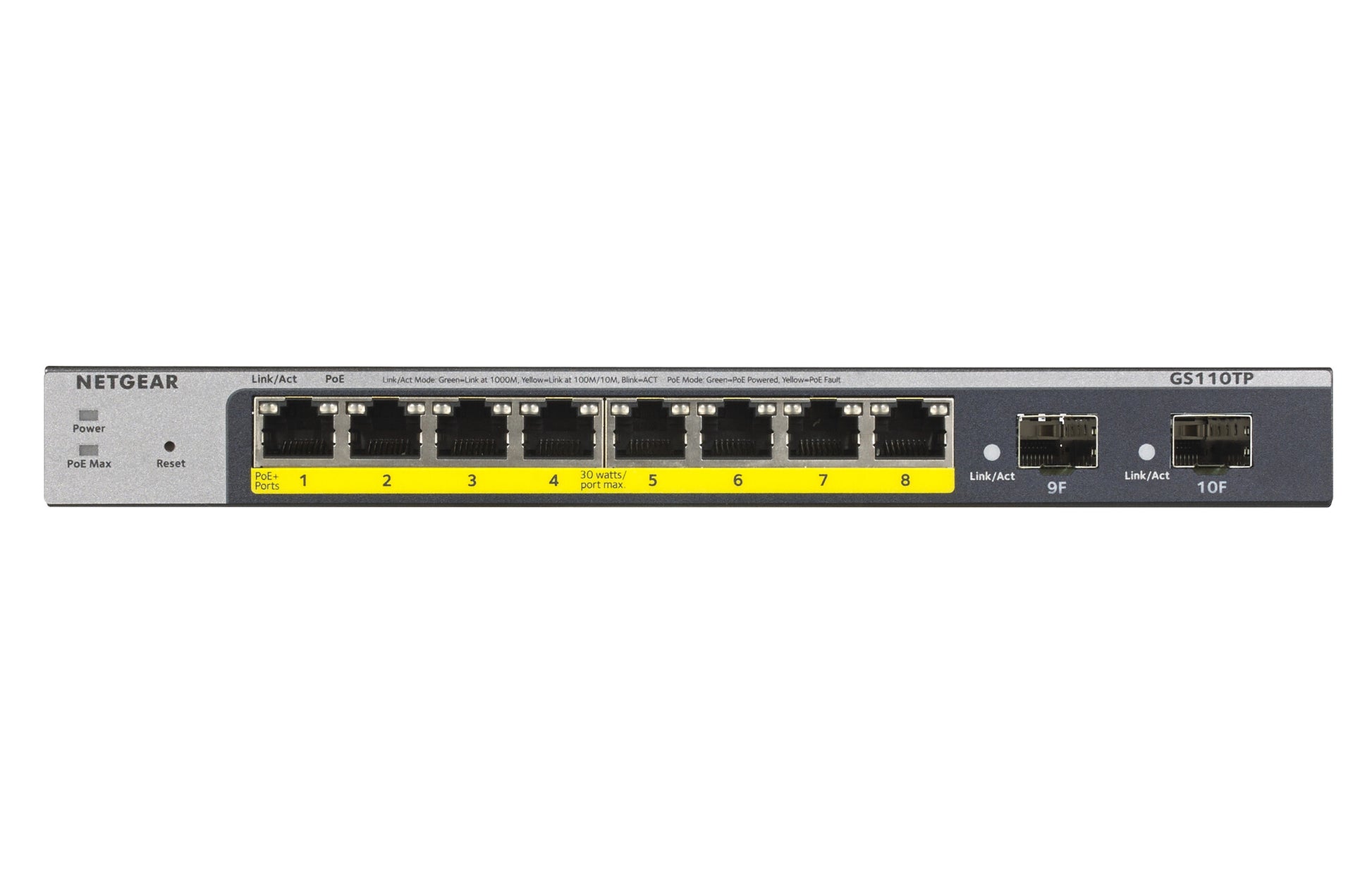

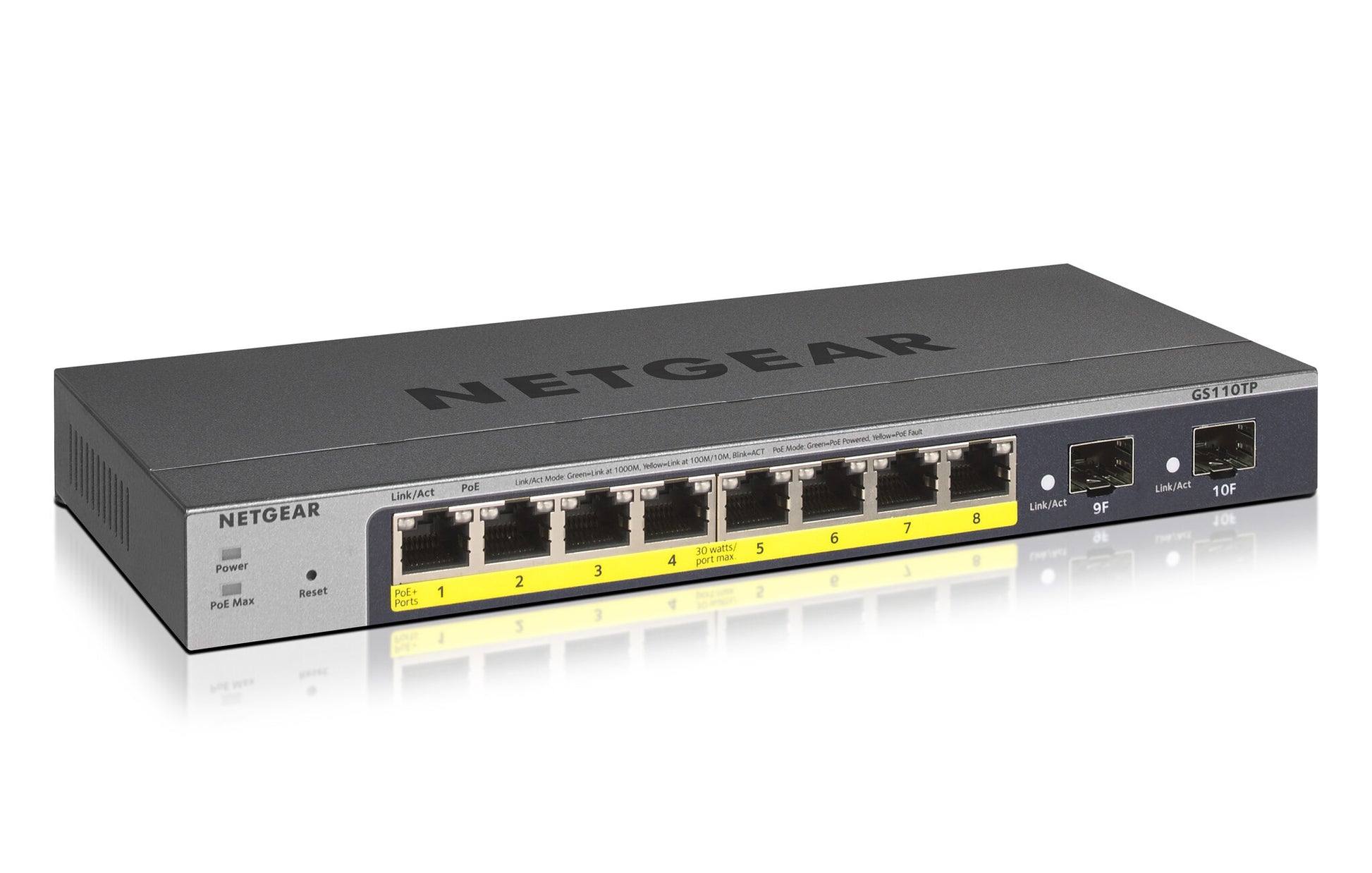

The NETGEAR GS110TPv3 8-Port Gigabit PoE+ Ethernet Smart Managed Pro Switch comes with 8 PoE copper ports and 2 dedicated SFP ports for fiber uplinks. Cautious spender organizations can now deploy PoE devices with a reasonable PoE power budget of 55W. Each PoE port can provide up to 30 watts to power up the connected devices. Fanless, the GS110TPv3 supports perfectly silent desktop operation or wall mounting. The GS110TPv3 Smart Managed Pro Switch offers an easy-to-use, Web browser-based management GUI with configurable L2 network features like VLANs and PoE operation scheduling, allowing SMB customers to deploy PoE-based VoIP phones and IP surveillance. This switch also comes with NETGEAR Insight Cloud management activation (free for the first two devices) for anytime remote management and monitoring through an intuitive app or Cloud Portal. Advanced features such as IPv4 Layer 2+ static routing including IPv6 management, ACL, DiffServ QoS, LACP link aggregation and Spanning Tree will satisfy even the most advanced small business networks. The GS110TPv3 features Energy Efficient Ethernet (IEEE 802.3az) for maximum power savings and is backed by NETGEAR’s Lifetime Limited Warranty and 24/7 support including lifetime chat.
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3/L4 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
| Network | |
|---|---|
| Networking standards | IEEE 802.3ab, IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| Rate limiting | Yes |
| MAC address auto-learning supported | Yes |
| Spanning tree protocol | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Number of VLANs | 64 |
| Data transmission | |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 20 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Packet buffer memory | 0.5 MB |
| Security | |
|---|---|
| DHCP features | DHCP client |
| Access Control List (ACL) | Yes |
| Access Control List (ACL) IPv6 entries | 100 |
| IGMP snooping | Yes |
| Security algorithms | 802.1x RADIUS |
| MAC address filtering | Yes |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| IPv4 multicast entries | 32 |
| Number of multicast groups filtered | 256 |
| Protocols | |
|---|---|
| Management protocols | SNMP |
| Switching protocols | SNMP |
| Data link protocols | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Supported network protocols | HTTP, HTTPS |
| Design | |
|---|---|
| Rack mounting | No |
| Product colour | Grey |
| LED indicators | Activity, LAN, Link, PoE, Power, Speed |
| Certification | CE, FCC, VCCI Class B, C-Tick |
| Performance | |
|---|---|
| Processor frequency | 500 MHz |
| Memory type | RAM |
| Internal memory | 128 MB |
| Flash memory | 32 MB |
| Mean time between failures (MTBF) | 1200041 h |
| Power | |
|---|---|
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| DC input voltage | 54 V |
| Input current | 1.25 A |
| Power consumption (max) | 15.1 W |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 55 W |
| Total Power over Ethernet (PoE) budget | 69.5 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 3000 m |
| Heat dissipation | 237.38 BTU/h |
| Weight & dimensions | |
|---|---|
| Width | 236 mm |
| Depth | 101 mm |
| Height | 27 mm |
| Weight | 610 g |
| Packaging data | |
|---|---|
| Manual | Yes |
| Package type | Box |
| Package width | 161 mm |
| Package depth | 267 mm |
| Package height | 86 mm |
| Package weight | 1.49 kg |
| Logistics data | |
|---|---|
| Master (outer) case width | 274 mm |
| Master (outer) case length | 350 mm |
| Master (outer) case height | 309 mm |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case gross weight | 9.73 kg |
| Products per master (outer) case | 6 pc(s) |
