MAC address table: 8000 entries Switching capacity: 16 Gbit/s

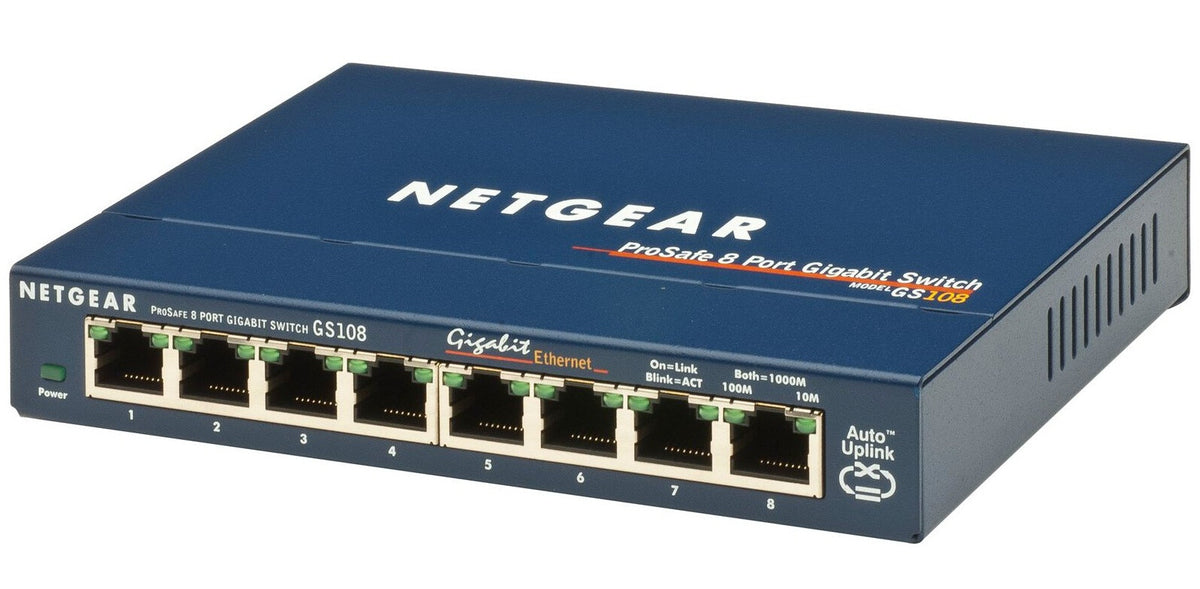

GS108 - 8 Port Gigabit Ethernet (10/100/1000) Network Switch
Now you can have a powerful, high-speed network on a small scale. NETGEAR's GS108 Gigabit Ethernet Switch lets you build a system that provides a full, dedicated 1000, 100, or 10 Mbps connection so you can move very large files across your network instantly. The GS108 also lets you painlessly integrate 10, 100, and 1000 Mbps devices. This potent switch is packed with ease-of-use features to simplify your workday experience. It's compact design fits neatly into small work spaces and, since it's self-cooling without a fan, it runs silently and unobtrusively.
Management features
Switch type
Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
8
Network
Networking standards
IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u
Copper ethernet cabling technology
1000BASE-T, 100BASE-TX, 10BASE-T
Full duplex
Yes
Data transmission
MAC address table
8000 entries
Switching capacity
16 Gbit/s
Maximum data transfer rate
1 Gbit/s
Packet buffer memory
0.032 MB
Protocols
Data link protocols
Ethernet,Fast Ethernet, Gigabit Ethernet
Design
Rack mounting
No
LED indicators
Power
Safety
UL (UL 1950), CUL, C-Tick
Performance
Compatible operating systems
Windows, Linux, Mac OS
Minimum system requirements
- UTP Category 5 or better cables-Network card for each PC or server (e.g. GA302T)-Network software
Power
Power consumption (typical)
14 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 90%
Weight & dimensions
Weight
760 g
Logistics data
Harmonized System (HS) code
85176990
Other features
Latency
(100 to 100 Mbps): 40 µ (max), (1000 to 1000 Mbps): 10 µ (max)
Data transfer rate
1000 Mbit/s
Dimensions (WxDxH)
235.5 x 100.8 x 27 mm
Power requirements
5 V @ 2.8 A DC
Electromagnetic emissions
CE mark, commercial FCC Part 15 Class A, EN 55 022 (CISPR 22), Class A VCCI, Class A C-Tick
