Minimum screen size: 43.2 cm (17") Maximum screen size: 81.3 cm (32")
Number of displays supported: 1
Mounting type: Wall
Maximum VESA mount: 100 x 100 mm
Height adjustment Tilt adjustment
Cable management
Steel Black

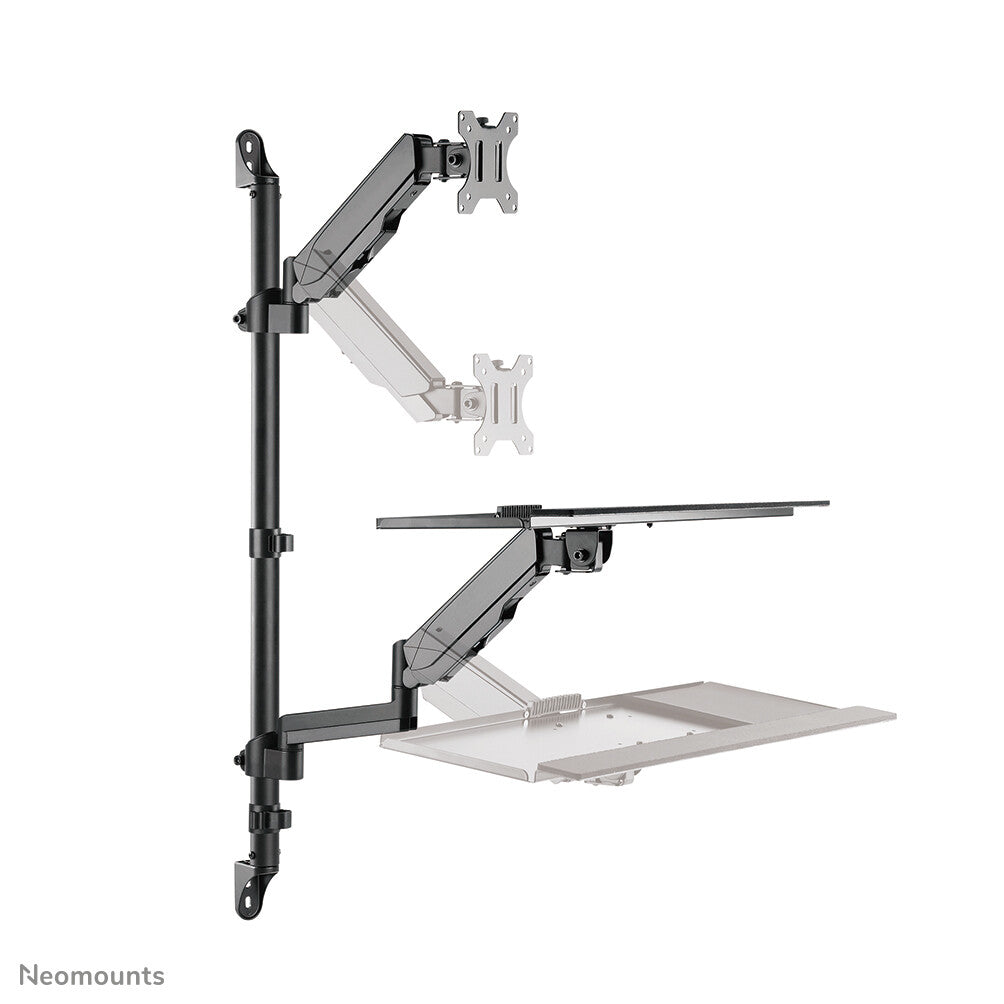

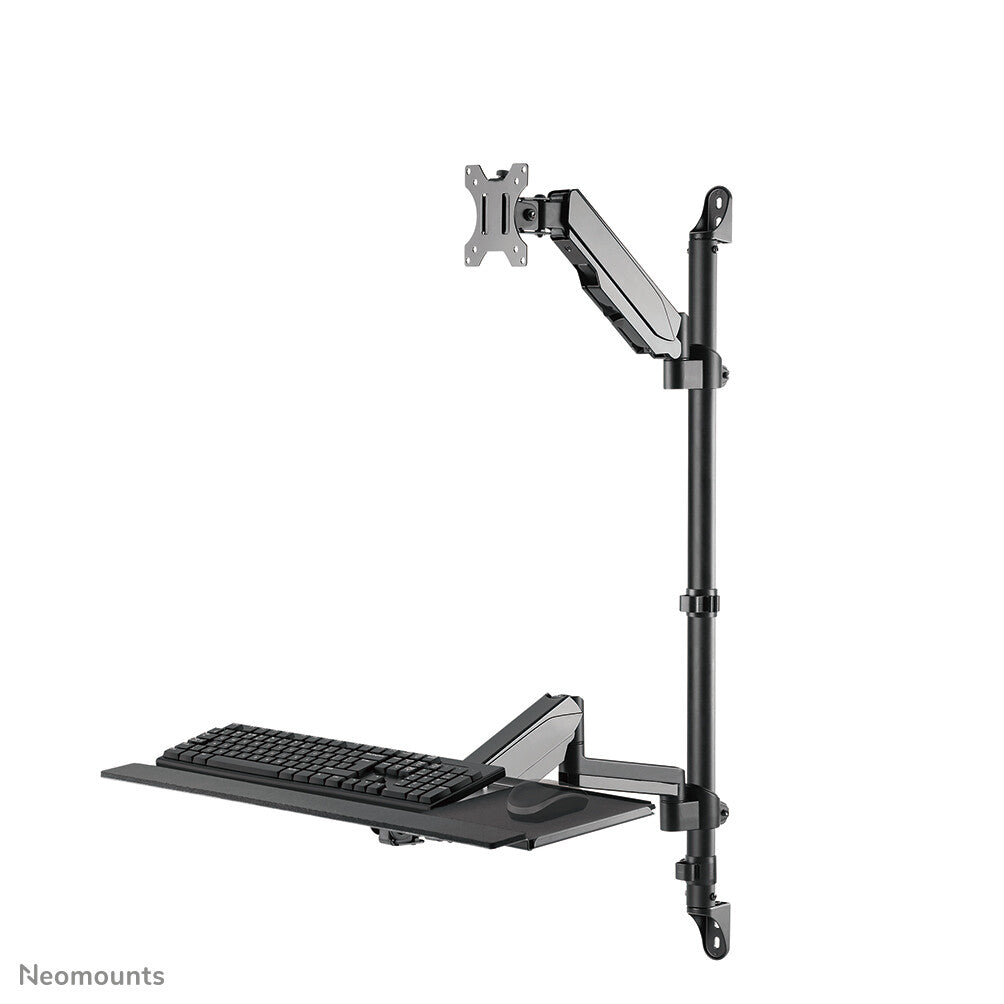

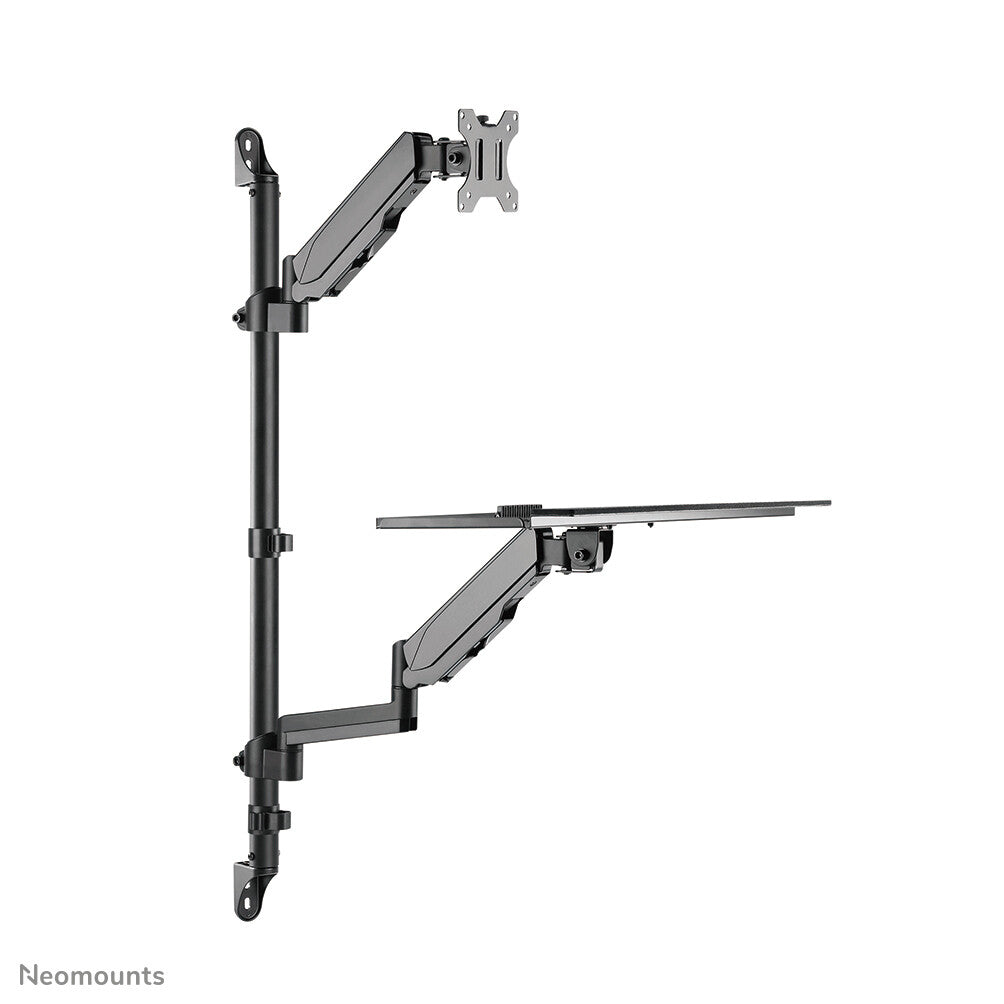

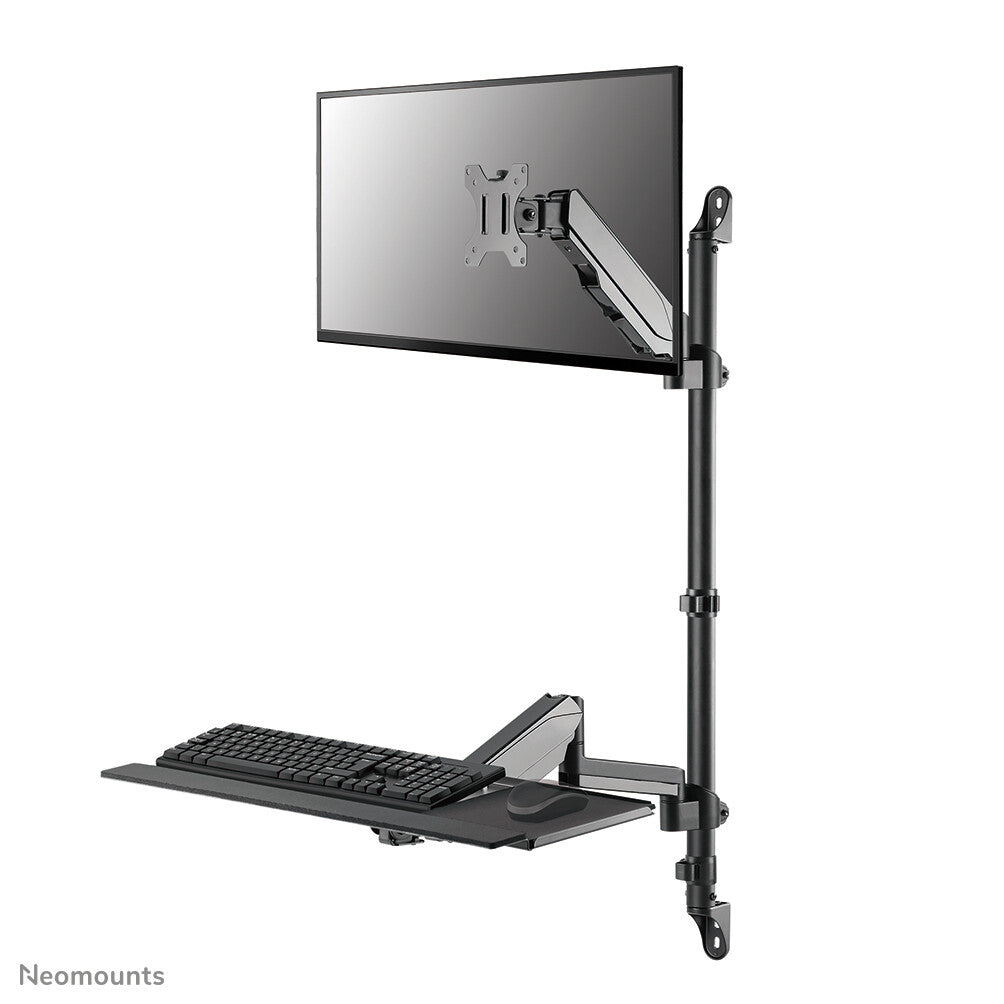

Neomounts WL90-325BL1 height adjustable wall mounted workstation for 17-32" screens, keyboard and mouse - Black
The Neomounts WL90-325BL1 is a full motion height adjustable wall mounted workstation for screens up to 32", keyboard and mouse. The mount can support screens up to 9 kg (curved: 6 kg), while the keyboard tray can support max. 1 kg. The versatile tilt (70°), rotate (360°) and swivel (180°) technology allows the monitor arm to change to any viewing angle to fully benefit from the capabilities of the screen. The keyboard tray includes a wrist support and mouse pad for optimum comfort.
The wall mounted workstation has a large height adjustment range of 44-95 cm. To ensure quick repositioning and the most optimal working position, the WL90-325BL1 features gas spring height adjustment for both the monitor arm and keyboard tray arm. The smart cable management system ensures a secure routing of the cables.

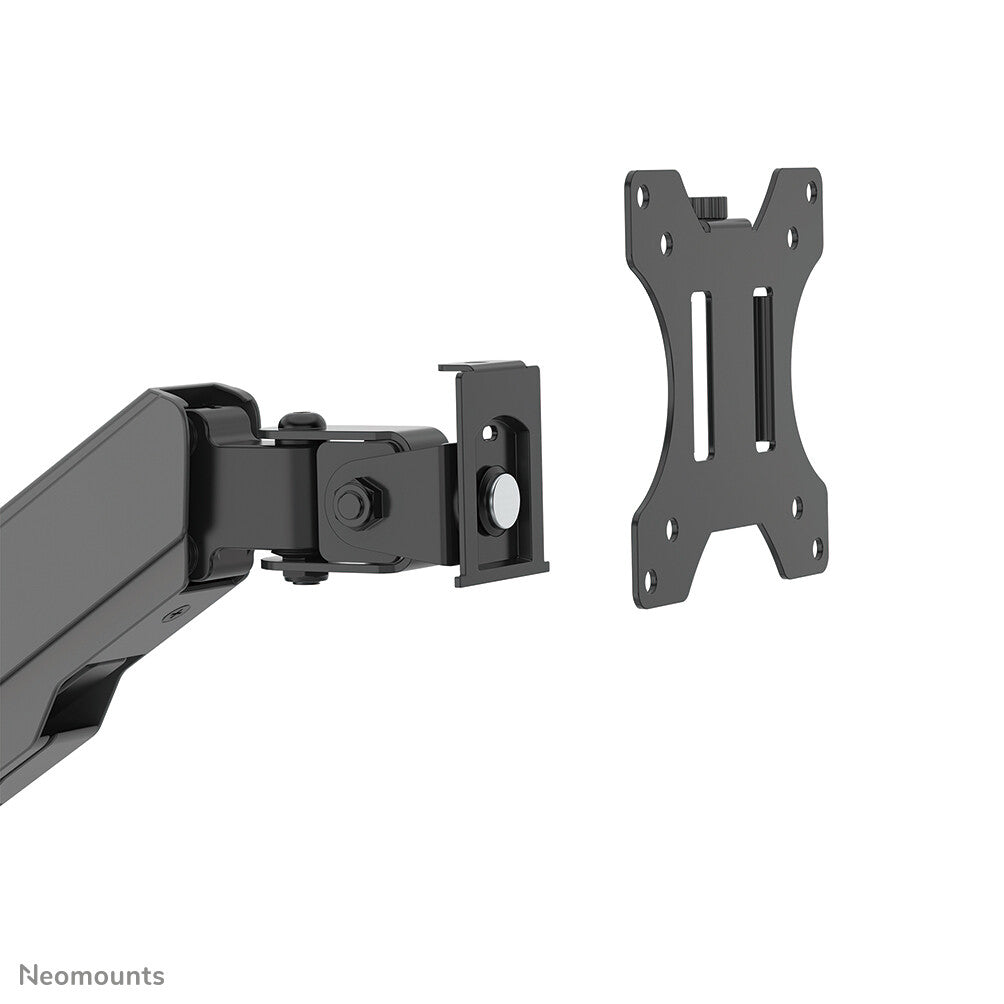

The WL90-325BL1 is suitable for screens that are compatible with VESA hole pattern 75x75 or 100x100 mm and is equipped with a Quick-release VESA system for fast and easy installation. For non-standard hole patterns, Neomounts has various VESA optional adapter plates available.
Mounting
Distance to the wall (max)
41.6 cm
Distance to the wall (min)
15.4 cm
Desk thickness (max)
8.8 cm
Desk thickness (min)
1 cm
Number of displays supported
1
Panel mounting interface
75 x 75,100 x 100 mm
Maximum VESA mount
100 x 100 mm
Minimum VESA mount
75 x 75 mm
Maximum weight capacity (per curved/ultra-wide display)
