Newstar
Neomounts video wall mount
Neomounts video wall mount
Regular price
£161.04 GBP
Regular price
Sale price
£161.04 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:WL95-800BL1
46 in stock
- Maximum weight capacity: 35 kg Black
- Maximum screen size: 177.8 cm (70")
- Mounting type: Wall
- Minimum VESA mount: 200 x 200 mm Maximum VESA mount: 600 x 400 mm
- Height adjustment Swivelling
- Housing material: Steel
- Orientation: Landscape/Portrait

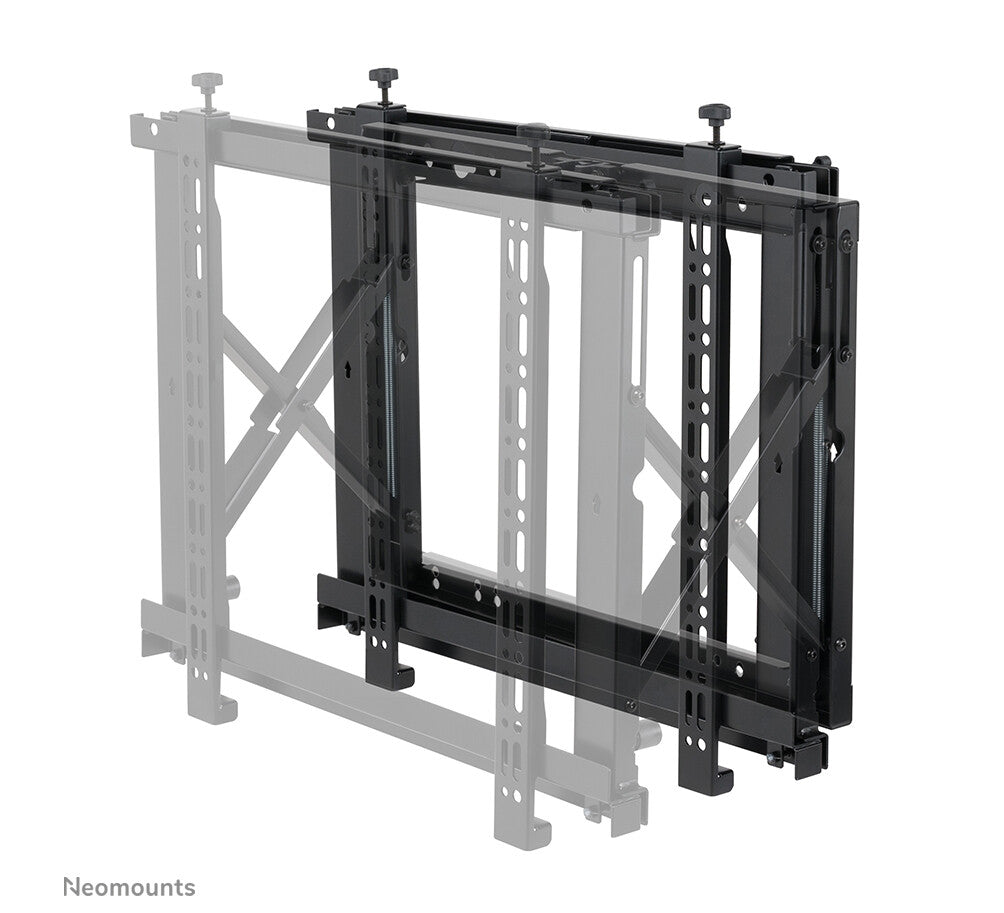

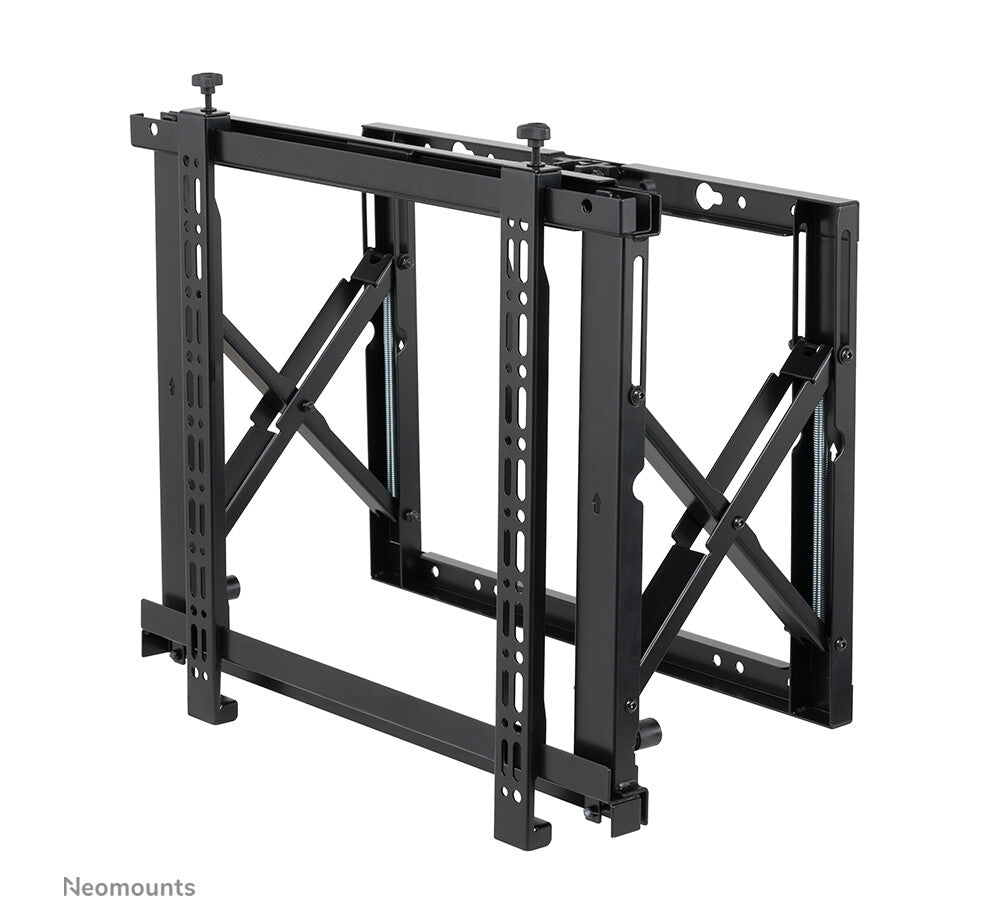

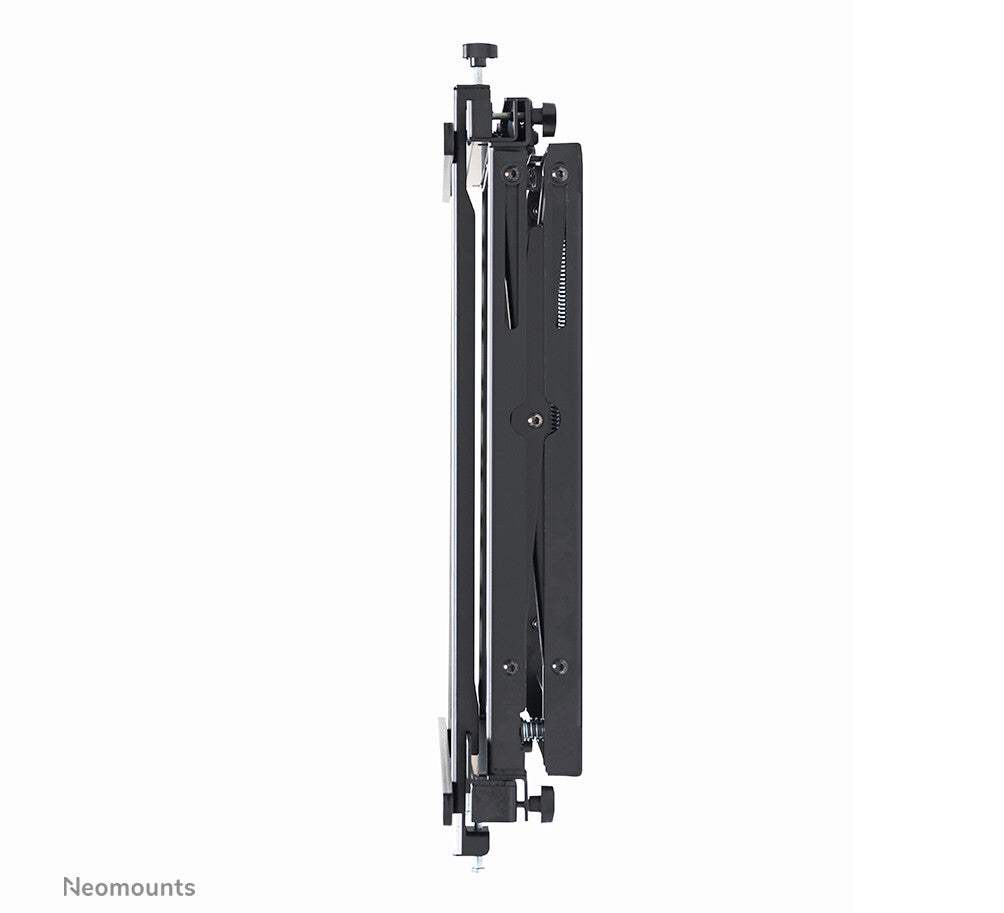

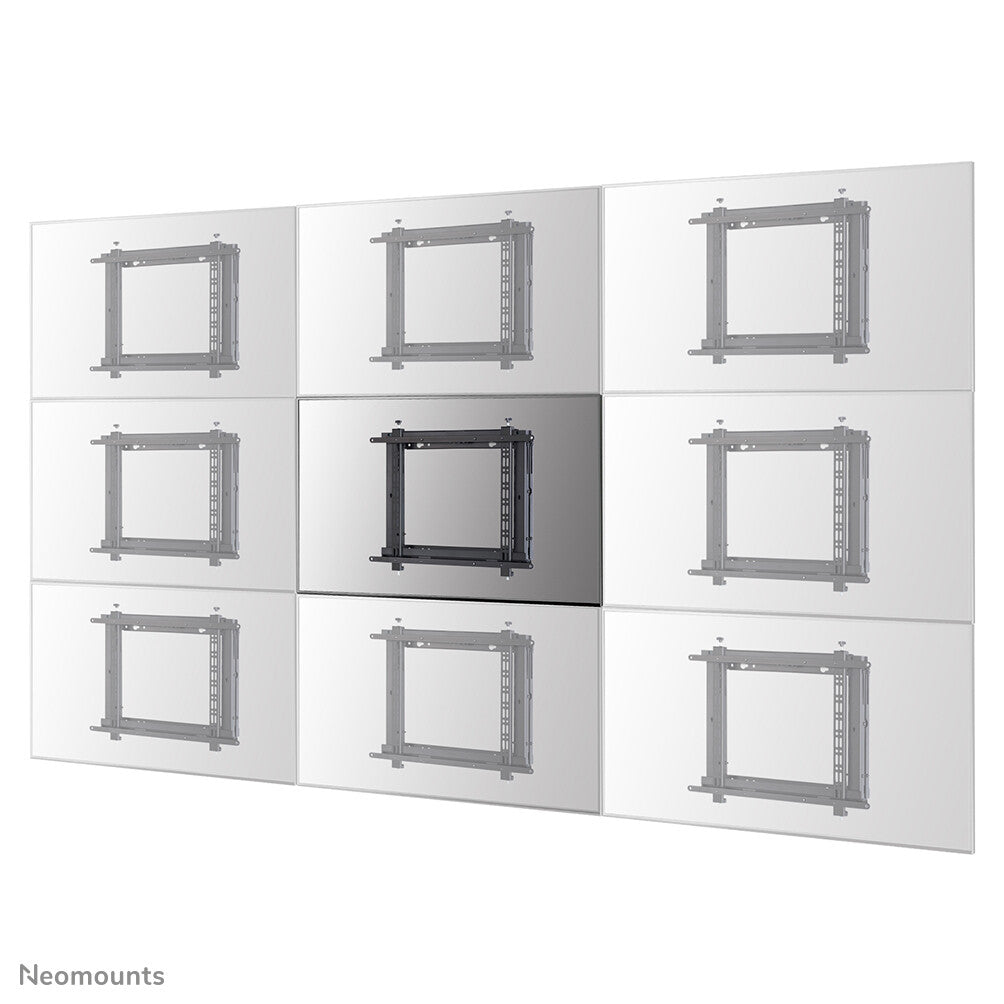

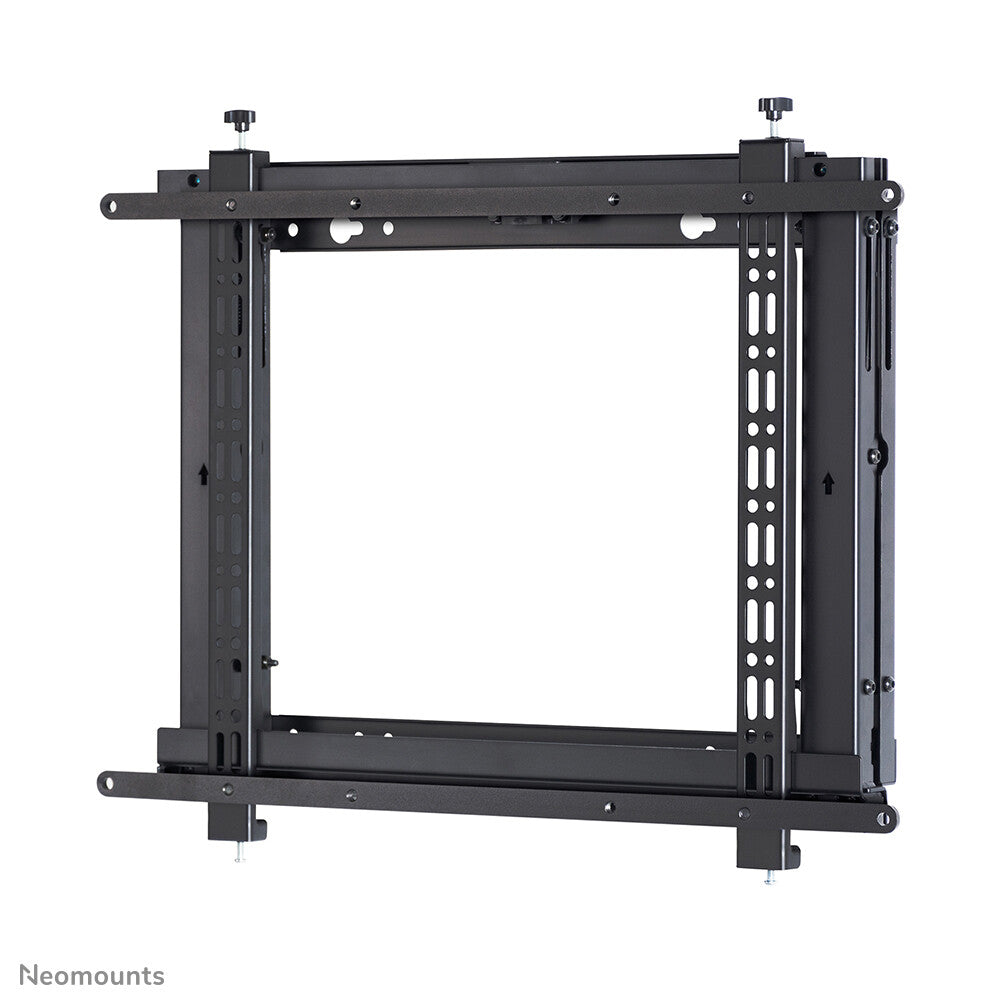

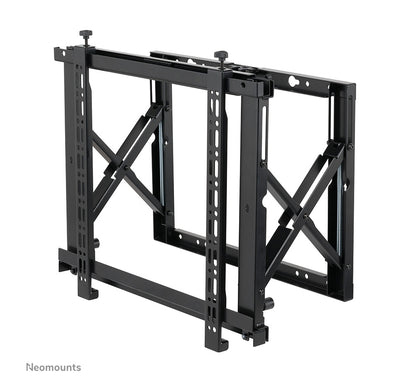

Neomounts WL95-800BL1 push to pop out video wall mount for 42-70" screens - Black
The Neomounts WL95-800BL1 is a push to pop out video wall mount for screens up to 70". The screen can be installed both in portrait and landscape orientation and additionally, toolless micro adjustment in height, depth, tilt and swivel is available for the perfect alignment.
The WL95-800BL1 has a depth of 7,8-26 cm and is suitable for screens that meet VESA hole pattern 200x200 up to 600x400 mm (landscape) or 400x600 mm (portrait). The video wall mount is packed pre-assembled and features keyhole slots to ensure fast and easy installation.
| Mounting | |
|---|---|
| Number of displays supported | 1 |
| Panel mounting interface | 200 x 200,200 x 400,400 x 400,400 x 600,200 x 300,300 x 300,600 x 200,600 x 300,600 x 400,300 x 200,400 x 300,300 x 100,350 x 350,400 x 200 |
| Maximum VESA mount | 600 x 400 mm |
| Minimum VESA mount | 200 x 200 mm |
| Mounting type | Wall |
| Maximum screen size | 177.8 cm (70") |
| Minimum screen size | 106.7 cm (42") |
| Maximum weight capacity | 35 kg |
| Ergonomics | |
|---|---|
| Distance to the wall (max) | 17.2 cm |
| Distance to the wall (min) | 7.8 cm |
| Tilt adjustment | Yes |
| Cable management | No |
| Depth adjustment | 4 mm |
| Width adjustment | 4 cm |
| Swivelling | Yes |
| Height adjustment type | Manual |
| Height adjustment | Yes |
| Design | |
|---|---|
| Accepts padlock | No |
| Housing material | Steel |
| Product colour | Black |
| Weight & dimensions | |
|---|---|
| Height | 510 mm |
| Depth | 84 mm |
| Width | 620 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package height | 620 mm |
| Package depth | 110 mm |
| Package width | 570 mm |
| Technical details | |
|---|---|
| Package net weight | 9.8 kg |
| Warranty period | 5 year(s) |
| Easy to install | Yes |
| Orientation | Landscape/Portrait |
| Other features | |
|---|---|
| Country of origin | China |
| Logistics data | |
|---|---|
| Products per master (outer) case | 1 pc(s) |
| Master (outer) case gross weight | 9.8 kg |
| Master (outer) case height | 620 mm |
| Master (outer) case length | 110 mm |
| Master (outer) case width | 570 mm |
| Quantity per master (outer) case | 1 pc(s) |
| Master (outer) case net weight | 8.5 kg |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 24 pc(s) |
