Neomounts vesa adapter plate

Neomounts vesa adapter plate

FPMA-VESA400

£18.02 GBP£15.02 GBP
£0.00 GBP £18.02 GBP£15.02 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Out of stock

Delivery & lead times

Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.

Buying 5 or more? Volume pricing

We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.

Returns & warranty

See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

  • Silver
  • Maximum weight capacity: 35 kg
  • Panel mounting interface: 50 x 50,75 x 75,100 x 100,120 x 120,200 x 100,200 x 200,400 x 200
  • Maximum screen size: 132.1 cm (52")
Neomounts VESA Conversion Plate from VESA 75x75mm & 100x100mm to 200x100mm, 200x200mm & 400x200mm - Silver

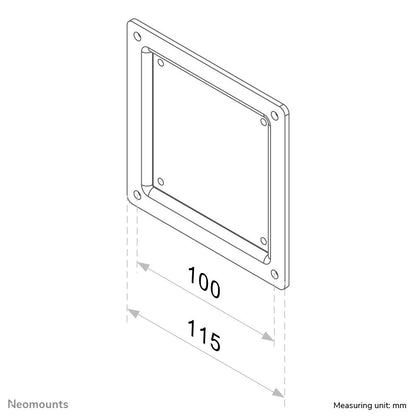

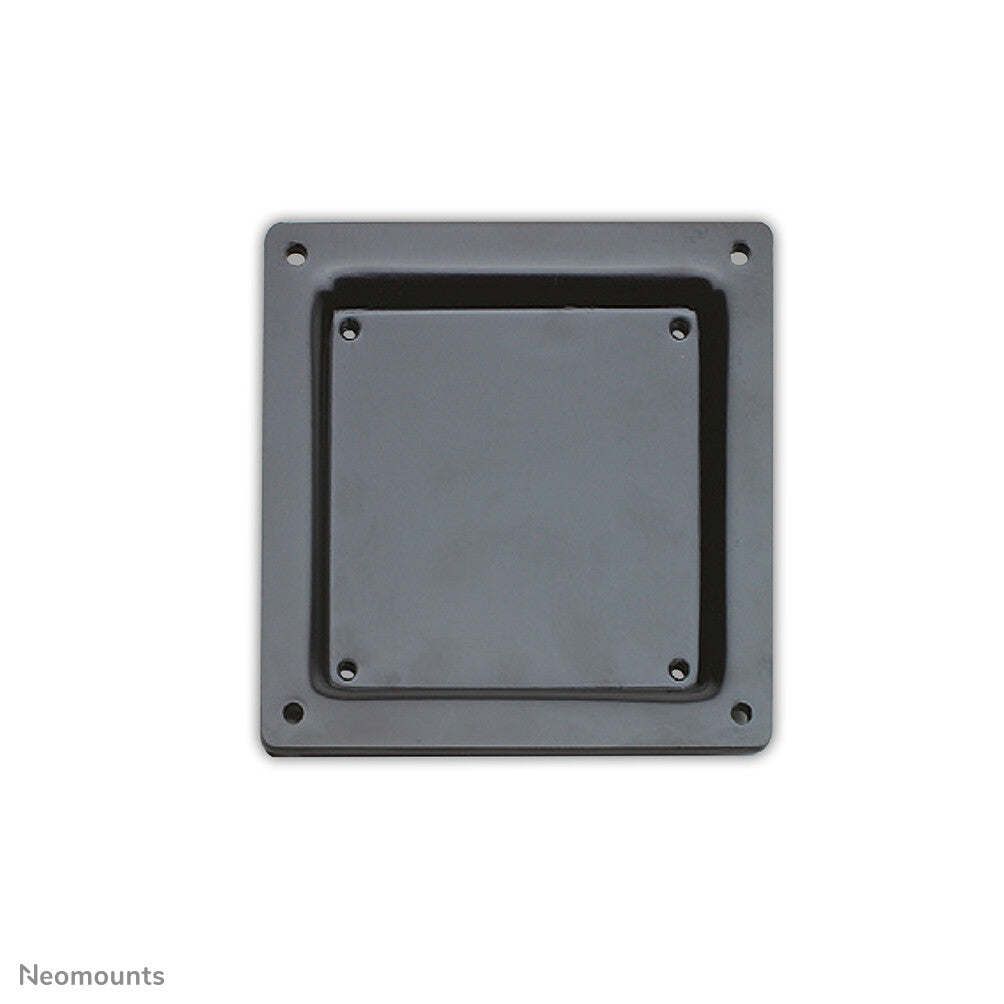

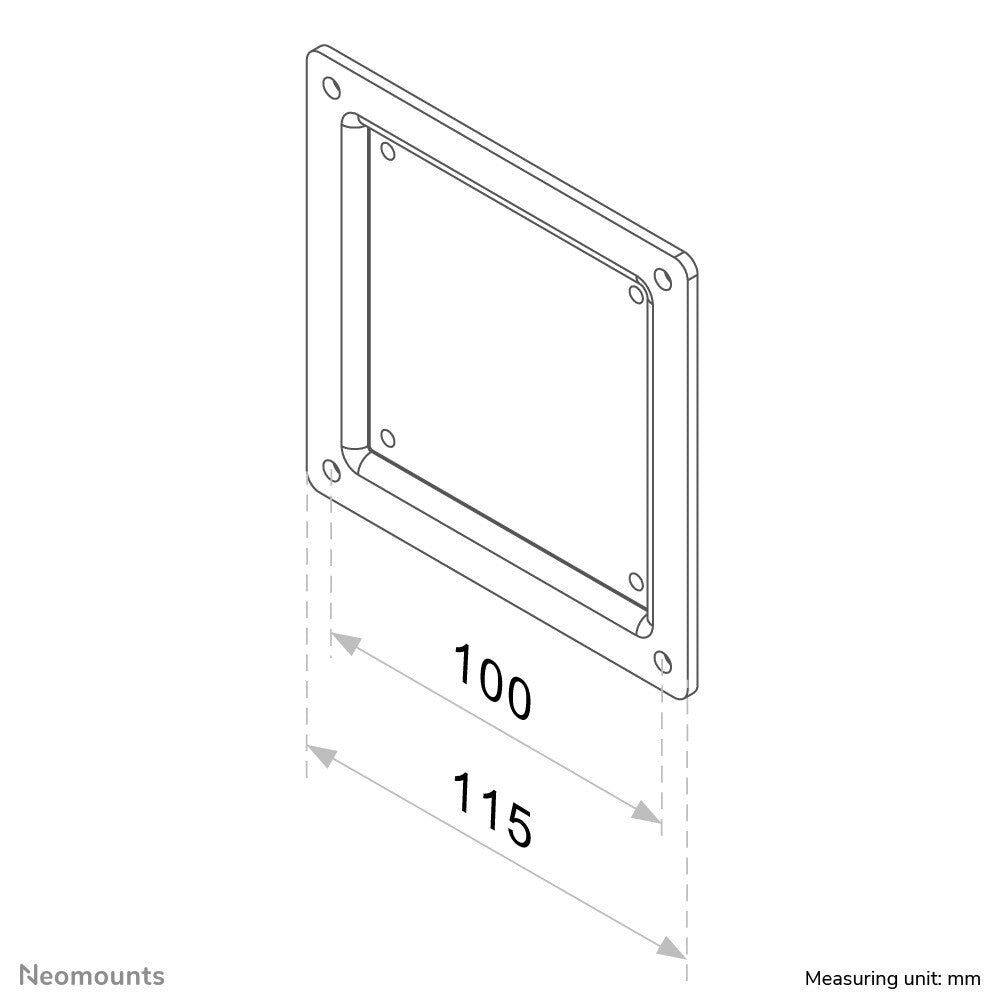

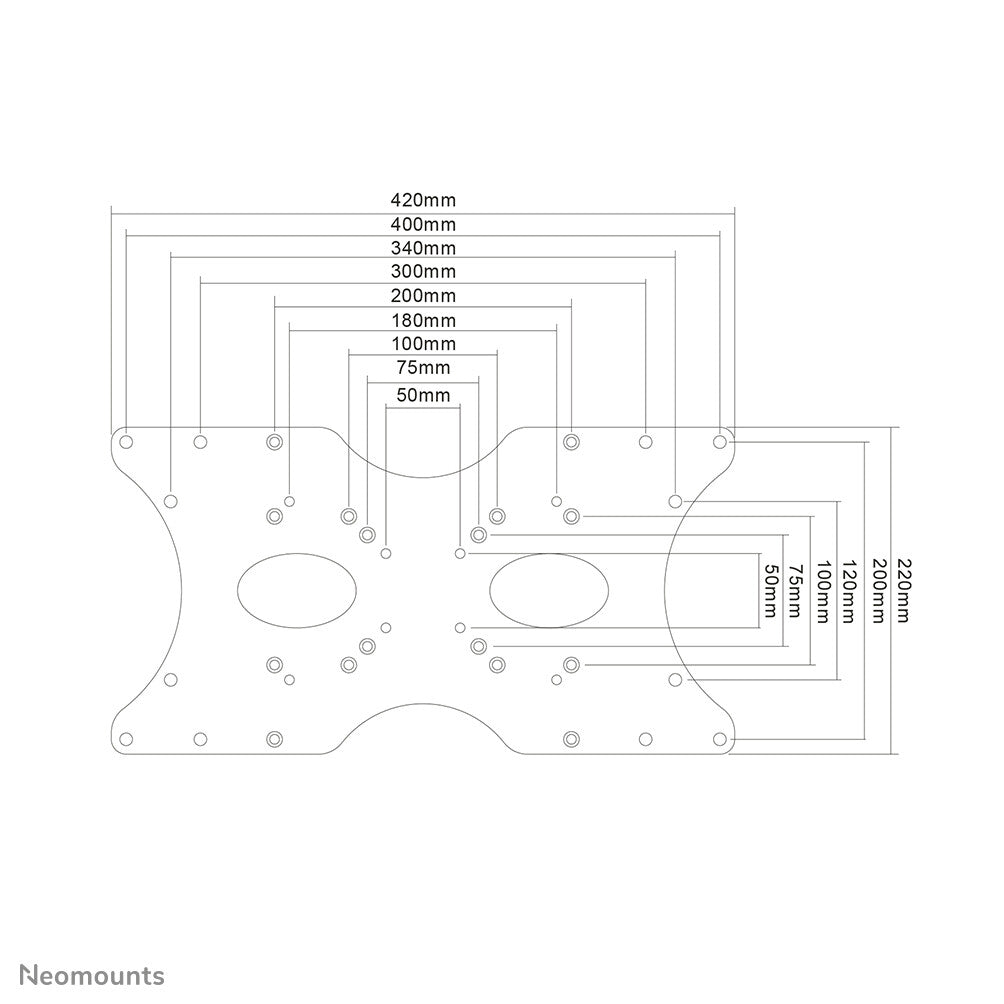

The Neomounts VESA adapter, model FPMA-VESA400 allows a VESA mount with 50x50, 75x75, 100x100 and 200x100 mm interface to be used with displays with VESA hole patterns of 200x200mm, 400x200 and 120x180 mm (JVC holepattern). Ideal when flat screen needs different VESA pattern to select wall-, desk- or ceiling mount.

Neomounts FPMA-VESA400 is suitable for screens up to 52" (130 cm). The weight capacity of this product is 35 kg each screen. Depth of this adapter is 3 millimetres only. The adapter is suitable for screens that meet VESA hole pattern 200x200, 400x200 and 120x180 mm (JVC holepattern). Different hole patterns can be covered using Neomounts VESA adapter plates.

All installation material is included with the product.

Features
Product colour Silver
Maximum weight capacity 35 kg
Panel mounting interface 50 x 50,75 x 75,100 x 100,120 x 120,200 x 100,200 x 200,400 x 200
Maximum screen size 132.1 cm (52")
Minimum screen size 55.9 cm (22")
Number of displays supported 1
VESA mounting Yes
Packaging data
Package depth 20 mm
Package width 225 mm
Package height 425 mm
Package net weight 1.06 kg
Technical details
Country of origin China
Logistics data
Master (outer) case net weight 10.6 kg
Harmonized System (HS) code 7326909890
Master (outer) case width 435 mm
Master (outer) case length 220 mm
Master (outer) case height 245 mm
Master (outer) case gross weight 12.5 kg
Products per master (outer) case 10 pc(s)
Products per pallet (EU) 180 pc(s)
