Newstar

Neomounts tv wall mount

Neomounts tv wall mount

Regular price £128.54 GBP
Regular price Sale price £128.54 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:WL70-550BL14

12 in stock

  • Maximum weight capacity: 30 kg
  • Minimum screen size: 81.3 cm (32") Maximum screen size: 139.7 cm (55")
  • Number of displays supported: 1
  • Screws Mounting type: Wall
  • Maximum VESA mount: 400 x 400 mm
  • Gas spring Height adjustment Tilt adjustment
  • Cable management
  • Black

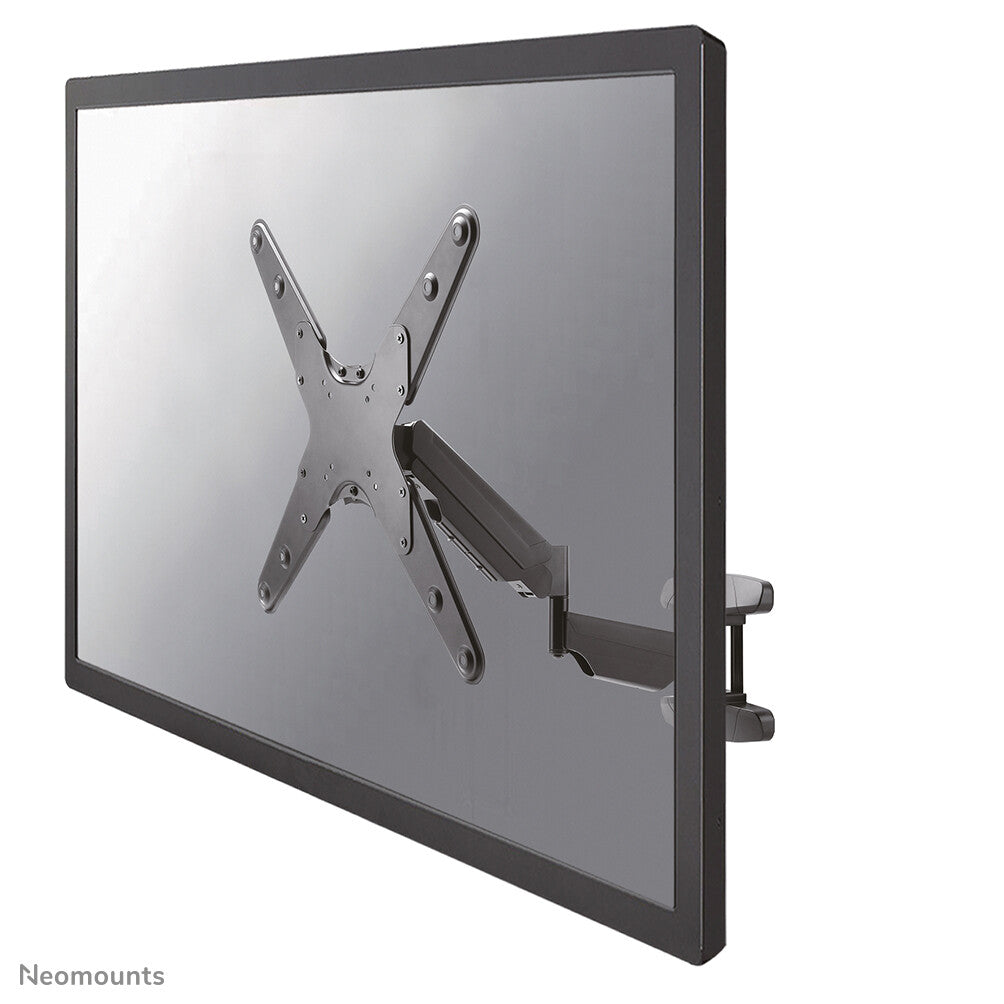

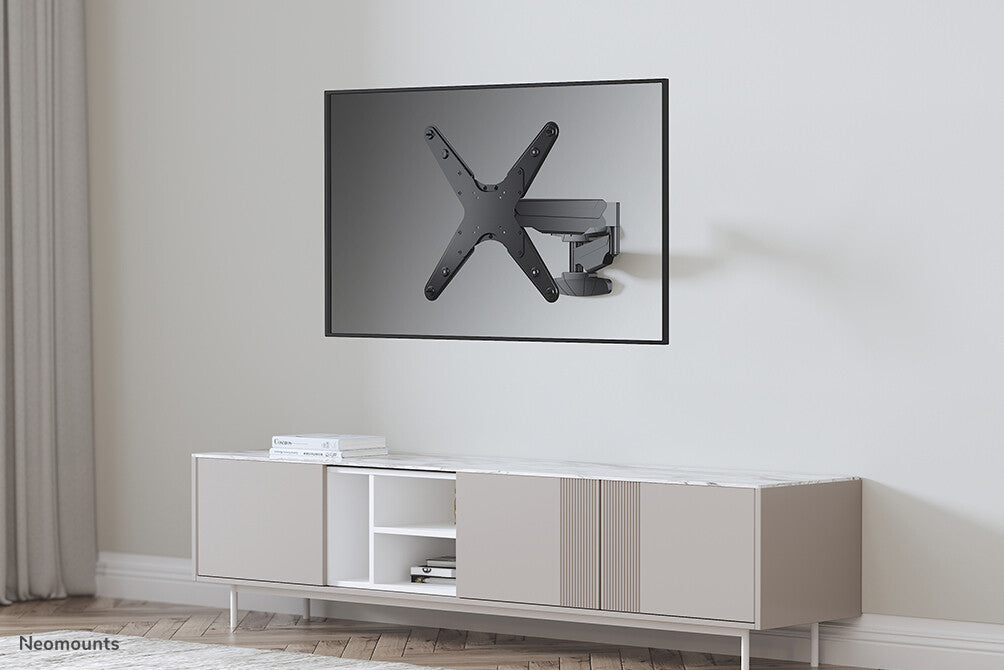

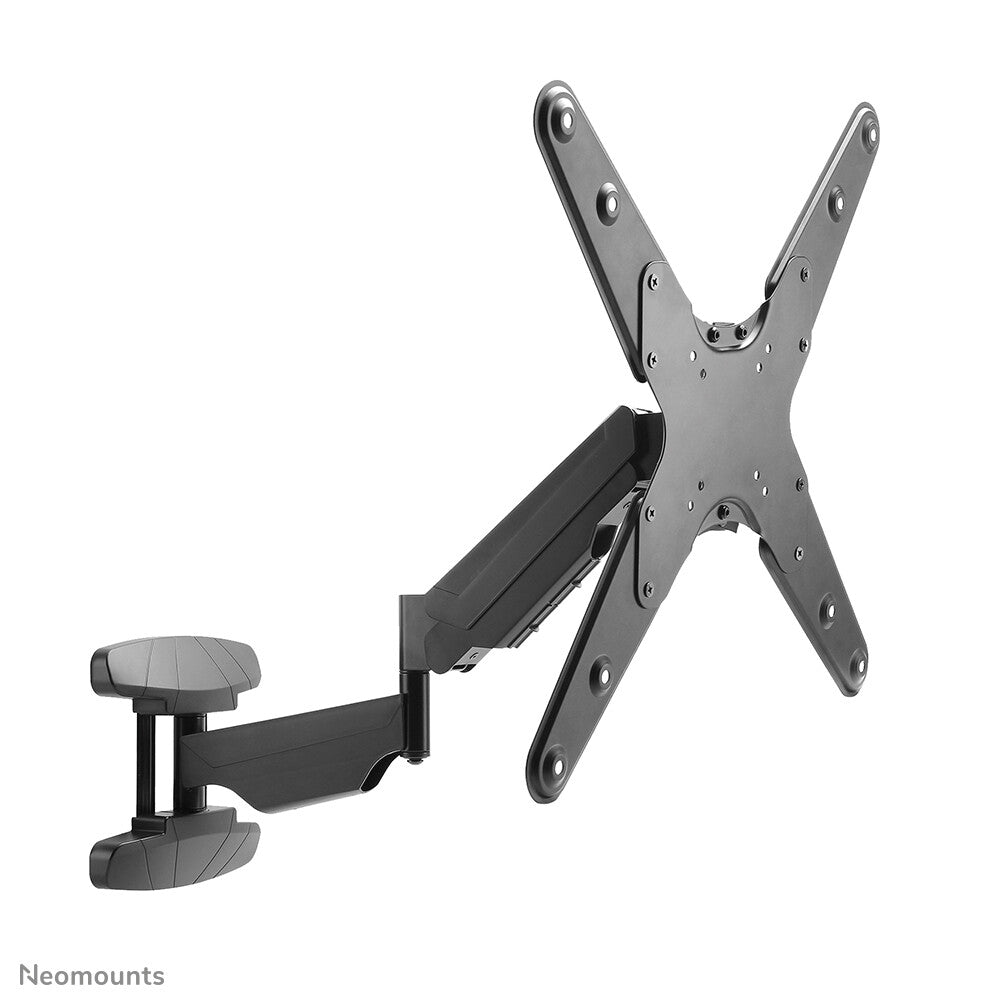

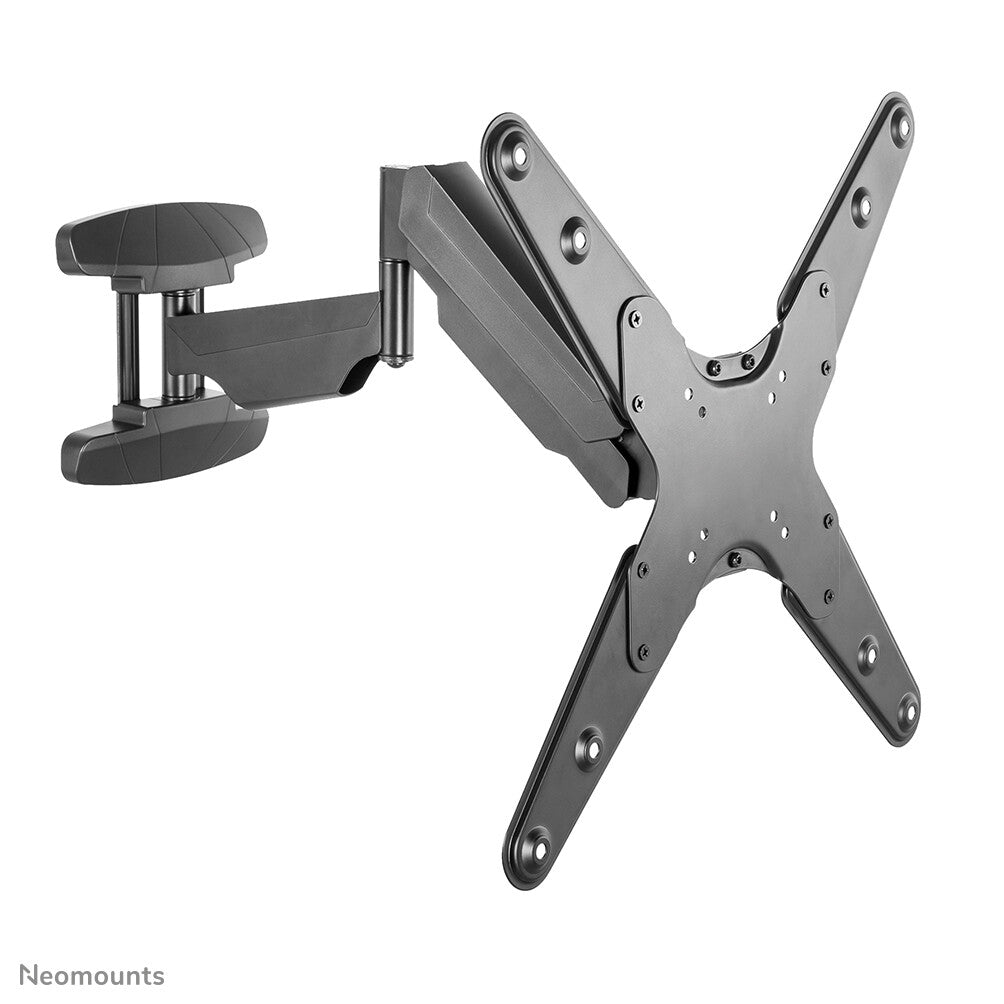

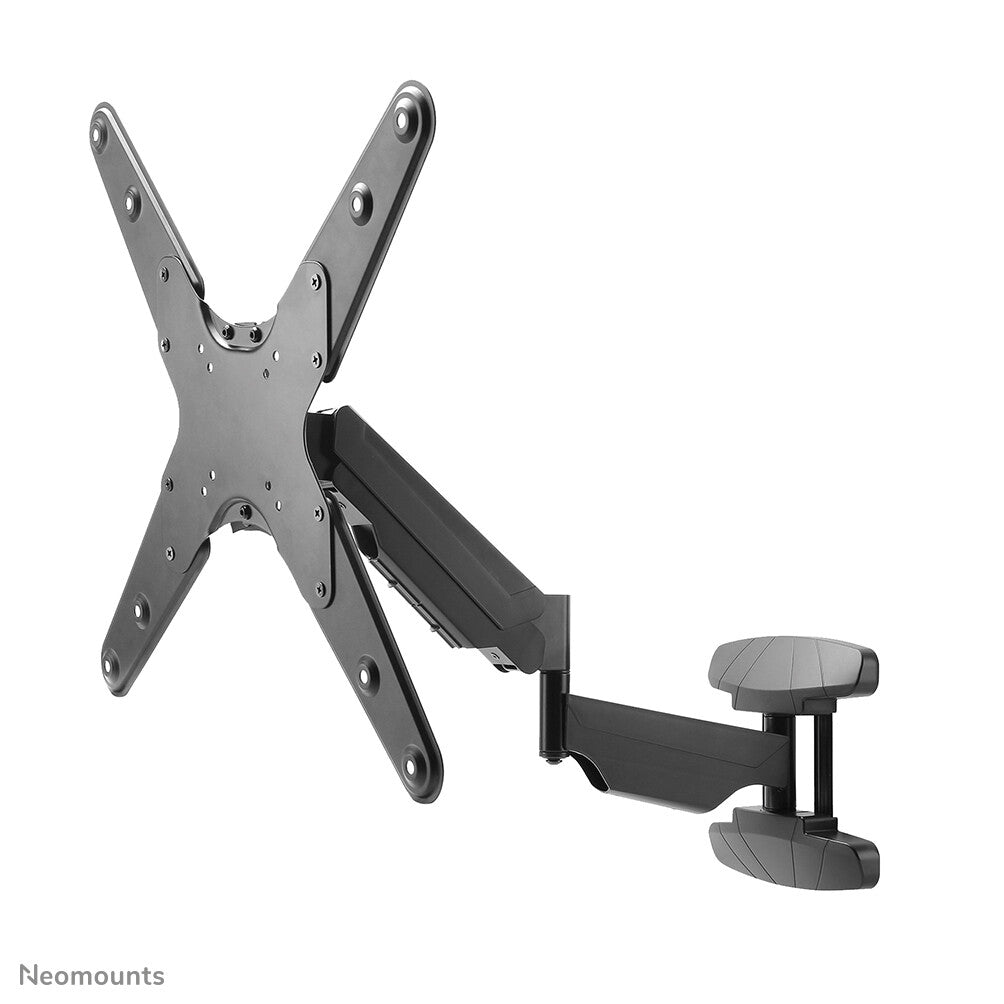

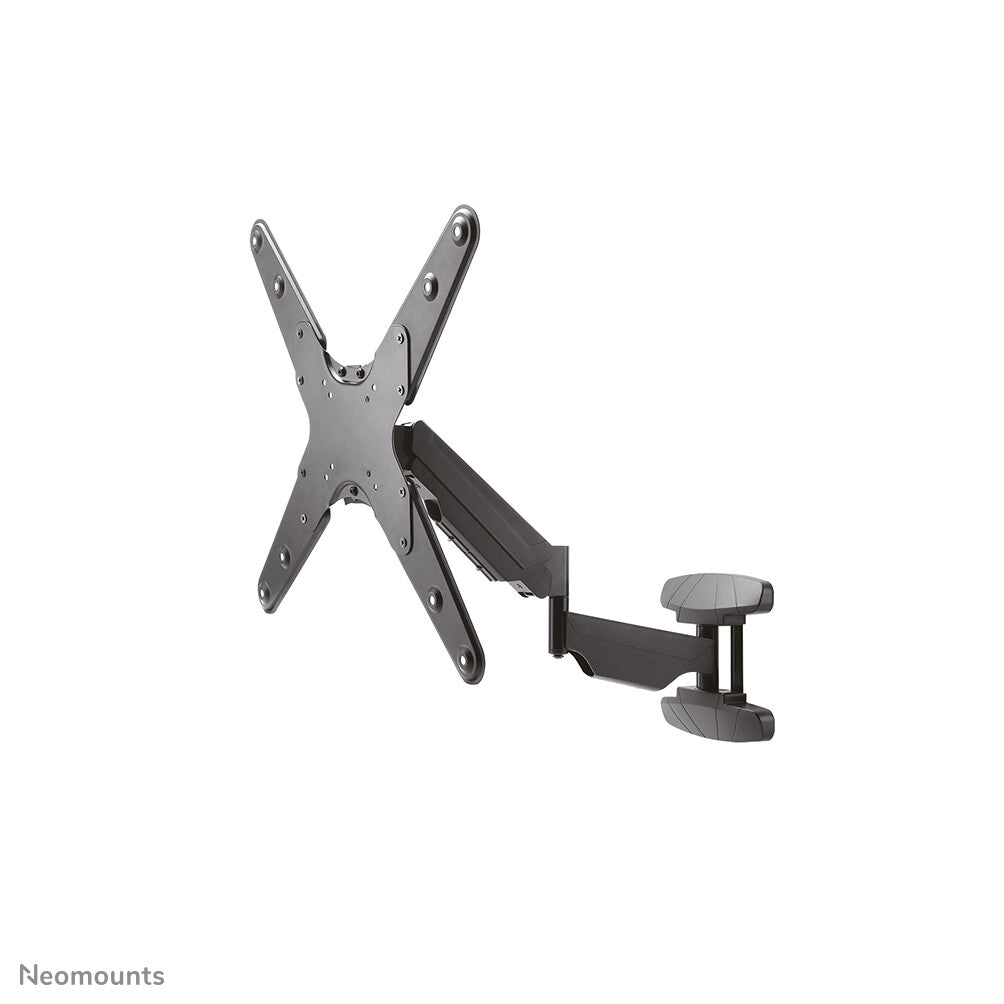

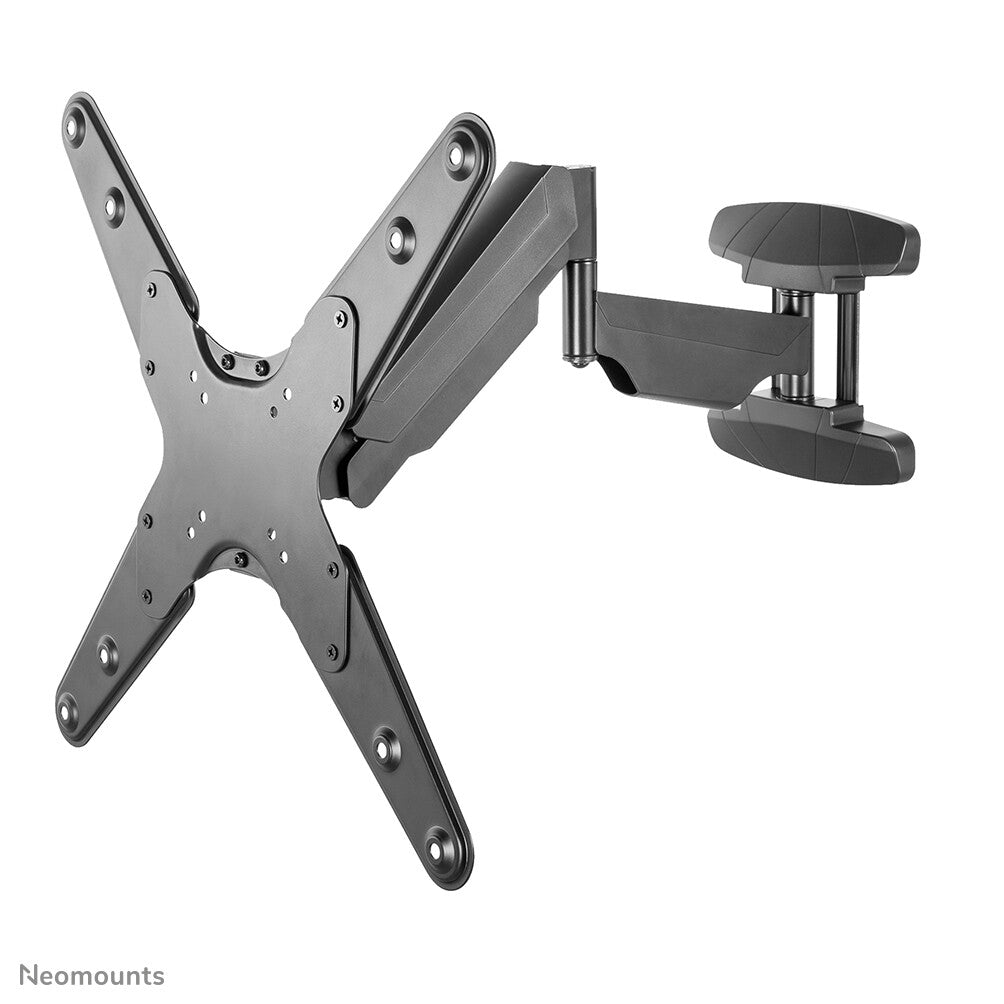

Neomounts WL70-550BL14 full motion wall mount for 32-55" screens - Black

The Neomounts WL70-550BL14 is a full motion wall mount for flat screens up to 55" with a maximum weight capacity of 30 kg. The versatile tilt (20°) and swivel (180°) technology allows you to create the optimum viewing angle. The mount can be levelled for the perfect installation.

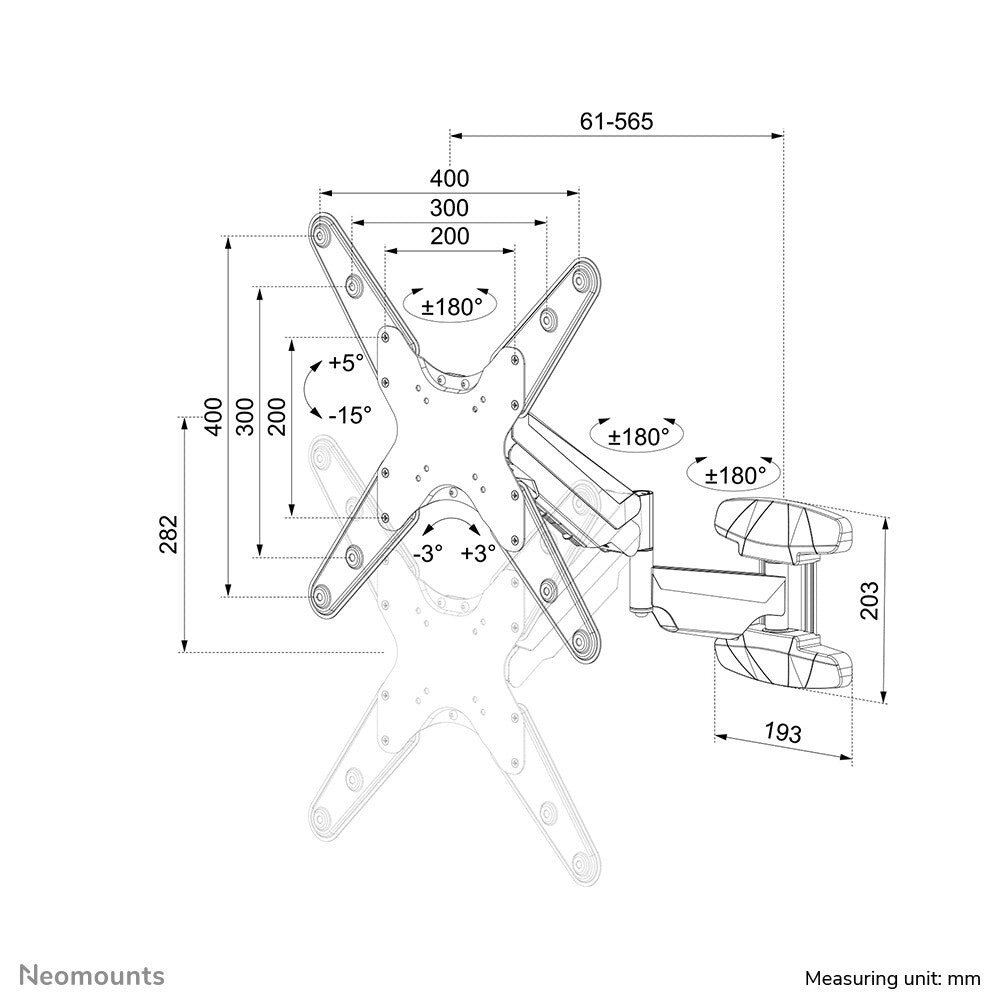

The WL70-550BL14 has a depth of 6,1-56,5 cm and is suitable for screens that meet VESA hole pattern 75x75 to 400x400 mm.

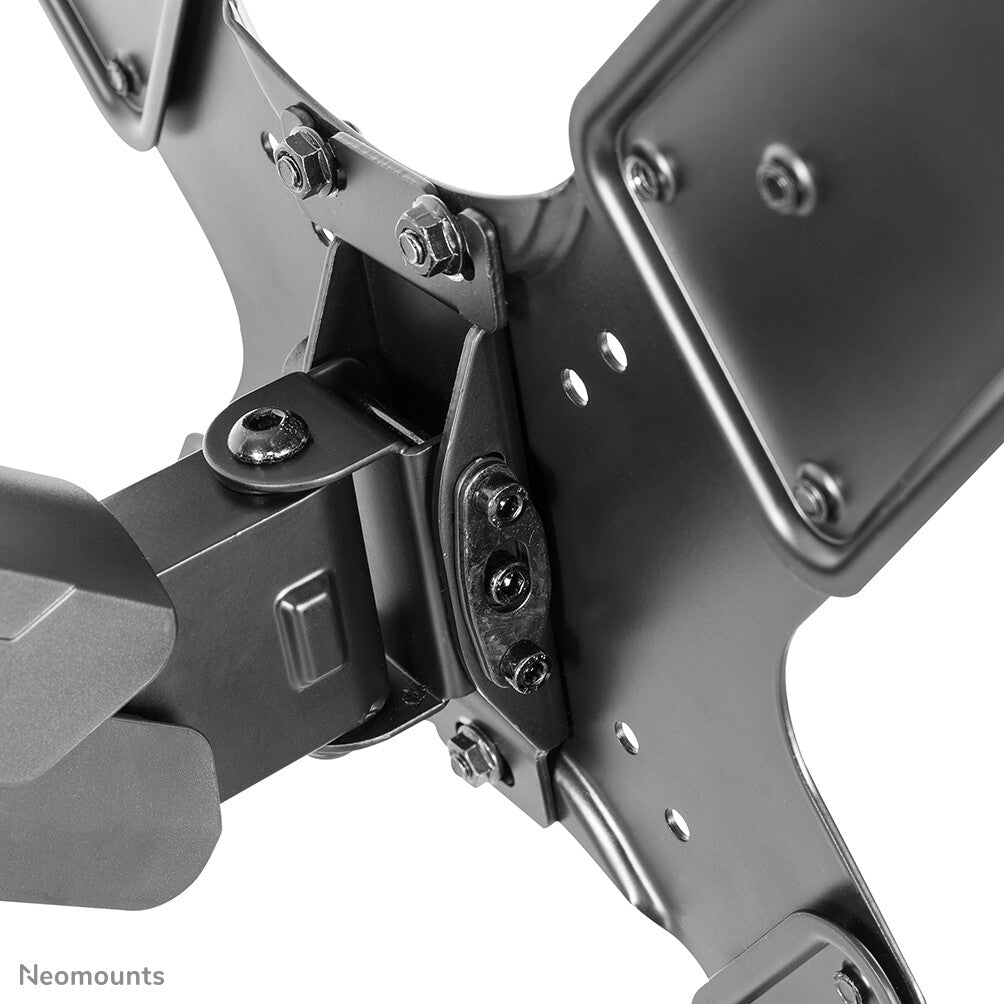

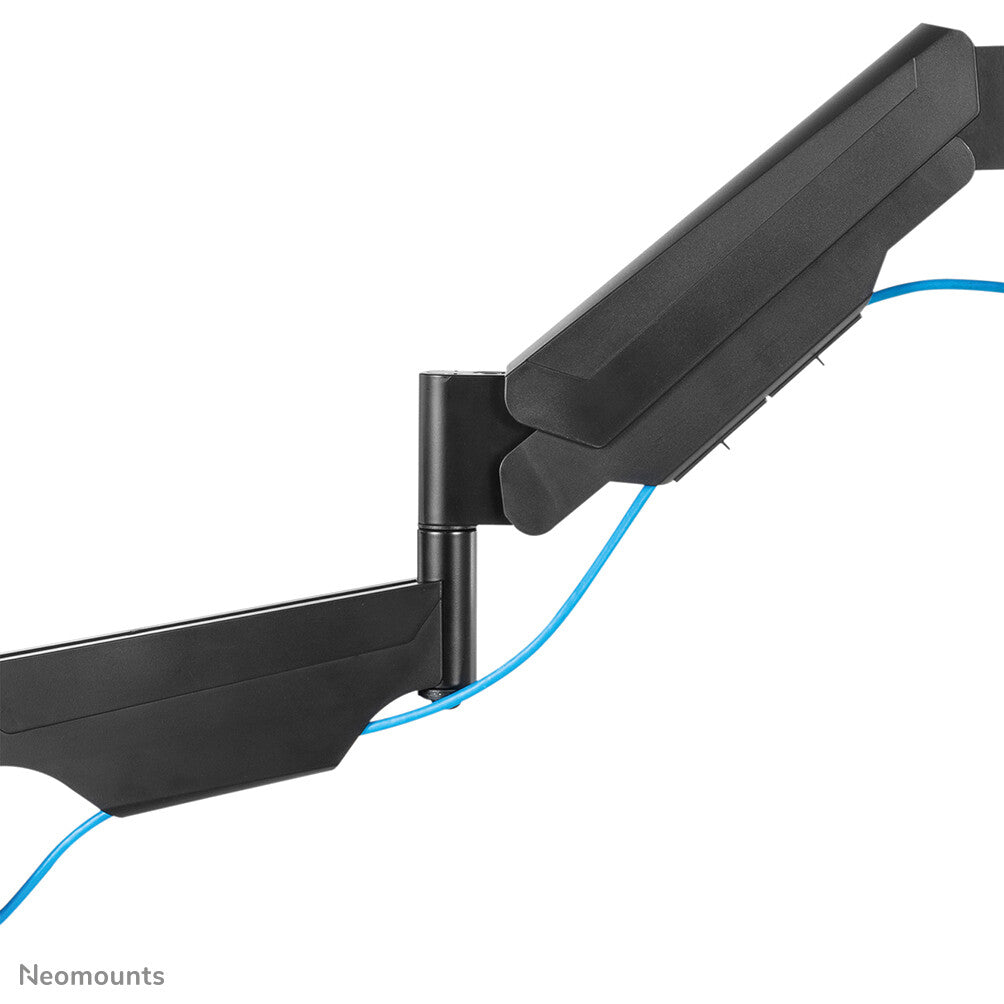

The mount can be easily adjusted in height using the gas spring. The cable management system allows you to route and secure any loose cables at the back of the screen. Additionally, the mount features an Easy-release VESA, that allows you to attach the TV in a wink of an eye.

Mounting
Distance to the wall (max) 56.5 cm
Distance to the wall (min) 6.1 cm
Number of displays supported 1
Panel mounting interface 75 x 75,100 x 100,200 x 100,200 x 200,300 x 300,400 x 200,400 x 400,400 x 300
Maximum VESA mount 400 x 400 mm
Minimum VESA mount 75 x 75 mm
Mounting Screws
Mounting type Wall
Maximum screen size 139.7 cm (55")
Minimum screen size 81.3 cm (32")
Maximum weight capacity 30 kg
Ergonomics
Tilt adjustment Yes
Cable management Yes
Angle of rotation
Swivel angle 180°
Tilt angle range -15 - 5°

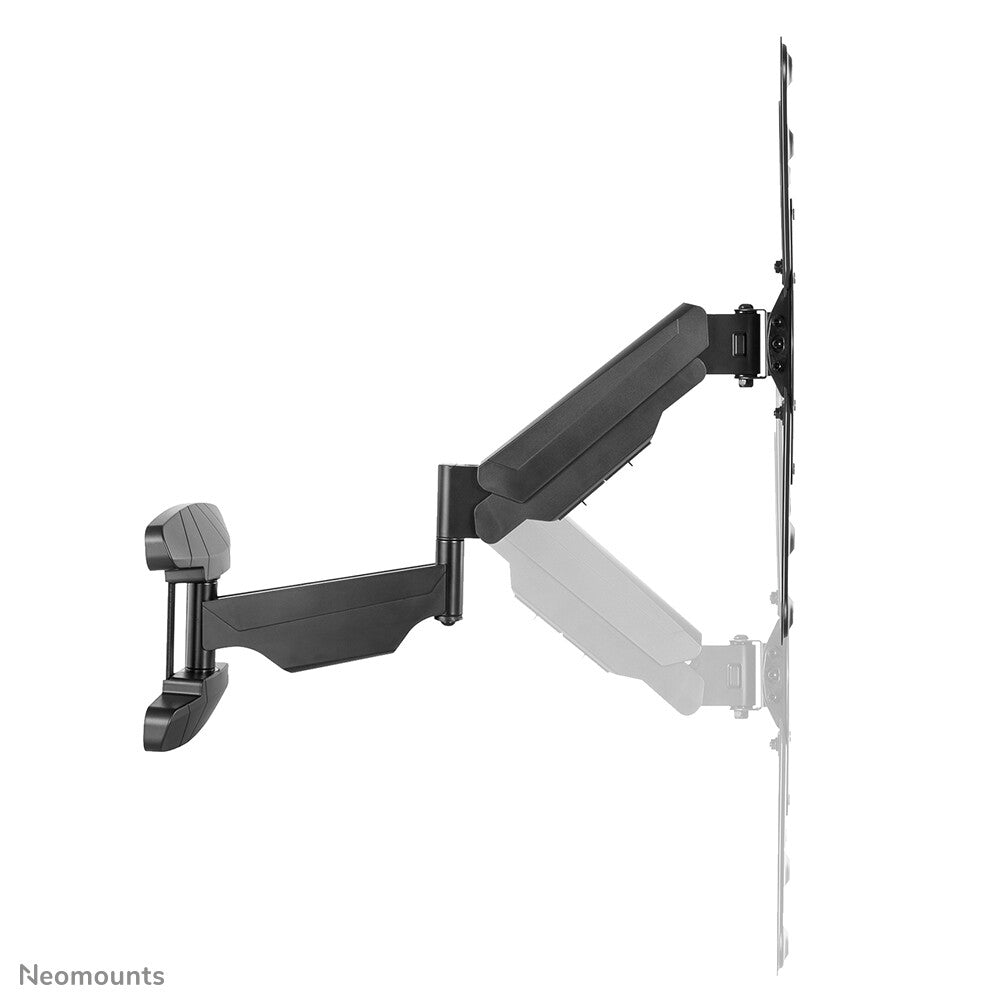

Height adjustment range 0 - 282 mm
Height adjustment type Gas spring
Height adjustment Yes
Design
Product colour Black
Weight & dimensions
Package net weight 5.5 kg
Package height 75 mm
Package depth 505 mm
Package width 365 mm
Height 450 mm
Depth 565 mm
Width 450 mm
Packaging data
Quantity per pack 1 pc(s)
Logistics data
Harmonized System (HS) code 7326909890
Products per pallet (EU) 72 pc(s)
Master (outer) case net weight 13.8 kg
Products per master (outer) case 3 pc(s)
Master (outer) case height 345 mm
Master (outer) case length 520 mm
Master (outer) case width 380 mm
Other features
Country of origin China
