- Maximum weight capacity: 10 kg
- Minimum screen size: 25.4 cm (10") Maximum screen size: 101.6 cm (40")
- Number of displays supported: 1
- Mounting type: Wall
- Maximum VESA mount: 400 x 400 mm
- Tilt adjustment
- Cable management
- Steel White

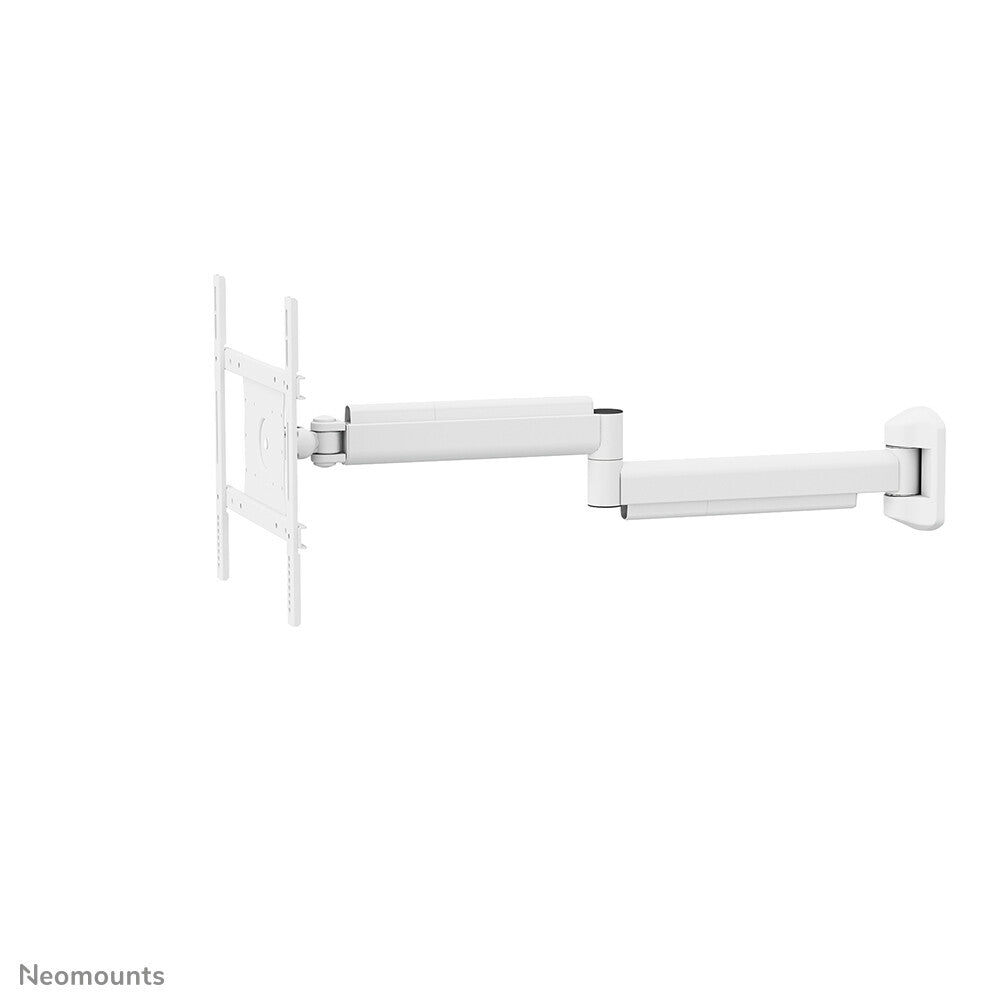

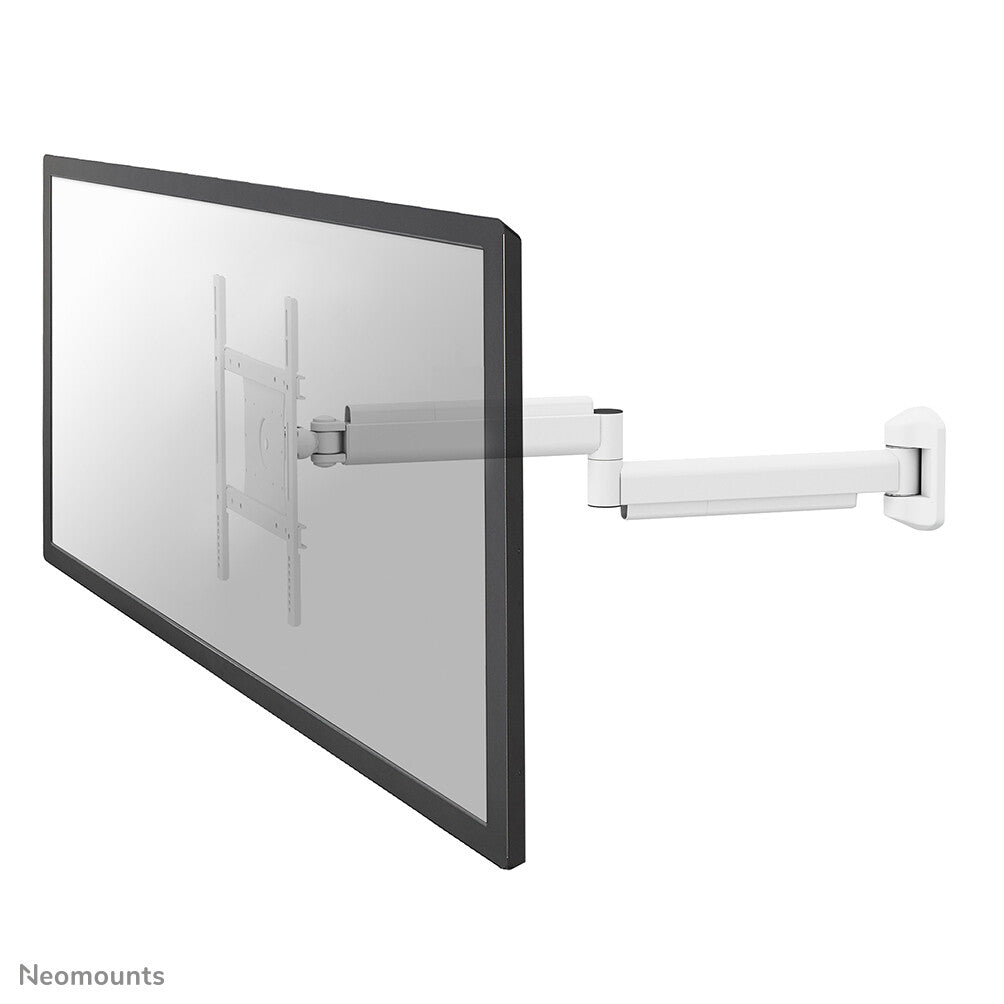

The Neomounts wall mount, model FPMA-HAW050 is a tilt-, turn- and swivel wall mount for medical flat screens up to 40". This mount is a great choice for space saving placement or when ceiling mounting and floor placement is not an option.

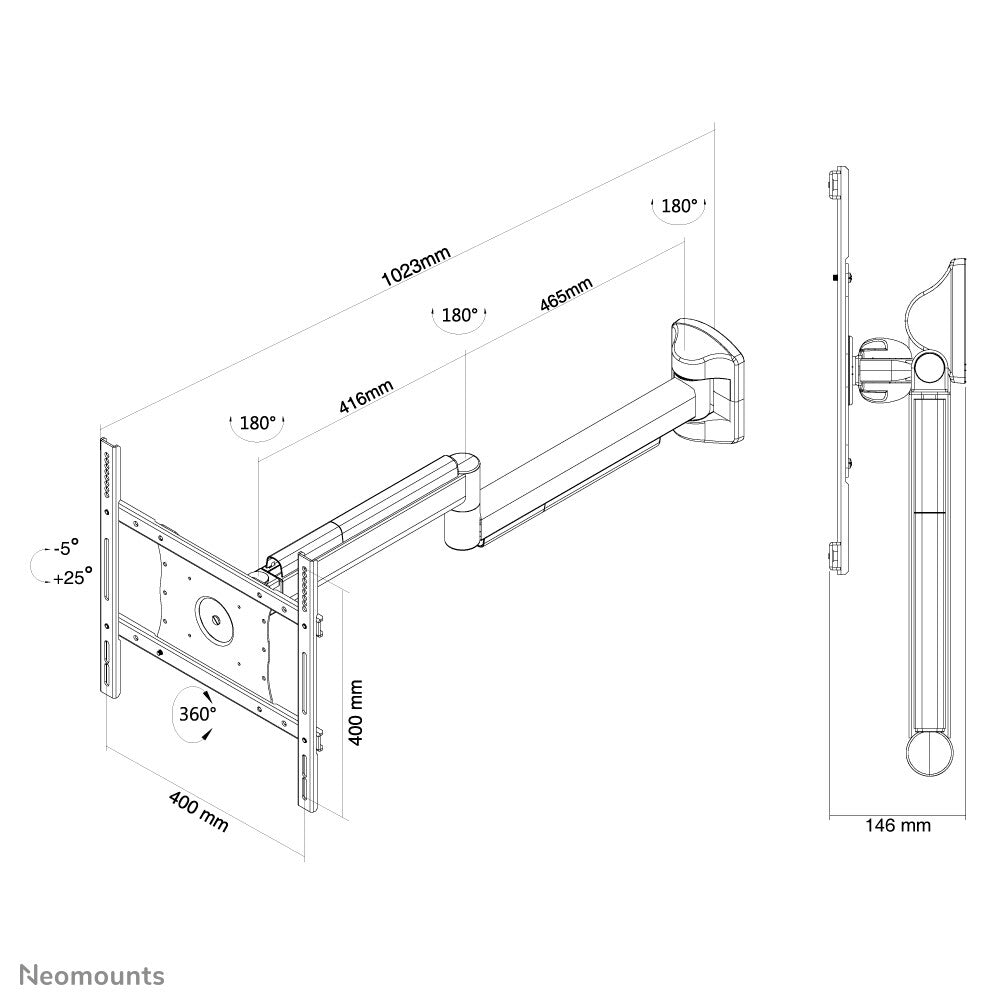

Neomounts' unique tilt (30°), turn (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The support is easily depth adjustable from 15 to 102 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.
Neomounts FPMA-HAW050 has three pivot points and is suitable for screens up to 40" (102 cm). The weight capacity of this product is 10 kg. The wall mount is suitable for screens that meet VESA hole pattern 100x100 to 400x400mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
All installation material is included with the product.
| Mounting | |
|---|---|
| Maximum weight capacity | 10 kg |
| Minimum screen size | 25.4 cm (10") |
| Maximum screen size | 101.6 cm (40") |
| Mounting type | Wall |
| Minimum VESA mount | 100 x 100 mm |
| Maximum VESA mount | 400 x 400 mm |
| Panel mounting interface | 100 x 100,100 x 200,200 x 100,200 x 200,200 x 300,200 x 400,300 x 100,300 x 200,300 x 300,400 x 200,400 x 300,400 x 400 |
| Number of displays supported | 1 |
| Depth (min) | 15 cm |
| Ergonomics | |
|---|---|
| Adjustable depth | Yes |
| Depth adjustment range | 150 - 1020 mm |
| Tilt angle range | 0 - 30° |
| Swivelling | Yes |
| Swivel angle | 180° |
| Angle of rotation | 360° |
| Number of pivot points | 3 |
| Cable management | Yes |
| Tilt adjustment | Yes |
| Rotating | Yes |
| Design | |
|---|---|
| Product colour | White |
| Housing material | Steel |
| Weight & dimensions | |
|---|---|
| Package width | 580 mm |
| Package depth | 310 mm |
| Package height | 200 mm |
| Package net weight | 10 kg |
| Logistics data | |
|---|---|
| Master (outer) case width | 310 mm |
| Master (outer) case length | 200 mm |
| Master (outer) case height | 580 mm |
| Master (outer) case gross weight | 10 kg |
| Products per master (outer) case | 1 pc(s) |
| Master (outer) case net weight | 10 kg |
| Products per pallet (EU) | 50 pc(s) |
| Harmonized System (HS) code | 7326909890 |
| Other features | |
|---|---|
| Country of origin | Taiwan |
| Depth (max) | 102 cm |
