Neomounts medical ceiling mount
Neomounts medical ceiling mount
SKU:FPMA-HAC100
Low stock: 1 left
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Maximum weight capacity: 6 kg
- Minimum screen size: 25.4 cm (10") Maximum screen size: 61 cm (24")
- Number of displays supported: 1
- Mounting type: Ceiling
- Maximum VESA mount: 100 x 100 mm
- Gas spring
- White

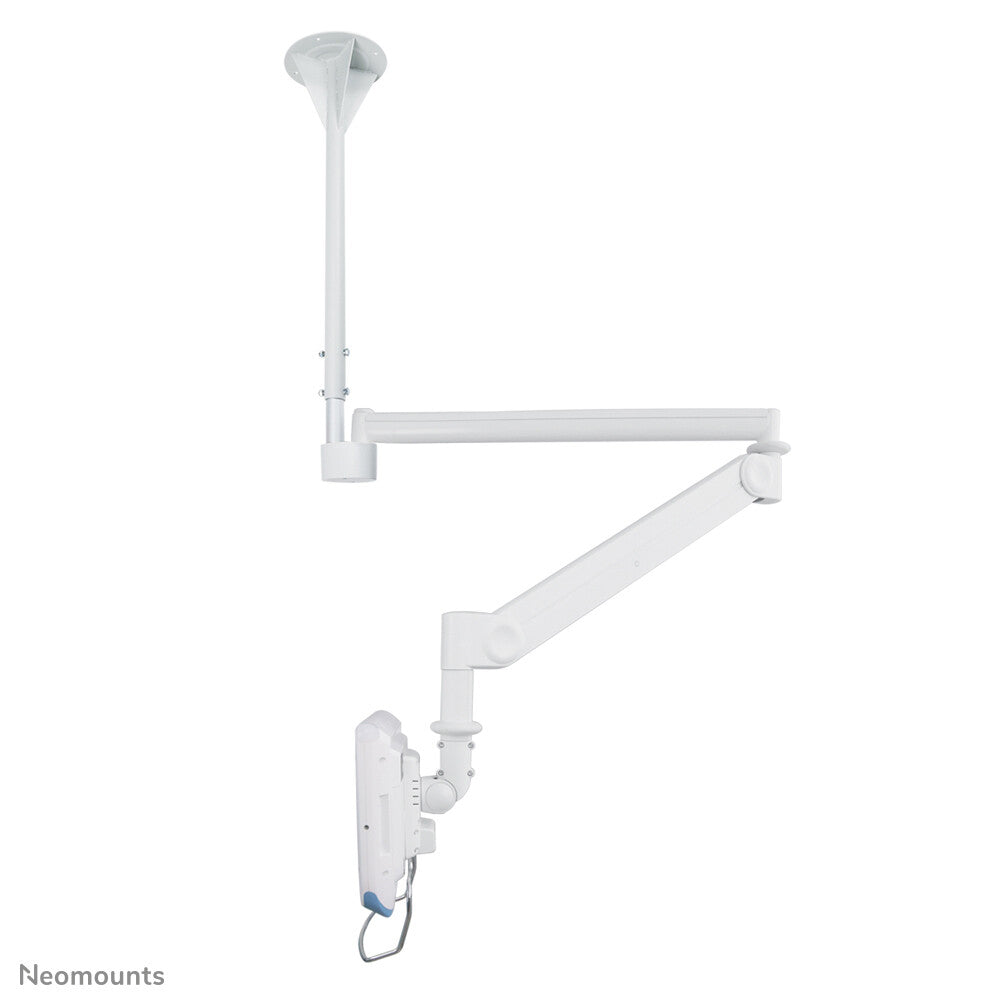

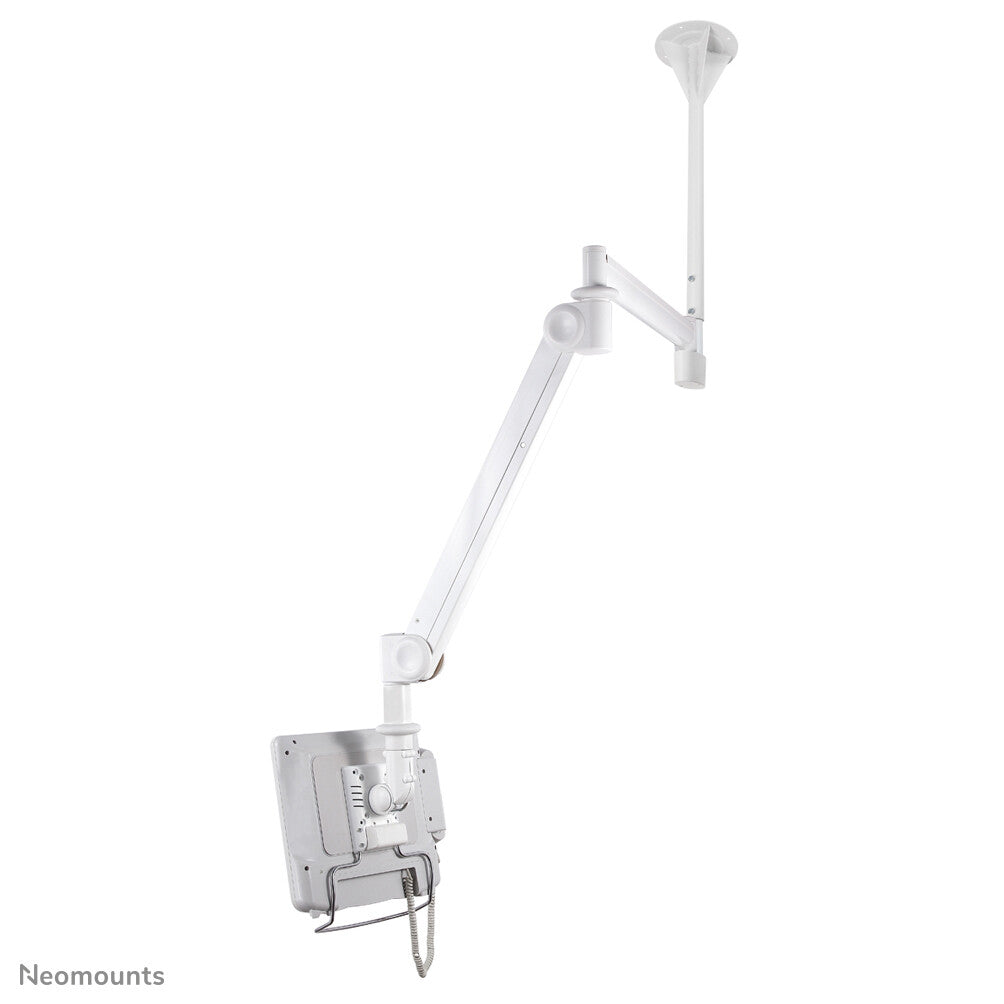

The Neomounts ceiling mount, model FPMA-HAC100 is a tilt- and swivel ceiling mount for medical flat screens up to 24". This mount is a great choice for space saving placement or when wall mounting and floor placement is not an option.
Neomounts versatile tilt (55°) and swivel (370°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The support is easily height adjustable from 0 to 170 centimetres using a gas spring. Depth adjustable from 0 to 170 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.
Neomounts FPMA-HAC100 has two pivot points and is suitable for screens up to 24" (61 cm). The weight capacity of this product is 6 kg each screen. The ceiling mount is suitable for screens that meetVESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
All installation material is included with the product.
| Mounting | |
|---|---|
| Maximum weight capacity | 6 kg |
| Minimum screen size | 25.4 cm (10") |
| Maximum screen size | 61 cm (24") |
| Mounting type | Ceiling |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Number of displays supported | 1 |
| Distance to the wall (max) | 170 cm |
| Maximum distance to ceiling | 170 cm |
| Ergonomics | |
|---|---|
| Height adjustment type | Gas spring |
| Tilt angle range | 0 - 55° |
| Swivel angle | 370° |
| Number of pivot points | 3 |
| Design | |
|---|---|
| Product colour | White |

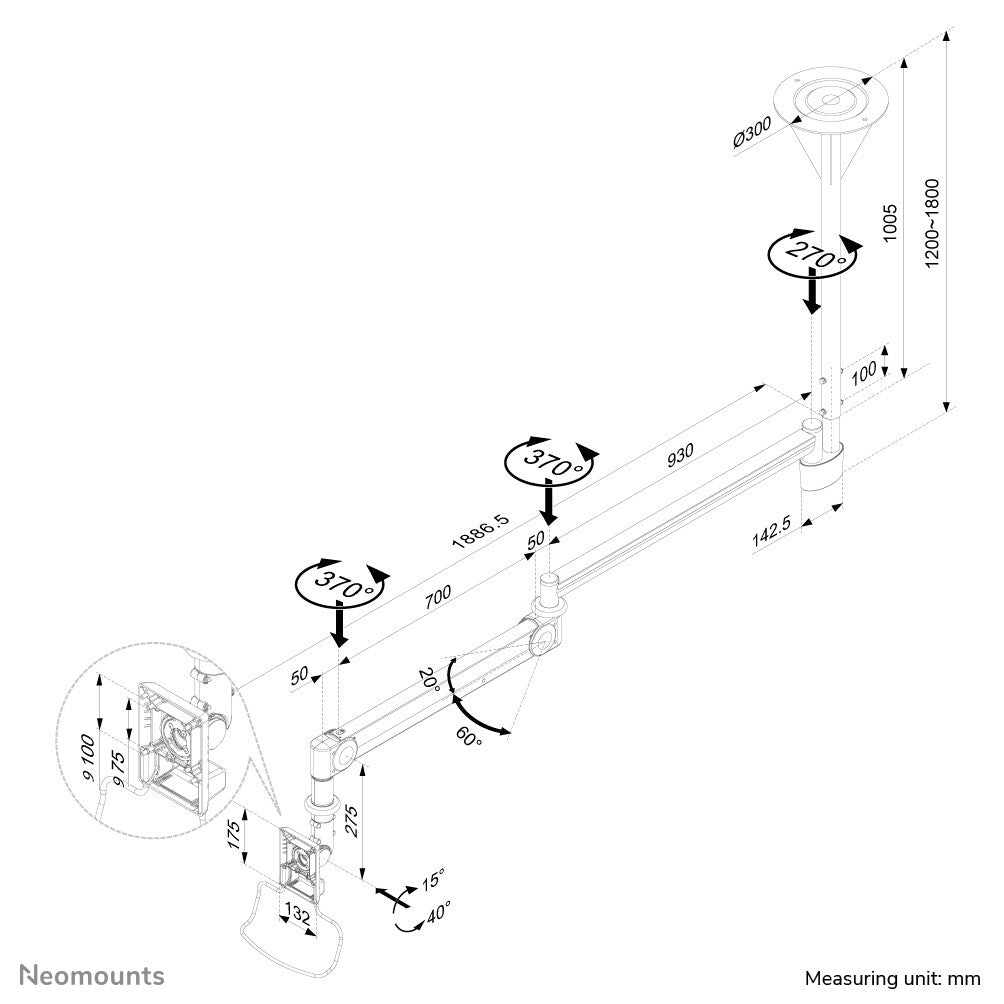

| Weight & dimensions | |
|---|---|
| Depth | 1890 mm |
| Height | 1700 mm |
| Package width | 1250 mm |
| Package depth | 390 mm |
| Package height | 390 mm |
| Package net weight | 13.9 kg |
| Logistics data | |
|---|---|
| Master (outer) case width | 1250 mm |
| Master (outer) case length | 390 mm |
| Master (outer) case height | 390 mm |
| Master (outer) case gross weight | 18.2 kg |
| Products per master (outer) case | 1 pc(s) |
| Master (outer) case net weight | 13.9 kg |
| Products per pallet (EU) | 4 pc(s) |
| Harmonized System (HS) code | 85299097 |
| Other features | |
|---|---|
| Country of origin | Taiwan |
