Newstar

Neomounts heavy duty tv wall mount

Neomounts heavy duty tv wall mount

WL35-750BL16

£83.32 GBP£69.43 GBP
£0.00 GBP £83.32 GBP£69.43 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Low stock: 6 left

Delivery & lead times

Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.

Buying 5 or more? Volume pricing

We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.

Returns & warranty

See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

  • Maximum weight capacity: 125 kg
  • Minimum screen size: 106.7 cm (42") Maximum screen size: 2.18 m (86") Wall
  • Minimum VESA mount: 100 x 100 mm Maximum VESA mount: 600 x 400 mm
  • Number of displays supported: 1
  • Height adjustment Tilt adjustment
  • Cable management
  • Steel Black

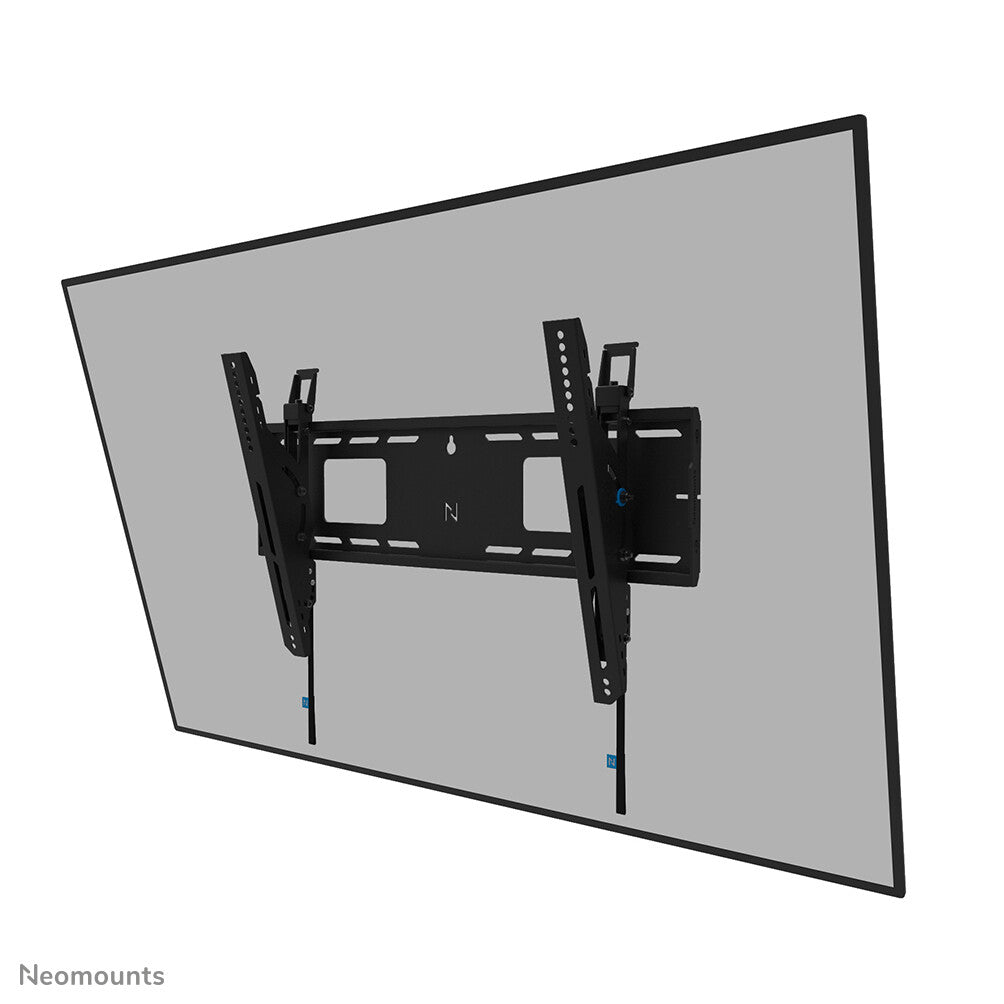

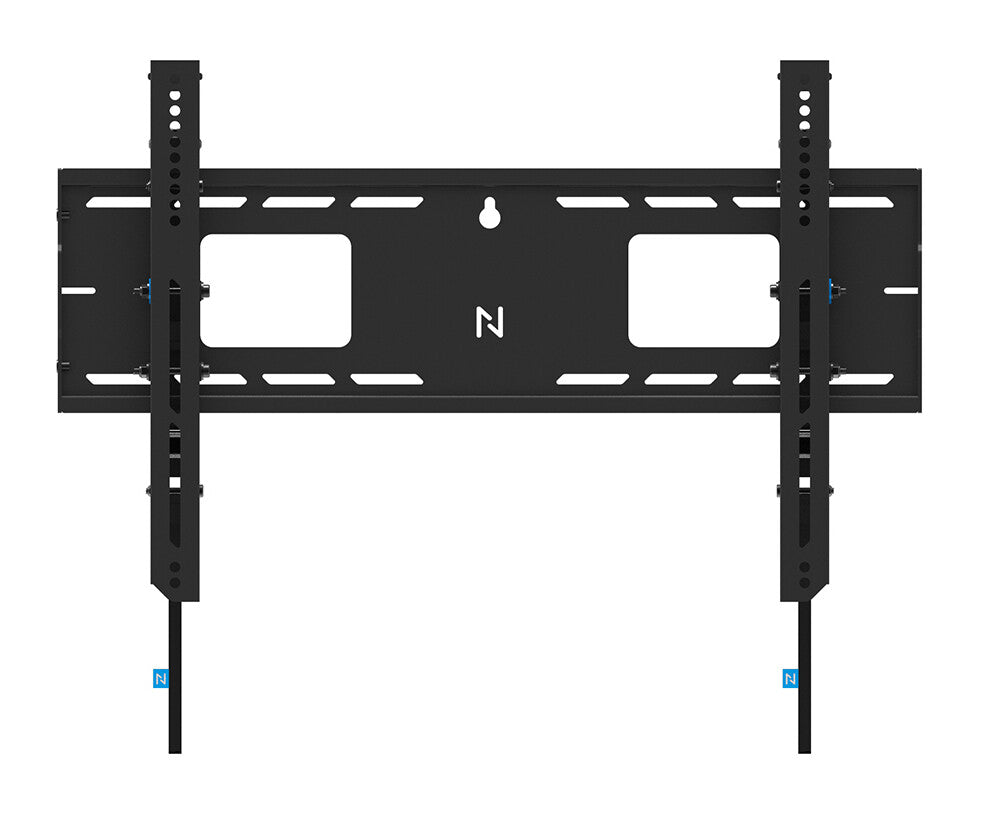

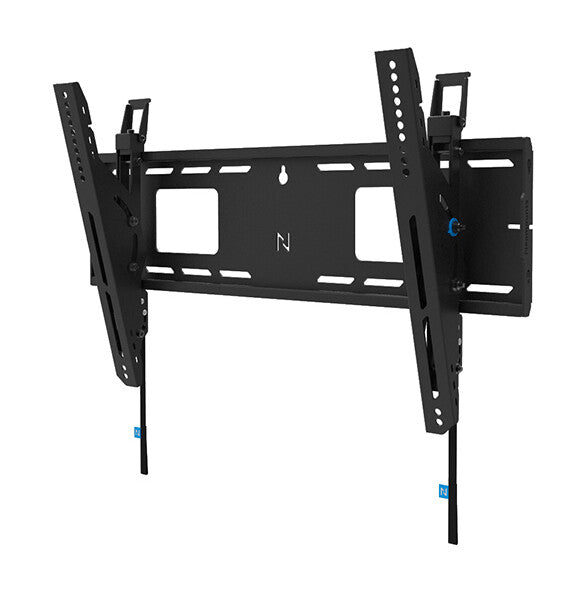

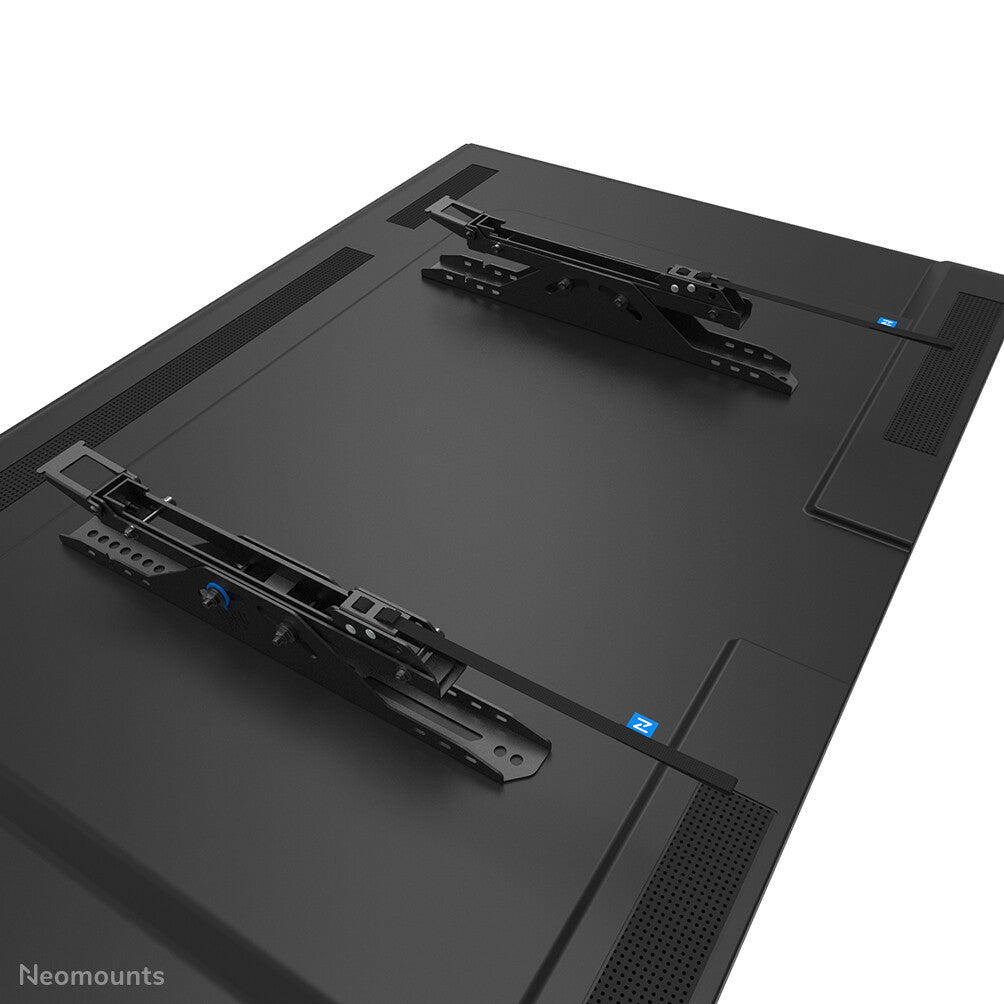

Neomounts WL35-750BL16 tiltable wall mount for 42-86" screens - Black

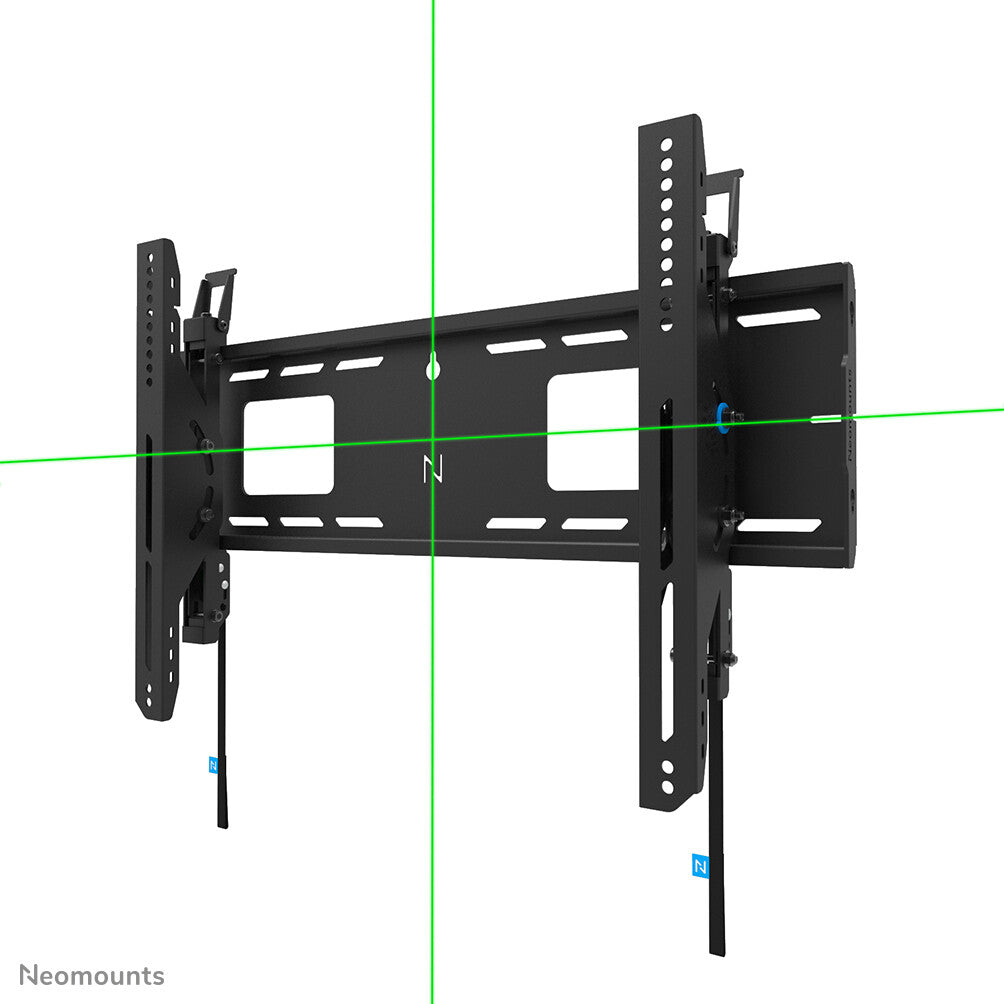

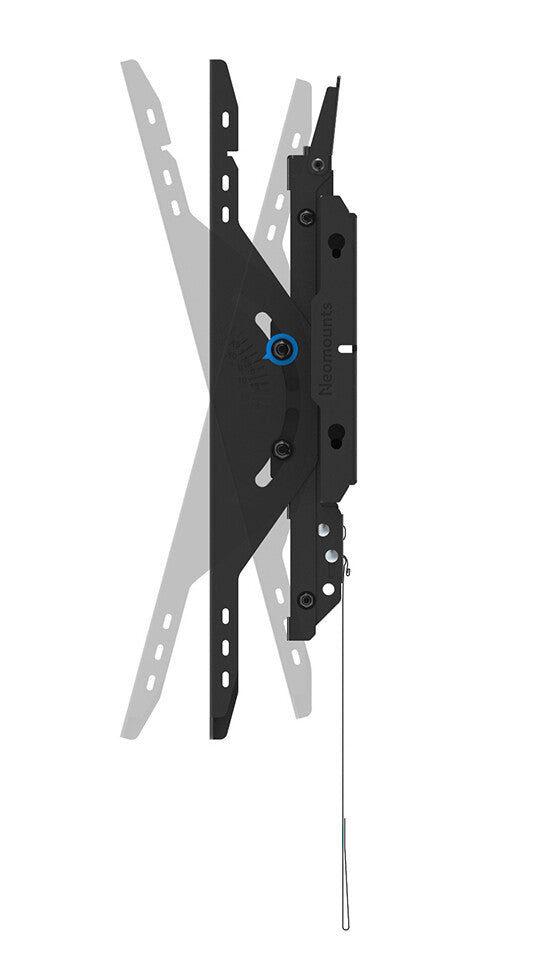

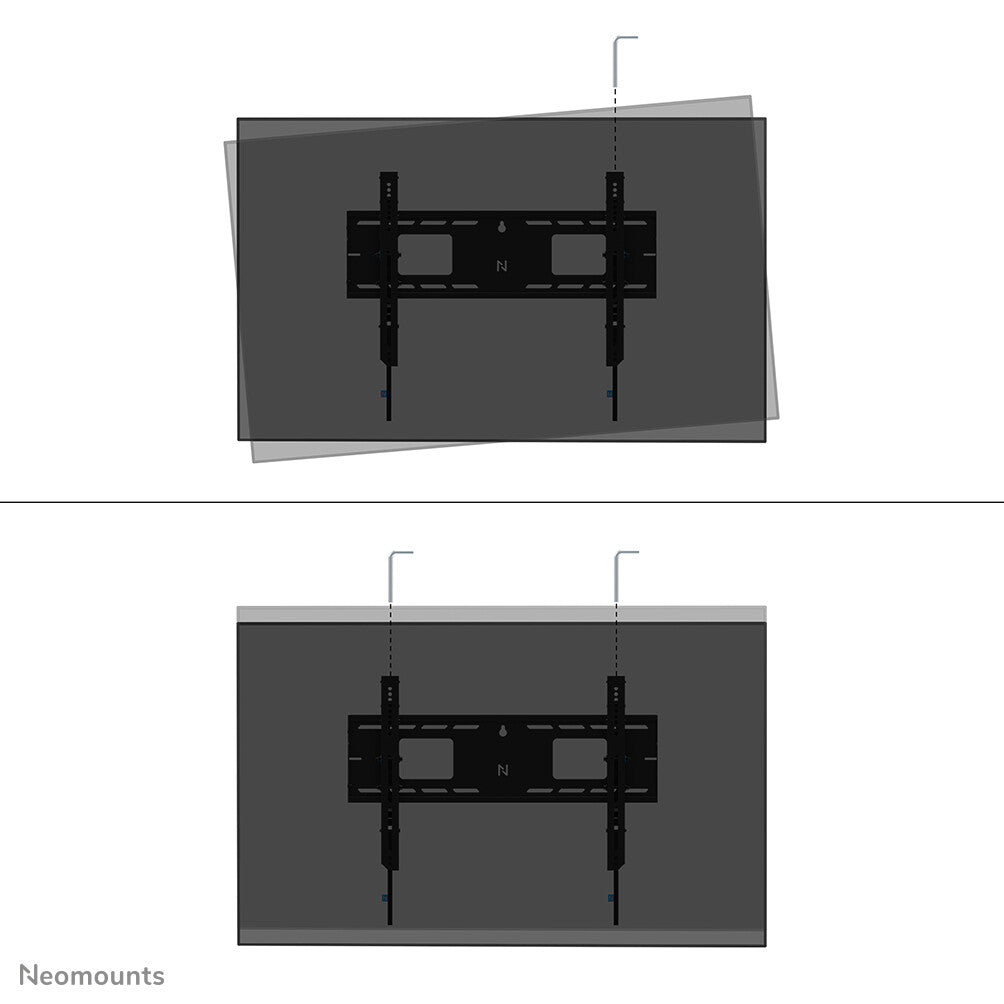

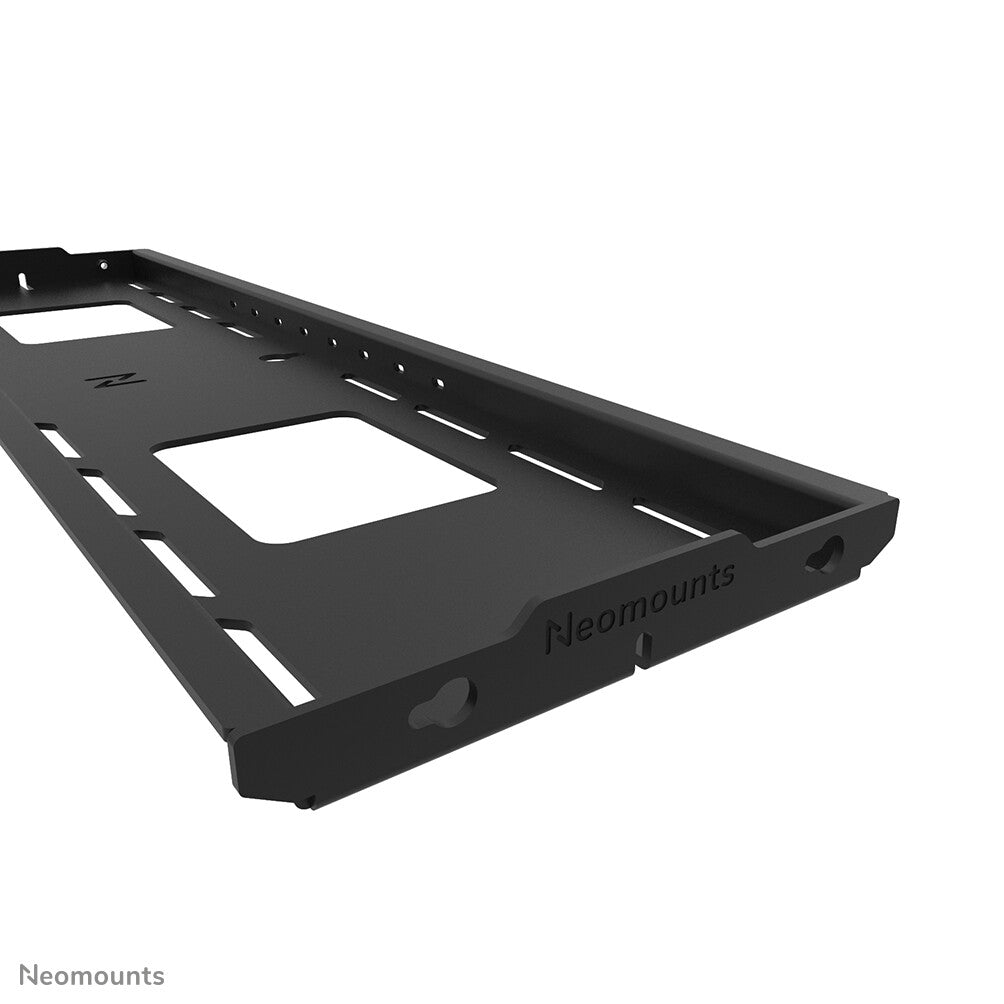

The Neomounts WL35-750BL16 LEVEL is the ultimate tiltable solution for securely mounting an interactive or heavy weight display up to 86" with a maximum capacity of 125 kg. The toolless tilt adjustment (+15°/-15°) allows you to create the optimum viewing angle. This heavy-duty wall mount features a sturdy high profile wall plate and is engineered for stability and precision, ensuring your screen is securely mounted even on uneven surfaces. The mount features individual adjustable brackets (10 mm) for securely adjusting the display height or levelling it.

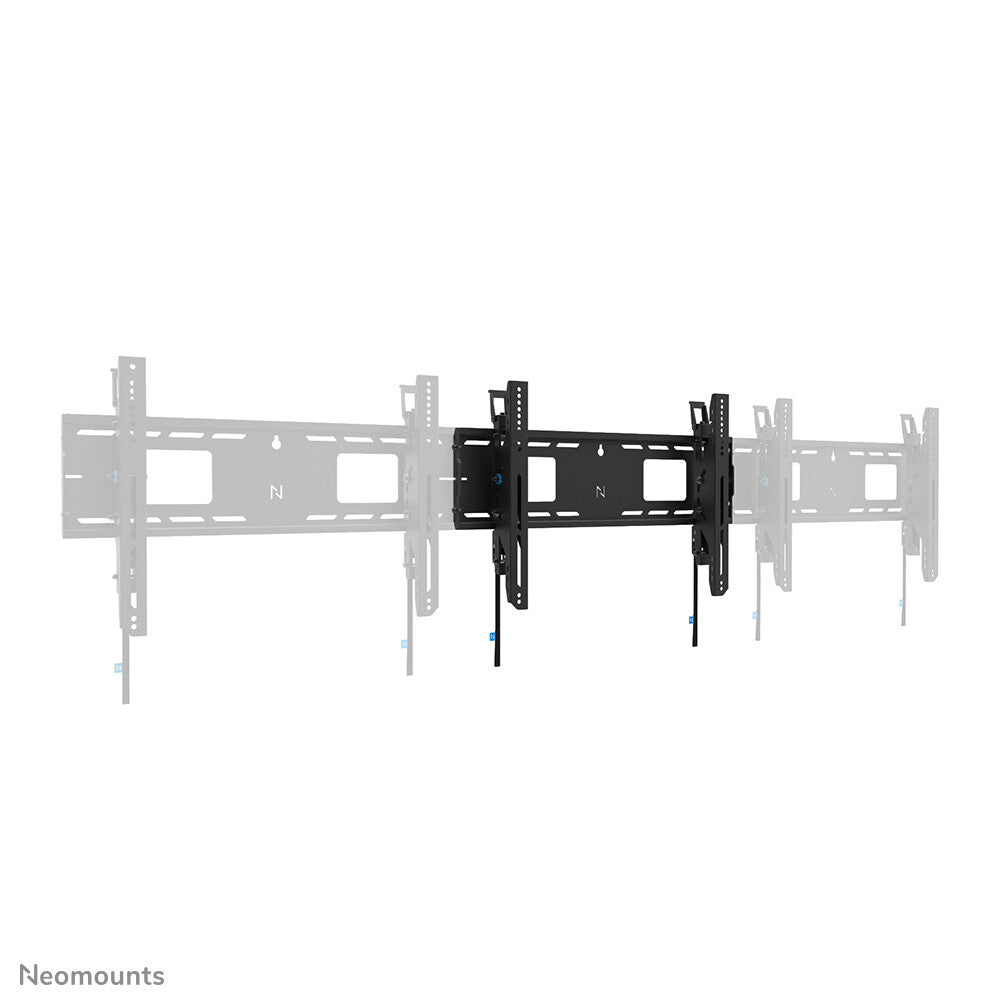

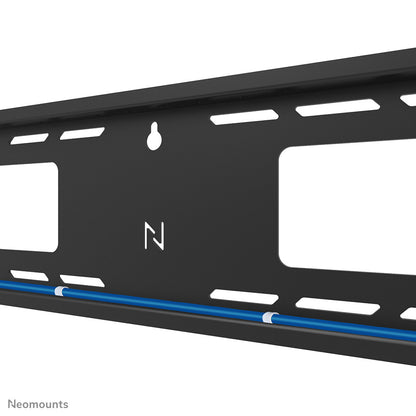

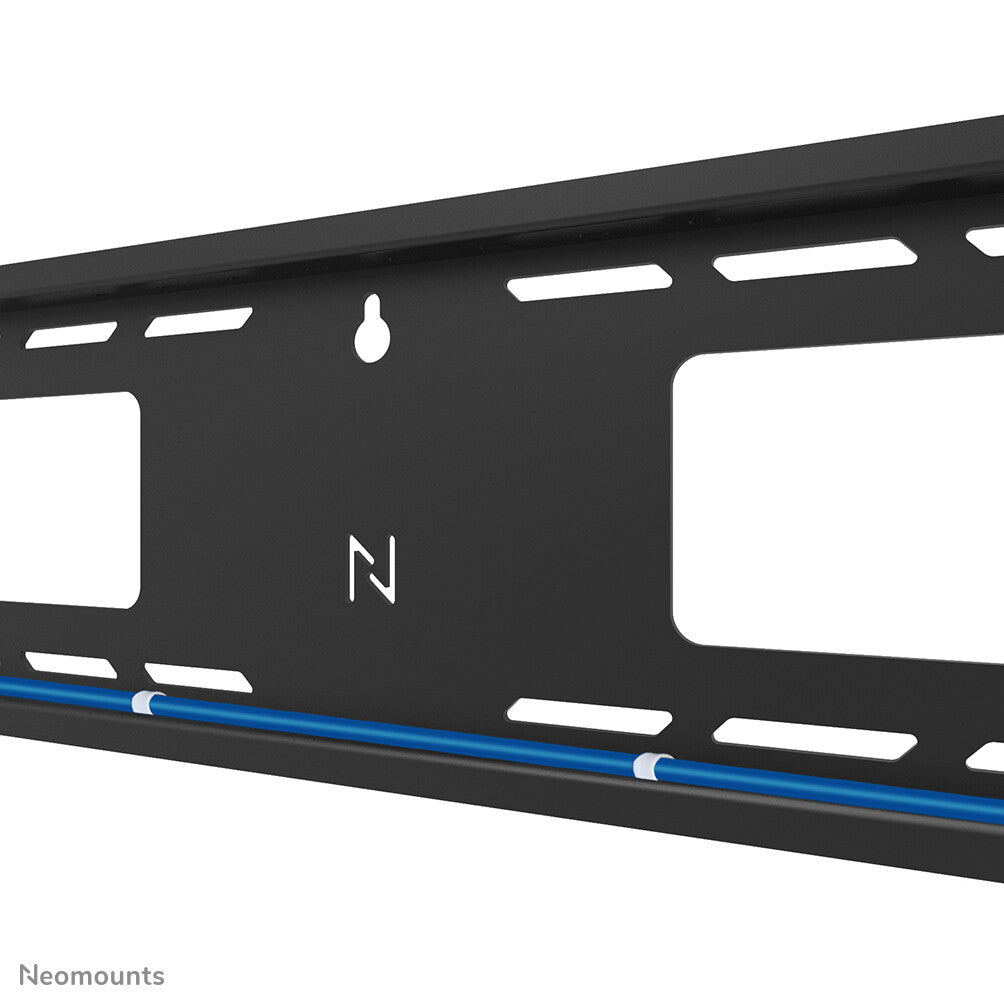

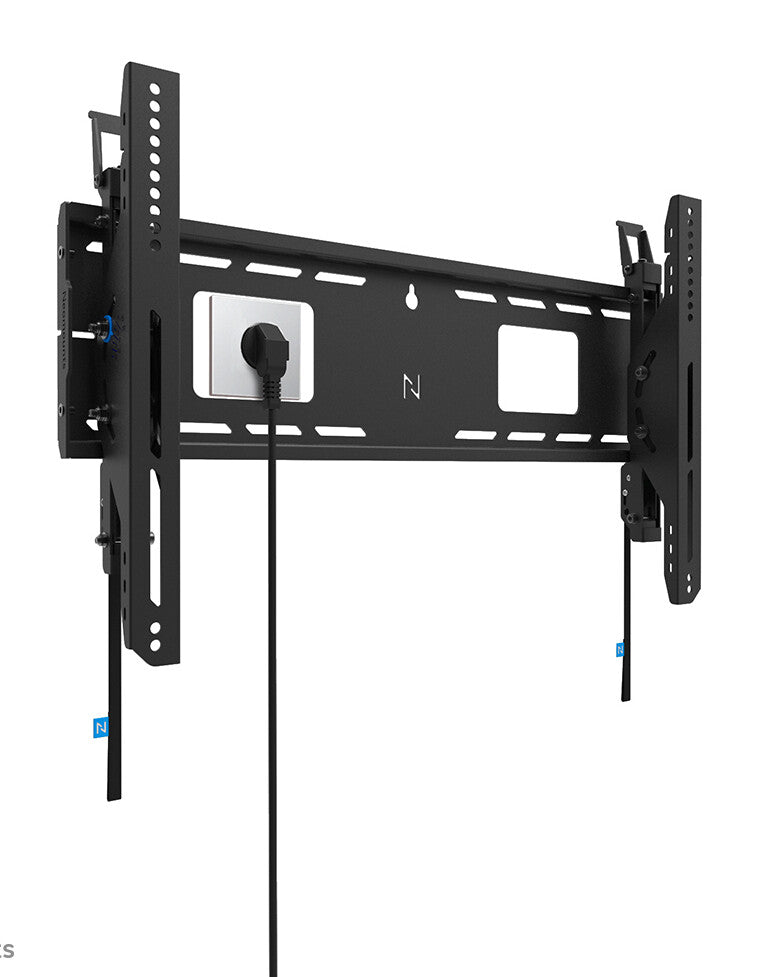

The LEVEL-750 wall mount has a profile of 9,3 cm and is suitable for screens that meet VESA hole pattern 100x100 to 600x400 mm. Its quickly connectable wall plate allows for multiple screen mounting. Additionally, the wall plate is designed with specific cut-outs for wall sockets and securing devices and cables. It features various perforated holes for easy tie-wrap cable fixing and provides space for cable storage, ensuring a clean and tidy finishing.

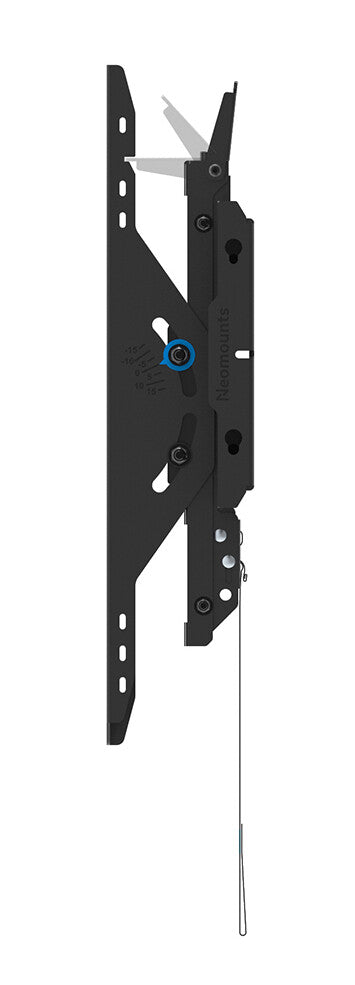

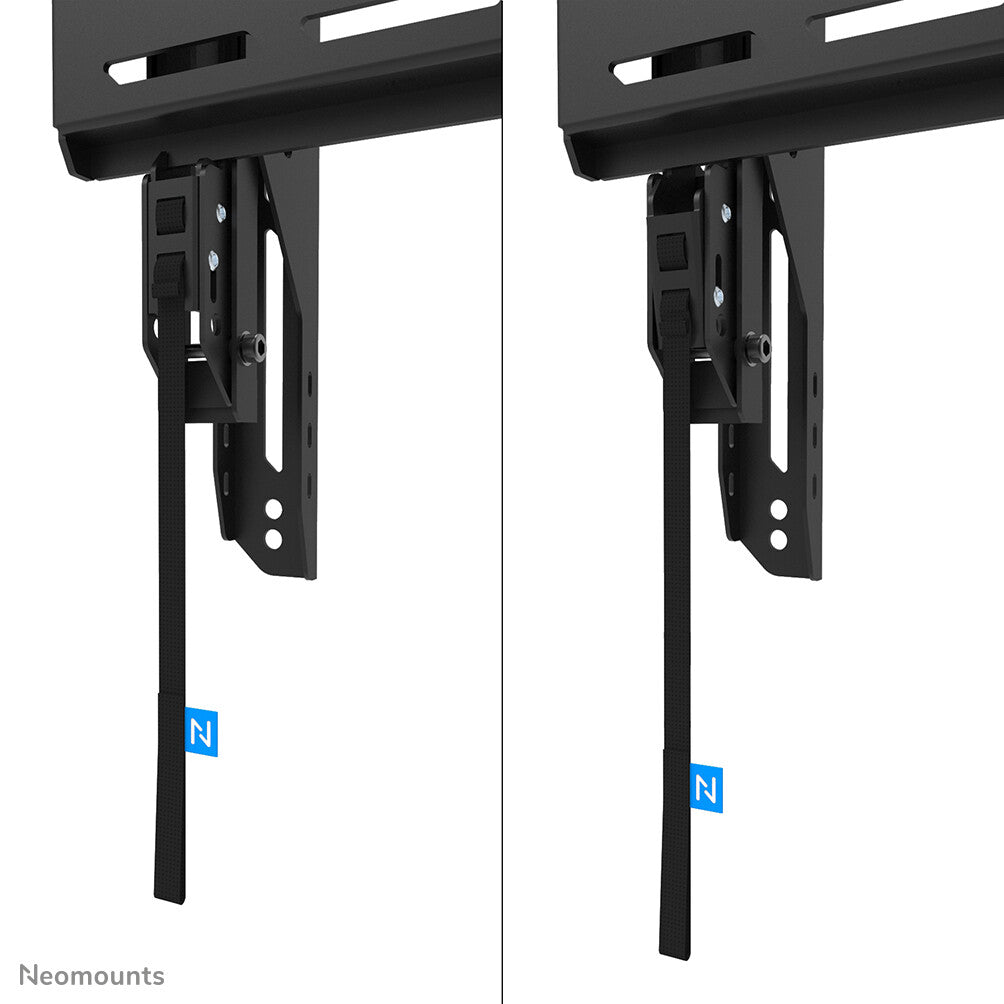

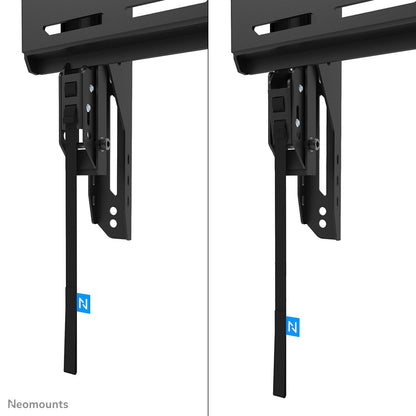

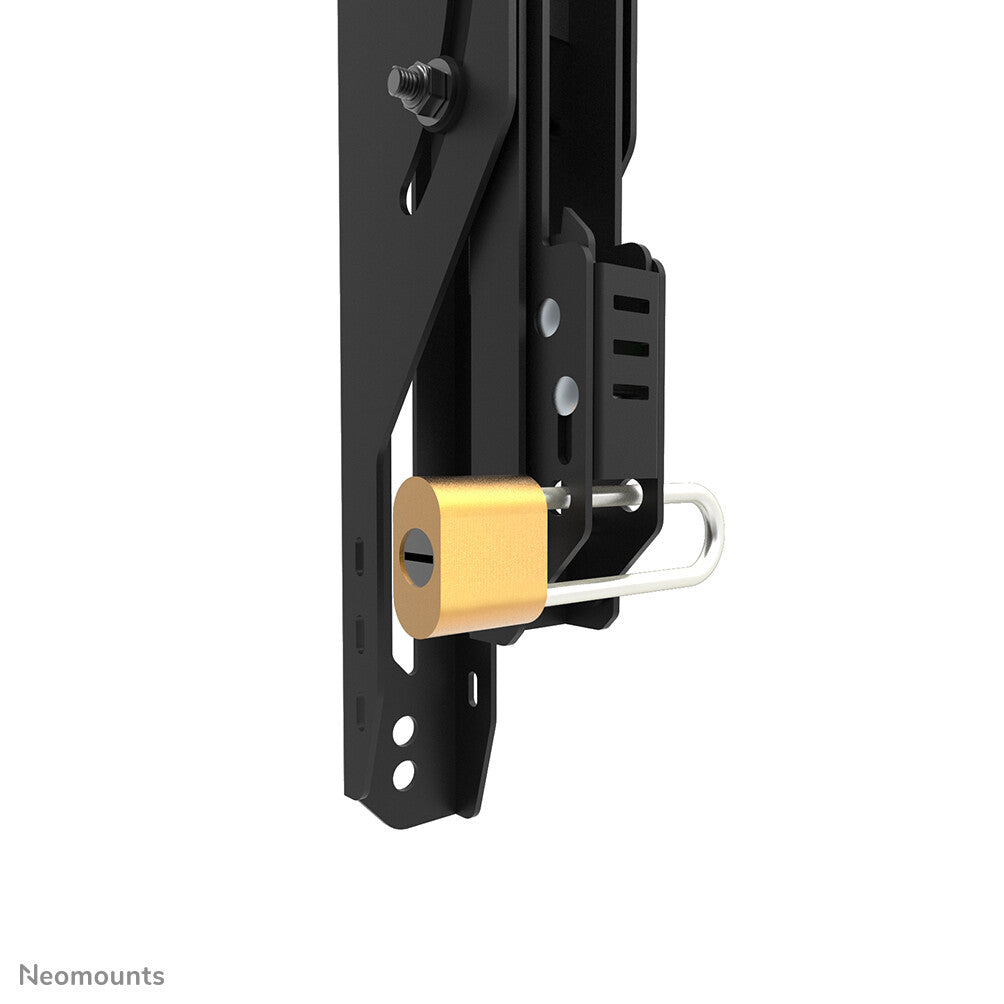

The WL35-750BL16 includes a safe and practical pull & release system, allowing you to quickly attach and detach the display in a safe and secure manner. The tilt-lock prevents the display from tilting upwards when attaching it on or detaching it from the mount to enable a safe install. It is possible to lock the bracket using a padlock (not included) for extra screen security.

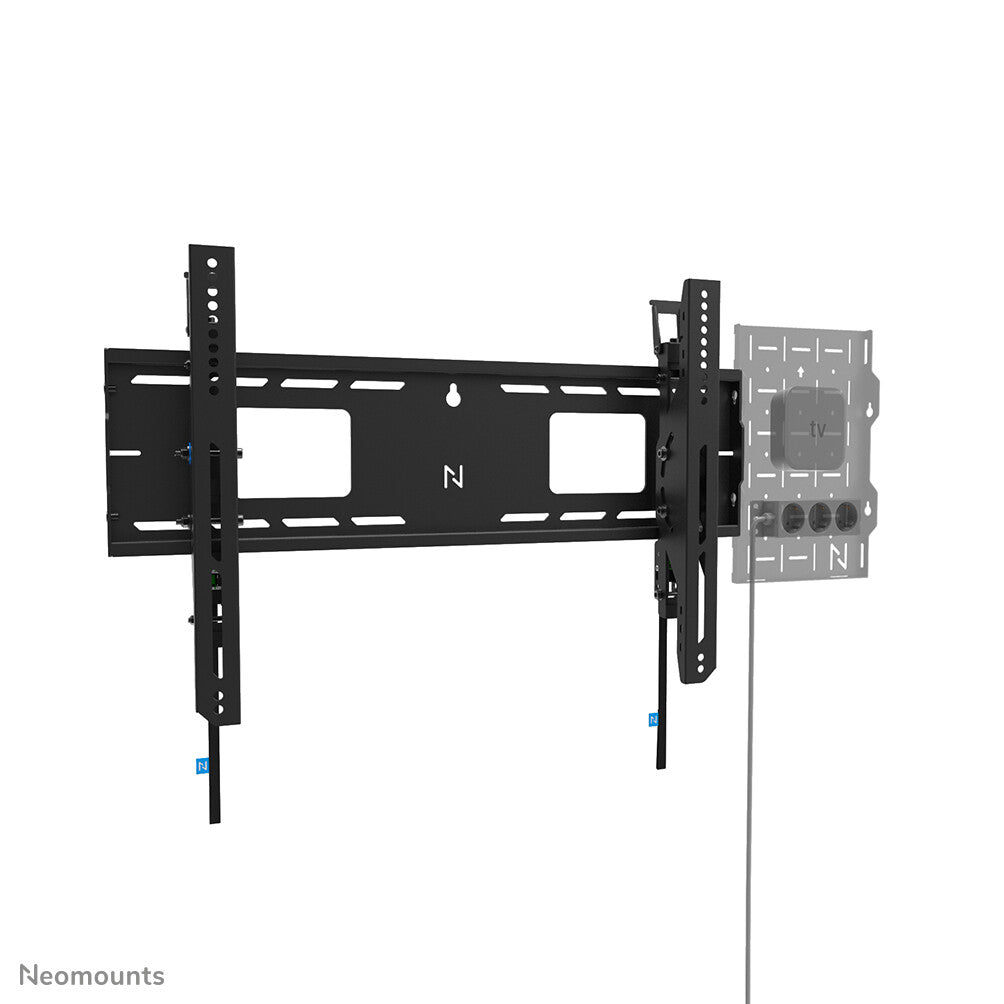

For a simple and effective storage, an optionally available, AV-rack can be installed to the left or right side of the mount.

Mounting
Maximum weight capacity 125 kg
Minimum screen size 106.7 cm (42")
Maximum screen size 2.18 m (86")
Mounting type Wall
Minimum VESA mount 100 x 100 mm
Maximum VESA mount 600 x 400 mm
Panel mounting interface 100 x 100,100 x 150,100 x 200,120 x 120,200 x 100,200 x 200,200 x 300,200 x 400,300 x 100,300 x 200,300 x 300,350 x 350,400 x 200,400 x 300,400 x 400,400 x 500,400 x 600,440 x 400,500 x 400,600 x 200,600 x 300,600 x 400
Number of displays supported 1
Ergonomics
Height adjustment Yes
Height adjustment range 0 - 10 mm
Tilt adjustment Yes
Tilt angle range -15 - 15°
Cable management Yes
Distance to the wall (max) 9.3 cm
Design
Product colour Black
Housing material Steel
Technical details
Quantity per pack 1 pc(s)
Country of origin China
Lockable Padlock not included
Weight & dimensions
Width 686 mm
Depth 93 mm
Depth (max) 9.3 cm
Height 430 mm
Packaging data
Package width 728 mm
Package depth 102 mm
Package height 209 mm
Logistics data
Master (outer) case width 746 mm
Master (outer) case length 227 mm
Master (outer) case height 324 mm
Master (outer) case net weight 16.5 kg
Master (outer) case gross weight 21.5 kg
Products per master (outer) case 3 pc(s)
Products per pallet (EU) 60 pc(s)
Harmonized System (HS) code 7326909890
