Neomounts heavy duty TV wall mount

Neomounts heavy duty TV wall mount

£169.37 GBP
£169.37 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

WL30S-950BL19

Low stock: 4 left

  • Maximum weight capacity: 160 kg
  • Minimum screen size: 139.7 cm (55") Maximum screen size: 2.79 m (110")
  • Number of displays supported: 1
  • Mounting type: Wall
  • Maximum VESA mount: 1500 x 900 mm
  • Height adjustment
  • Steel Black

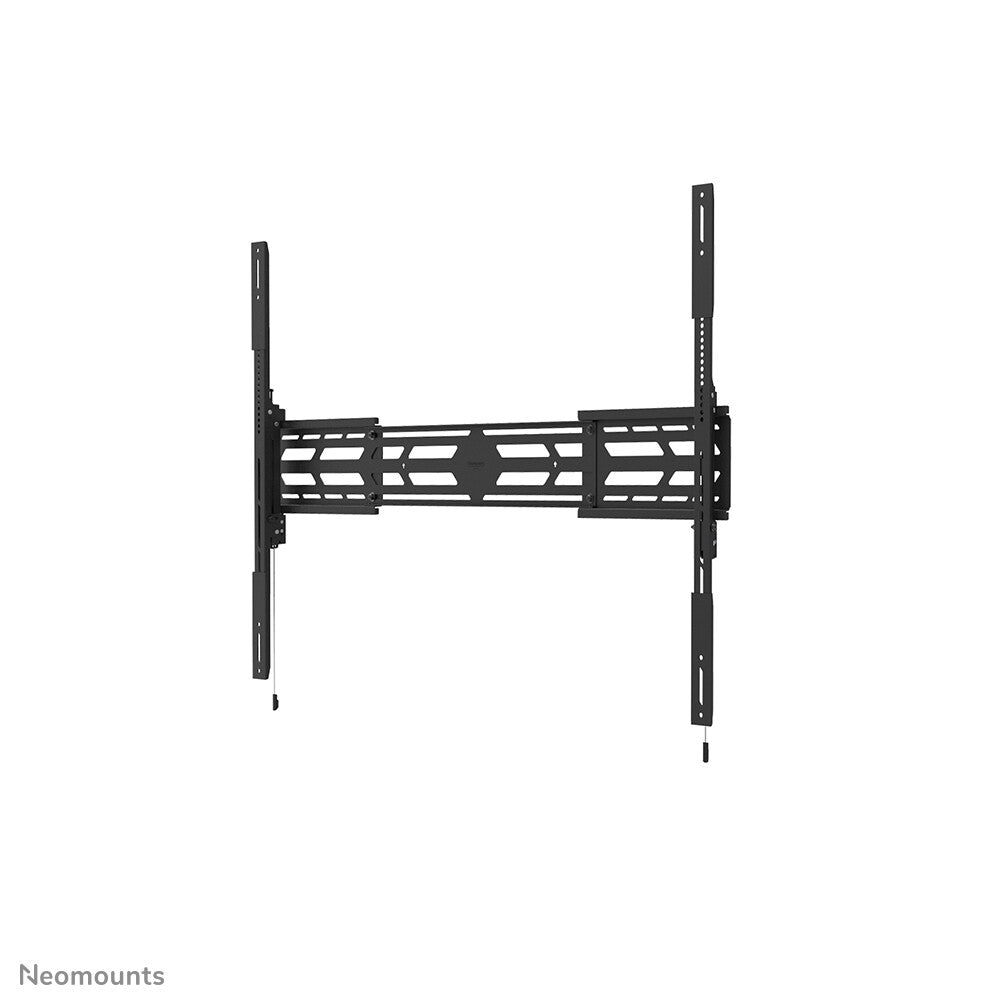

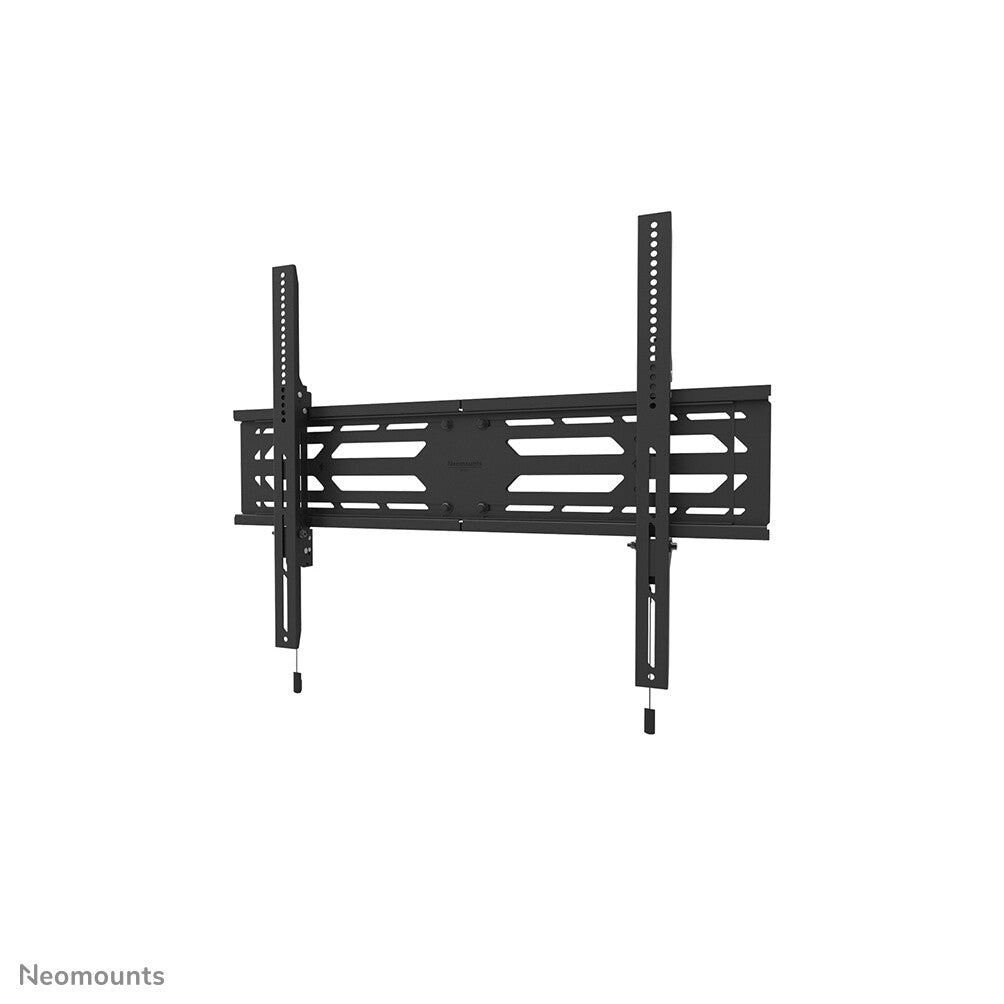

Neomounts WL30S-950BL19 fixed wall mount for 55-110" screens - Black

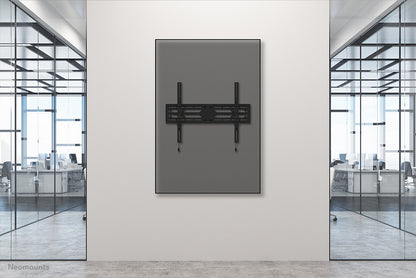

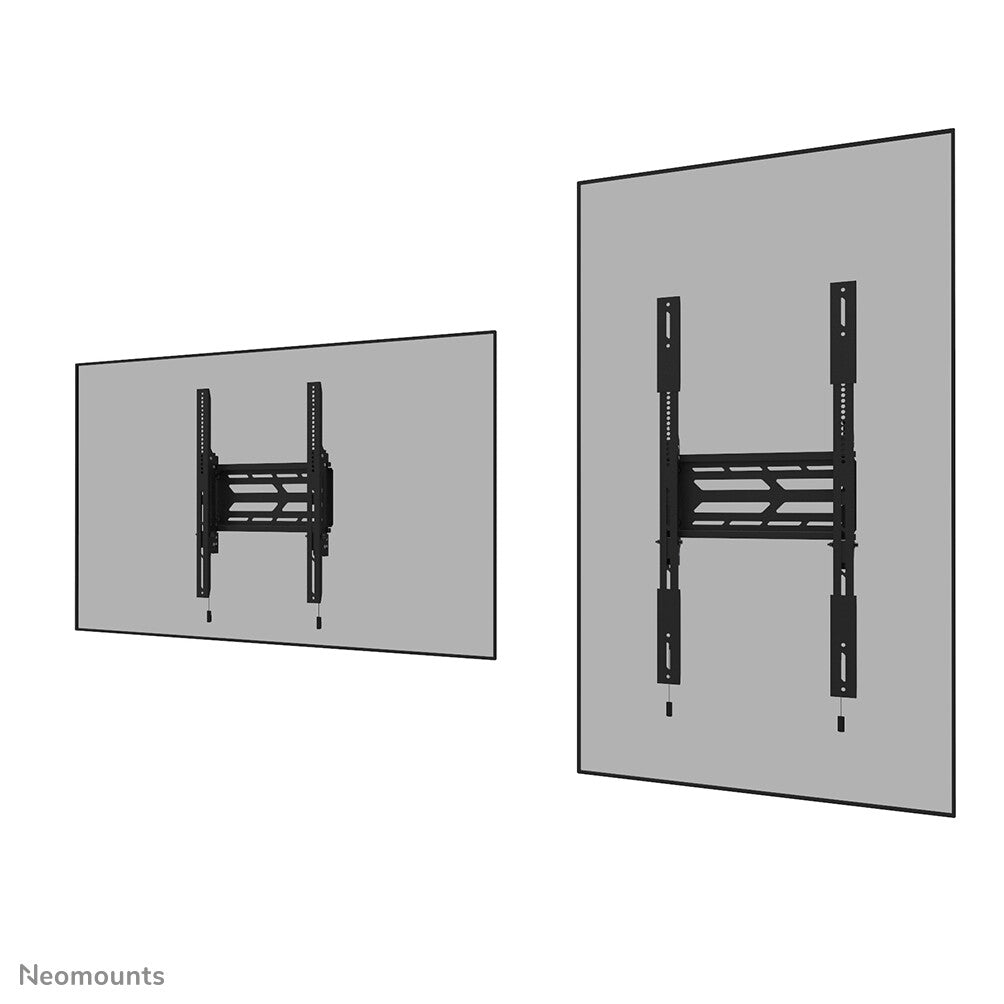

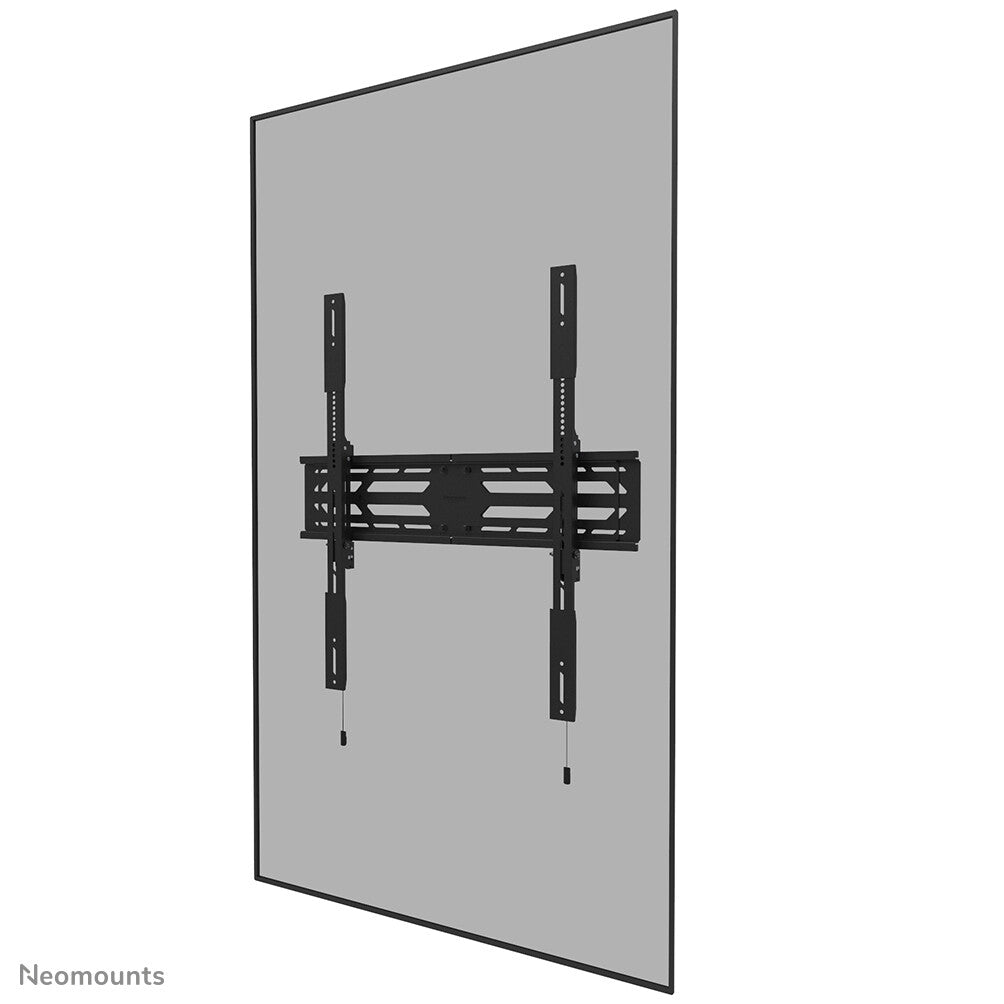

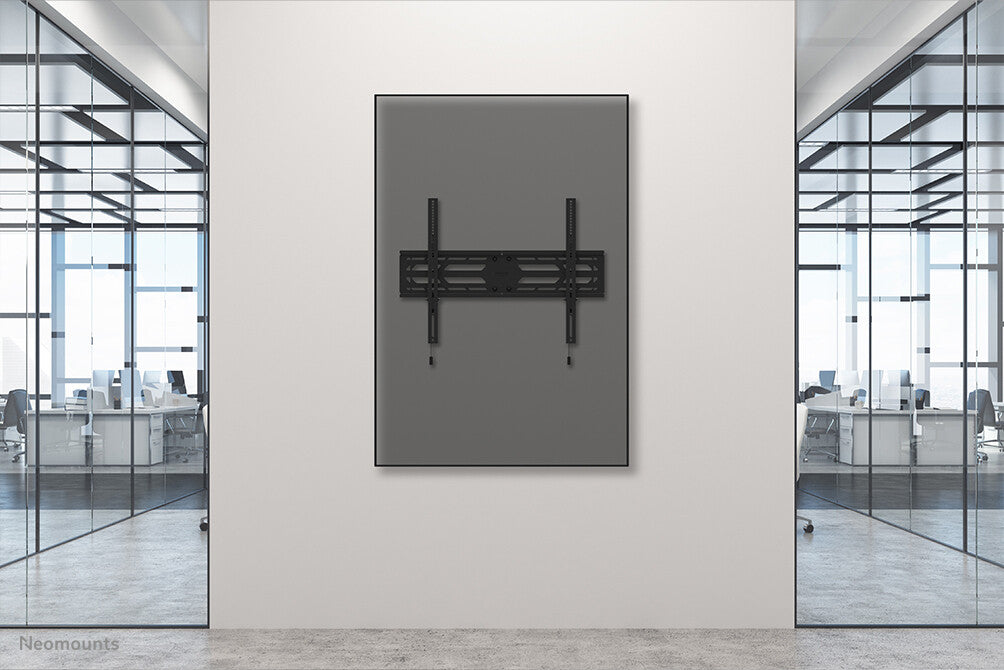

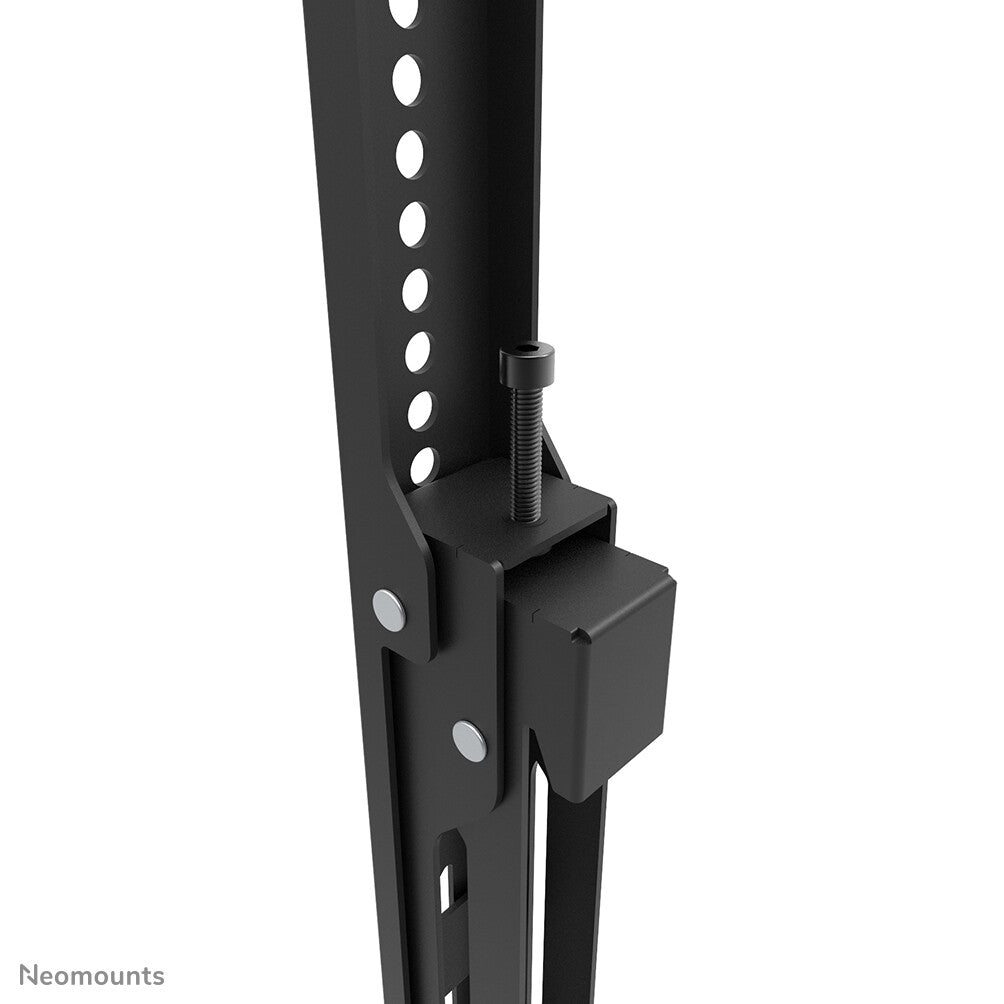

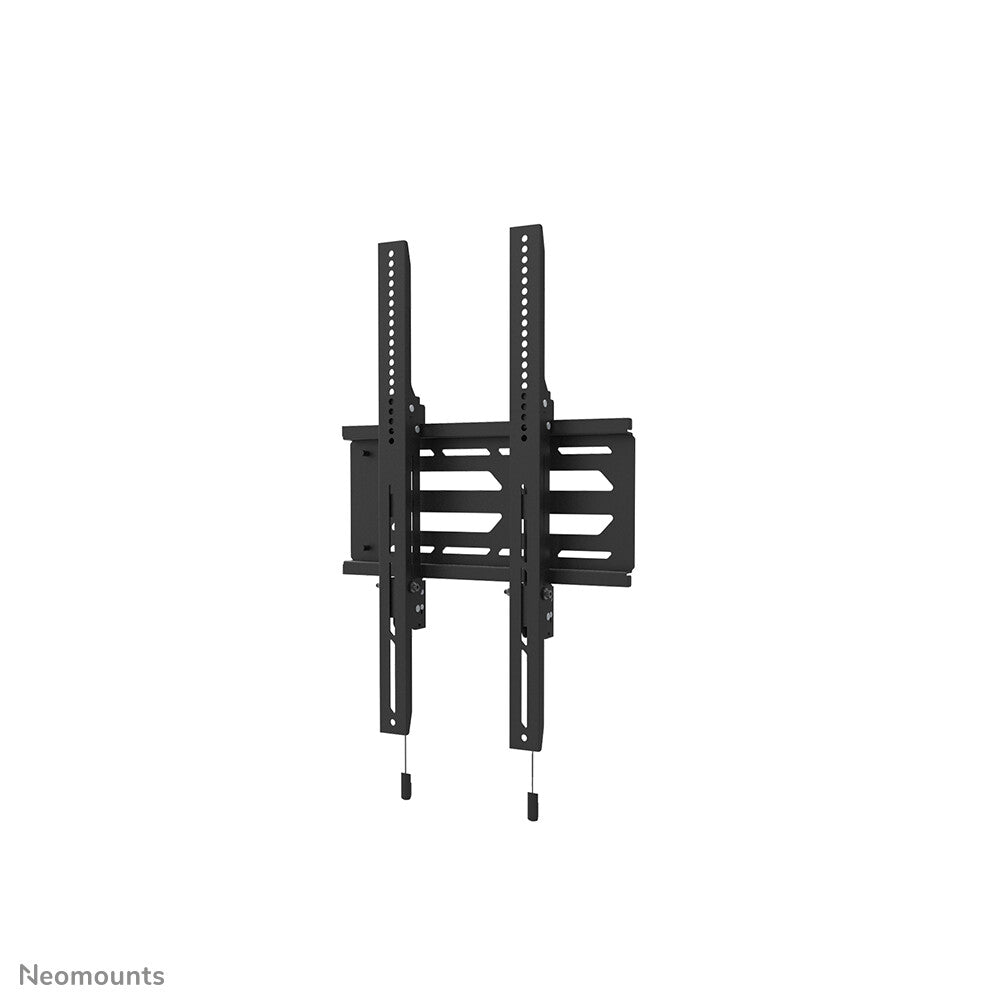

The Neomounts WL30S-950BL19 is a fixed heavy-duty wall mount for flat screens up to 110" with a maximum weight capacity of 160 kg. It is possible to install the screen in both portrait and landscape orientation. The mount features individual height adjustable brackets and level adjustment is available for the perfect installation.

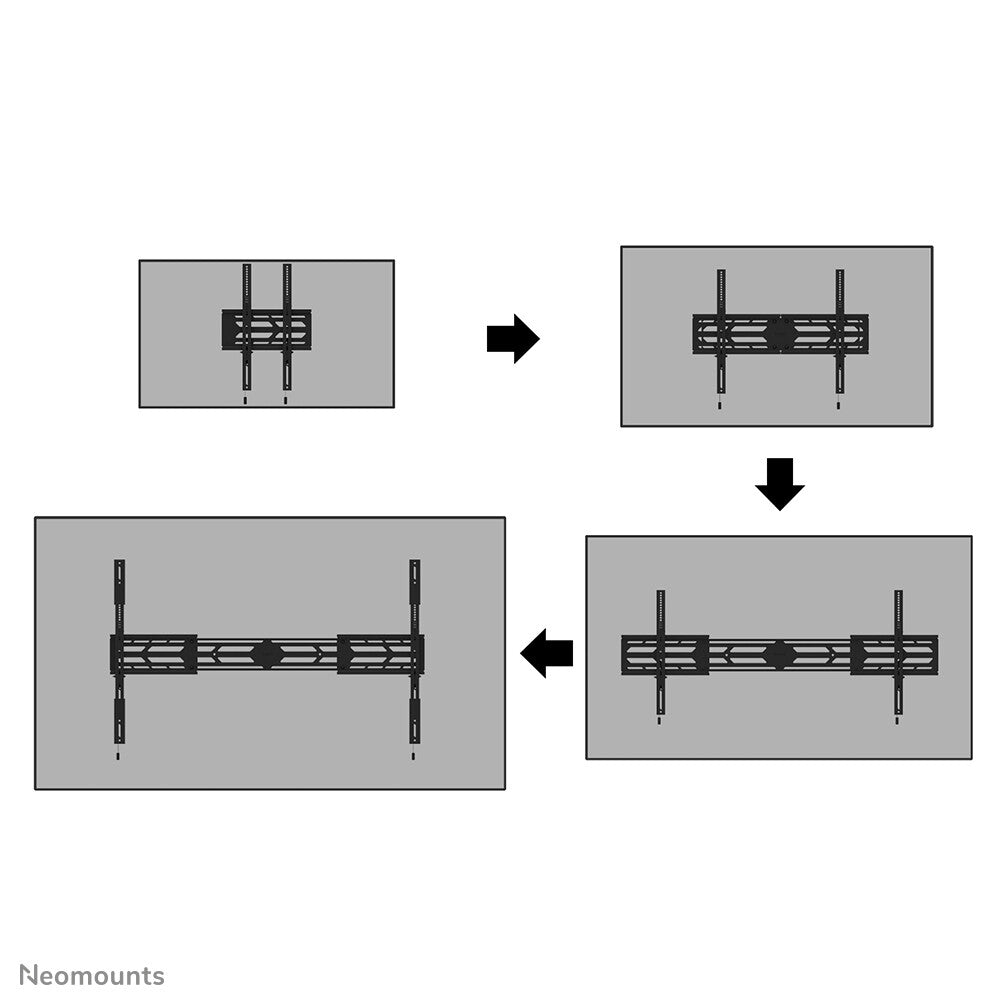

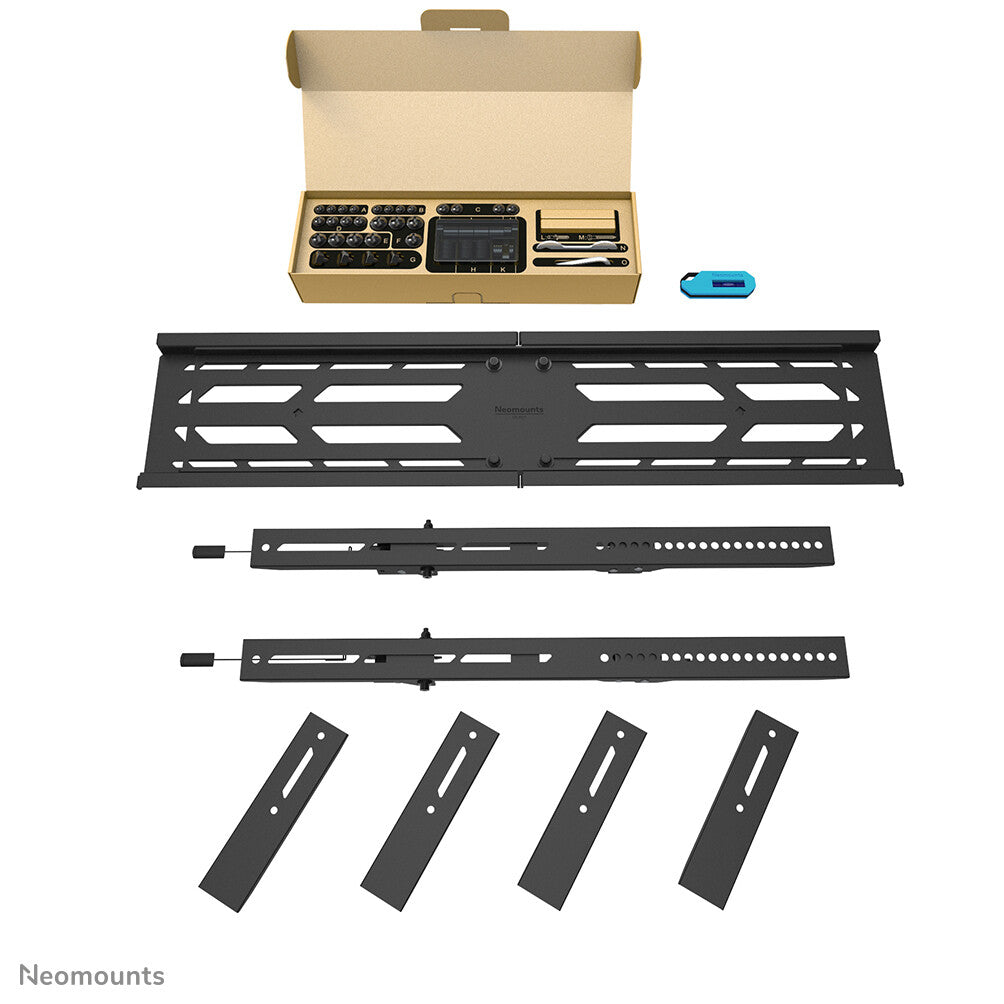

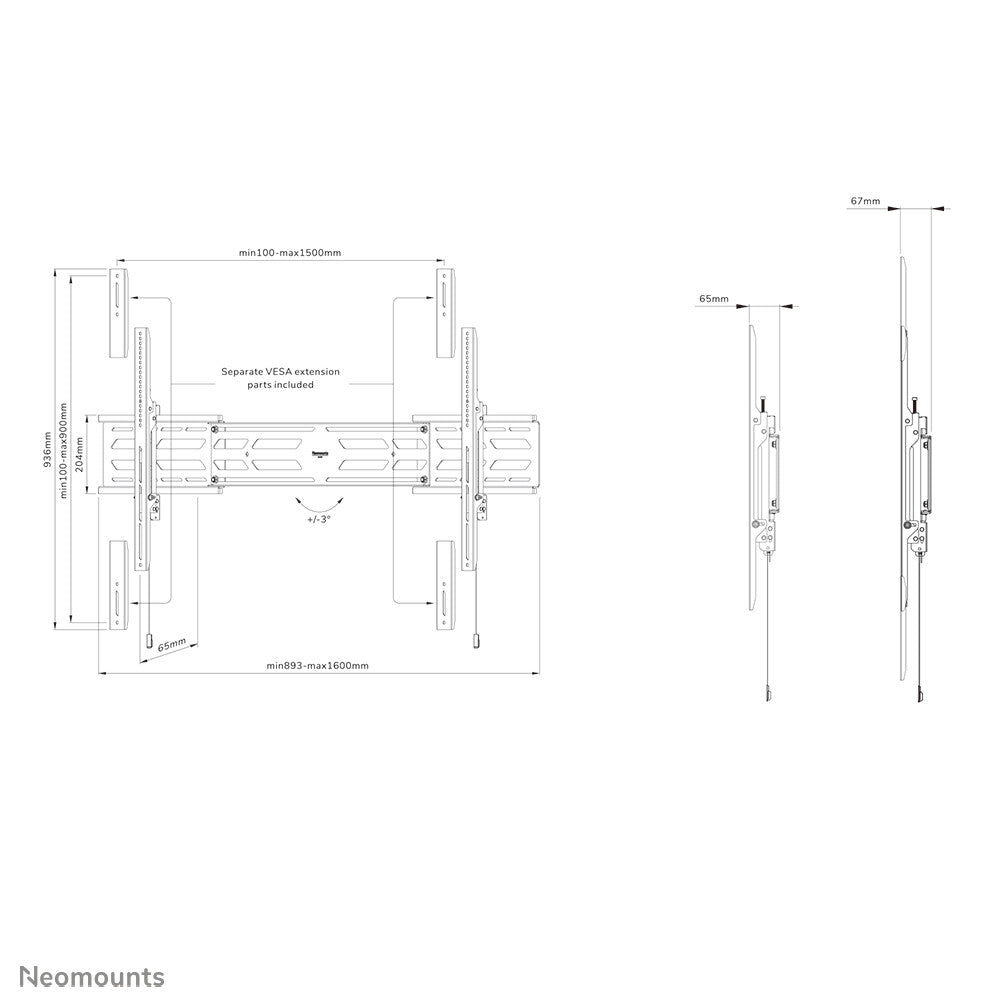

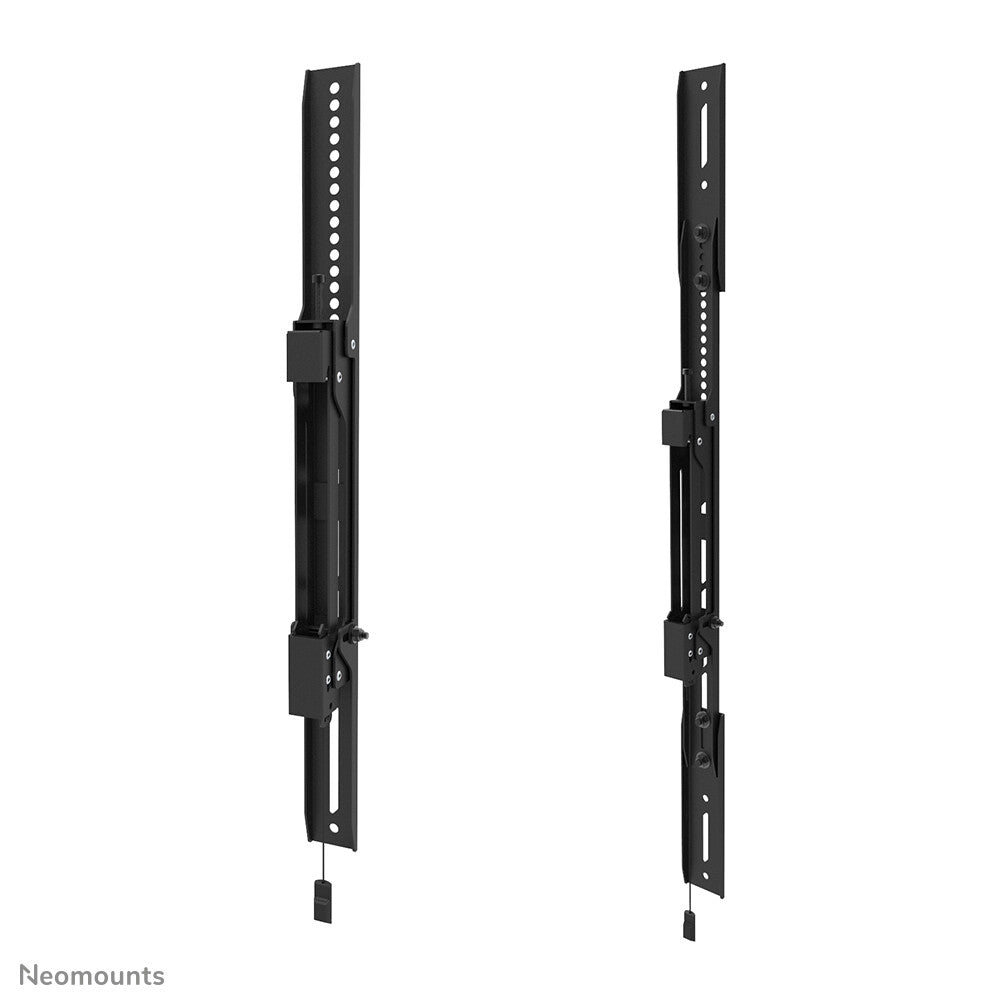

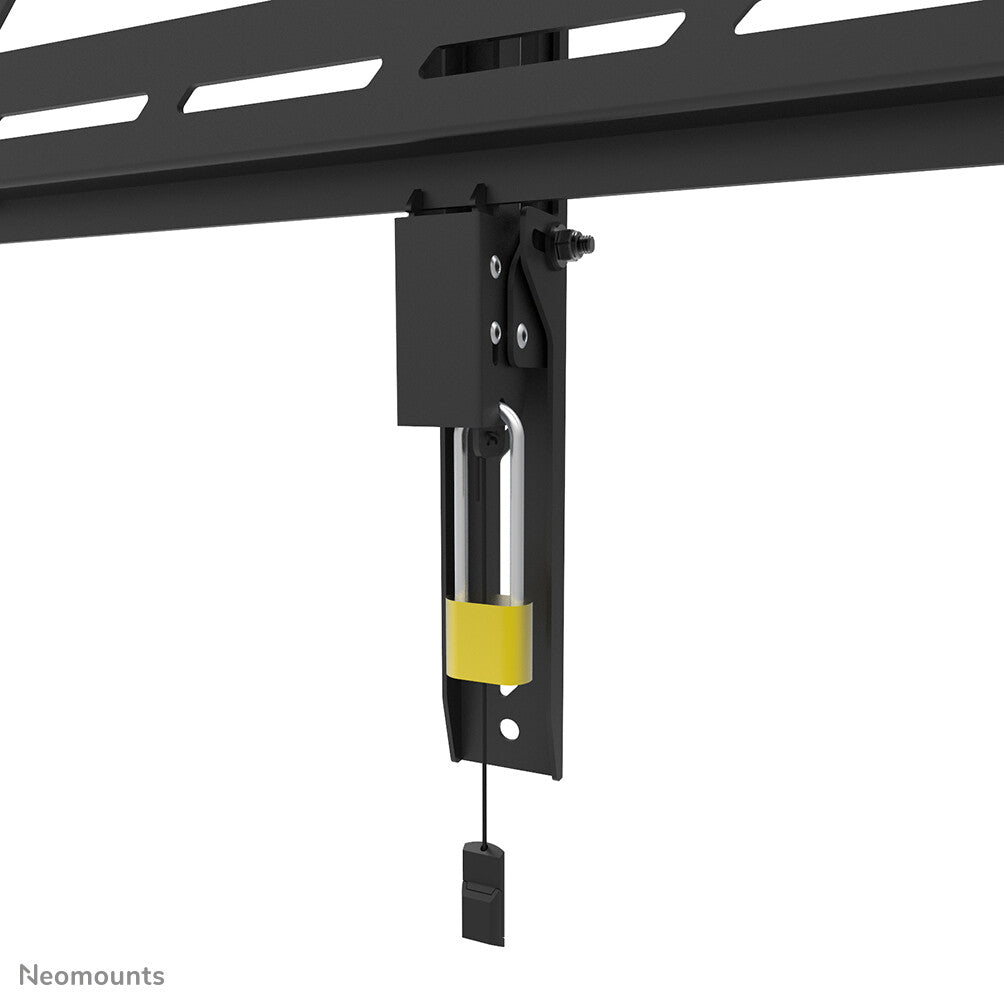

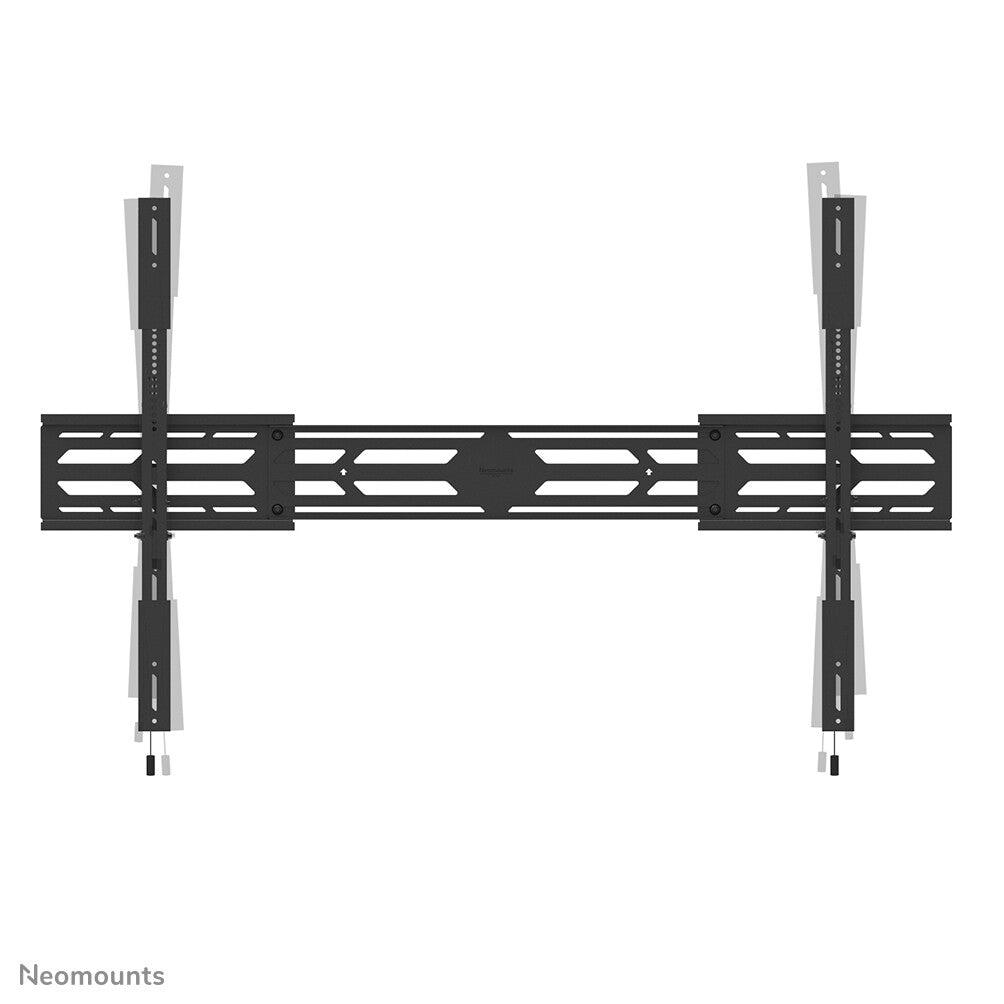

The WL30S-950BL19 has a depth of 6,5 cm and is, thanks to the included vertical extension brackets, suitable for screens that meet VESA hole pattern 100x100 to 1500x900 mm. Due to the unique extendable design, the mount can be adjusted to a wide range of screens dimensions; from 55" up to 110". It is possible to lock the mount using a padlock (not included).

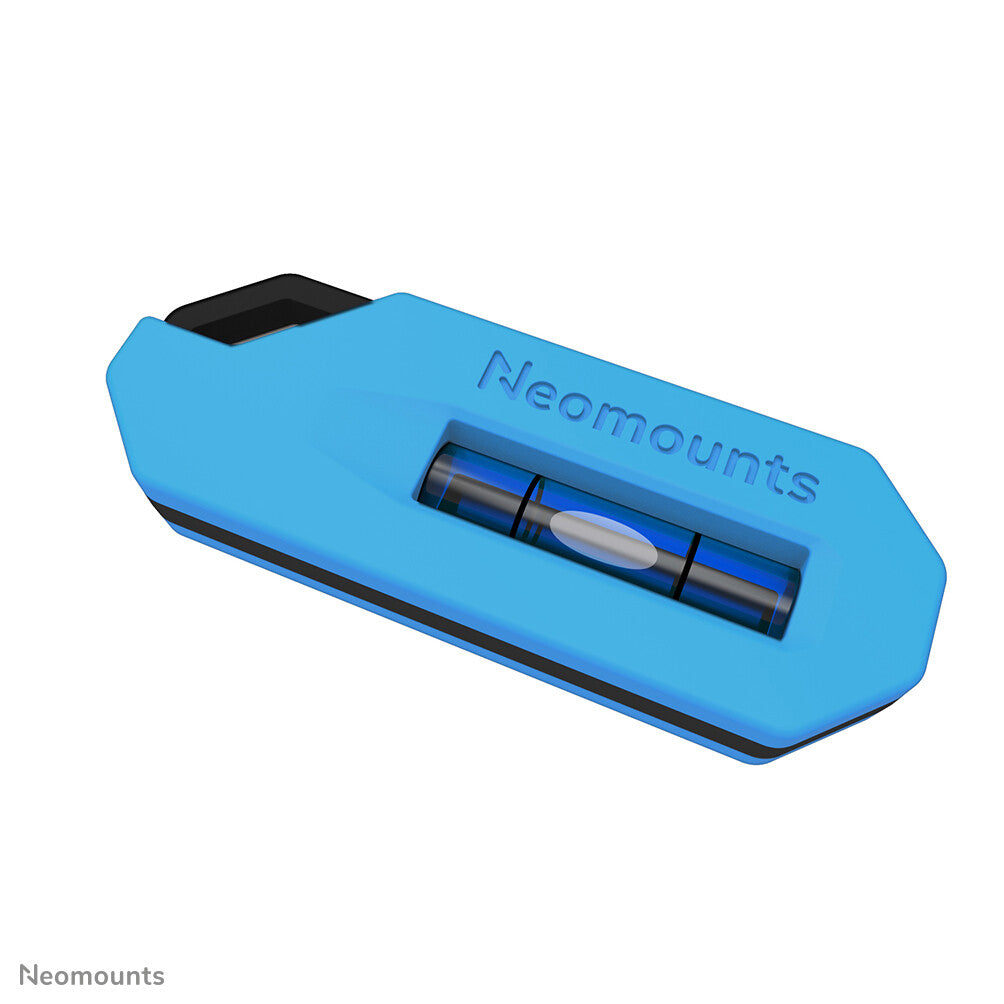

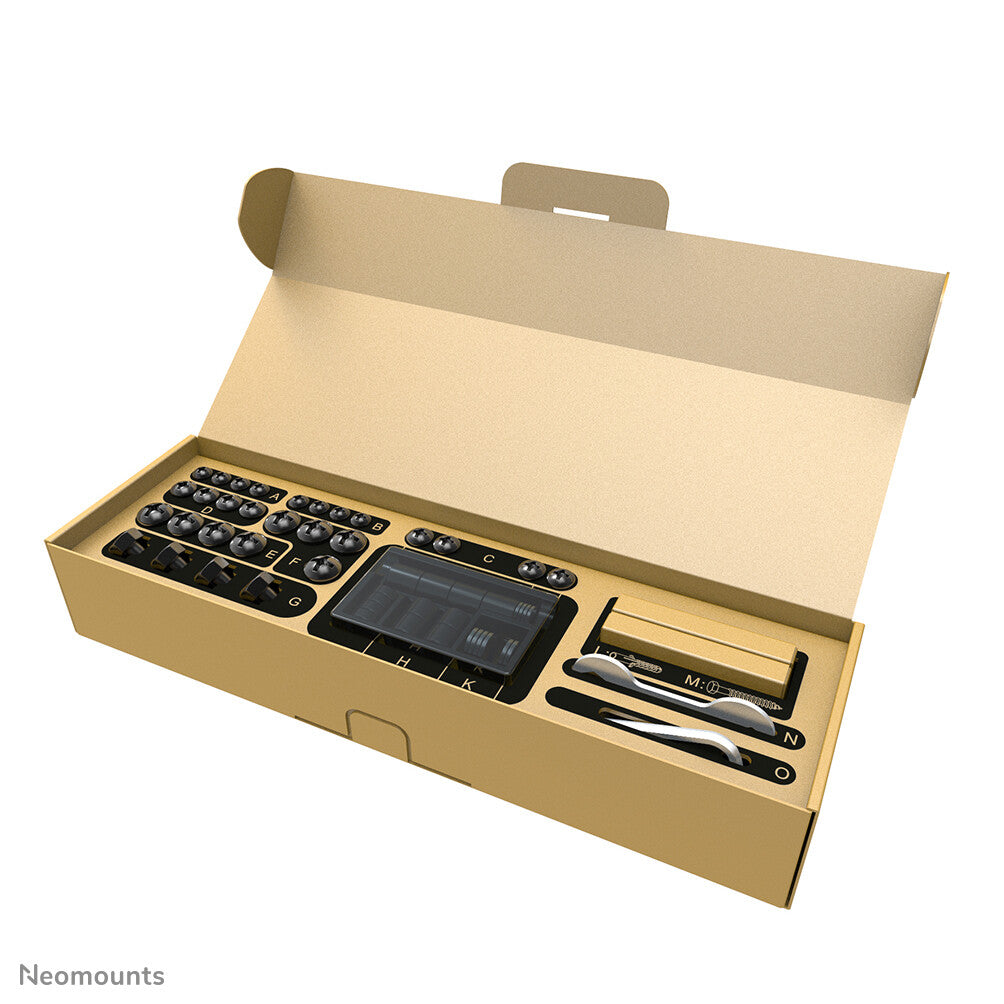

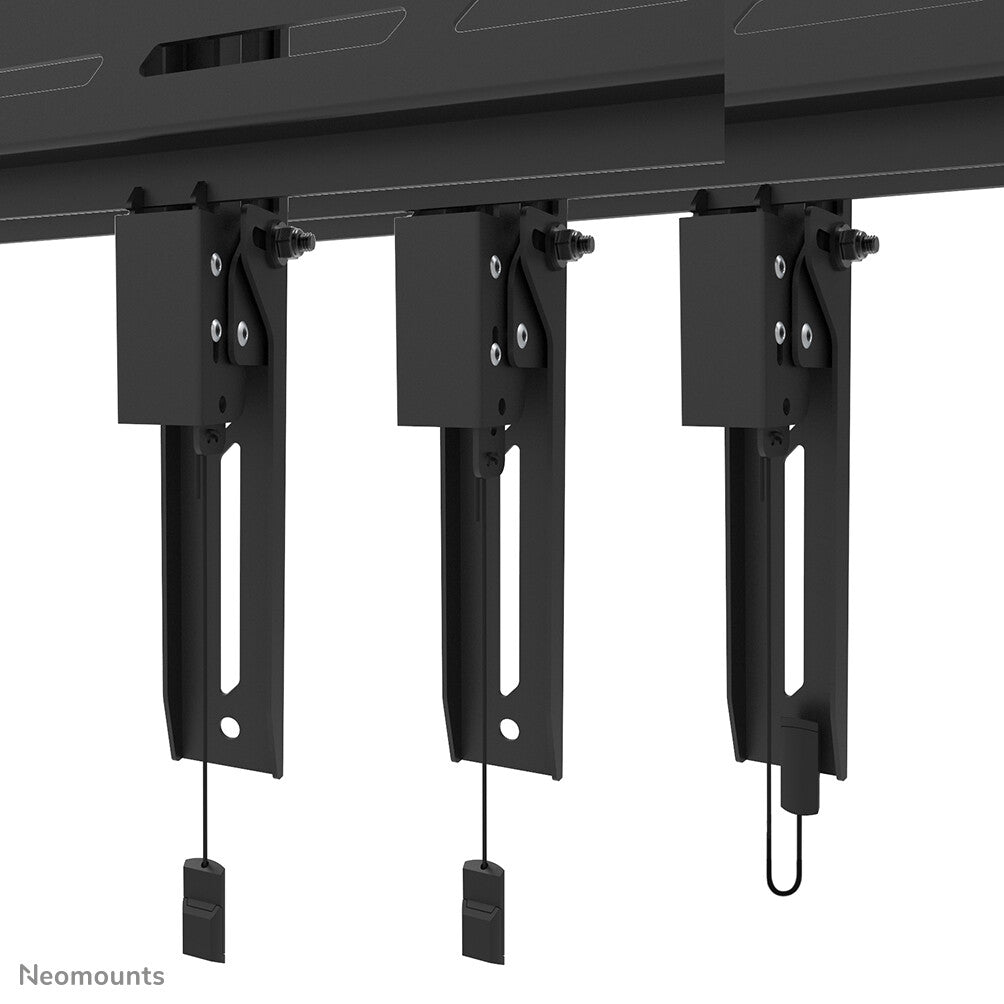

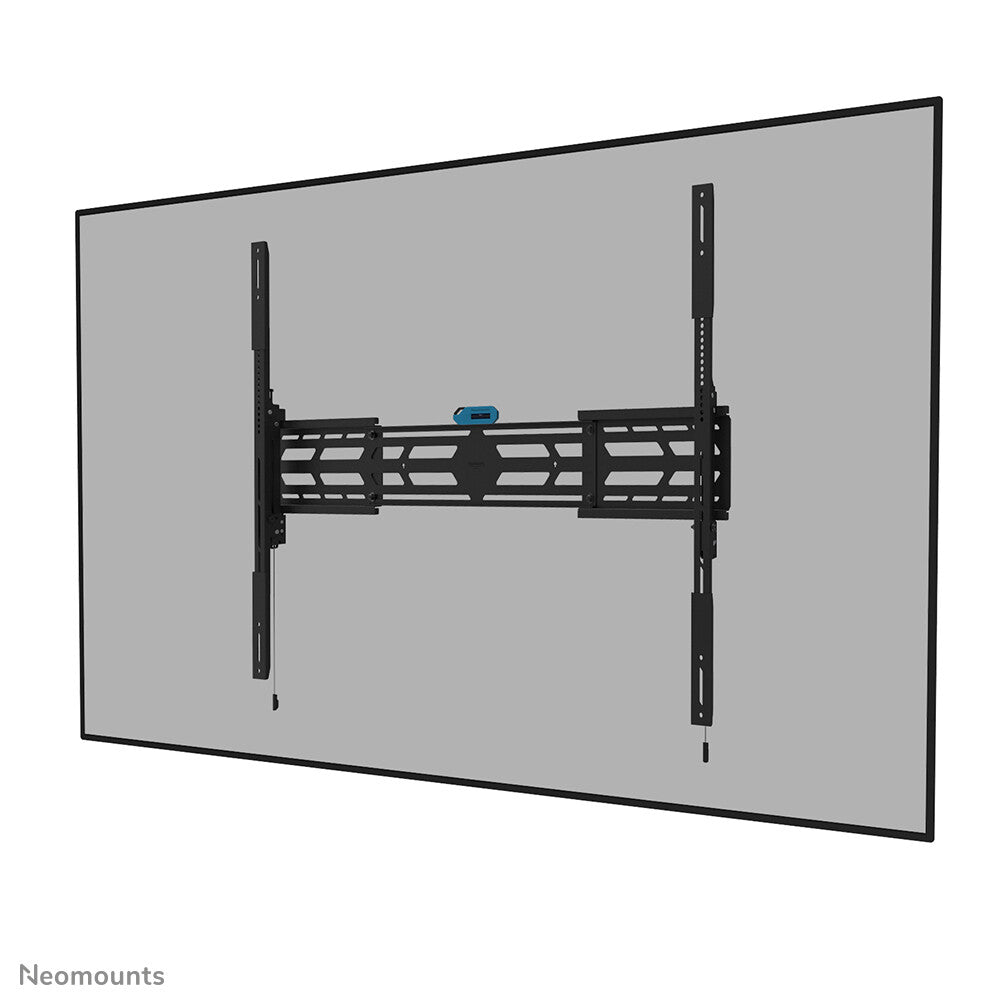

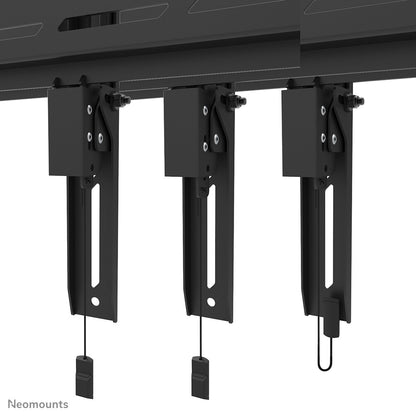

The mount features a nifty magnetic pull & release system, that allows you to attach the TV in a wink of an eye and secure the TV in safe and solid manner. Afterwards, the pull & release straps can be easily hidden behind the screen by clicking the magnet to the mount. A separate spirit level tool is included with the wall mount to ensure easy installation of the mount.

Mounting
Maximum weight capacity 160 kg
Minimum screen size 139.7 cm (55")
Maximum screen size 2.79 m (110")
Mounting type Wall
Suitable for TV Yes
Minimum VESA mount 100 x 100 mm
Maximum VESA mount 1500 x 900 mm
Panel mounting interface 100 x 100,100 x 150,100 x 200,200 x 100,200 x 200,200 x 300,200 x 400,300 x 100,300 x 200,300 x 300,300 x 900,350 x 350,400 x 200,400 x 300,400 x 400,400 x 500,400 x 600,440 x 400,460 x 640,500 x 400,600 x 200,600 x 300,600 x 400,600 x 500,600 x 600,680 x 300,800 x 200,800 x 400,800 x 500,800 x 600,800 x 800,900 x 600,1000 x 400,1000 x 600,1000 x 700,1000 x 800,1200 x 600,1200 x 800,1200 x 900,1400 x 800,1500 x 600
Number of displays supported 1
Distance to the wall (max) 6.7 cm
Ergonomics
Height adjustment Yes
Height adjustment range 0 - 20 mm
Angle of rotation 6°
Pivot angle -3 - 3°
Design
Product colour Black
Housing material Steel
Orientation Landscape/Portrait
Accepts padlock Yes
Technical details
Warranty period 5 year(s)
Weight & dimensions
Width 1600 mm
Depth 67 mm
Height 936 mm
Package width 222 mm
Package depth 98 mm
Package height 918 mm
Package net weight 11.7 kg
Logistics data
Master (outer) case width 211 mm
Master (outer) case length 242 mm
Master (outer) case height 938 mm
Master (outer) case gross weight 23.9 kg
Products per master (outer) case 2 pc(s)
Master (outer) case net weight 20.3 kg
Products per pallet (EU) 30 pc(s)
Harmonized System (HS) code 7326909890
Other features
Width adjustment range 893 - 1600 mm
Country of origin China
