Neomounts desk monitor arm
Neomounts desk monitor arm
SKU:DS60-425WH2
Low stock: 6 left
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Minimum screen size: 43.2 cm (17") Maximum screen size: 68.6 cm (27")
- Number of displays supported: 2
- Clamp/Bolt-through Mounting type: Desk
- Maximum VESA mount: 100 x 100 mm
- Manual Height adjustment
- Cable management
- Steel White

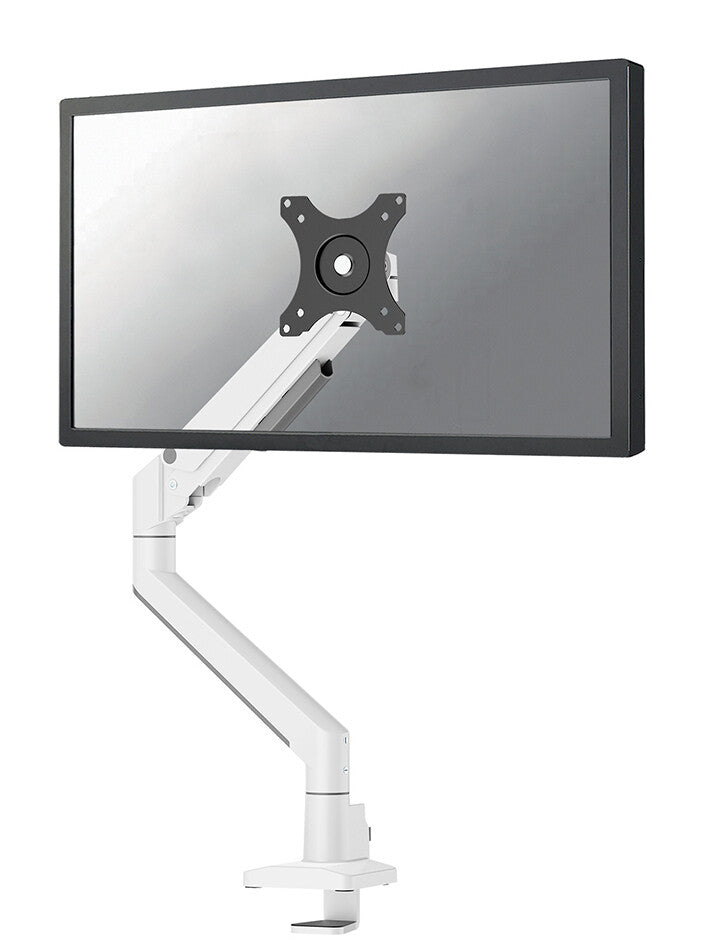

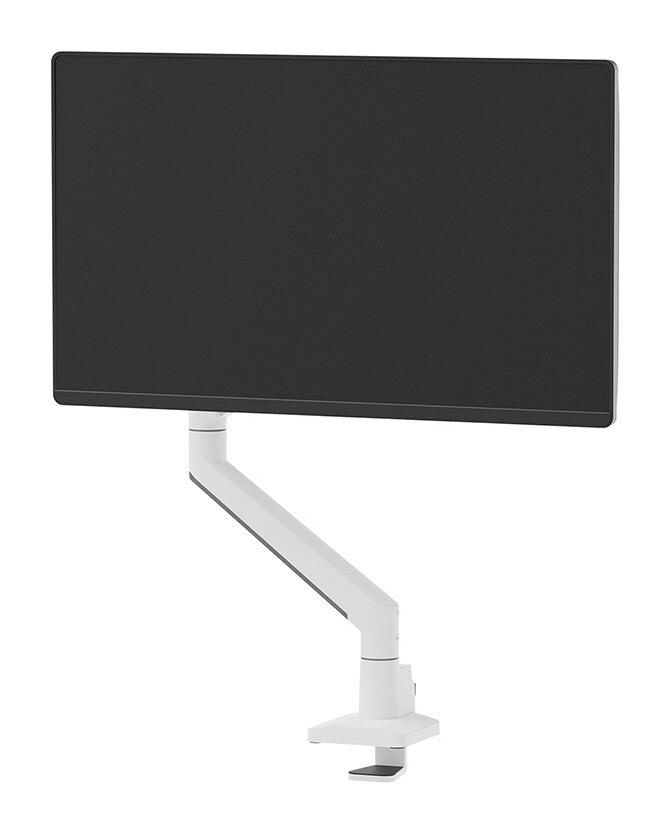

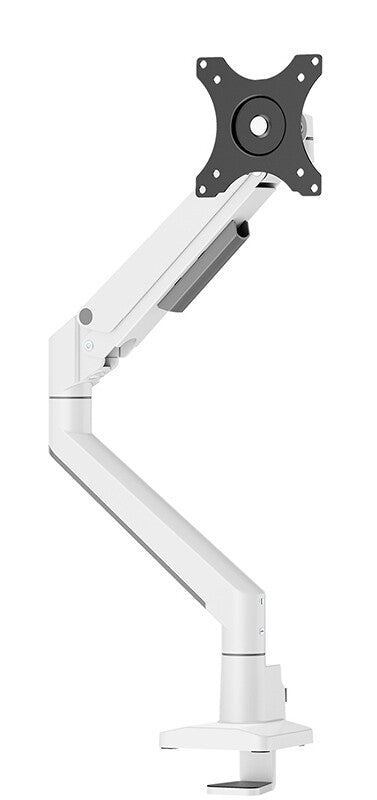

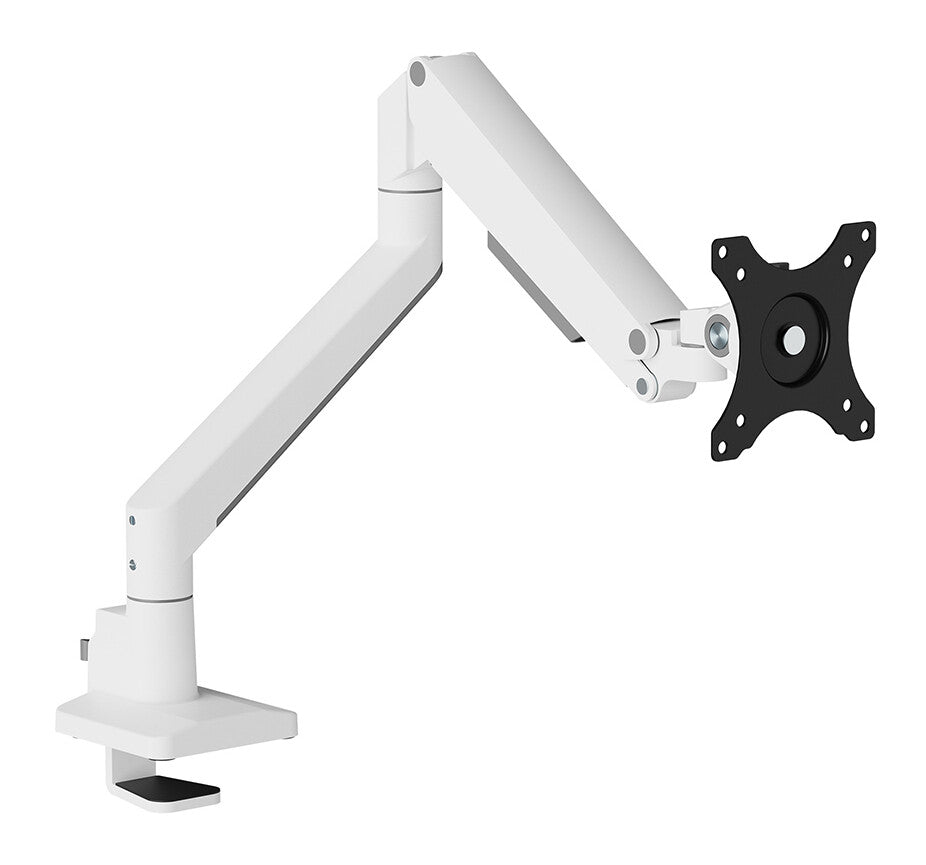

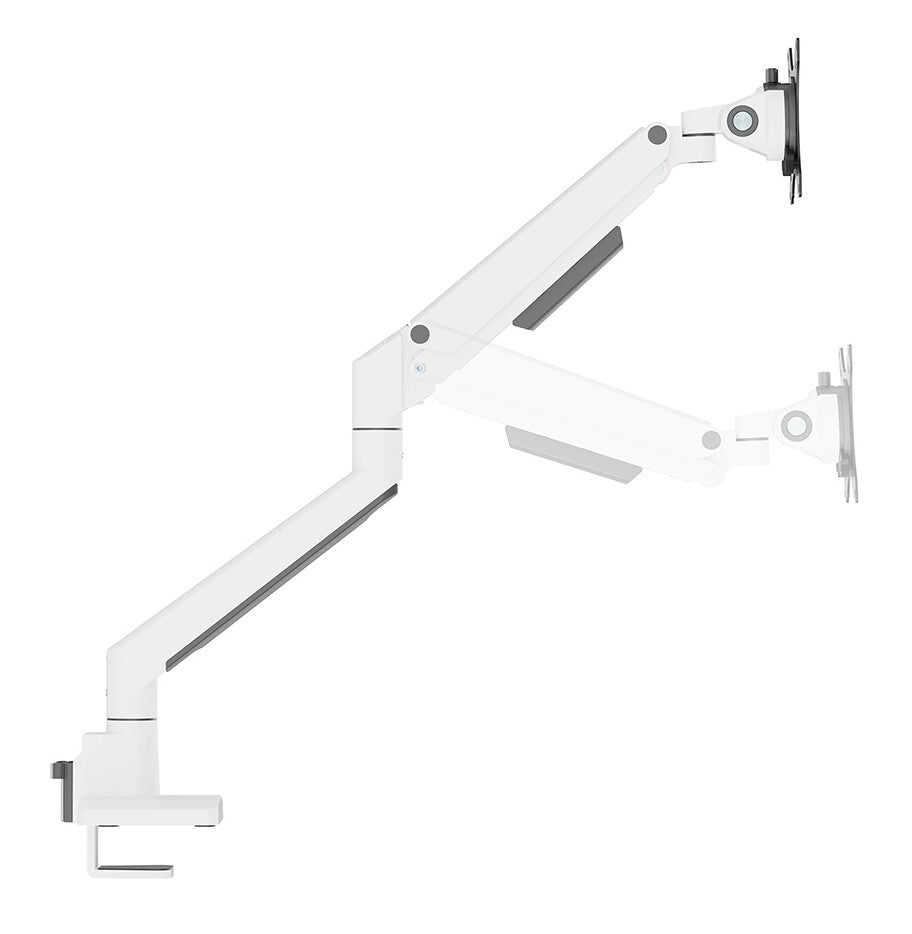

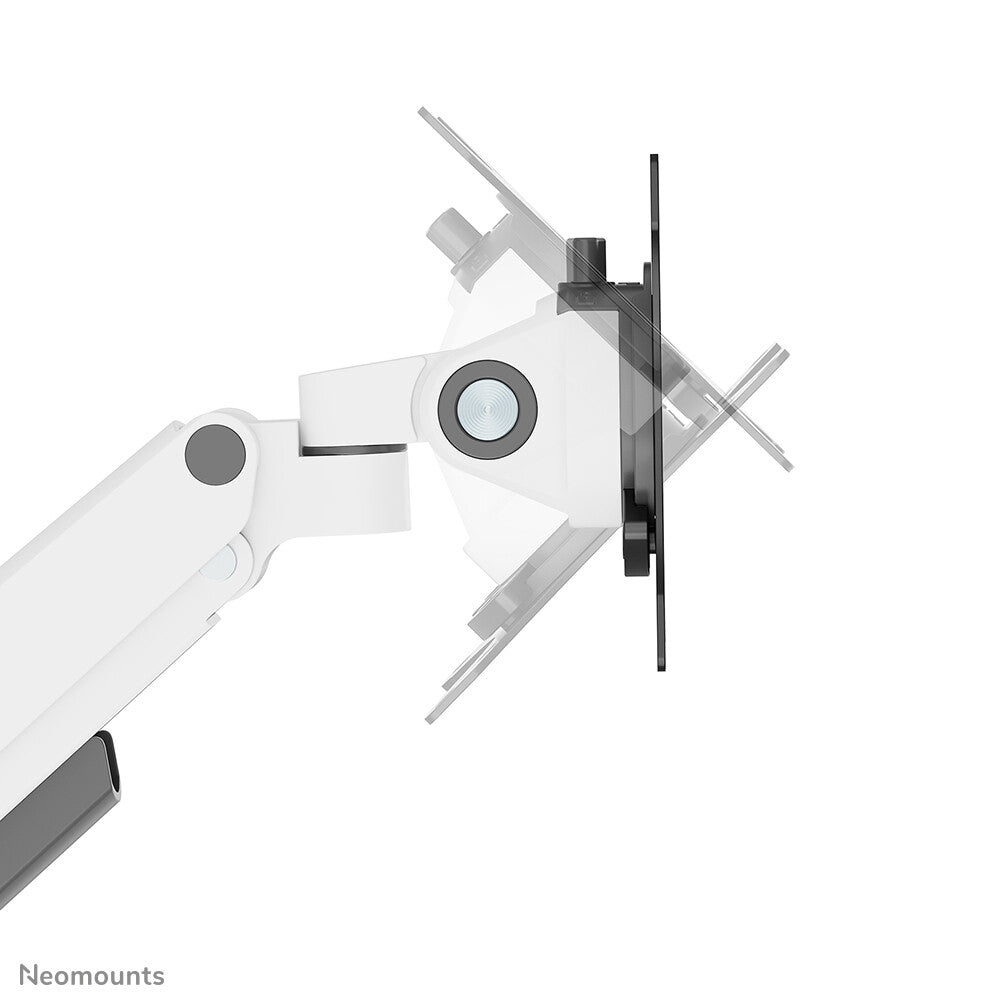

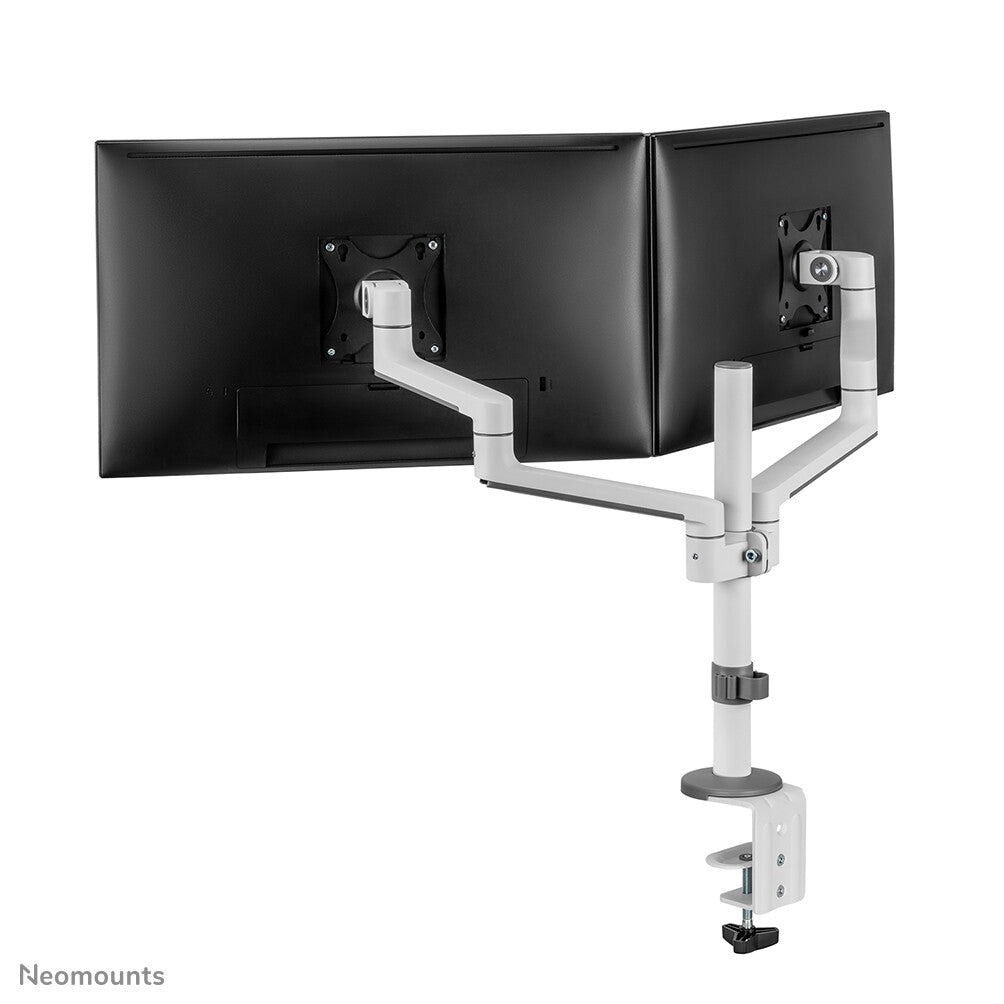

The Neomounts DS60-425WH2 NEXT Lite is a full motion desk mount for two screens up to 27" with a maximum weight capacity of 8 kg per screen. The versatile tilt (120°), rotate (360°) and swivel (180°) technology allows you to adjust the mount to the optimal viewing angle for your screens. Additionally, the mount has manual height and depth adjustment to create the perfect working position.

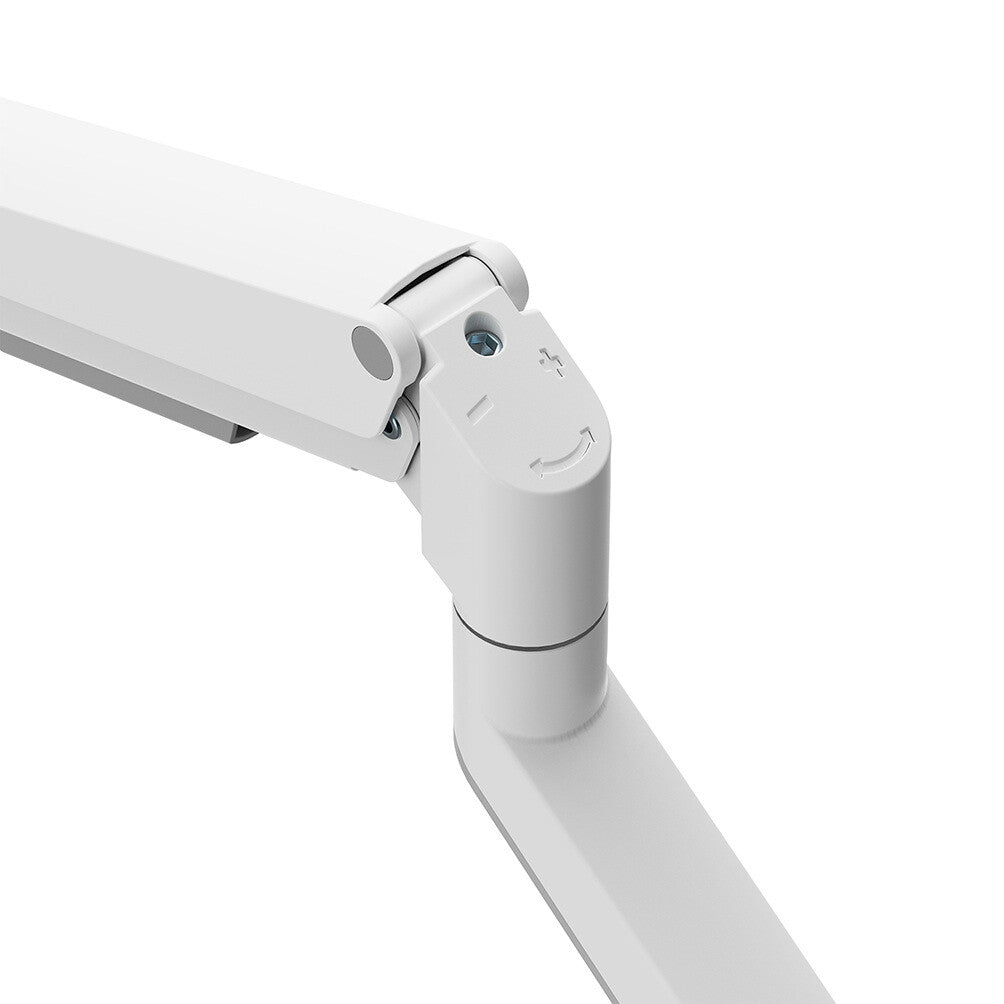

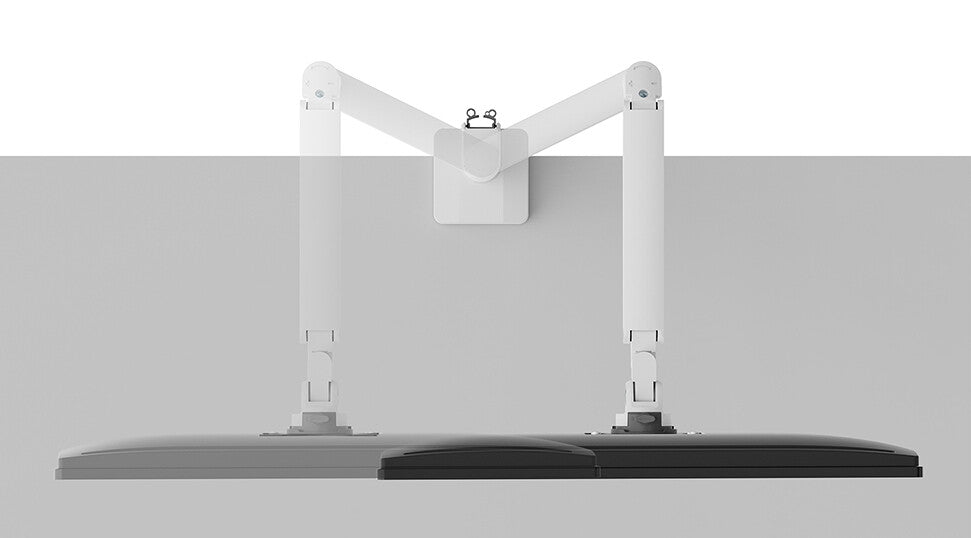

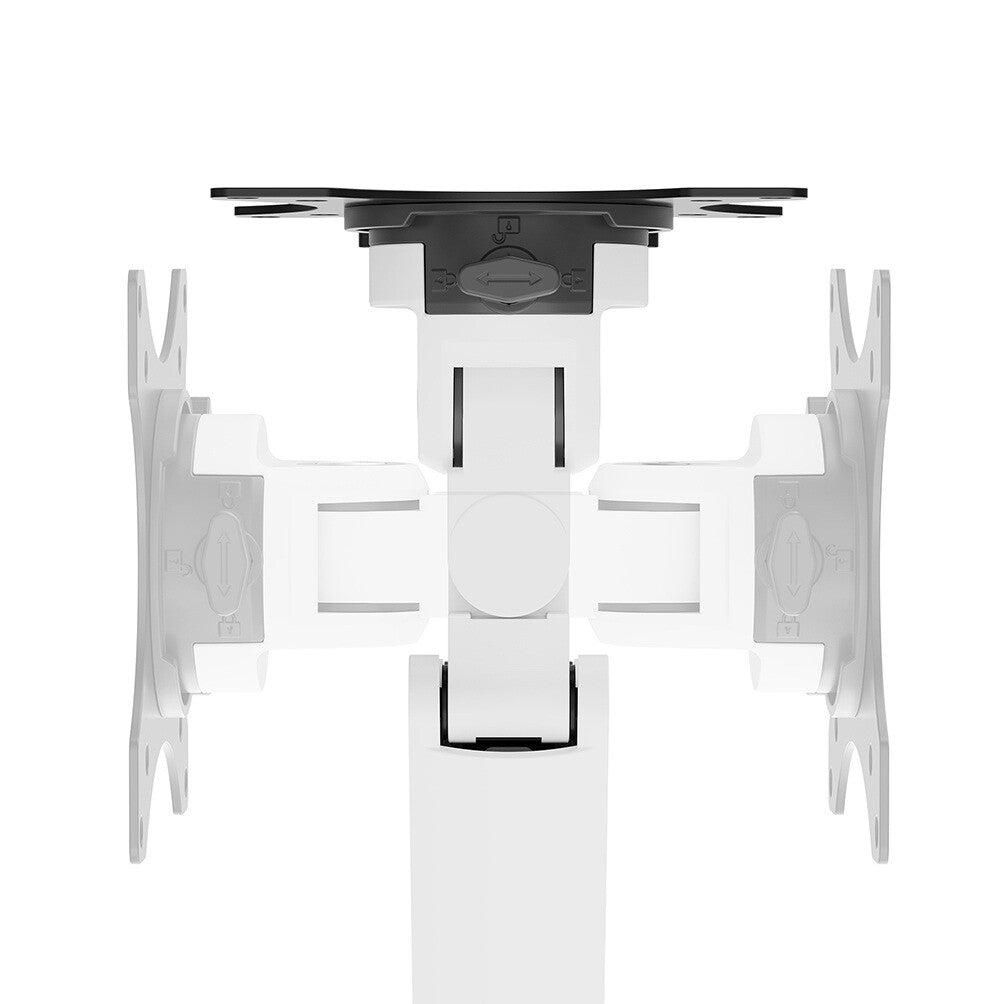

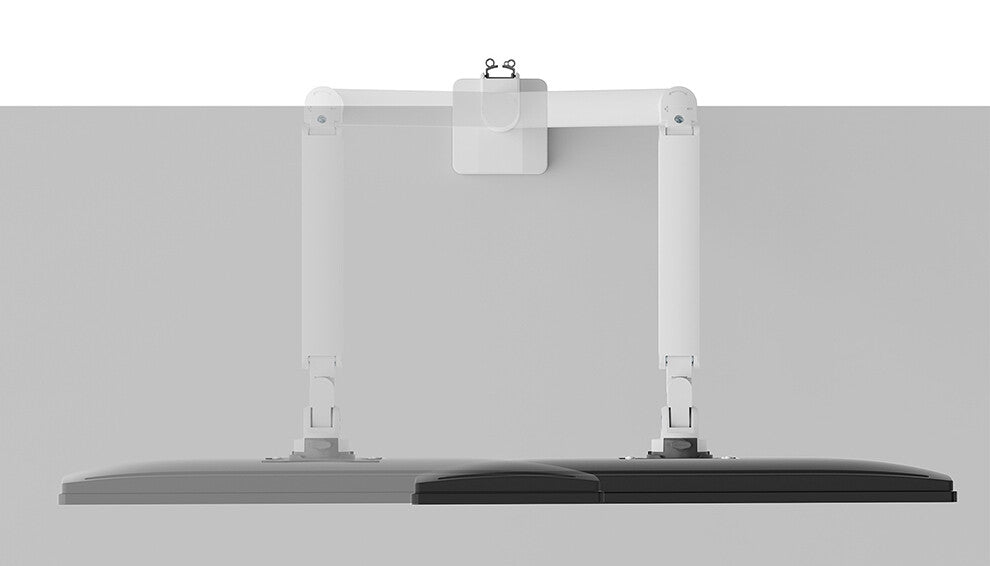

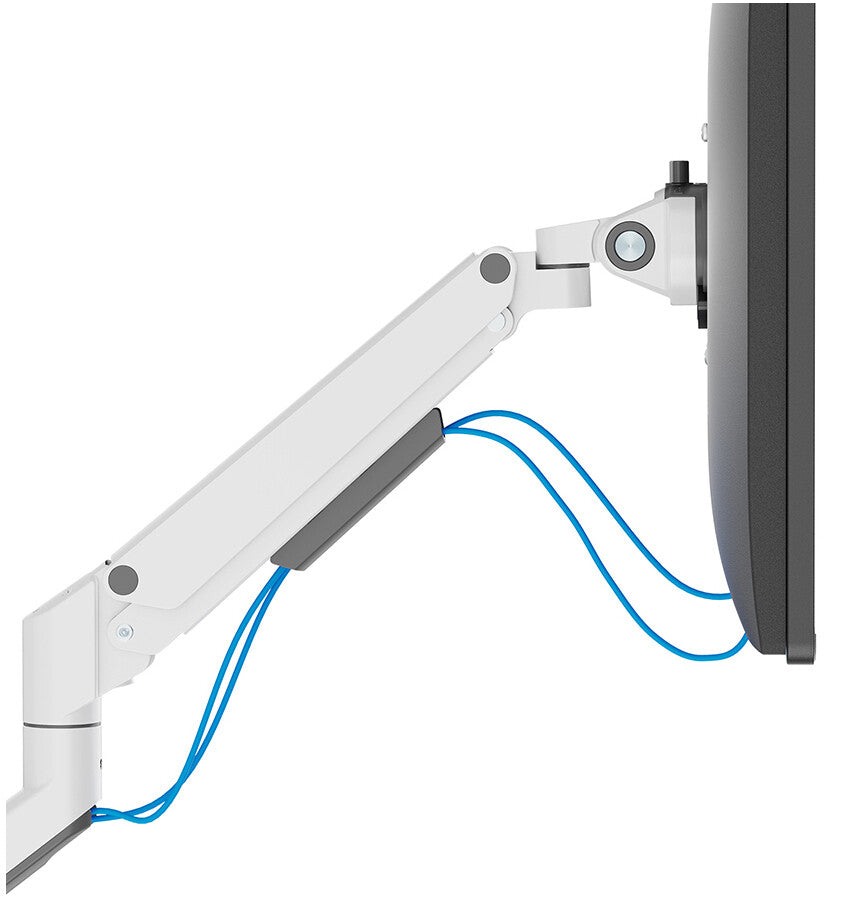

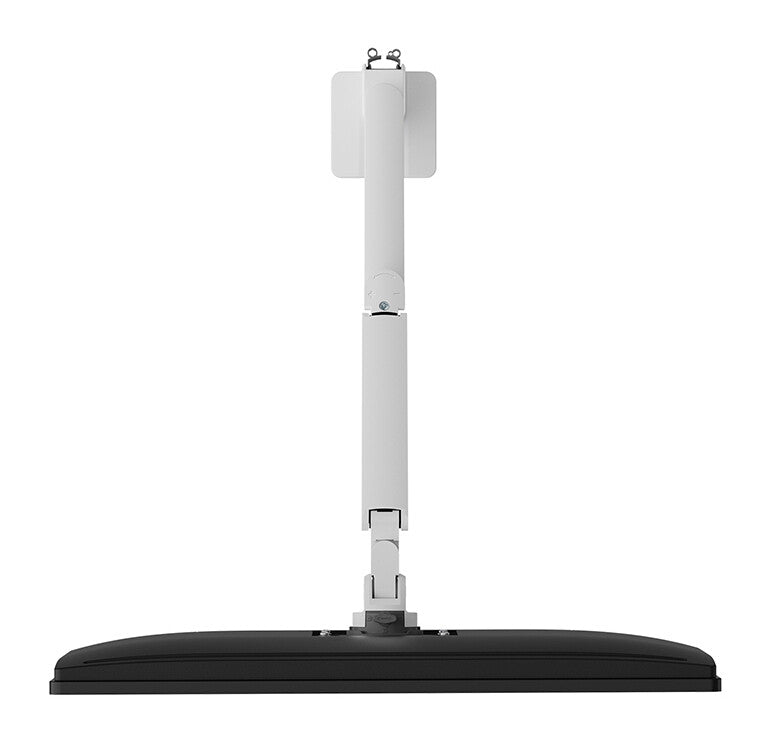

Due to the short T-Rex® upper arm of the NEXT Lite, only minimal depth is required when placed near a wall or separation panel. This allows the screens to be positioned further away from the user which is better for the eyes and also leaves more space for good ergonomic working posture. The smart internal cable management system ensures orderly routing of the cables. The DS60-425WH2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. Neomounts offers various optional VESA adapter plates for deviating hole patterns. The DS60-425WH2 is equipped with an Easy-release VESA system for easy installation and comes with both desk clamp and grommet.

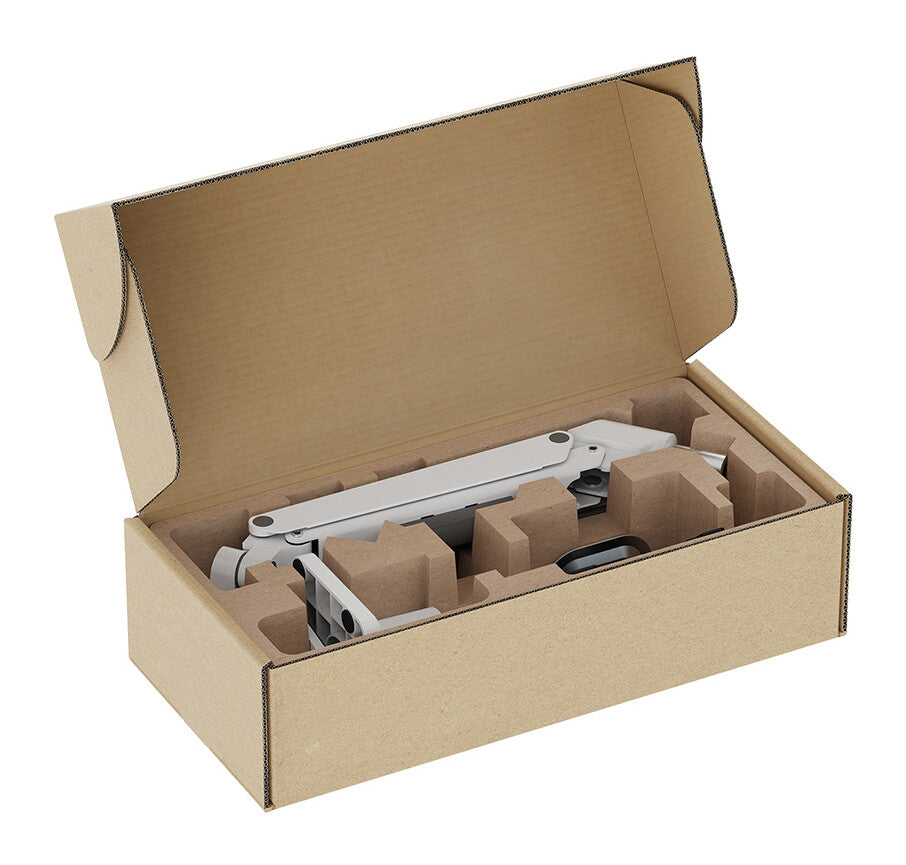

The packaging of the NEXT Lite is 100% plastic free and entirely made from cardboard and paper.
| Mounting | |
|---|---|
| Minimum screen size | 43.2 cm (17") |
| Maximum screen size | 68.6 cm (27") |
| Mounting type | Desk |
| Maximum weight capacity (per display) | 8 kg |
| Mounting | Clamp/Bolt-through |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Panel mounting interface | 100 x 100 mm |
| Number of displays supported | 2 |
| Desk thickness (min) | 1 cm |
| Desk thickness (max) | 8 cm |
| Clamp mount desk thickness (max) | 8 cm |
| Grommet mount desk thickness (max) | 4 cm |
| Distance to the wall (min) | 12.8 cm |
| Distance to the wall (max) | 46 cm |
| Ergonomics | |
|---|---|
| Height adjustment | Yes |
| Height adjustment type | Manual |
| Height adjustment range | 29.5 - 60.7 mm |
| Adjustable depth | Yes |
| Depth adjustment range | 6.6 - 39.8 mm |
| Tilt angle range | -30 - 90° |
| Swivelling | Yes |
| Swivel angle range | -30 - 90° |
| Angle of rotation | 360° |
| Cable management | Yes |
| Feet | Yes |
| Feet colour | Black |
| Design | |
|---|---|
| Product colour | White |
| Housing material | Steel |

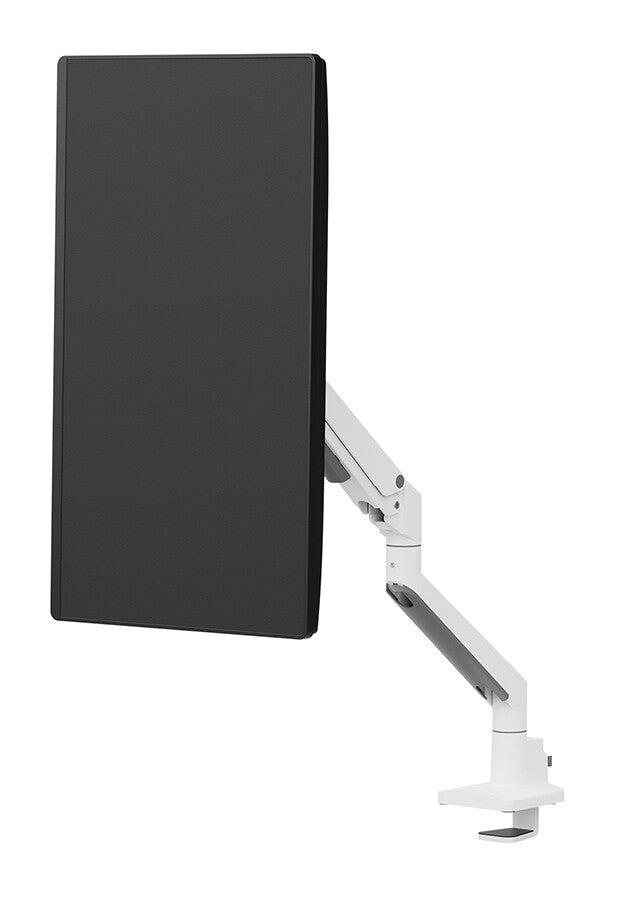

| Orientation | Landscape/Portrait |
| Weight & dimensions | |
|---|---|
| Width | 888 mm |
| Depth | 460 mm |
| Height | 763 mm |
| Package width | 210 mm |
| Package depth | 105 mm |
| Package height | 440 mm |
| Package net weight | 4.6 kg |
| Packaging content | |
|---|---|
| Clamp included | Yes |
| VESA mount included | Yes |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Logistics data | |
|---|---|
| Master (outer) case width | 220 mm |
| Master (outer) case length | 435 mm |
| Master (outer) case height | 455 mm |
| Products per master (outer) case | 4 pc(s) |
| Master (outer) case net weight | 15.1 kg |
| Products per pallet (EU) | 84 pc(s) |
| Harmonized System (HS) code | HS7326909890 |
| Other features | |
|---|---|
| Country of origin | China |
