Minimum screen size: 43.2 cm (17") Maximum screen size: 124.5 cm (49")
Number of displays supported: 1
Clamp/Grommet Mounting type: Desk
Maximum VESA mount: 100 x 100 mm
Gas spring Height adjustment Tilt adjustment
Cable management Easy to install
Aluminium Black

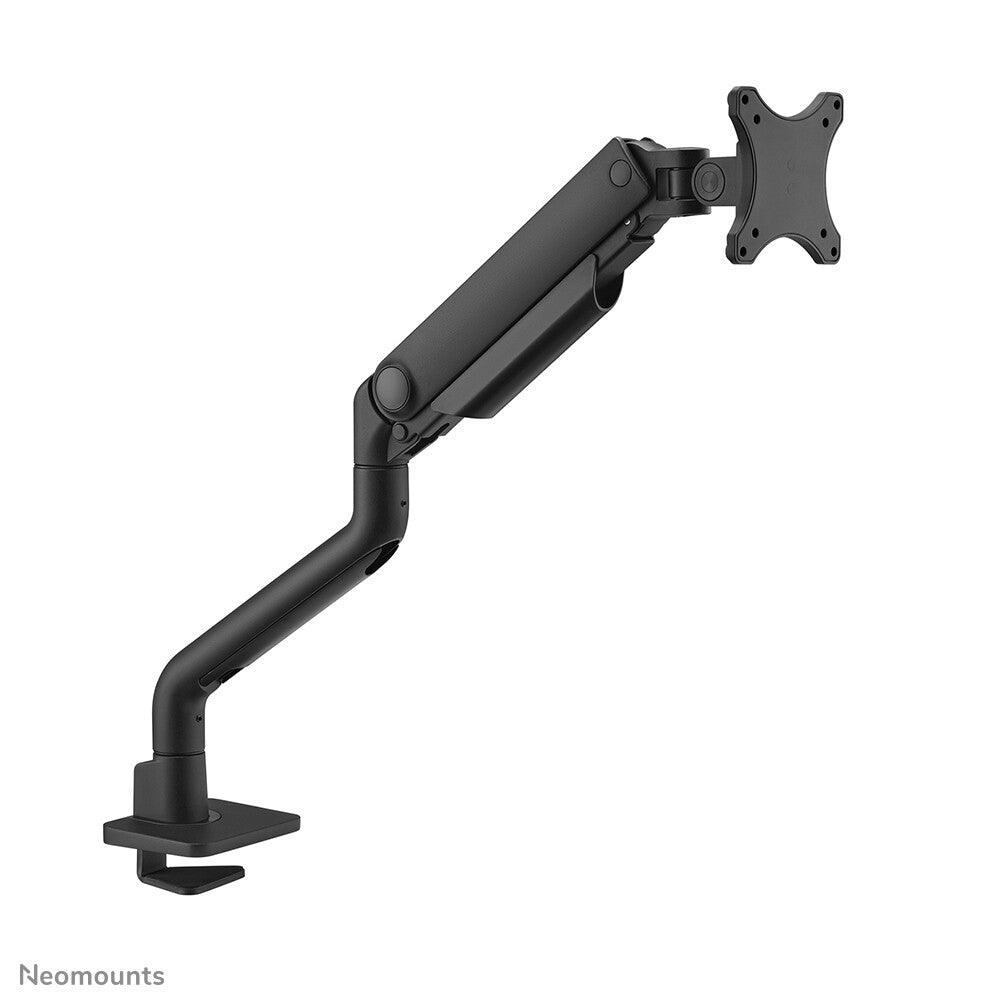

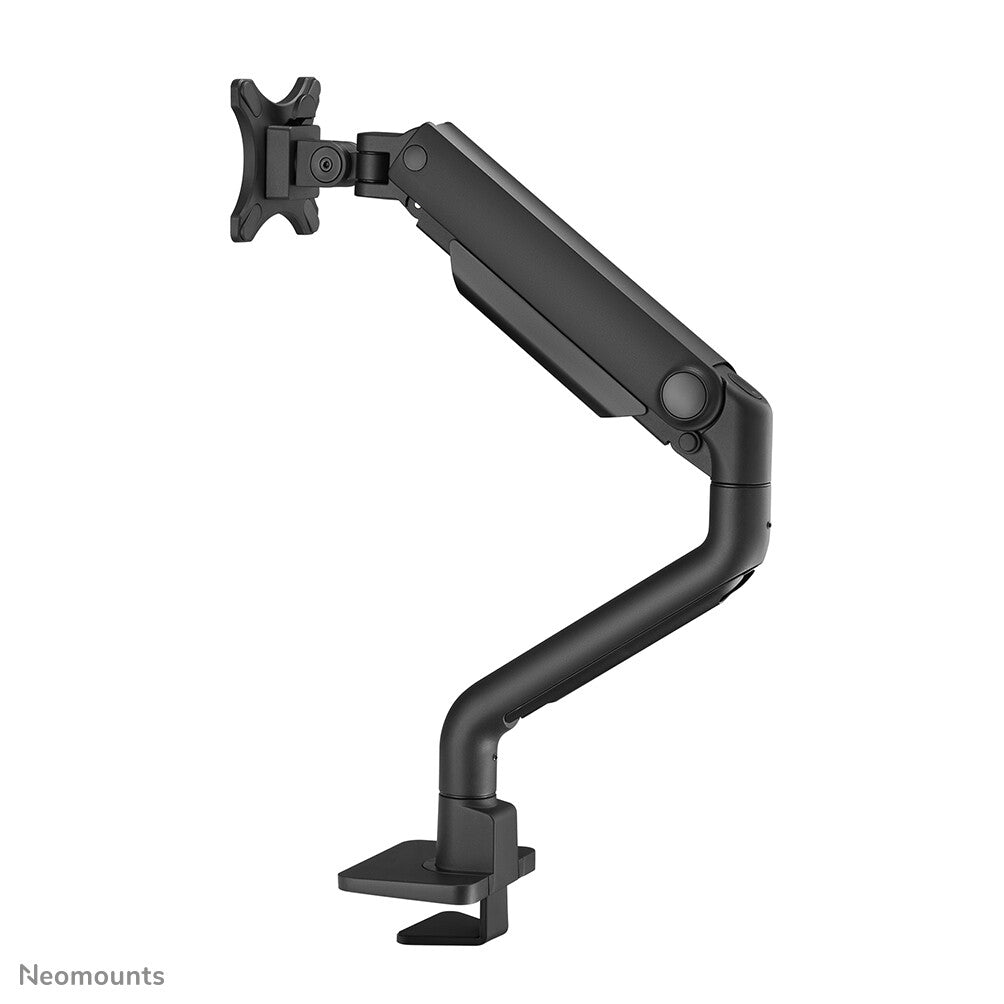

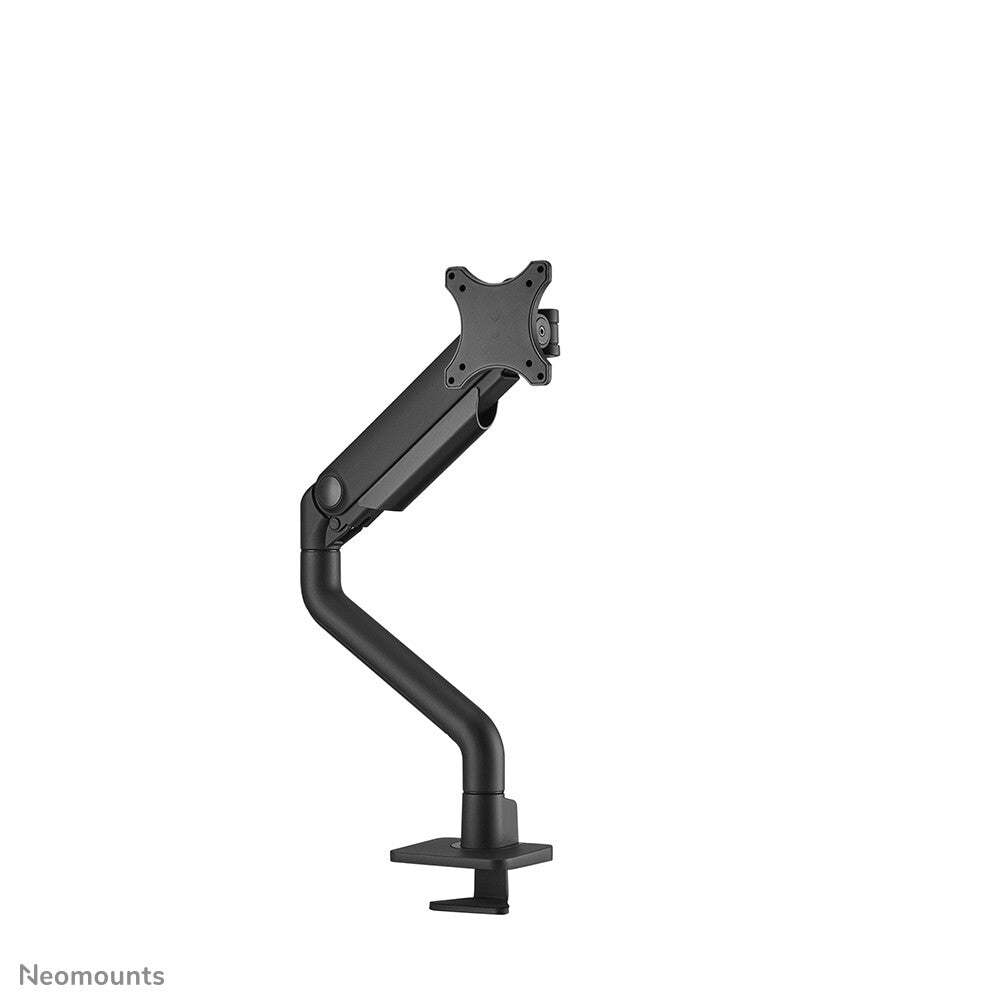

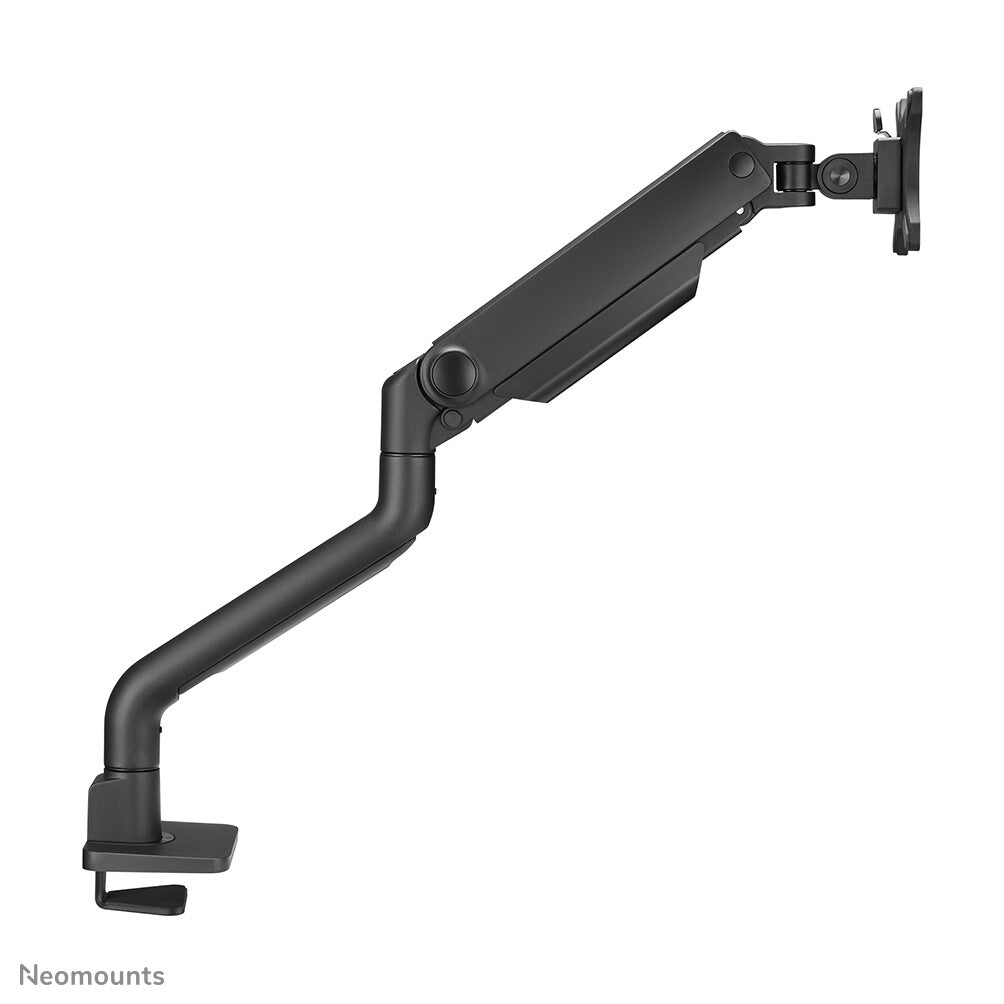

Neomounts DS70S-950BL1 full motion desk monitor arm for 17-49" screens - Black

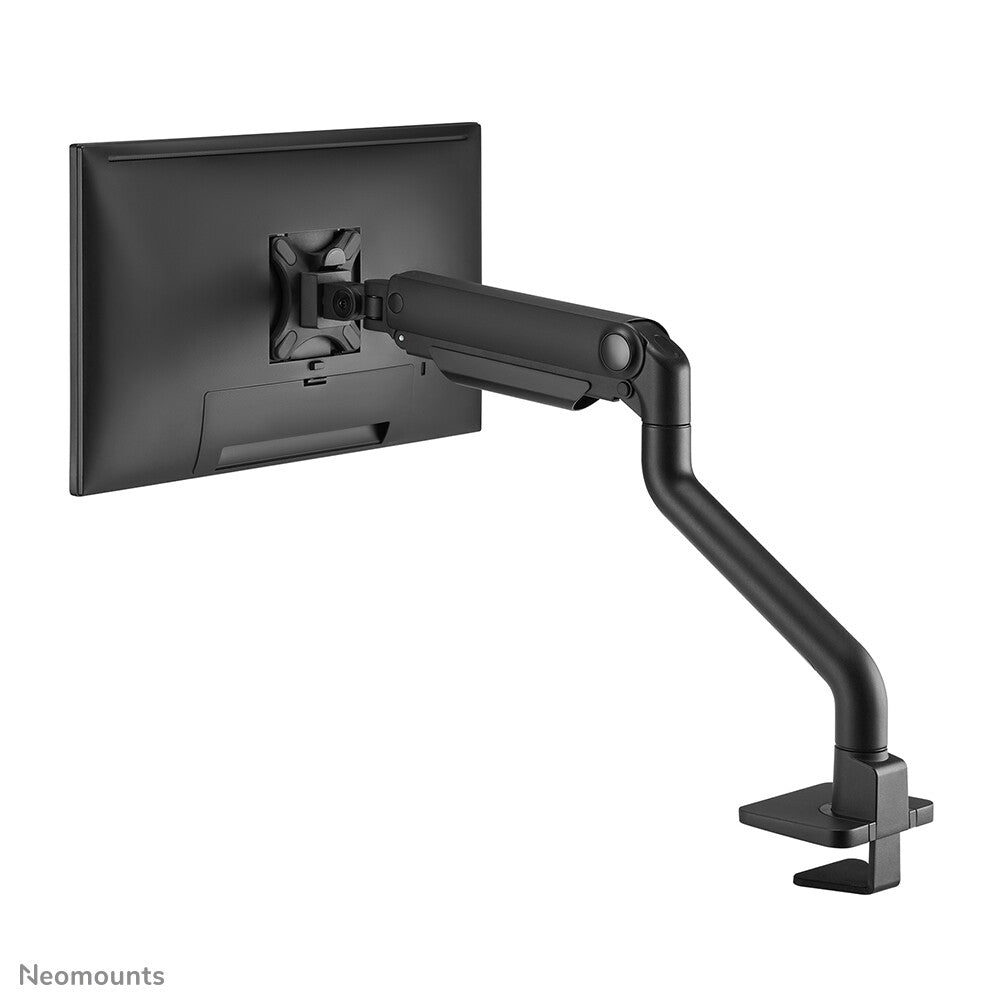

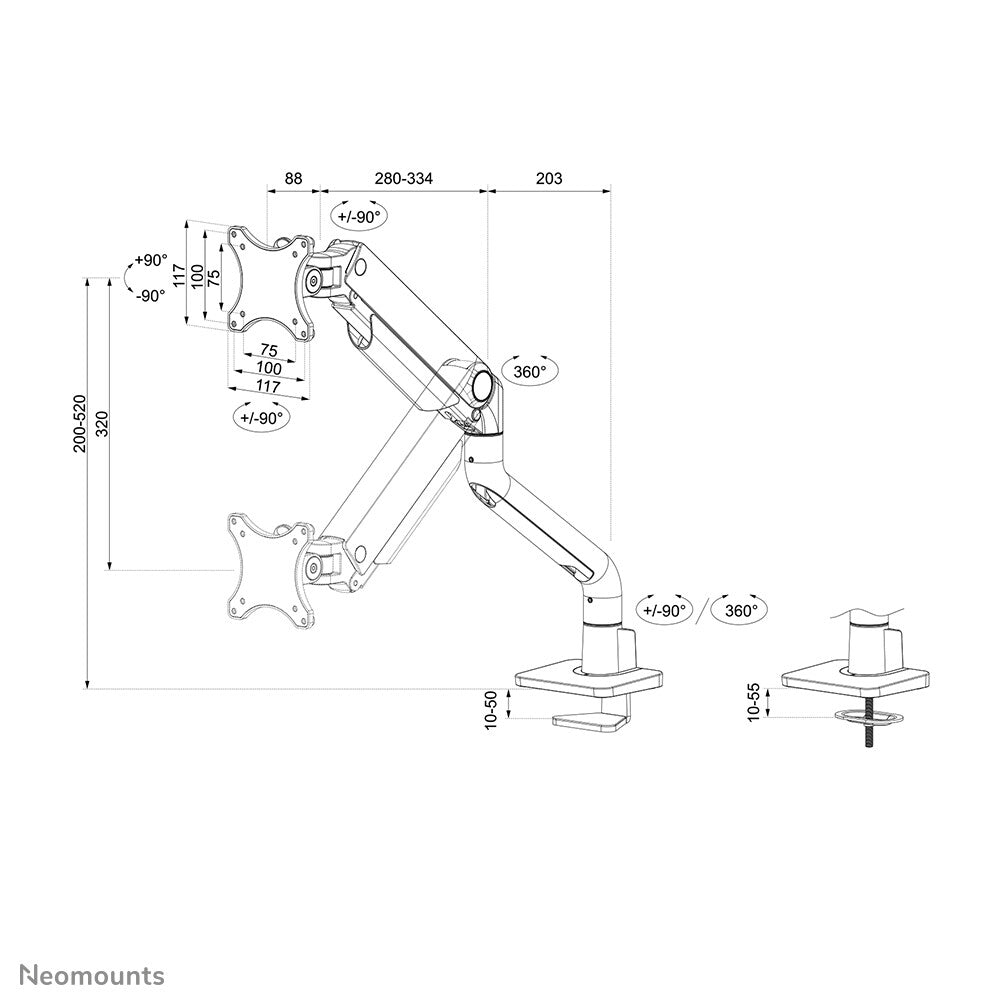

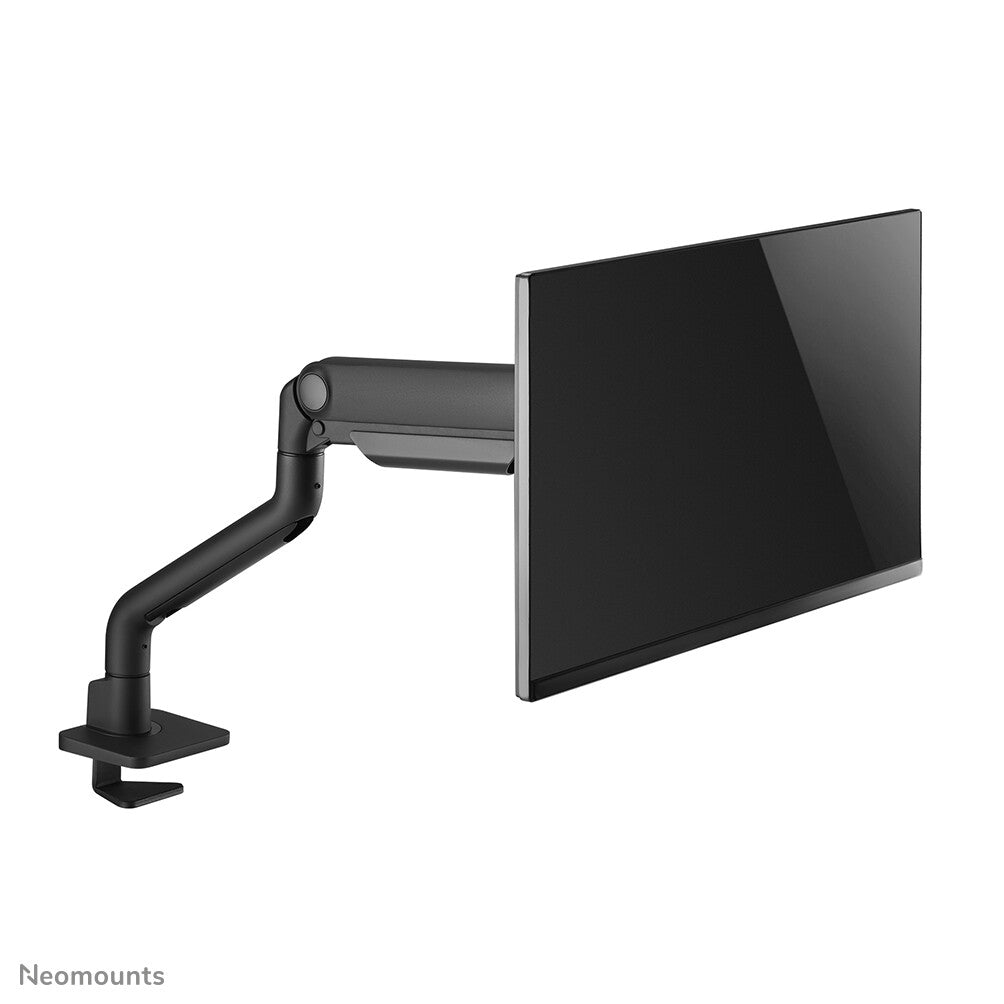

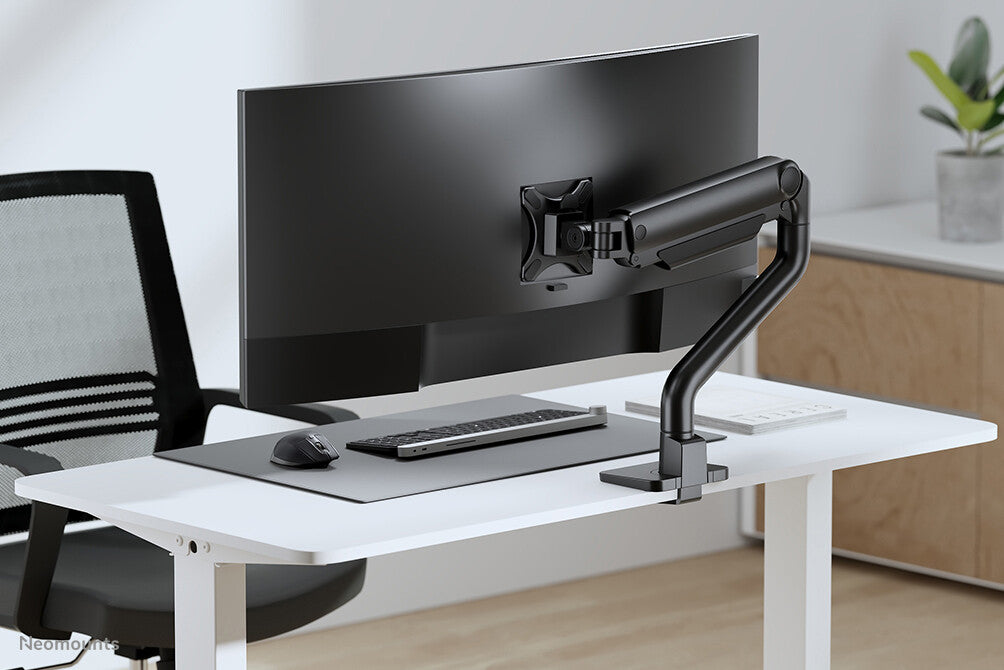

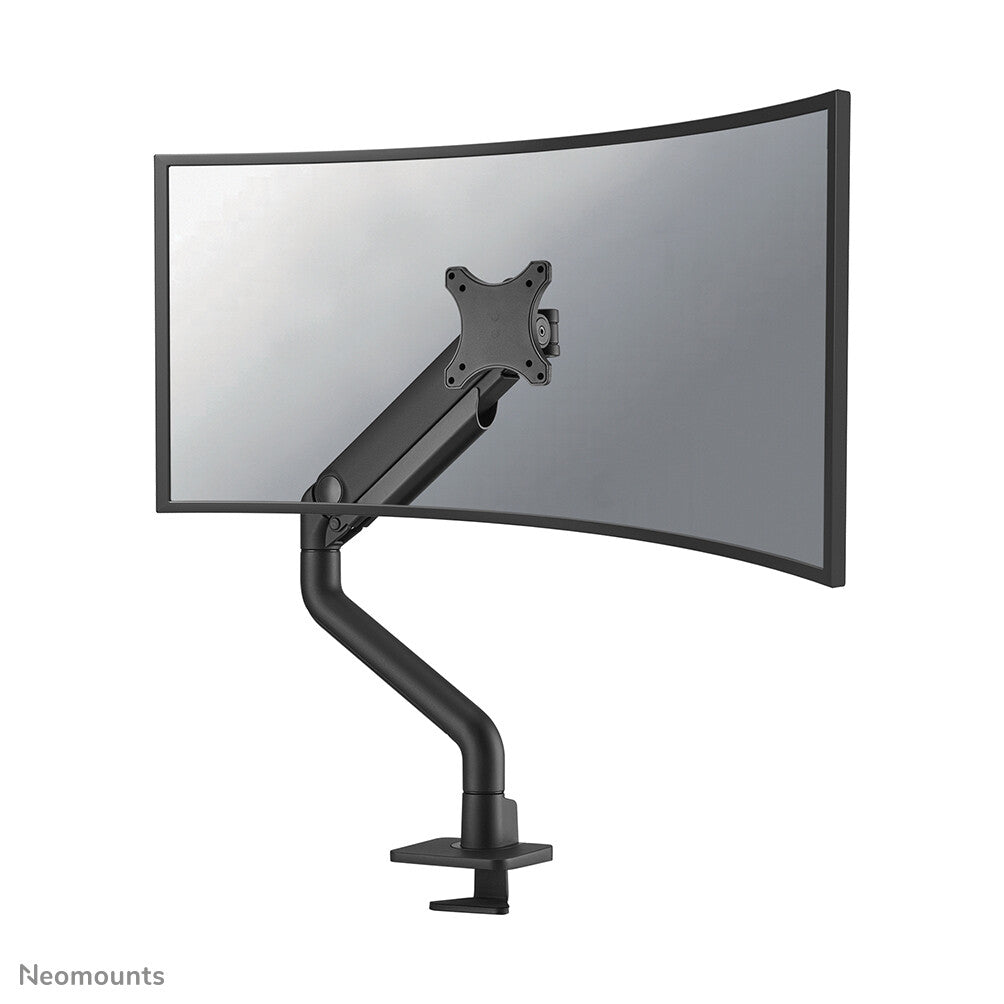

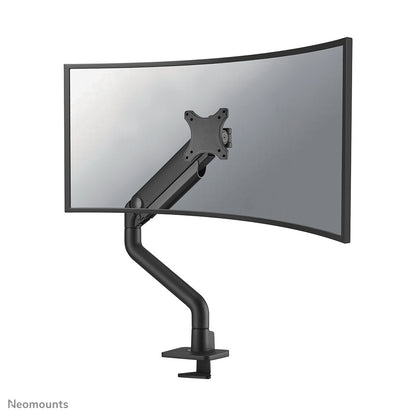

The Neomounts DS70S-950BL1 NEXT One is a full motion desk mount for screens up to 49". The DS70S-950BL1 is a true all-in one solution for small to large displays. The NEXT One features a strengthened head specifically designed to also support curved ultra-wide screens and features a higher maximum weight capacity up to 18 kg (curved 15 kg). The versatile tilt (180°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has gas spring height adjustment (20-52 cm) and depth adjustment (8,8-62,5 cm), to create the perfect working position.

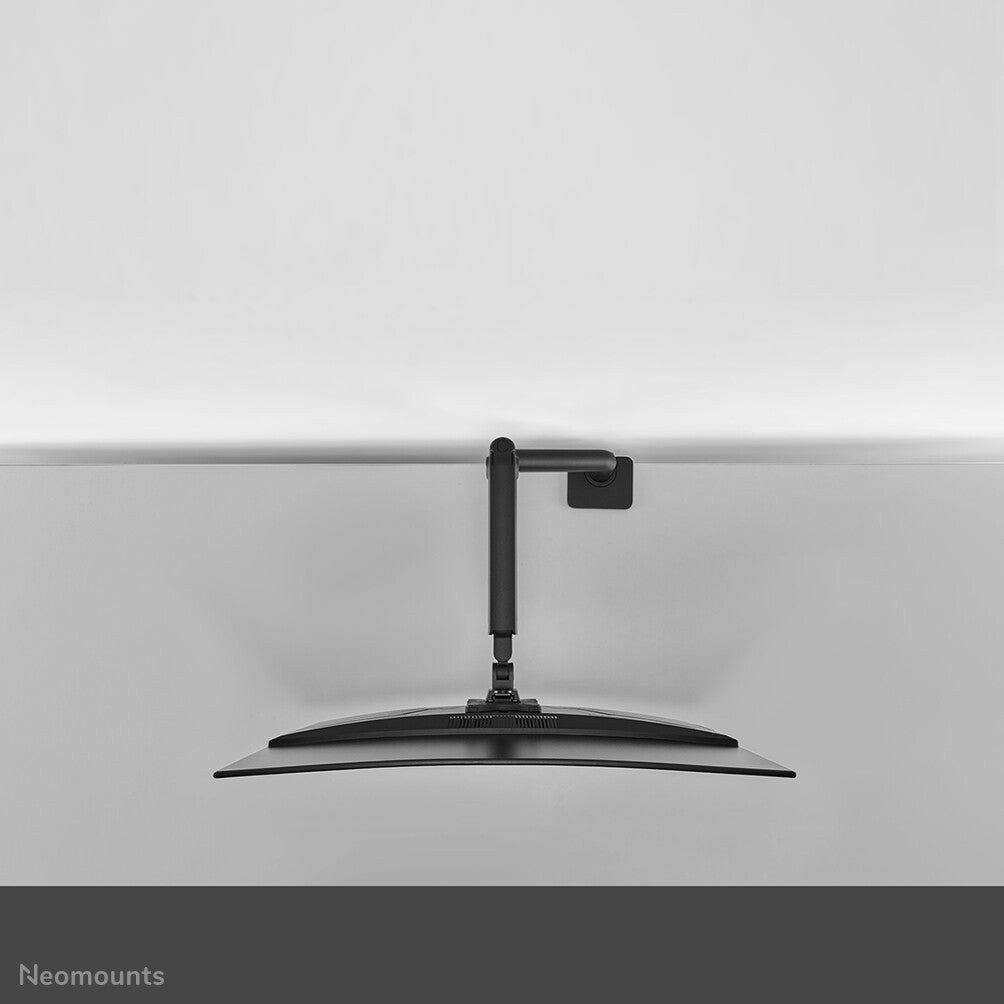

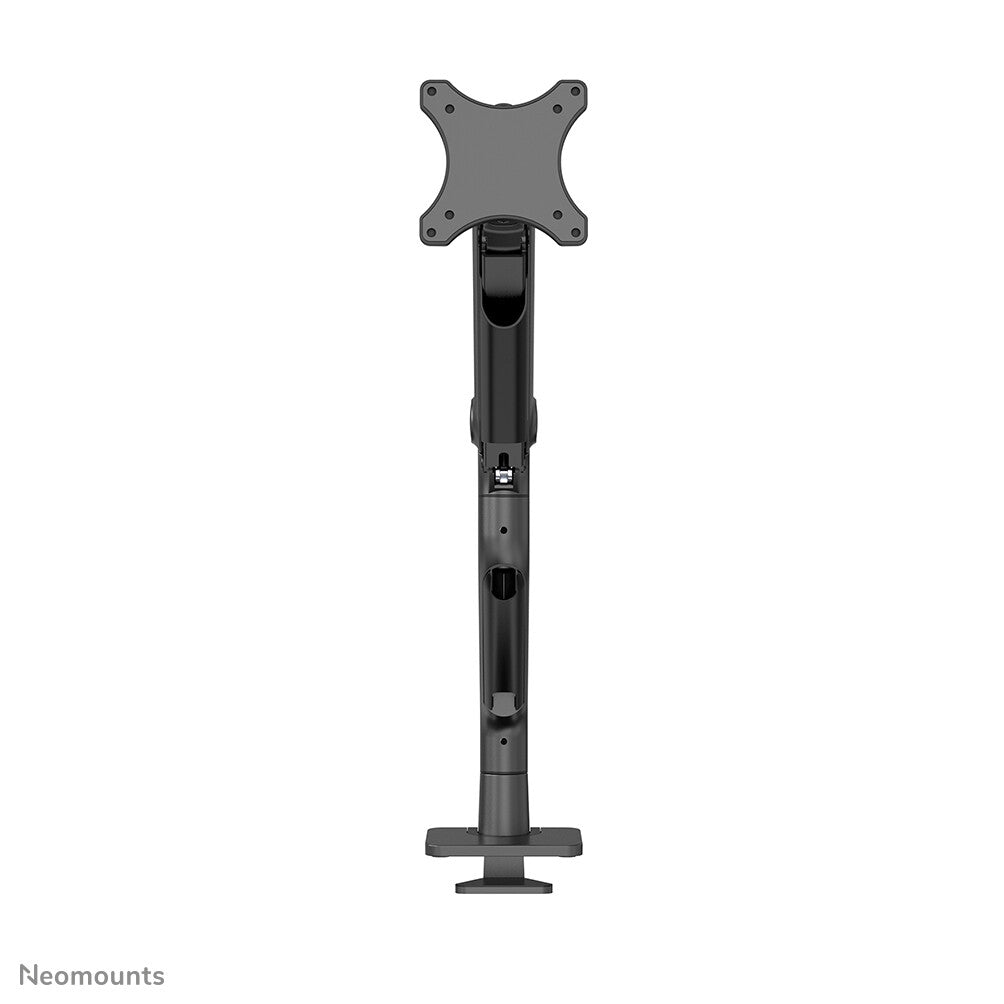

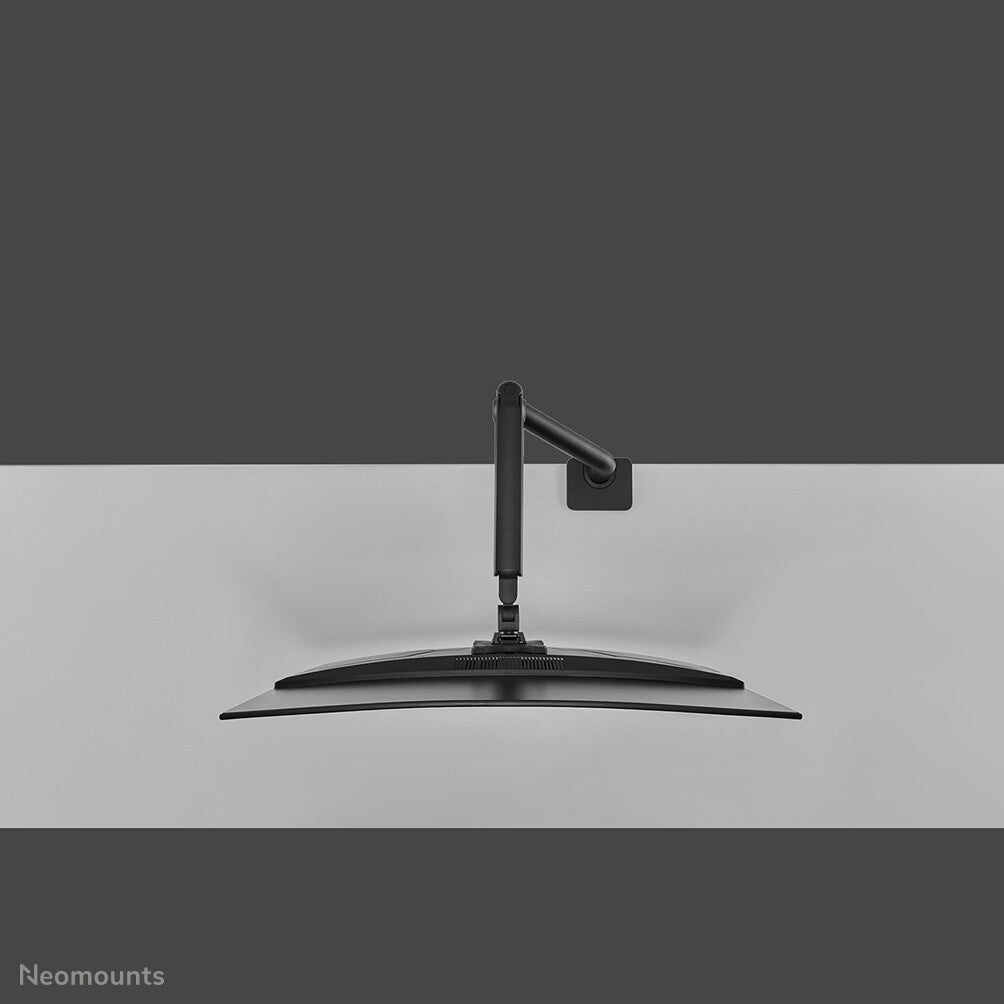

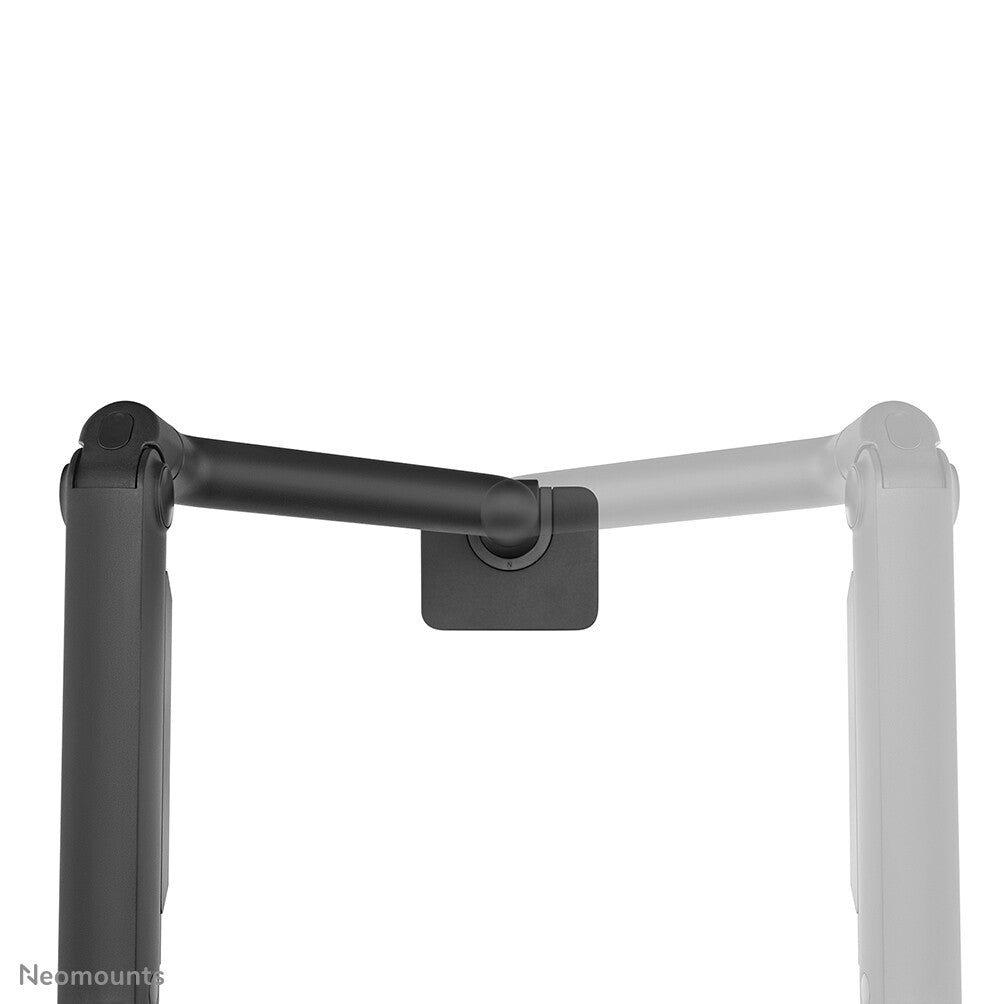

The DS70S-950BL1 features the nifty 180° stop mechanism, that prevents the mount from making contact with the wall or separation panel when installed near it. The smart cable management system ensures orderly routing of the cables.

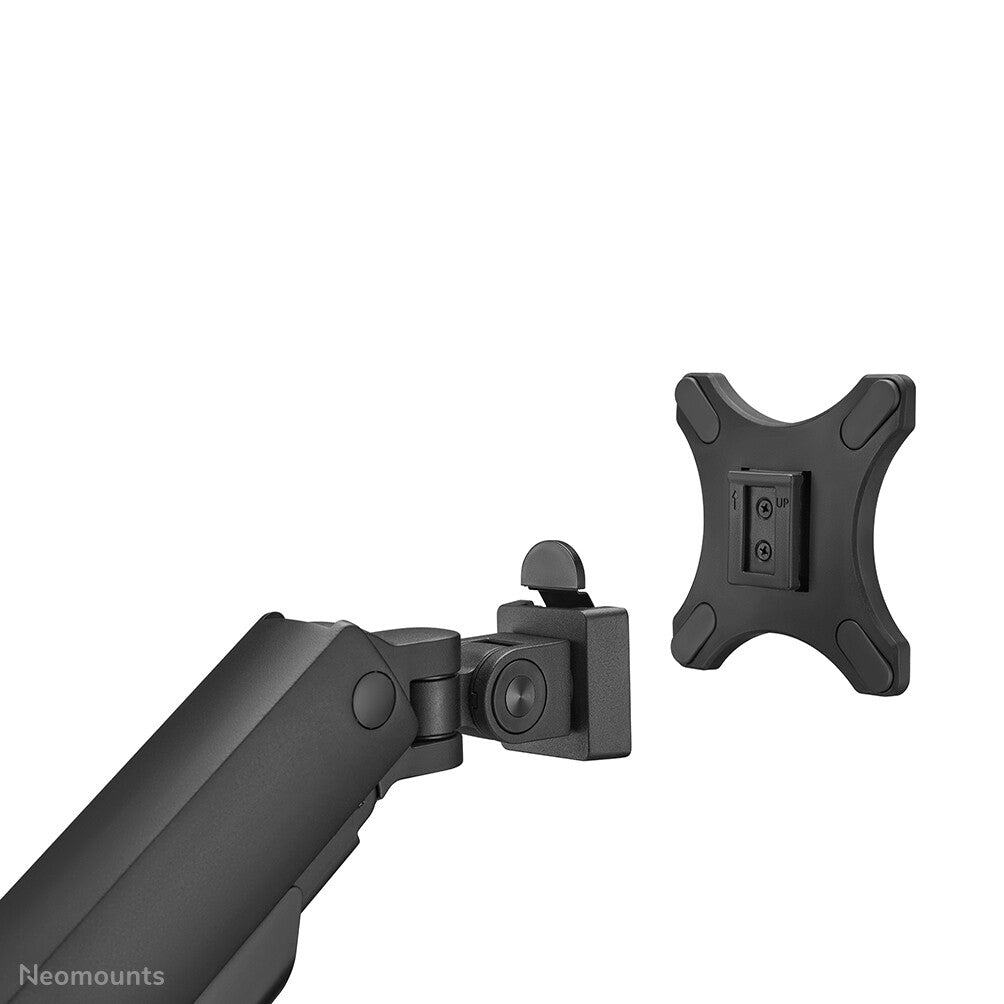

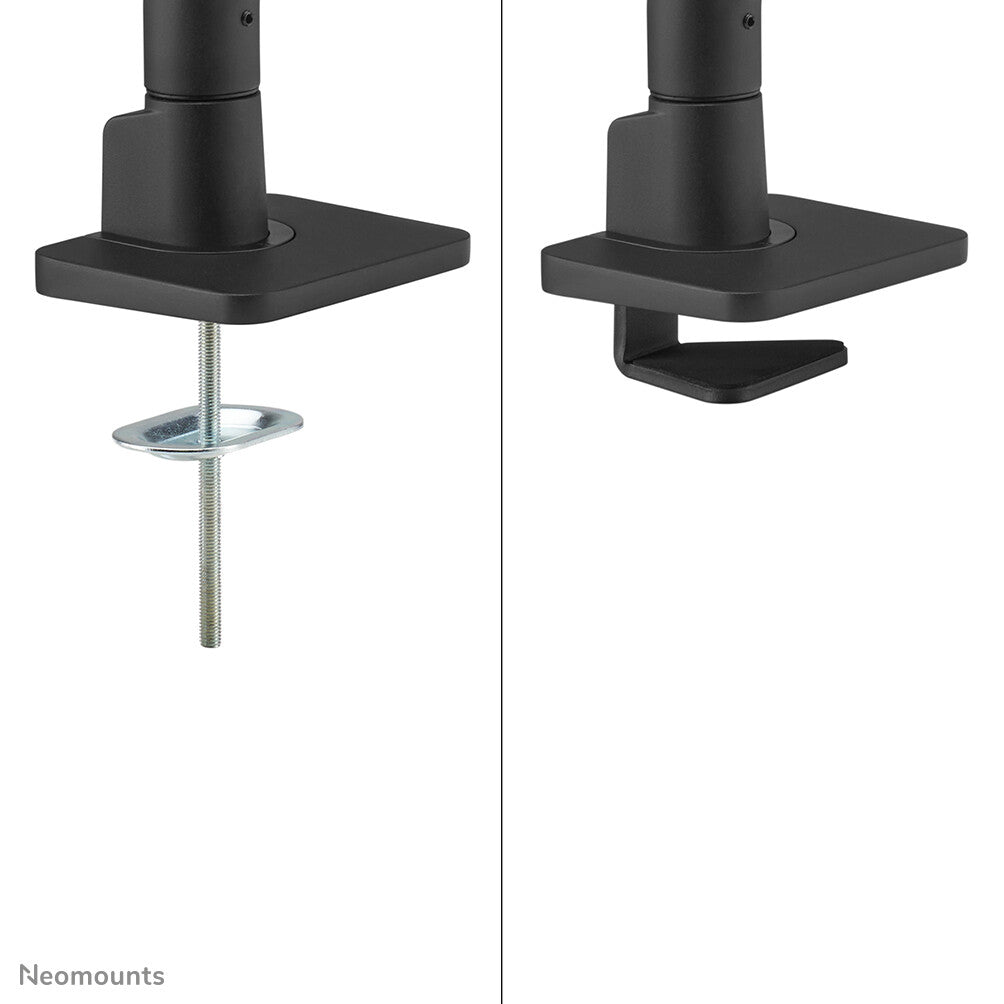

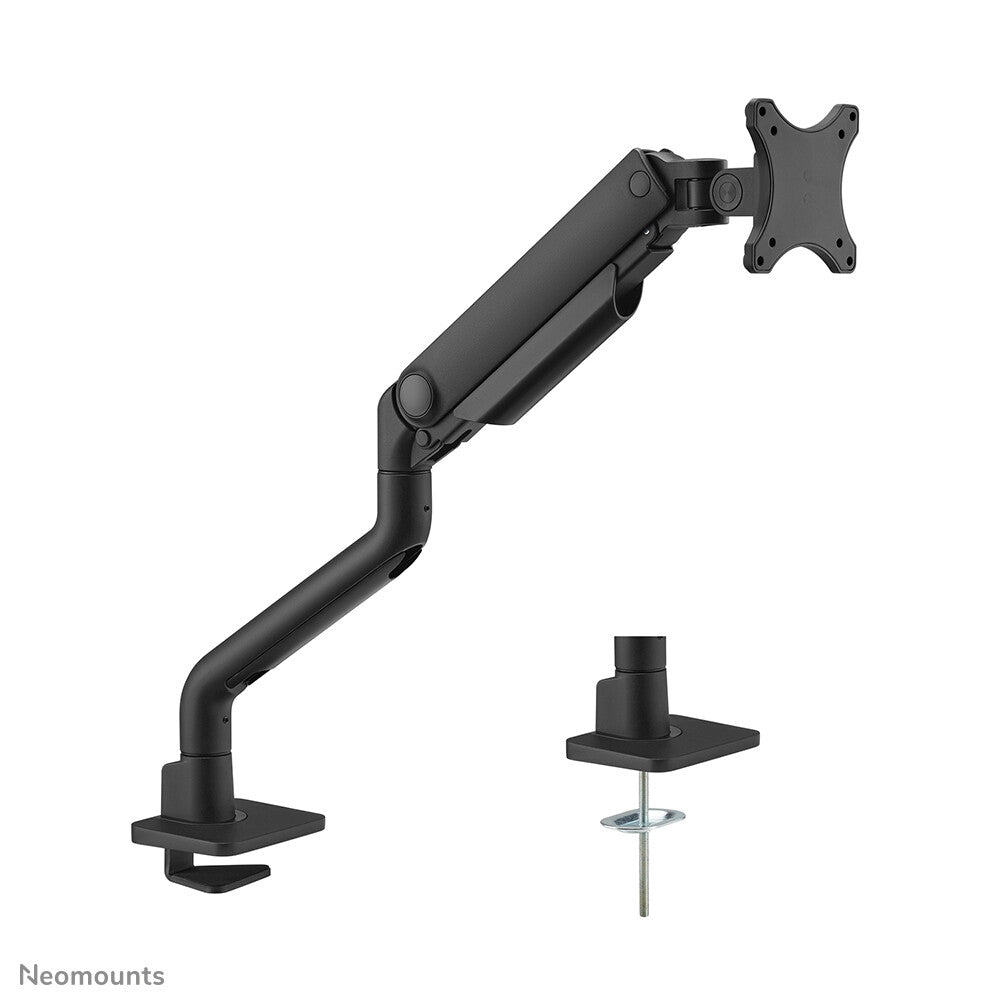

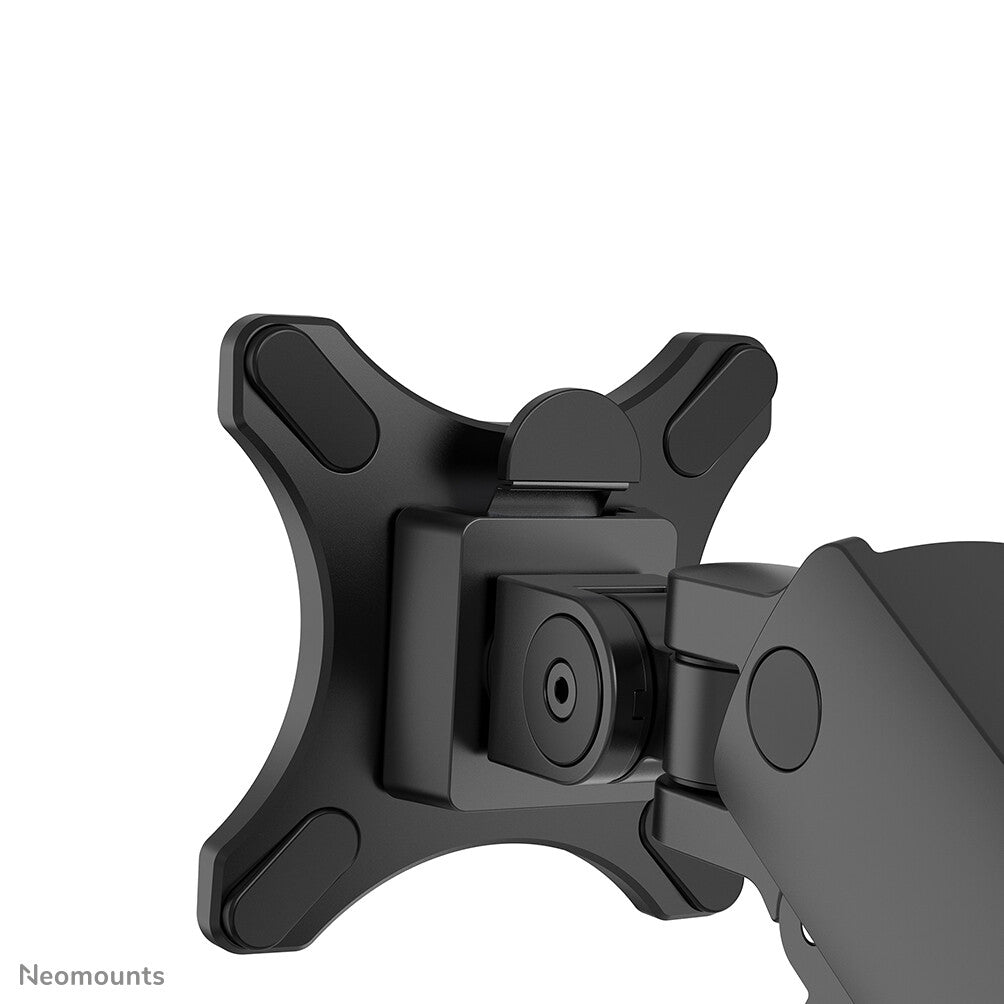

The black VESA plate of the NEXT One integrate stylishly with the black back of your screen. The DS70S-950BL1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. For non-standard hole patterns, Neomounts has various optional VESA adapter plates available. The monitor arm is equipped with a Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.

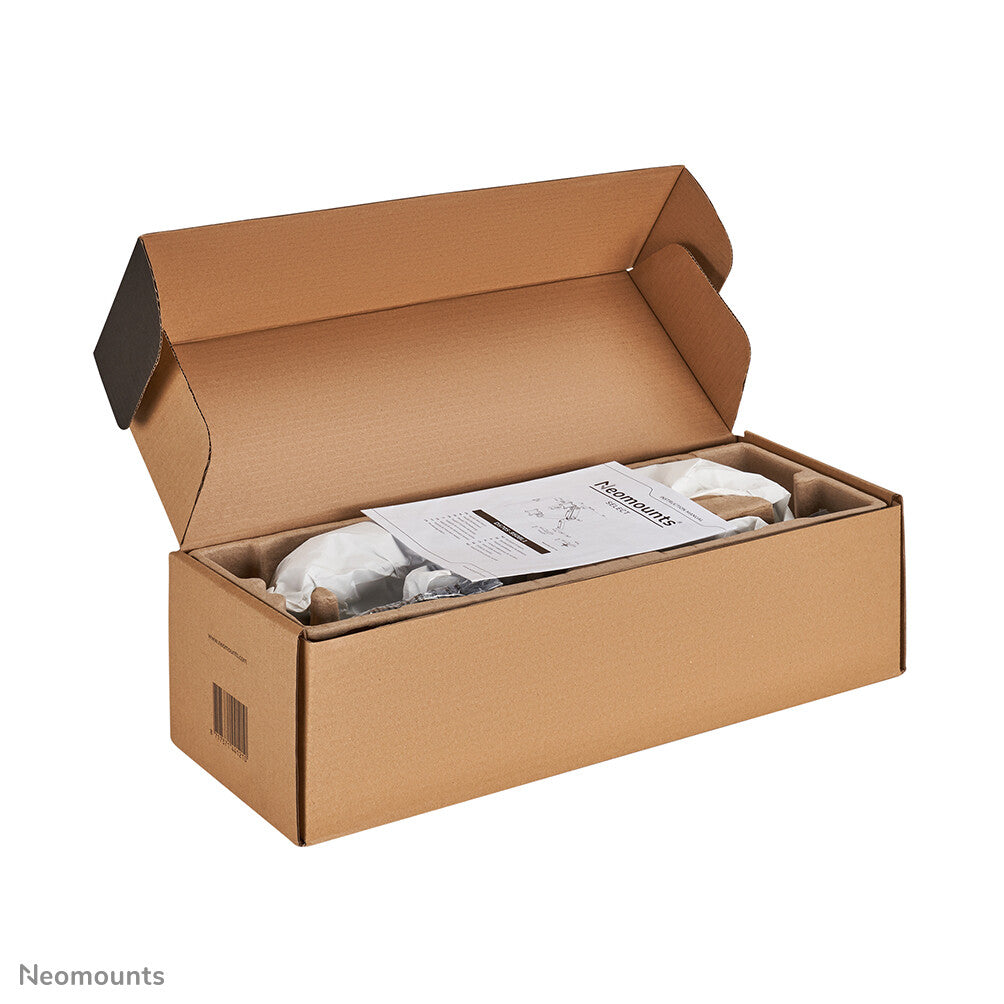

The packaging of the DS70S-950BL1 desk mount 100% plastic free and entirely made from cardboard and paper. The NEXT One products have an extended warranty period of 10-years.
Mounting
Distance to the wall (max)
65.6 cm
Distance to the wall (min)
11.9 cm
Grommet mount desk thickness (max)
5.5 cm
Clamp mount desk thickness (max)
5 cm
Desk thickness (max)
5.5 cm
Desk thickness (min)
1 cm
Number of displays supported
1
Panel mounting interface
75 x 75,100 x 100 mm
Maximum VESA mount
100 x 100 mm
Minimum VESA mount
75 x 75 mm
Mounting
Clamp/Grommet
Maximum weight capacity (per curved/ultra-wide display)
