Newstar

Neomounts desk monitor arm

Neomounts desk monitor arm

Regular price £122.58 GBP
Regular price Sale price £122.58 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:DS60-425BL2

13 in stock

  • Minimum screen size: 43.2 cm (17") Maximum screen size: 68.6 cm (27")
  • Number of displays supported: 2
  • Clamp/Bolt-through Mounting type: Desk
  • Maximum VESA mount: 100 x 100 mm
  • Manual Height adjustment
  • Cable management
  • Steel Black

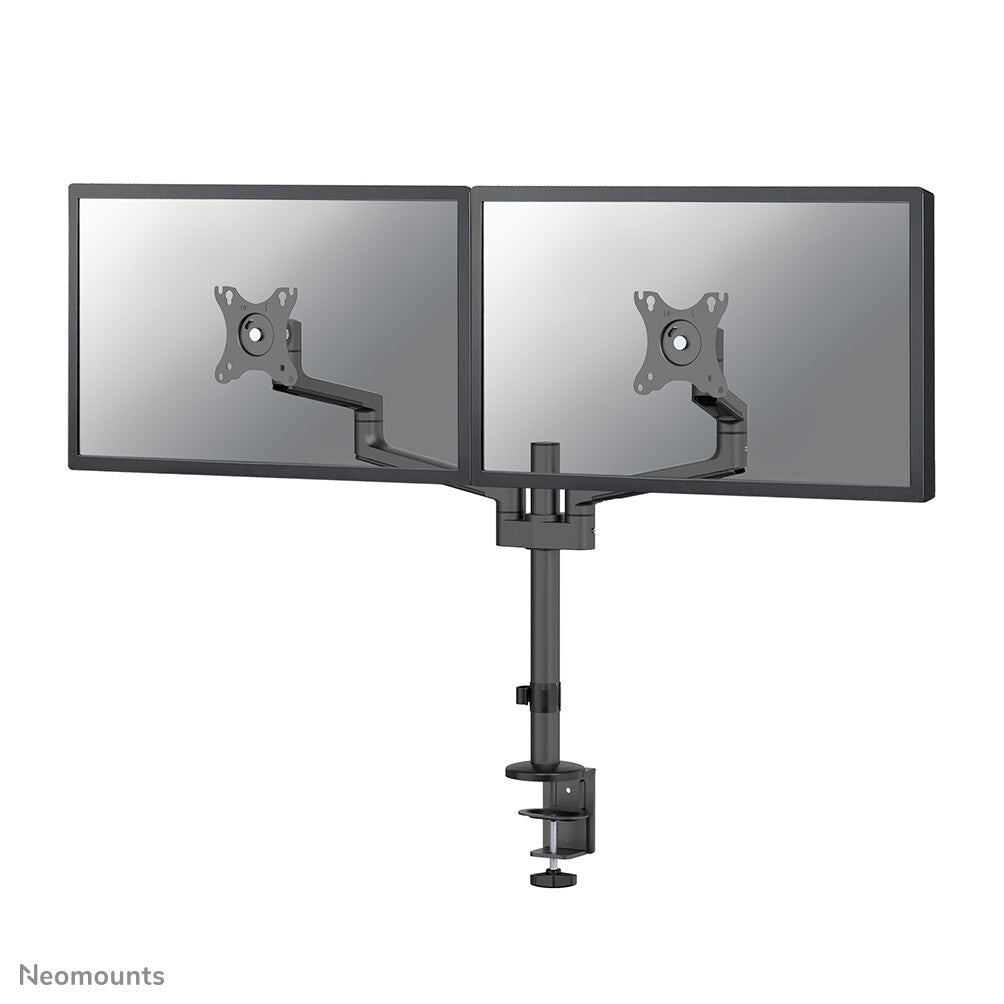

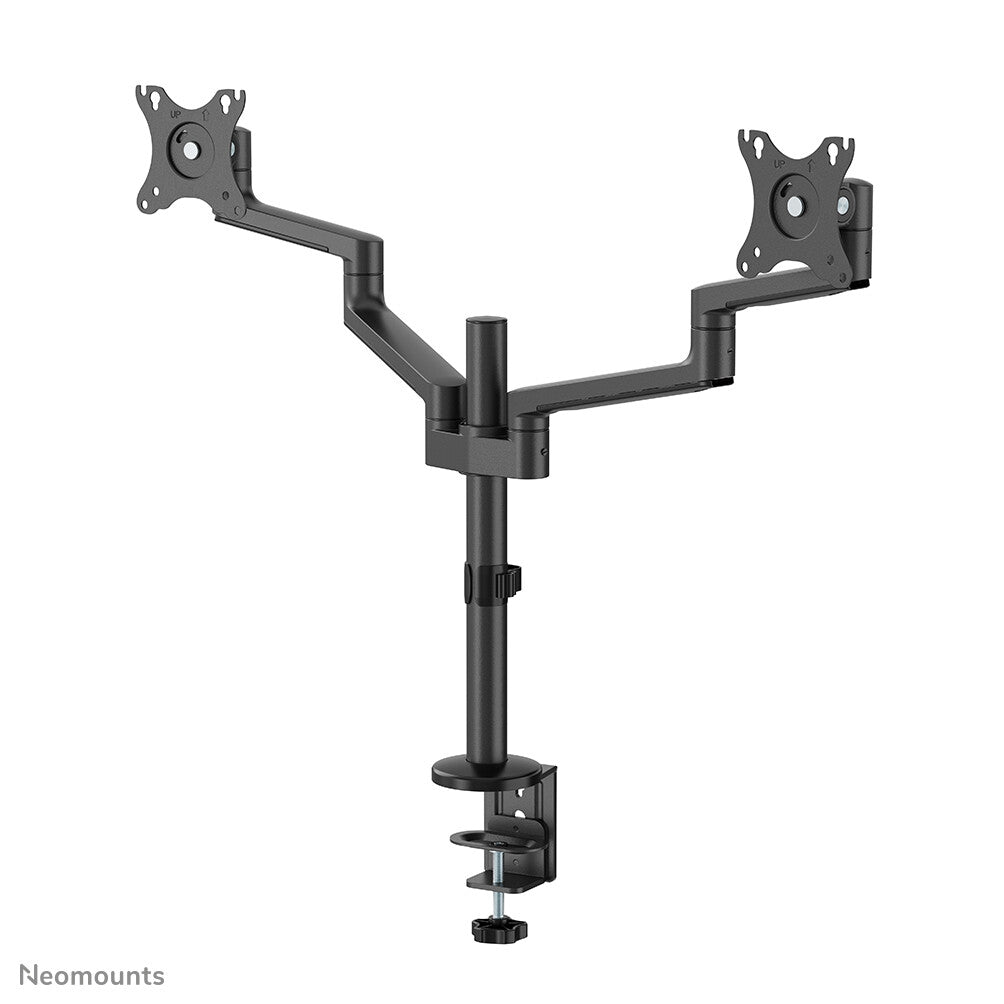

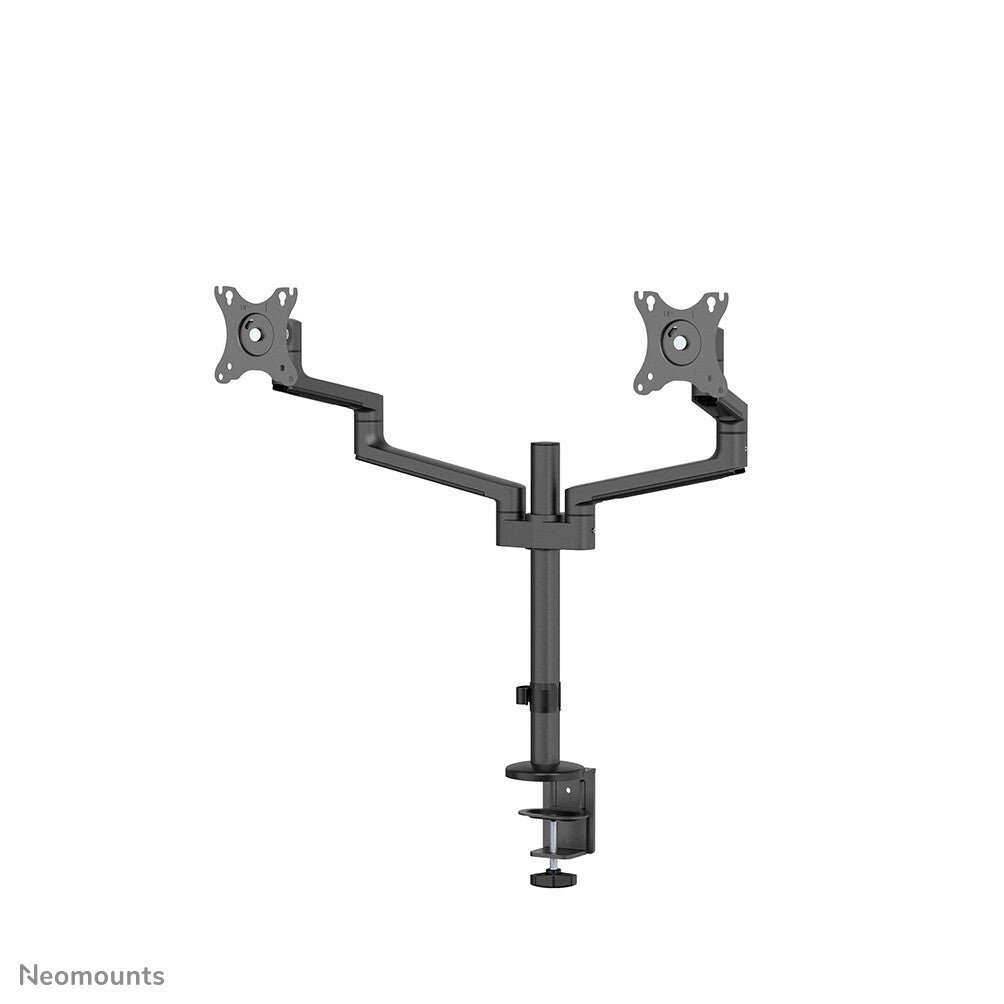

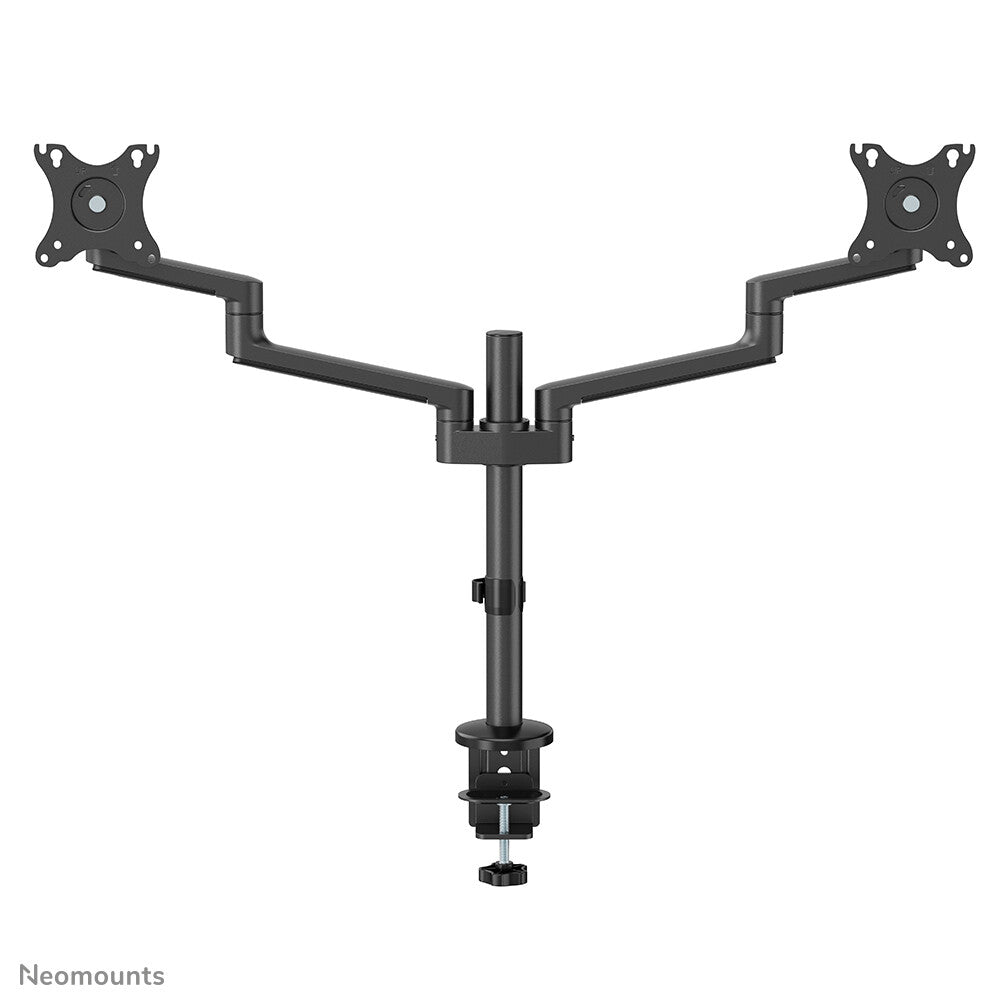

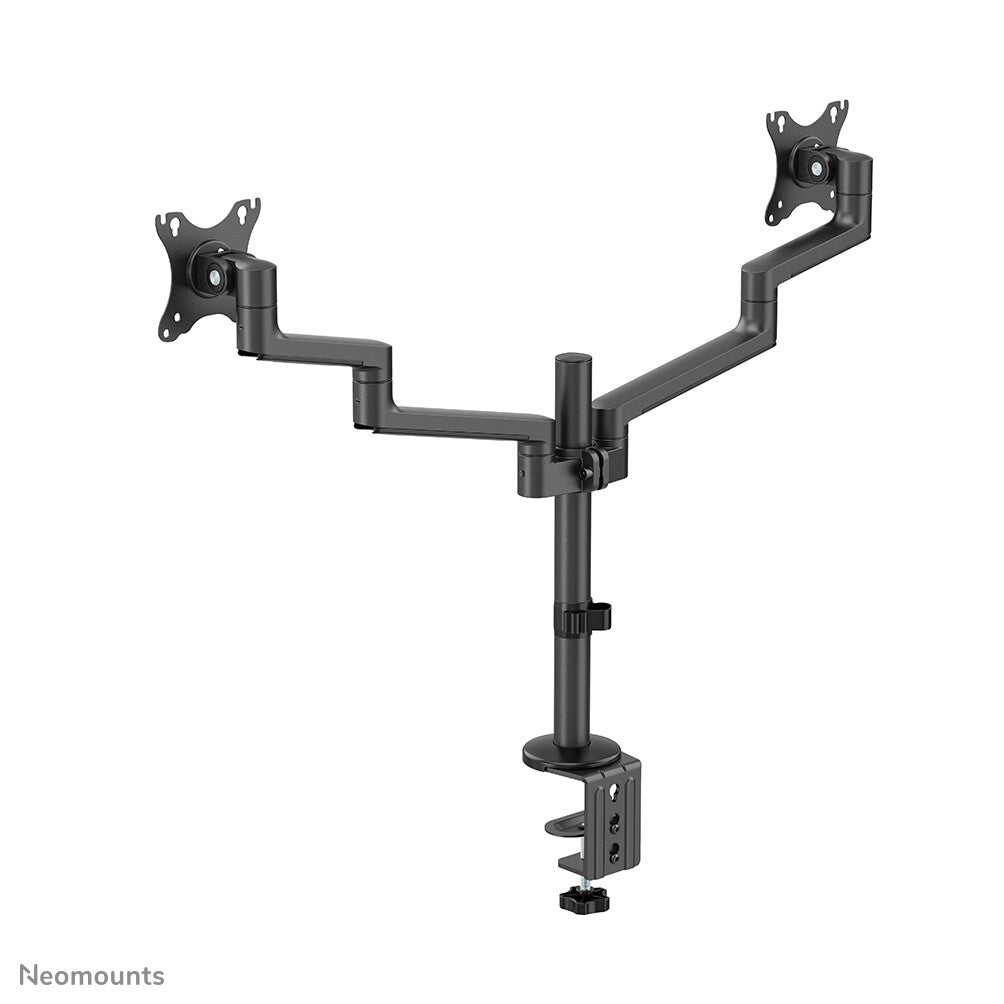

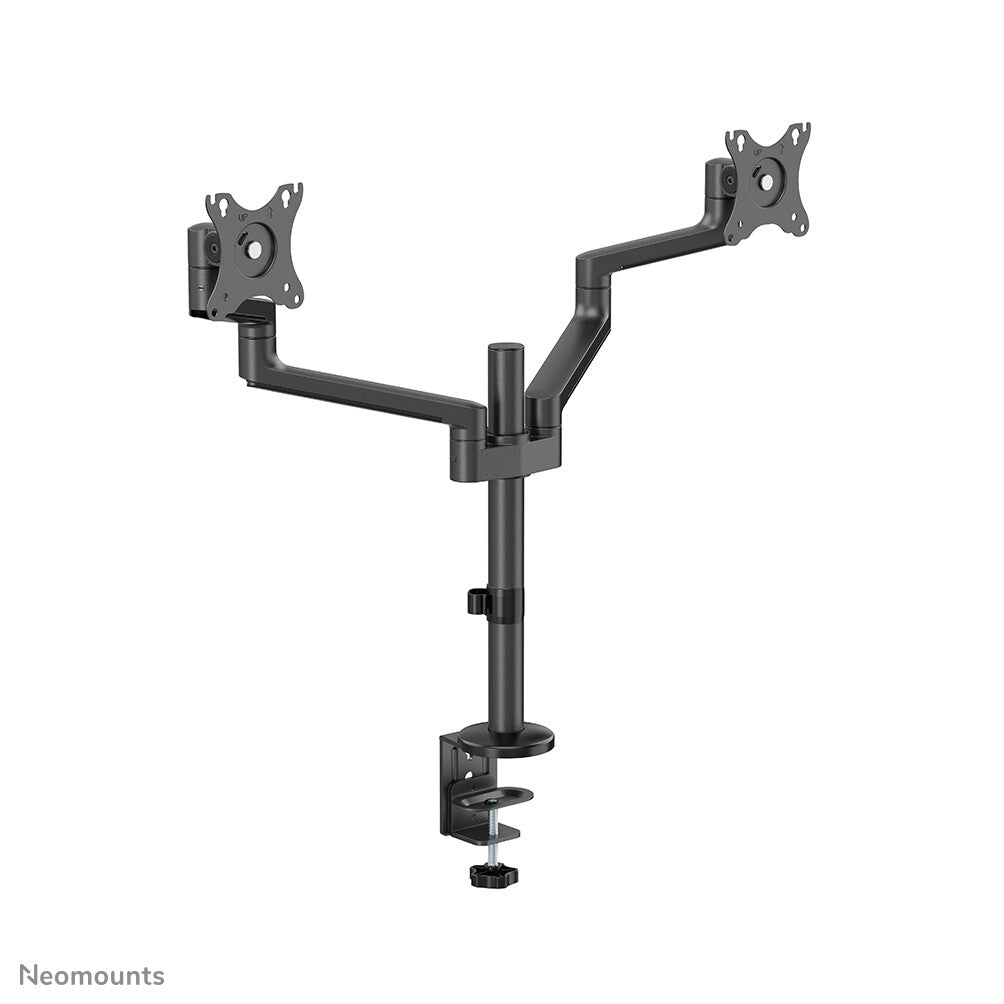

Neomounts DS60-425BL2 full motion desk monitor arm for 17-27" screens - Black

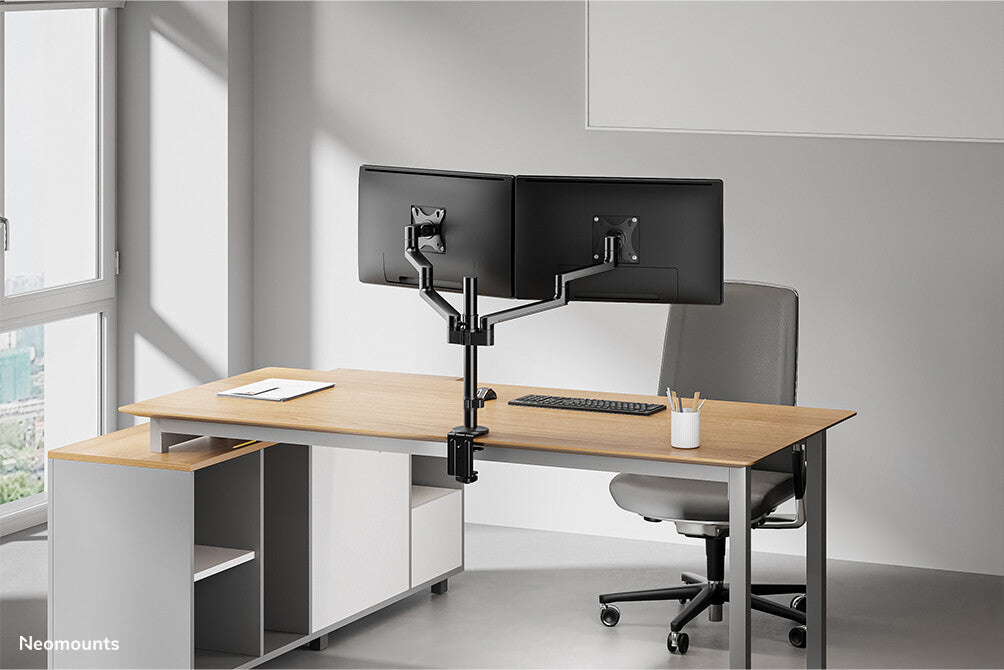

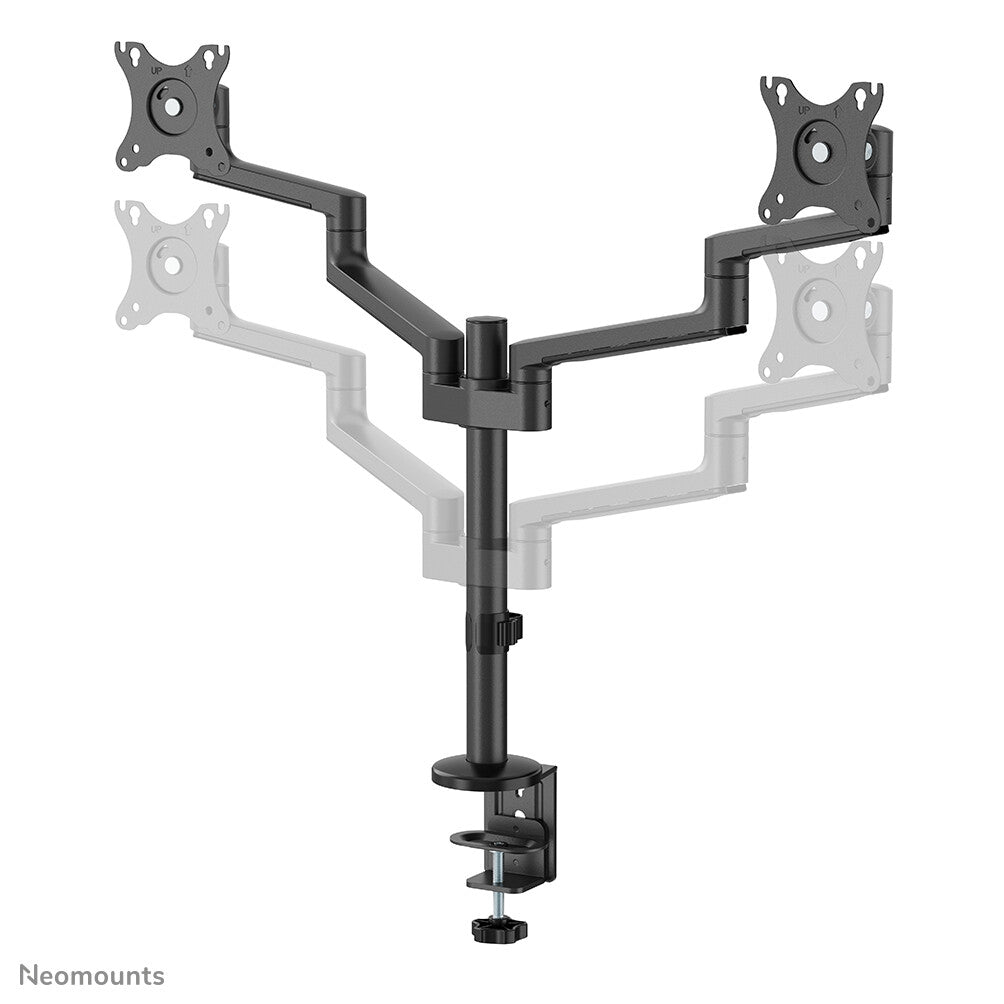

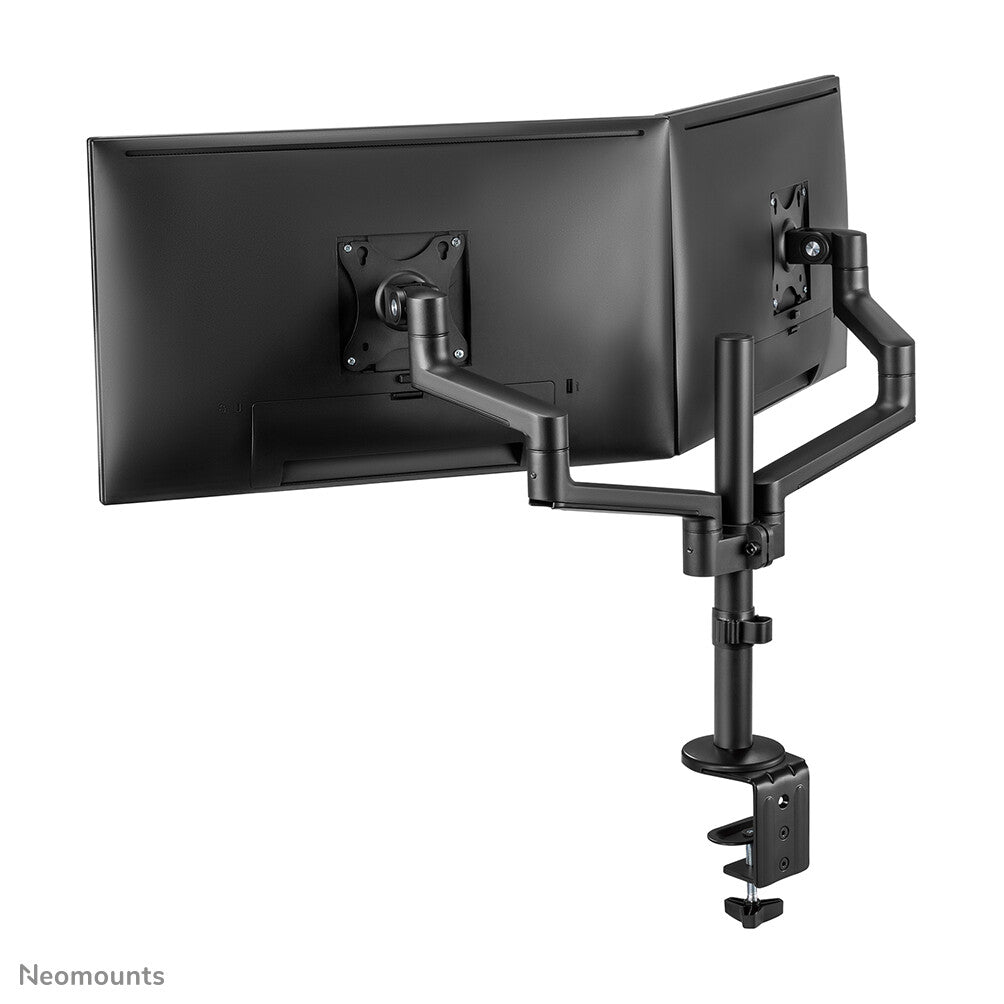

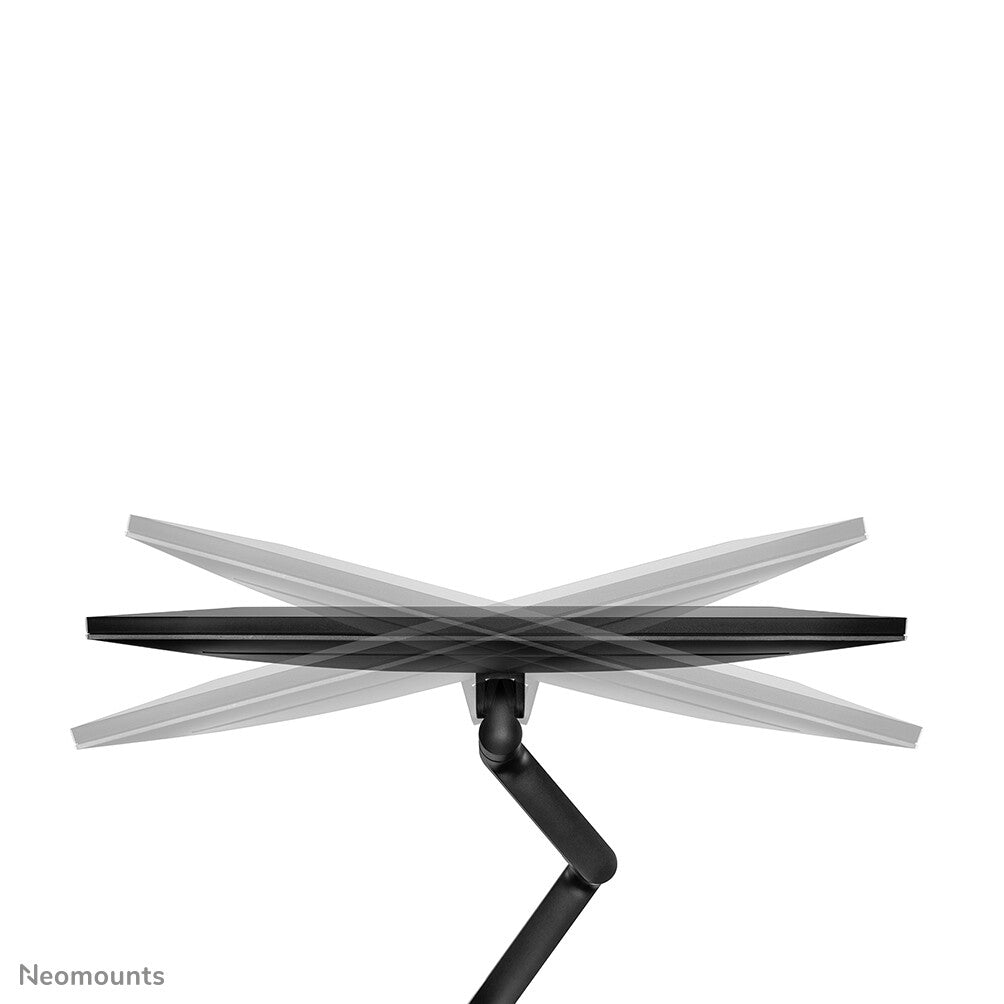

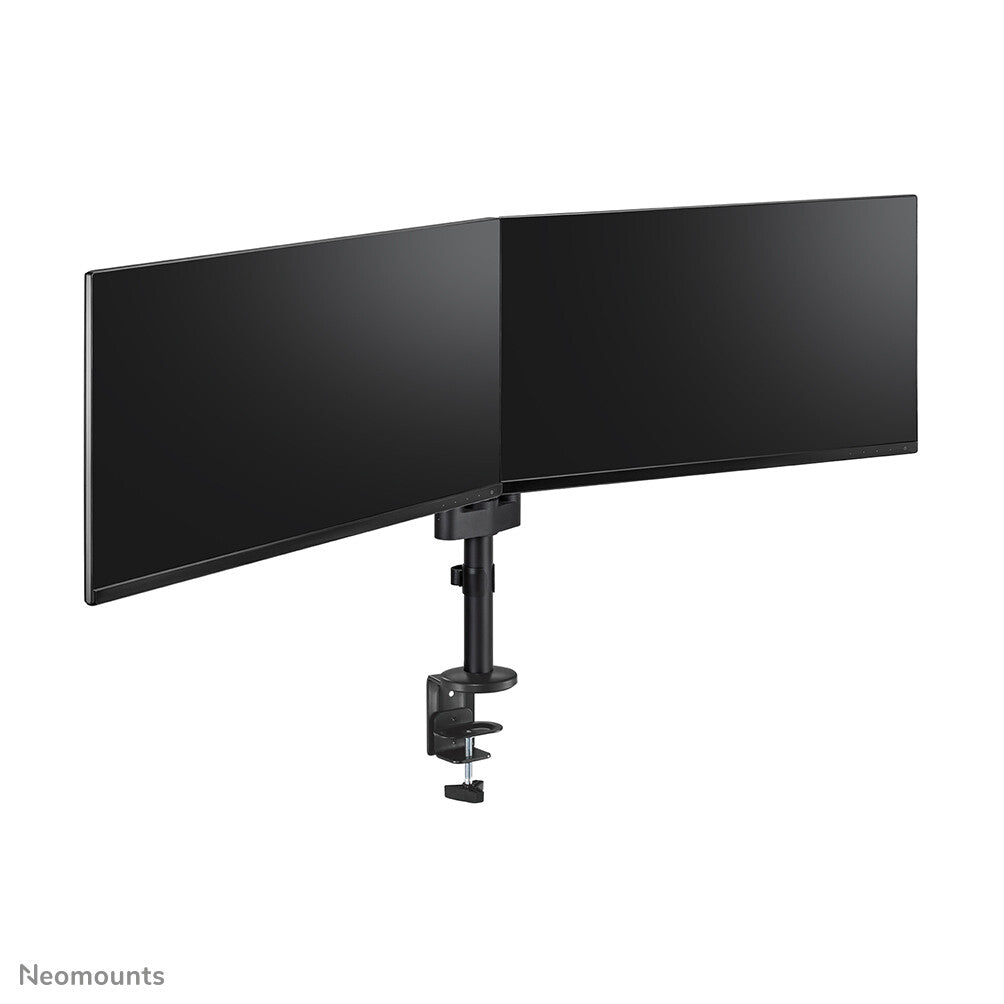

The Neomounts DS60-425BL2 NEXT Lite is a full motion desk mount for two screens up to 27" with a maximum weight capacity of 8 kg per screen. The versatile tilt (120°), rotate (360°) and swivel (180°) technology allows you to adjust the mount to the optimal viewing angle for your screens. Additionally, the mount has manual height and depth adjustment to create the perfect working position.

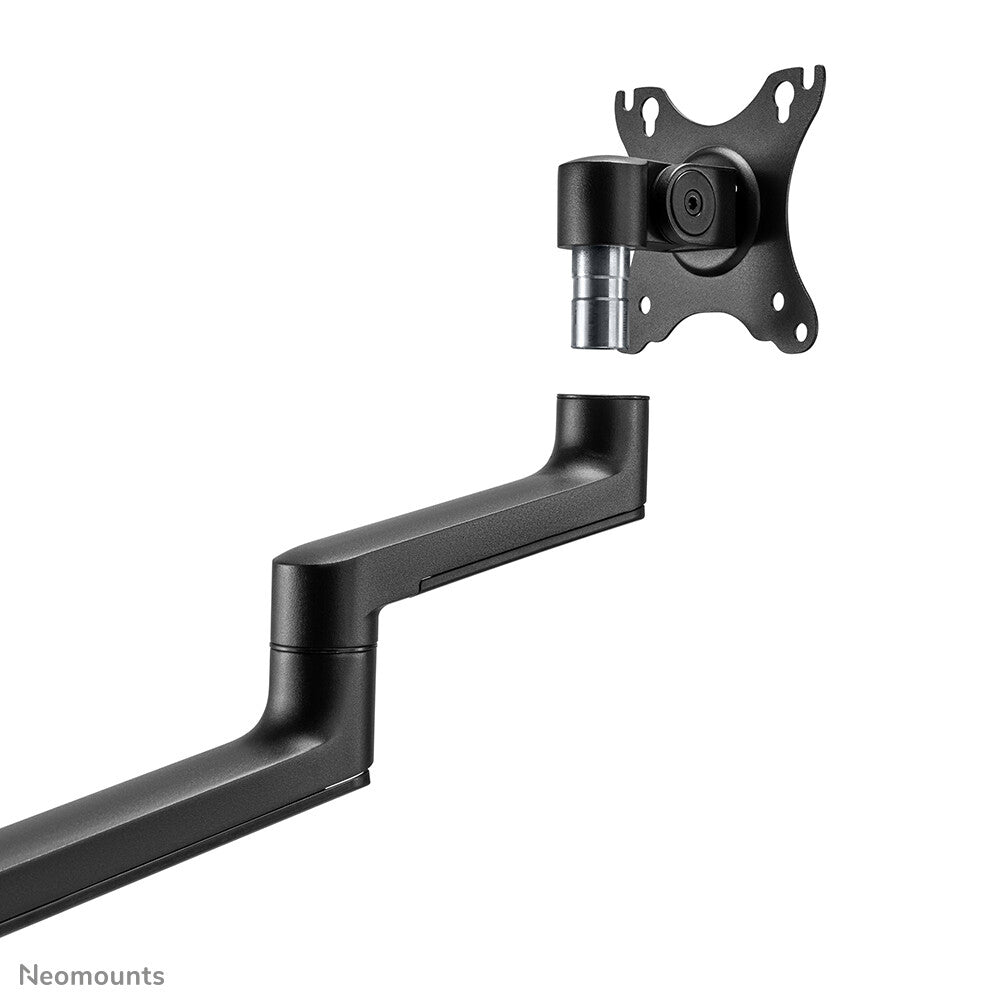

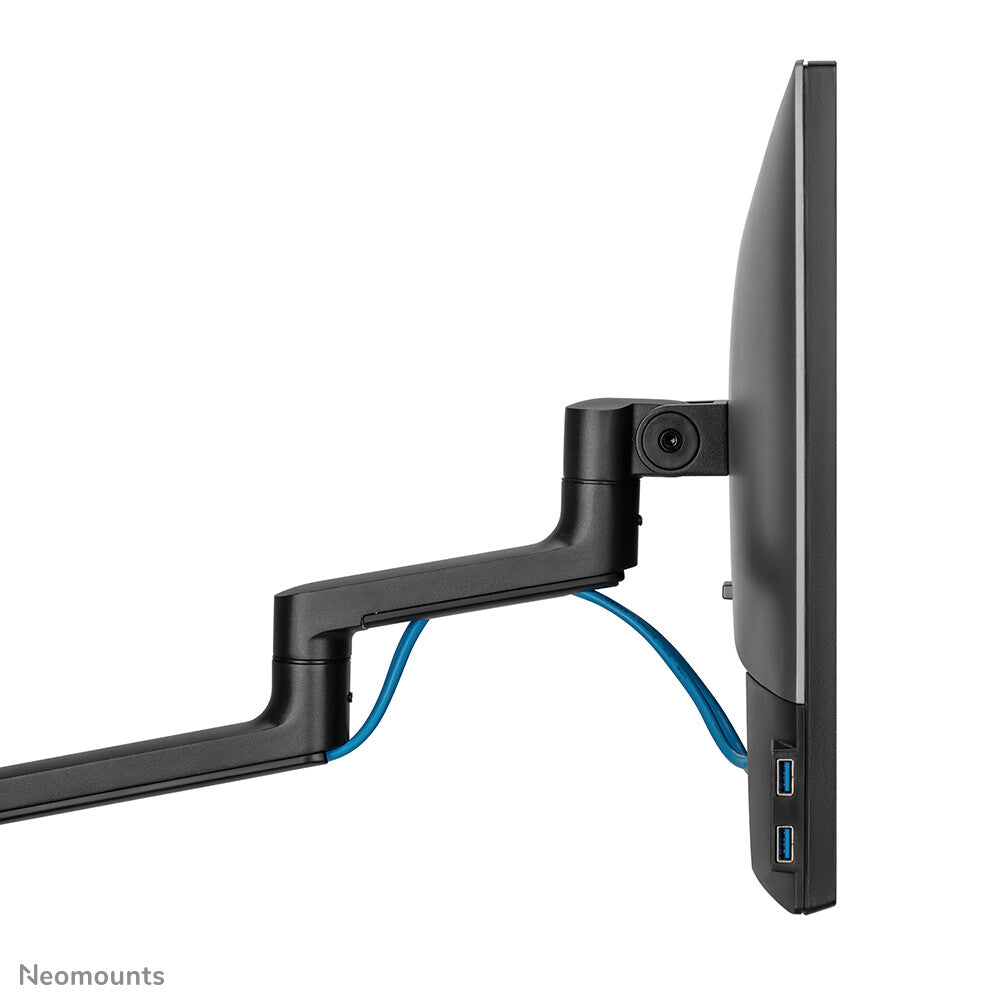

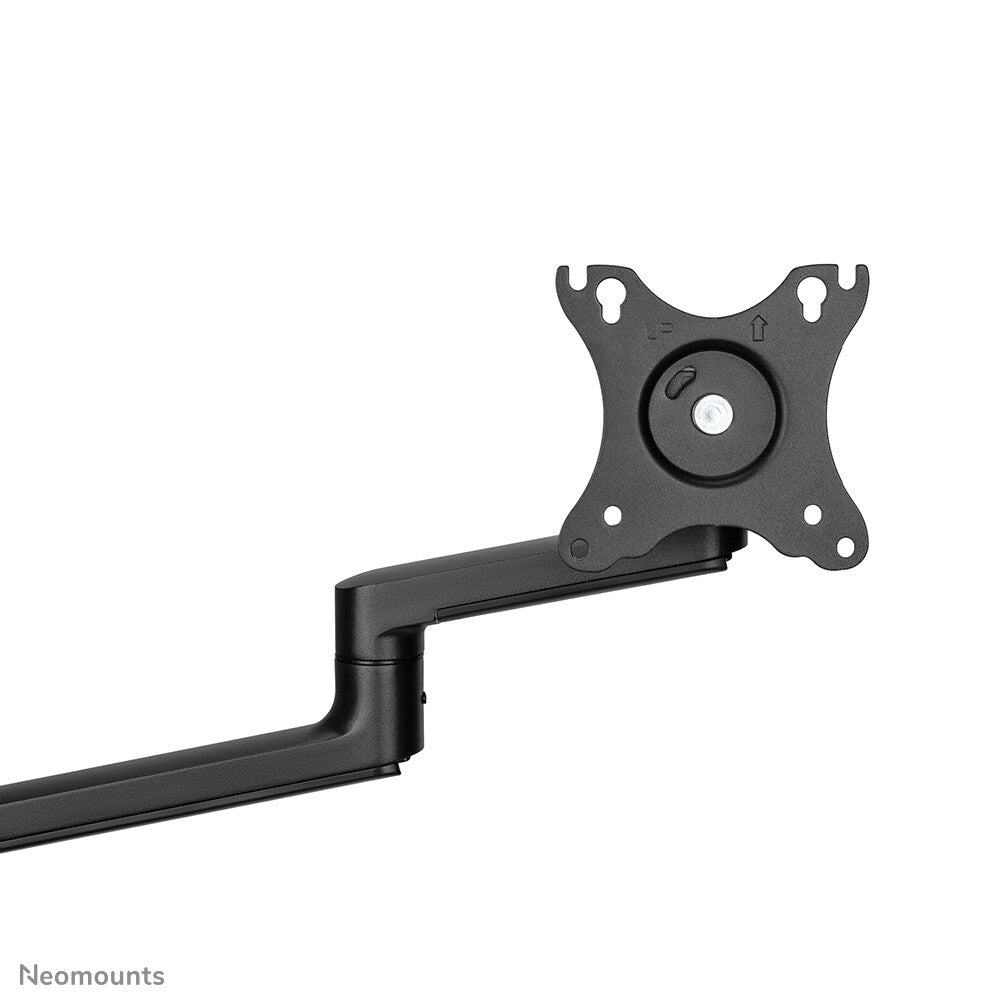

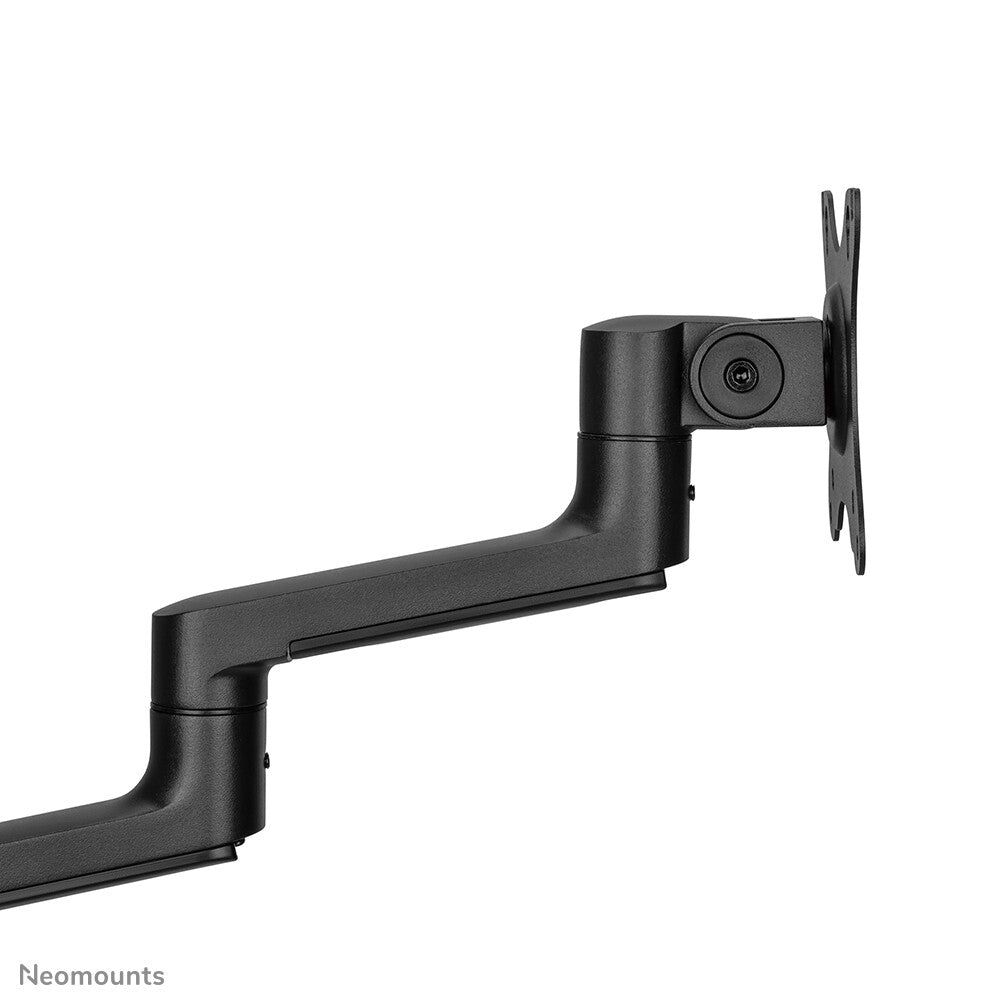

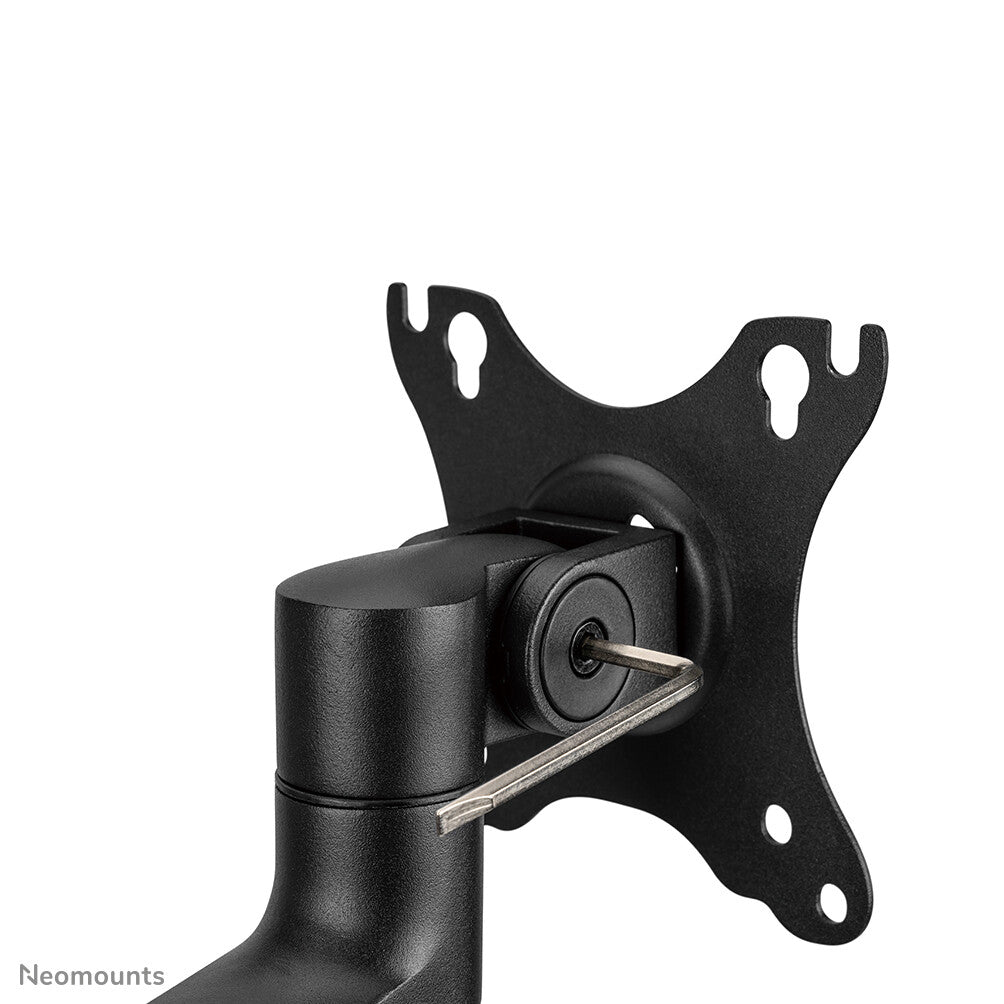

Due to the short T-Rex® upper arm of the NEXT Lite, only minimal depth is required when placed near a wall or separation panel. This allows the screens to be positioned further away from the user which is better for the eyes and also leaves more space for good ergonomic working posture. The smart internal cable management system ensures orderly routing of the cables. The DS60-425BL2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. Neomounts offers various optional VESA adapter plates for deviating hole patterns. The DS60-425BL2 is equipped with an Easy-release VESA system for easy installation and comes with both desk clamp and grommet.

The packaging of the NEXT Lite is 100% plastic free and entirely made from cardboard and paper.

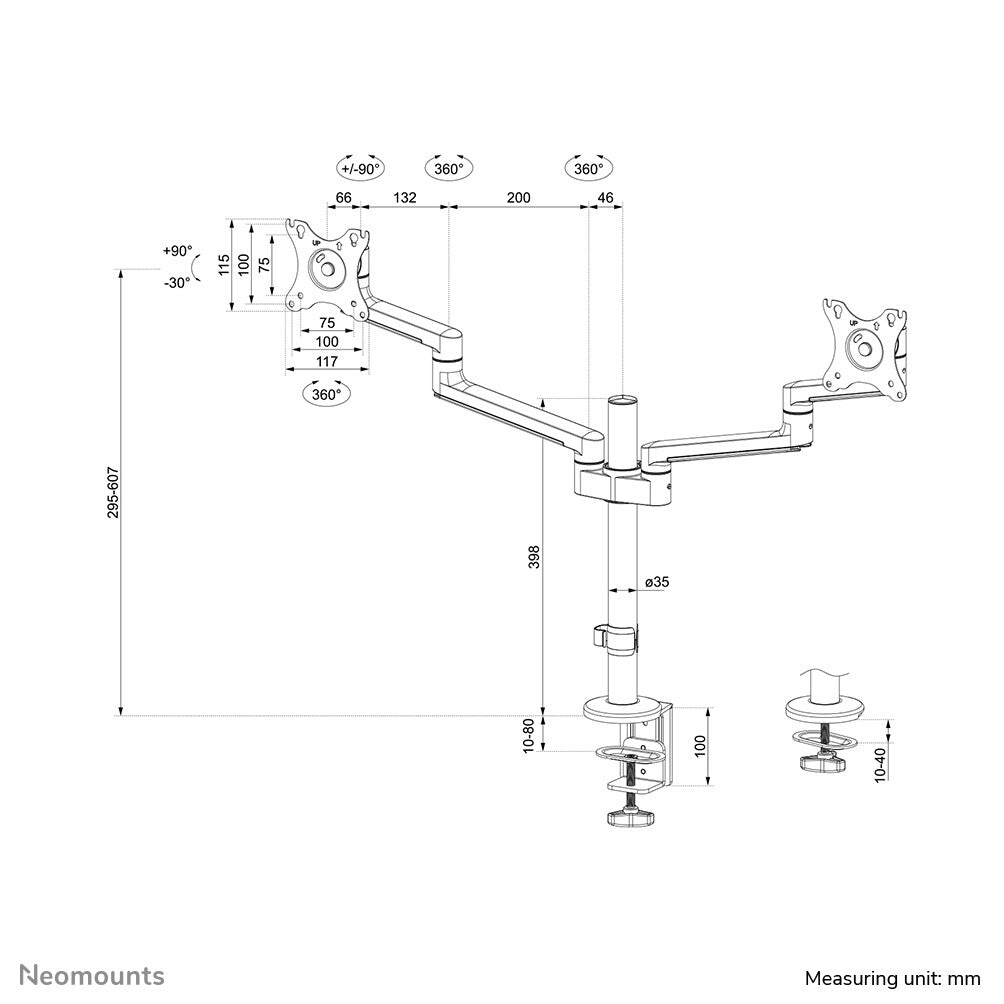

Mounting
Minimum screen size 43.2 cm (17")
Maximum screen size 68.6 cm (27")
Mounting type Desk
Maximum weight capacity (per display) 8 kg

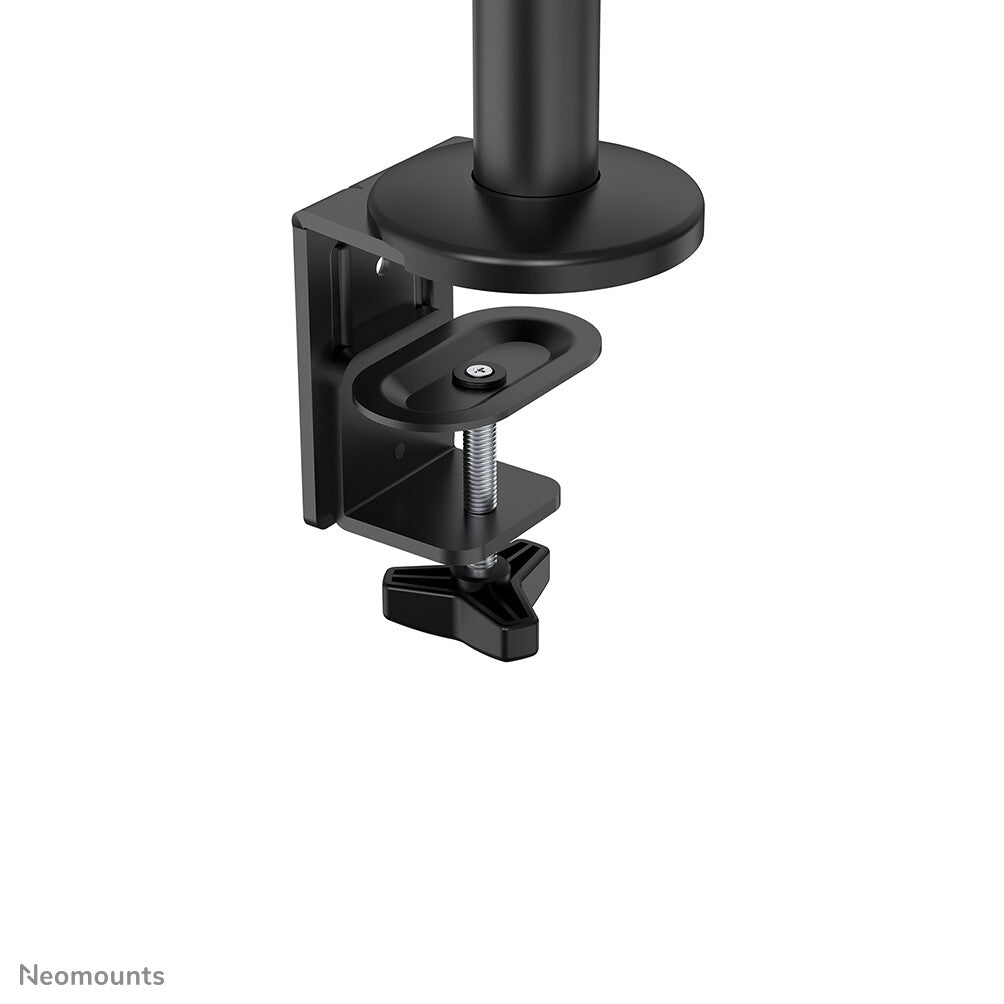

Mounting Clamp/Bolt-through
Minimum VESA mount 75 x 75 mm
Maximum VESA mount 100 x 100 mm
Panel mounting interface 100 x 100 mm
Number of displays supported 2
Desk thickness (min) 1 cm
Desk thickness (max) 8 cm
Clamp mount desk thickness (max) 8 cm
Grommet mount desk thickness (max) 4 cm
Distance to the wall (min) 12.8 cm
Distance to the wall (max) 46 cm
Ergonomics
Height adjustment Yes
Height adjustment type Manual
Height adjustment range 29.5 - 60.7 mm
Adjustable depth Yes
Depth adjustment range 6.6 - 39.8 mm
Tilt angle range -30 - 90°
Swivelling Yes
Swivel angle range -30 - 90°
Angle of rotation 360°
Cable management Yes
Feet Yes
Feet colour Black
Design
Product colour Black
Housing material Steel

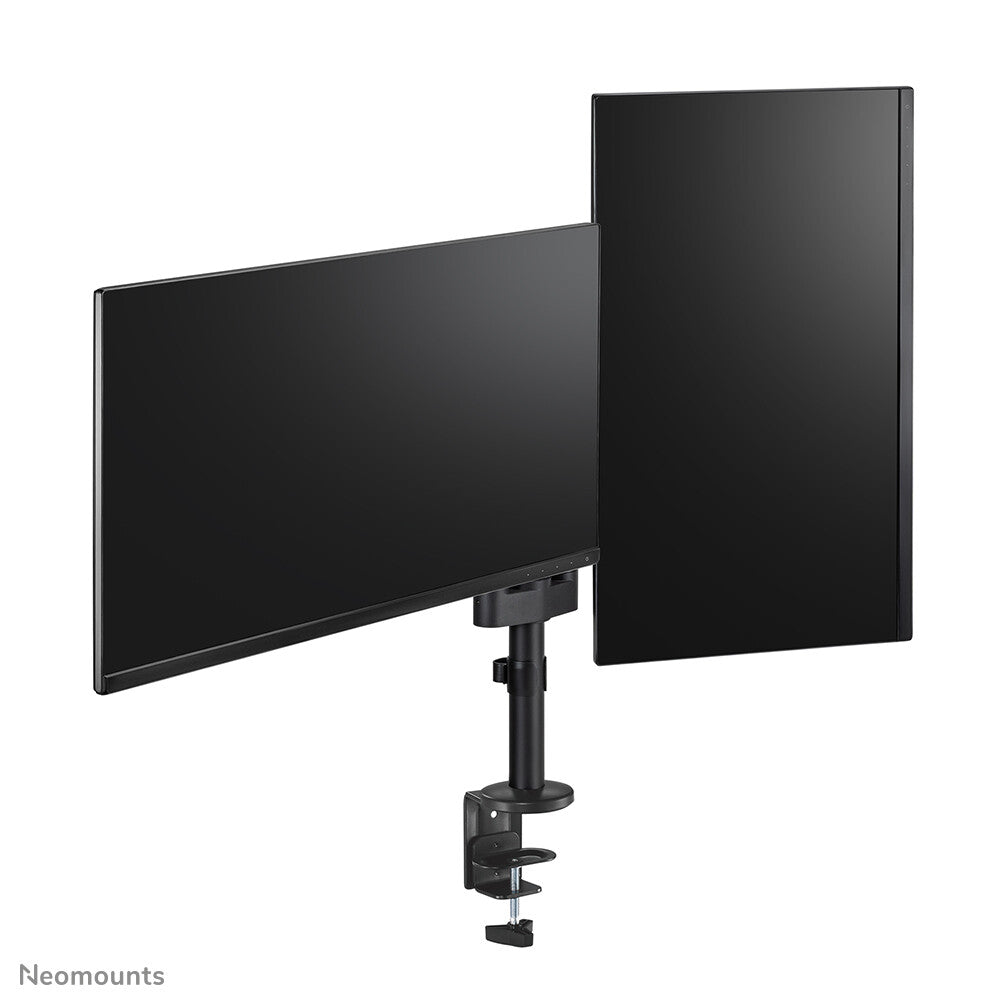

Orientation Landscape/Portrait

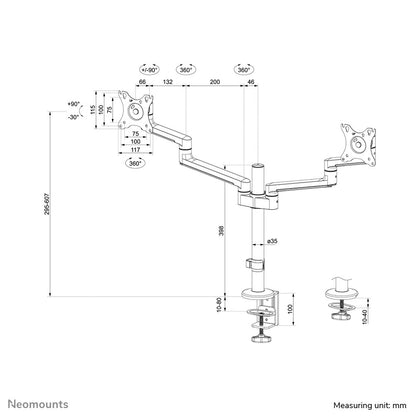

Weight & dimensions
Width 888 mm
Depth 460 mm
Height 763 mm
Package width 210 mm
Package depth 105 mm
Package height 440 mm
Package net weight 4.6 kg
Packaging content
Clamp included Yes
VESA mount included Yes
Packaging data
Quantity per pack 1 pc(s)
Logistics data
Master (outer) case width 220 mm
Master (outer) case length 435 mm
Master (outer) case height 455 mm
Products per master (outer) case 4 pc(s)
Master (outer) case net weight 15.1 kg
Products per pallet (EU) 84 pc(s)
Harmonized System (HS) code HS7326909890
Other features
Country of origin China
