10/100BaseT(X) auto-negotiation and auto-MDI/MDI-X
Link Fault Pass-Through (LFPT)
Power failure alarm by relay output (LV model only)
-40 to 85°C operating temperature range
Redundant dual DC power inputs (LV model only)
Integrated high-reliability power supply eliminates the need for external power transformer
IEC 61850-3 Ethernet-to-fiber media converters

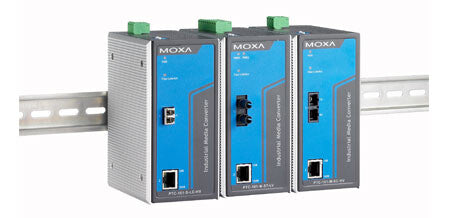

The PTC-101 Ethernet-to-fiber media converters convert from 10/100BaseT(X) to 100BaseFX. Models are available with either SC, ST, or LC connectors. The PTC-101 converters eliminate the need for additional wiring, and support IEEE 802.3 and IEEE 802.3u/x protocols with 10/100M, full/half-duplex, and MDI/MDI-X auto-sensing to provide a total solution for your industrial Ethernet networks. The PTC-101 is compliant with the essential sections of EN 50155, covering operating temperature, power input voltage, surge, ESD and vibration.
- 10/100BaseT(X) auto-negotiation and auto-MDI/MDI-X - Link Fault Pass-Through (LFP) - Power failure alarm by relay output (LV model only) - 40 to 85°C operating temperature range - Redundant dual DC power inputs - Integrated high-reliability power supply eliminates the need for external power transformer - Compliant with EN 50121-4 and essential sections of EN 50155
