• Moxa EtherDevice Switch EDS-316, Multi Mode, ST Connector (-40 - 75˚C), Unmanaged, 16-port
1 1

Moxa

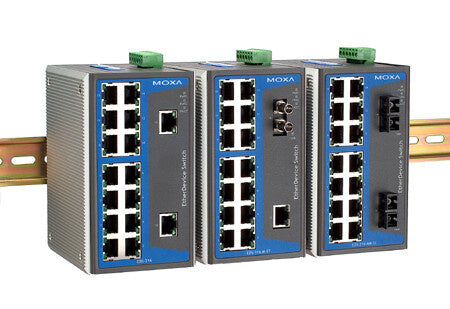

Moxa EtherDevice™ Switch EDS-316, Multi Mode, ST Connector (-40 - 75˚C) Unmanaged

Moxa EtherDevice™ Switch EDS-316, Multi Mode, ST Connector (-40 - 75˚C) Unmanaged

EDS-316-M-ST-T

£901.85 GBP£751.54 GBP
£0.00 GBP £901.85 GBP£751.54 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Low stock: 2 left

Delivery & lead times

Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.

Buying 5 or more? Volume pricing

We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.

Returns & warranty

See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

  • Relay output warning for power failure and port break alarm
  • Broadcast storm protection
  • -40 to 75°C operating temperature range (-T models)
16-port unmanaged Ethernet switches

The EDS-316 series is a 16-port Ethernet switches that provide an economical solution for your industrial Ethernet connection, and the built-in relay warning function alerts maintainers when power failures or port breaks occur. This switch has been designed for harsh industrial environments, such as in hazardous locations (Class 1 Div. 2/Zone 2) that comply with FCC, TÜV, UL, and CE standards. EDS-316 series includes 2 models: one with an operating temperature range of 0 to 60°C, and the other one with extended operating temperature range of -40 to 75°C. These 2 models pass through a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control.

High Performance Network Switching Technology
-10/100BaseT(X) (RJ45), 100BaseFX (SC/ST connector, Multi/Single mode)
-Broadcast storm protection
-IEEE802.3/ 802.3u/ 802.3x
-Store and Forward switching process type
-10/100M, Full/Half-Duplex, MDI/MDI-X auto-sensing
Industrial-grade Reliability
-Power failure, port break alarm by relay output
-Redundant dual DC power inputs
Rugged Design
-Operating temperature ranges from 0 to 60°C, or extended operating temperature from -40 to 75°C
-IP30, rugged high-strength metal case
-DIN-Rail or panel mounting ability
-Long-haul transmit distance of 40 km or 80 km
-Designed for hazardous location (Class 1 Div. 2/Zone 2) (pending)
Recommended Accessories
-DR Series DIN-Rail 24 VDC Power Supplies

Management features
Switch type Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 16
Network
Flow control support Yes
Data transmission
Maximum data transfer rate 0 Gbit/s
Design
Safety UL508, UL60950-1, EN60950-1
Performance
Mean time between failures (MTBF) 257000 h
Power over Ethernet (PoE)
Power over Ethernet (PoE) No
Operational conditions
Relative humidity 5 - 95%
Storage temperature (T-T) -40 - 85 °C
Operating temperature (T-T) -40 - 75 °C
Weight & dimensions
Weight 1.14 kg
Other features
Connectivity LEDs PWR1, PWR2, 10/100M (TP), 100M
Mounting interface DIN, Wall
Power requirements 24 VDC (12 - 45 VDC)
Dimensions (WxDxH) 80.5 x 105 x 135 mm
