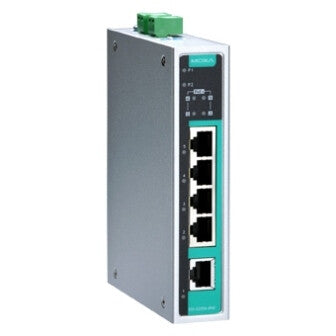

• Moxa EDS-G205A-4POE-T network switch, Unmanaged, 5-port, Power over Ethernet (PoE), black and green
1 1

Moxa

Moxa EDS-G205A-4POE-T network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 4U Aluminium, Black, Green

Moxa EDS-G205A-4POE-T network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 4U Aluminium, Black, Green

EDS-G205A-4POE-T

£766.63 GBP£638.86 GBP
£0.00 GBP £766.63 GBP£638.86 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Low stock: 1 left

Delivery & lead times

Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.

Buying 5 or more? Volume pricing

We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.

Returns & warranty

See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

  • Full Gigabit Ethernet ports
  • IEEE 802.3af/at, PoE+ standards
  • Up to 36 W output per PoE port
  • 12/24/48 VDC redundant power inputs
  • Supports 9.6 KB jumbo frames
  • Intelligent power consumption detection and classification
  • Smart PoE overcurrent and short-circuit protection
  • -40 to 75°C operating temperature range (-T models)
5-port full Gigabit unmanaged Ethernet switches with 4 IEEE 802.3af/at PoE+ ports

The EDS-G205A-4PoE switches are smart, 5-port, unmanaged full Gigabit Ethernet switches supporting Power-over-Ethernet on ports 2 to 5. The switches are classified as power source equipment (PSE), and when used in this way, the EDS-G205A-4PoE switches enable centralization of the power supply, providing up to 36 watts of power per port and reducing the effort needed for installing power. The switches can be used to power IEEE 802.3af/at standard devices (PD), eliminating the need for additional wiring, and they support IEEE 802.3/802.3u/802.3x with 10/100/1000M, full/half-duplex, MDI/MDI-X auto-sensing to provide an economical high-bandwidth solution for your industrial Ethernet network.

Management features
Switch type Unmanaged
Ports & interfaces
Power connector DC-in jack
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity 5
Network
Auto-sensing Yes
Flow control support Yes
Auto MDI/MDI-X Yes
Auto-negotiation Yes
Full duplex Yes
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Data transmission
Packet buffer memory 0.128 MB
Jumbo frames support Yes
Store-and-forward Yes
MAC address table 8000 entries
Design
Certification EMI:CISPR 22, FCC Part 15B Class A
Electromagnetic compatibility EN 55022/24
Safety UL 508
Wall mountable Yes
DIN rail mounting Yes
International Protection (IP) code IP30
Housing material Metal
Product colour Aluminium, Black, Green
Form factor 4U
Rack mounting Yes
Performance
Mean time between failures (MTBF) 1257910 h
Power
Power protection features Overload
Power consumption (typical) 11.73 W
Input voltage 12/24/48 V
Input current 5.65 A
Redundant power supply (RPS) support Yes
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget 144 W
Power over Ethernet (PoE) power per port 36 W
Power over Ethernet (PoE) voltage range 12 - 48 V
Power over Ethernet (PoE) ports quantity 4
Power over Ethernet (PoE) Yes
Operational conditions
Operating relative humidity (H-H) 5 - 95%
Storage temperature (T-T) -40 - 85 °C
Operating temperature (T-T) -40 - 75 °C
Weight & dimensions
Weight 300 g
Height 135 mm
Depth 105 mm
Width 29 mm
Packaging data
User guide Yes
Other features
Terminal block port Yes
