- 8+2G SFP all-in-one Firewall/NAT/VPN/router/switch - Firewall with quick automation profile for industrial protocols - Deep Modbus TCP packet inspection for firewall filtering (Learn more) - NAT supports N-to-1, 1-to-1, and port-forwarding deployment - Flexible configuration of multiple WAN and LAN ports - 10 VPN connections for secure remote management (VPN model) - 40 to 75°C operating temperature range (T model) - NERC CIP compliance

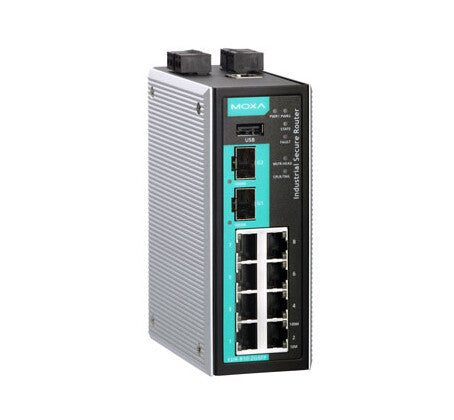

The EDR-810 is a highly integrated industrial multiport secure router with Firewall/NAT/VPN and managed Layer 2 switch functions. It is designed for Ethernet security applications in sensitive remote control or monitoring networks, and provides an electronic security perimeter for the protection of critical cyber assets such as pumping/treatment systems in water stations, DCS systems in oil and gas applications, and PLC/SCADA systems in factory automation. The EDS-810 series includes the following cyber security features:
Firewall/NAT : Firewall policies control network traffic between different trust zones, and Network Address Translation (NAT) shields the internal LAN from unauthorized activity from outside hosts. VPN : Virtual Private Networking (VPN) is designed to provide users with secure communication tunnels when accessing a private network from the public Internet. Uses IPSec (IP Security) server or client mode for encryption and authentication of all IP packets at the network layer to ensure confidentiality and sender authentication.
The EDR-810’s “WAN Routing Quick Setting” provides an easy way for users to set up WAN and LAN ports to create a routing function automatically. In addition, the EDR-810’s “Quick Automation Profile” gives engineers a simple way to configure the firewall filtering function with general automation protocols, including EtherNet/IP, Modbus TCP, EtherCAT, FOUNDATION Fieldbus, and PROFINET. Users can easily create a secure Ethernet network from a user-friendly web UI with a single click, and the EDR-810 is capable of performing deep Modbus TCP packet inspection. Wide temperature models that operate reliably in hazardous, -40 to 75°C environments, are also available.
