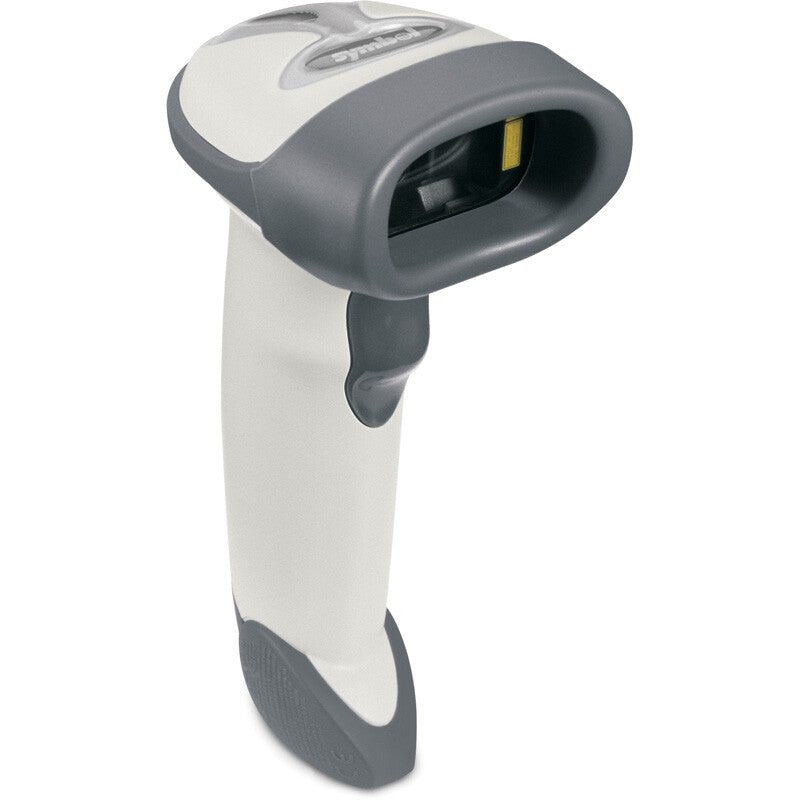

The affordable LS2208 handheld bar code scanner provides fast, reliable scanning in an ergonomic, lightweight form. The wide working range —from near-contact to 17 inches — makes this device ideal for retail, hospital, education or government settings. Multiple on-board interfaces ensure integration with a variety of host systems
Durable, single-board construction Meets stringent 5-ft drop tests.
Scratch-resistant tempered glass exit window Is designed for continuous use.
Accurate first-time capture of 1D bar codes Increased productivity, resulting in shorter check-out lines and better customer service.
Wide working range Delivers optimal performance from contact to 17 in (43 cm).
Multiple on-board interfaces Simplify installation and integration and ensures future compatibility.
Plug-and-play, with universal cable Means rapid deployment, with a single cable connecting to any computing environment.
Intuitive design Minimizes setup and training time.
Ergonomic, lightweight design Reduces user fatigue with sleek, balanced form for maximum comfort and productivity.
Hands-free Intellistand Enables presentation scanning and easy switching between hands-free and handheld modes.
Advanced Data Formatting (ADF) Enables users to modify data prior to sending to host computer, reducing costly modifications to the host software.
Scanning
Sensor type
Laser
Tilt reading angle
-30 - 30°
Pitch reading angle
-65 - 65°
Yaw reading angle
-60 - 60°
Scan speed
100 sec/page
Decoding standards
UPC/EANUPC/EAN + SupplementalsUCC/EAN 128Code 39Code 39 Full ASCIICode 39 TriOpticCode 128Code 128 Full ASCIICodabarInterleaved 2/5Discrete 2/5Code 93MSICode 11IATAGS1 DataBarChinese 2/5
Ports & interfaces
Standard interfaces
USB
Performance
Product colour
White
Power
Input voltage
5 V
Power consumption
130 mA
Weight & dimensions
Weight
146 g
Operational conditions
Operating relative humidity (H-H)
5 - 95%
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
0 - 50 °C
general_information_attribute_container_name
attribute_product_family_name
Motorola
Logistics data
Harmonized System (HS) code
84716070
Other features
Light source
650nm
Safety
UL 60950-1, C22.2 No. 60950-1, EN 60950-1, IEC 60950-1
