Mikrotik

Mikrotik wAP ax LTE7 kit 574 Mbit/s White Power over Ethernet (PoE)

Mikrotik wAP ax LTE7 kit 574 Mbit/s White Power over Ethernet (PoE)

Regular price £150.10 GBP
Regular price Sale price £150.10 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:WAPGR-5HAXD2HAXD&R11E-LTE7

Low stock: 2 left

  • 2.4 GHz 574 Mbit/s
  • 5 GHz 1200 Mbit/s
  • Maximum data transfer rate: 574 Mbit/s
  • IEEE 802.3af, IEEE 802.3at, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ax, IEEE 802.11a, IEEE 802.11ac
  • Power over Ethernet (PoE)
  • External
2.4/5 Ghz, 1200 Mbit/s, 3G/4G, 13W, 12-57

wAP ax LTE7 kit

The new wAP LTE7 kit is an evolution of the popular wAP ac LTE6. Now – with Wi-Fi 6, CAT7 LTE, a stronger ARM platform, and improved antenna gain. The unit comes in our improved next-gen IP66 weatherproof enclosure.
wAP ax LTE7 kit brings fast and reliable Wi-Fi 6 to your countryside getaway or any other challenging environment – like a rural gas station or a bus stop. The updated enclosure enhances durability even further and features a concealed anti-vandal screw behind the MikroTik logo for added security.Now upgraded with a CAT7 LTE modem, doubled upload speeds, and a more powerful ARM platform, this generation raises the performance bar without changing what people love about wAP or raising the price.
A mighty dual-band, dual-chain (2x2 MIMO) radio ensures strong wireless coverage across your home, yard, or business premises – enhanced by higher antenna gain and a redesigned LTE antenna system for improved signal quality, greater range, and better stability in challenging environments.

Enhanced Hardware

for Uninterrupted Connectivity and Simple Management

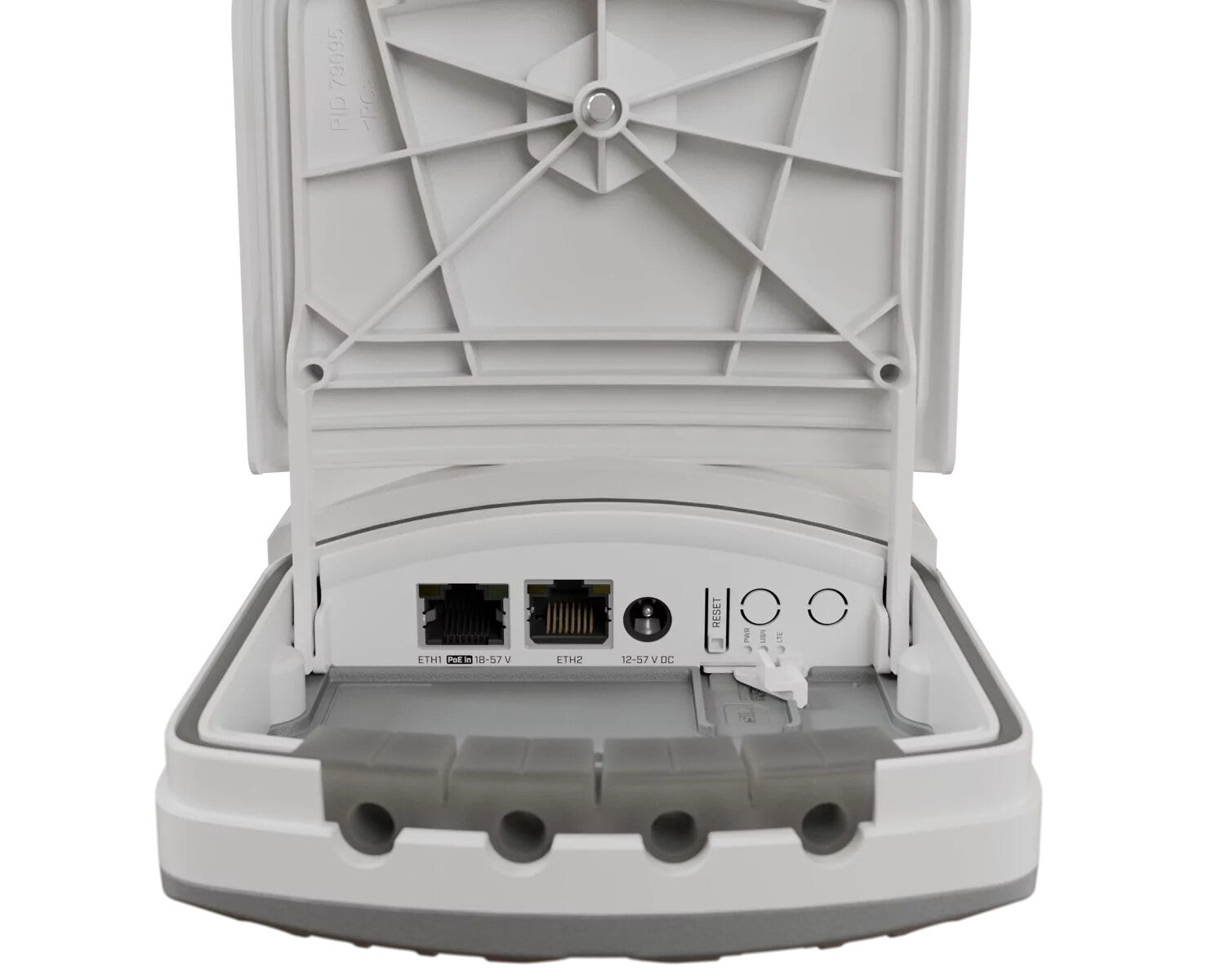

This compact access point is equipped with a modern dual-core ARM CPU and runs on RouterOS v7, ensuring stable internet and excellent VPN performance across your property. The wAP ax LTE7 kit also supports our new CAPsMAN for easy centralized management of multiple devices with just a few clicks. The device features two Gigabit Ethernet ports, with PoE-in on one for flexible powering options. You can also use the standard DC jack – because we believe in giving you options.

Stealthy Design – Weatherproof and Vandalproof

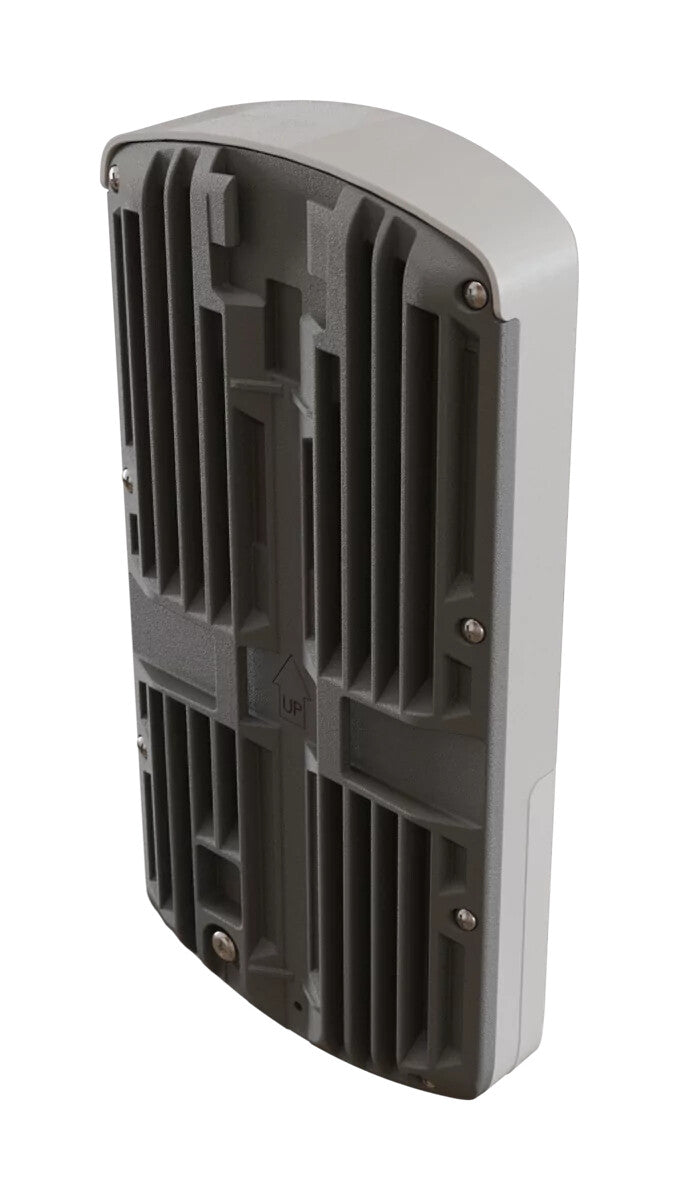

wAP ax LTE7 kit is designed to blend into any environment. Its simple, elegant design doesn’t attract any unwanted attention, making it perfect for busy public spaces or private properties alike. wAP can be securely fixed to any external wall or roof from the inside of the case. A designated indentation at the back of the enclosure marks the drill point for a cable pass-through, enabling discreet and secure wall-mounted installations.

Features
2.4 GHz Yes
5 GHz Yes
Maximum data transfer rate 574 Mbit/s
Maximum data transfer rate (2.4 GHz) 574 Mbit/s
Maximum data transfer rate (5 GHz) 1200 Mbit/s
Ethernet LAN data rates 1000,10,100 Mbit/s
Networking standards IEEE 802.3af, IEEE 802.3at, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ax, IEEE 802.11a, IEEE 802.11ac
MIMO Yes
Mean time between failures (MTBF) 200000 h
Ports & interfaces
Ethernet LAN (RJ-45) ports 2
Mini PCI Express slots 1
DC-in jack Yes
Power
Power over Ethernet (PoE) Yes
DC voltage range 12 - 57 V
Power consumption (max) 13 W
Design
Product colour White
International Protection (IP) code IP66
Antenna
Antenna type External
Antenna gain level (max) 7 dBi
Performance
Built-in processor Yes
Processor frequency 800 MHz
Internal memory 256 MB
Operating system installed RouterOS
Mobile network
3G bands supported 2100,900,850,1800 MHz
4G FDD-LTE bands supported 2100,1800,850,2600,900,800,700 MHz
4G TDD-LTE bands supported 2600,2300,2500 MHz
SIM card slot Yes
SIM card type MicroSIM
Technical details
Compliance certificates RoHS, CE, EAC
Packaging content
AC adapter included Yes
Operational conditions
Operating temperature (T-T) -30 - 70 °C
Logistics data
Quantity per pack 1 pc(s)
