Mikrotik

Mikrotik SXTsq Lite5 White Power over Ethernet (PoE)

Mikrotik SXTsq Lite5 White Power over Ethernet (PoE)

£48.96 GBP
£48.96 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

RBSXTsq5nD

Low stock: 3 left

  • 5 GHz
  • IEEE 802.11a, IEEE 802.11n
  • Power over Ethernet (PoE)
1x 10/100 Mbit/s RJ-45, 600 MHz, PoE, 10-30 V, 129x129x34 mm, RouterOS

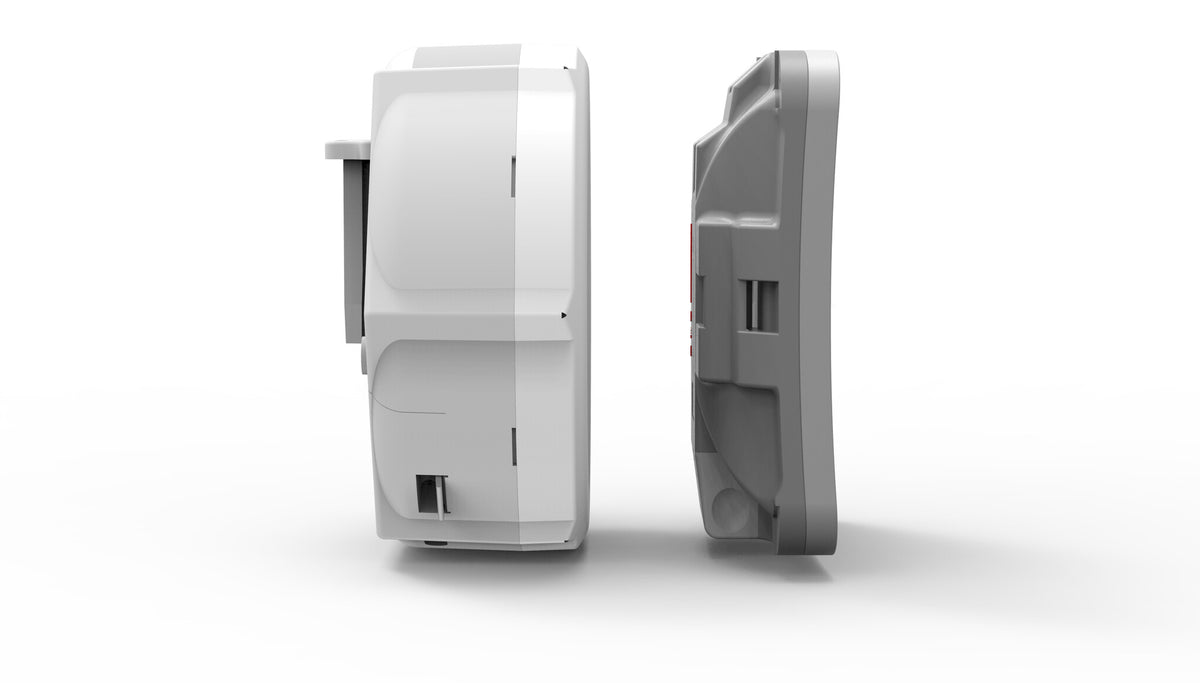

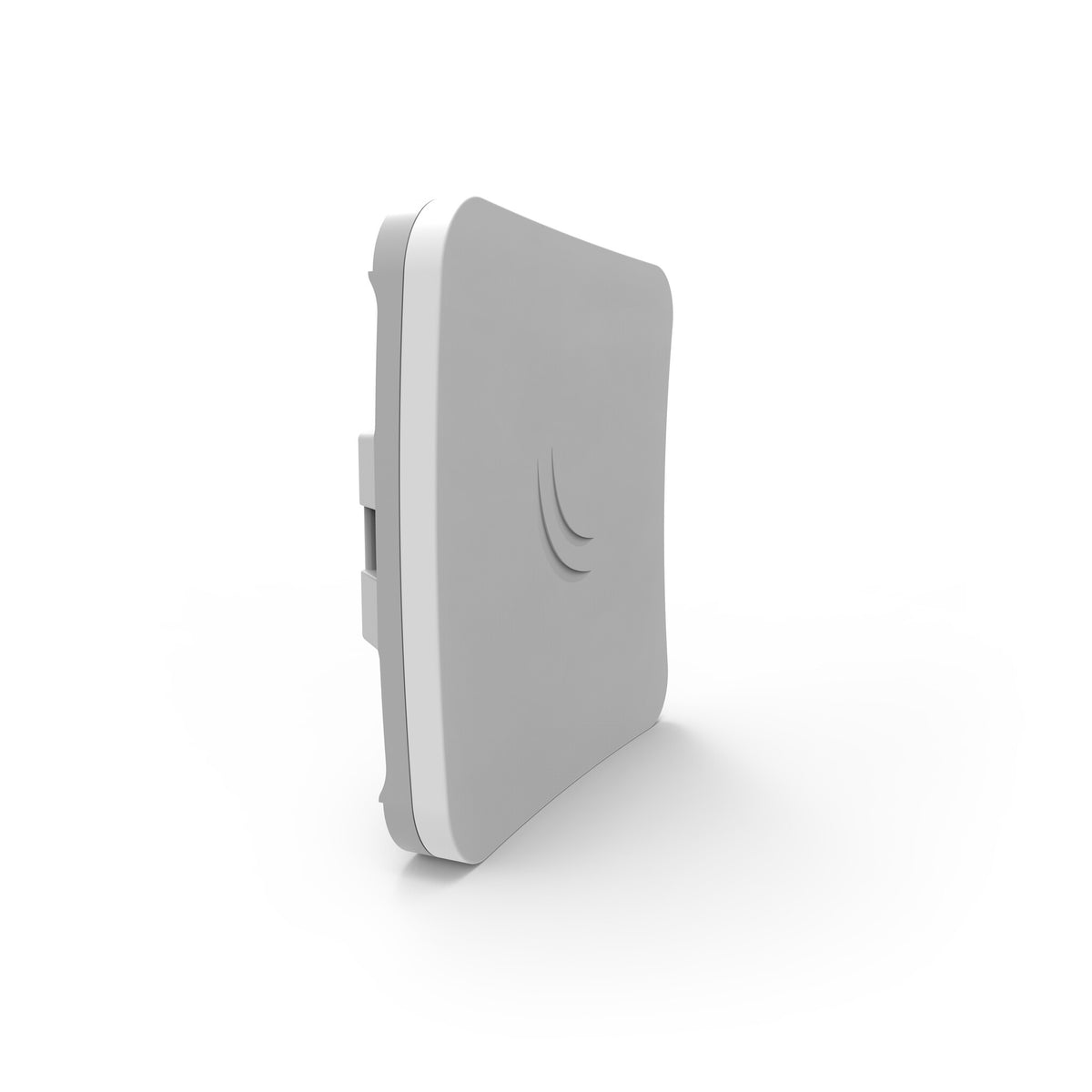

The SXTsq Lite5 is a compact and lightweight outdoor wireless device with an integrated antenna. Perfect for point to point links of up to 12 kilometers or as a CPE unit. It is compact, weatherproof and easy to mount. The SXTsq Lite5 retains a 16dBi antenna like the SXT Lite5, our previous model, yet the antenna design has been improved and the physical size has been dramatically reduced - the SXTsq is two times thinner (see photos for comparison).

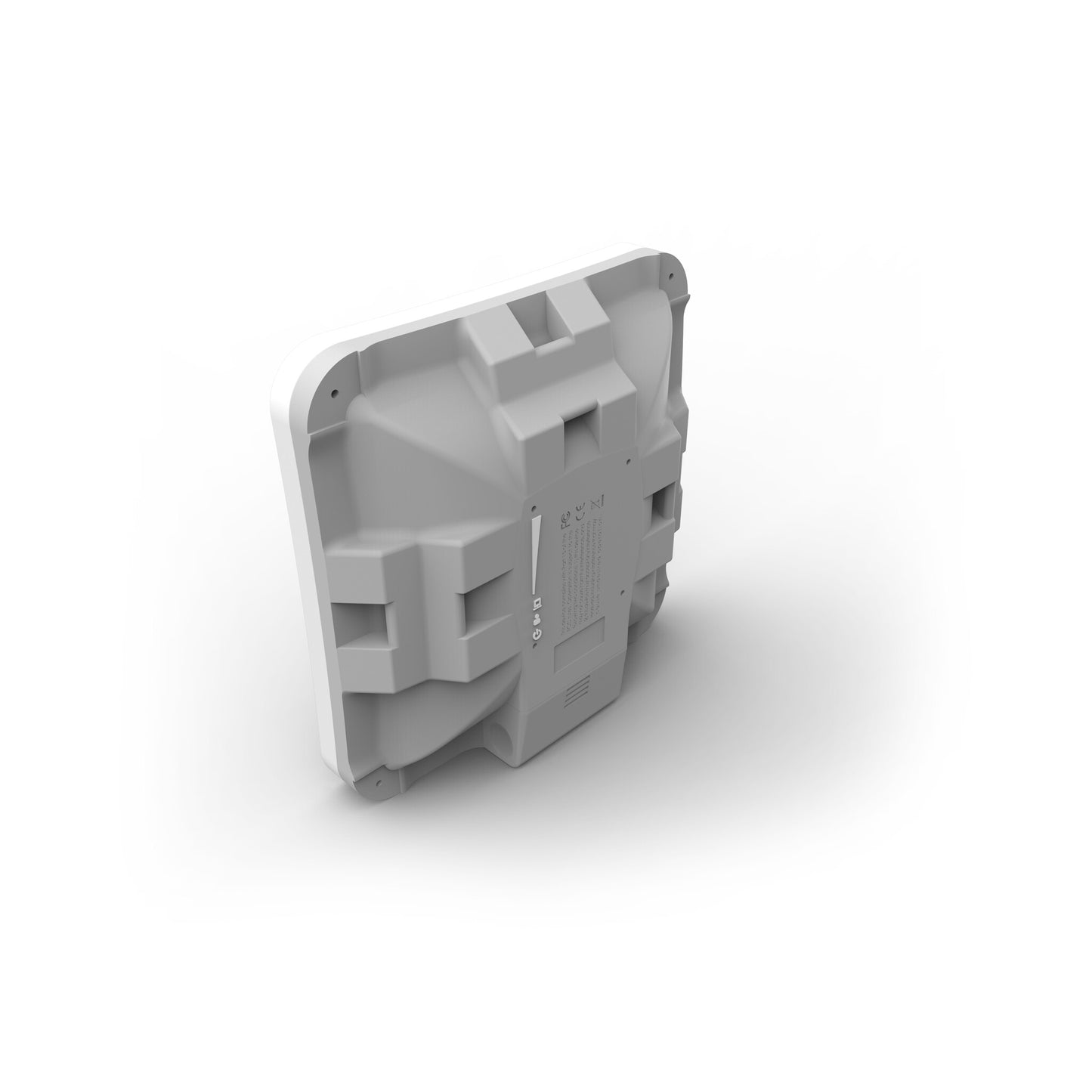

The device can be mounted on horizontal and vertical poles and masts, but for precise alignment, separately available is the QuickMount Pro, which allows to adjust in every angle (see photo and related product).

Features
Receiver sensitivity 6MBit/s 25 dBm -9654MBit/s20 -80MCS0 25 -96MCS7 19 -75
Networking standards IEEE 802.11a, IEEE 802.11n
Ethernet LAN data rates 10,100 Mbit/s
5 GHz Yes
2.4 GHz No
Security
Security algorithms Not supported
Ports & interfaces
Ethernet LAN (RJ-45) ports 1
Power
Power consumption (max) 6 W
AC input voltage 10 - 30 V
Power over Ethernet (PoE) Yes
Design
Internal No
Product colour White
Antenna
Antenna gain level (max) 16 dBi
Performance
Operating system installed RouterOS
Flash memory 16 MB
Internal memory 64 MB
Built-in processor Yes
Weight & dimensions
Height 34 mm
Depth 129 mm
Width 129 mm
Operational conditions
Operating relative humidity (H-H) -40 - 70%
Logistics data
Harmonized System (HS) code 85176990
