Mikrotik

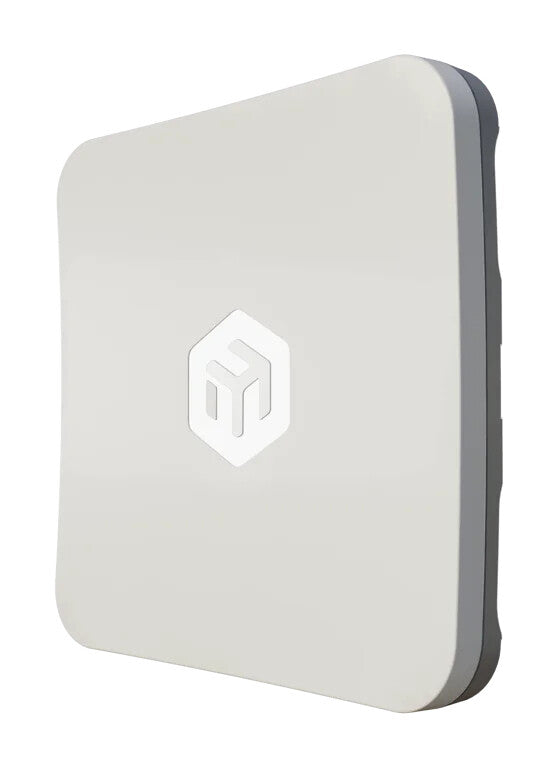

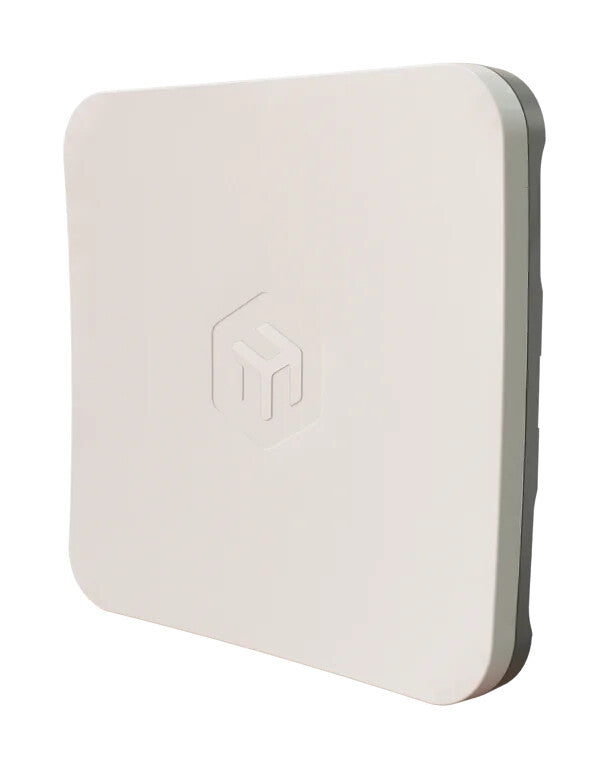

Mikrotik SXTSQ-5AXD wireless access point 1200 Mbit/s White Power over Ethernet (PoE)

Mikrotik SXTSQ-5AXD wireless access point 1200 Mbit/s White Power over Ethernet (PoE)

Regular price £69.12 GBP
Regular price Sale price £69.12 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:SXTSQ-5AXD

Low stock: 5 left

  • 5 GHz
  • 6 GHz
  • Maximum data transfer rate: 1200 Mbit/s
  • IEEE 802.11a, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax
  • Power over Ethernet (PoE)
  • Internal
1x 10/100 Mbit/s RJ-45, 800 MHz, PoE, 12-28 V, RouterOS v7

A compact outdoor Wi-Fi 6 CPE with a powerful 16 dBi antenna, AP mode, and multiple mounting options – perfect for masts, poles, or rooftop deployments.

ARM dual-core + Wi-Fi 6
Despite the upgrade to Wi-Fi 6 and a modern ARM-based dual-core CPU, this unit keeps the same price point as our previous Wi-Fi 5 model — making it one of the best-value weatherproof CPEs on the market.

Weatherproof

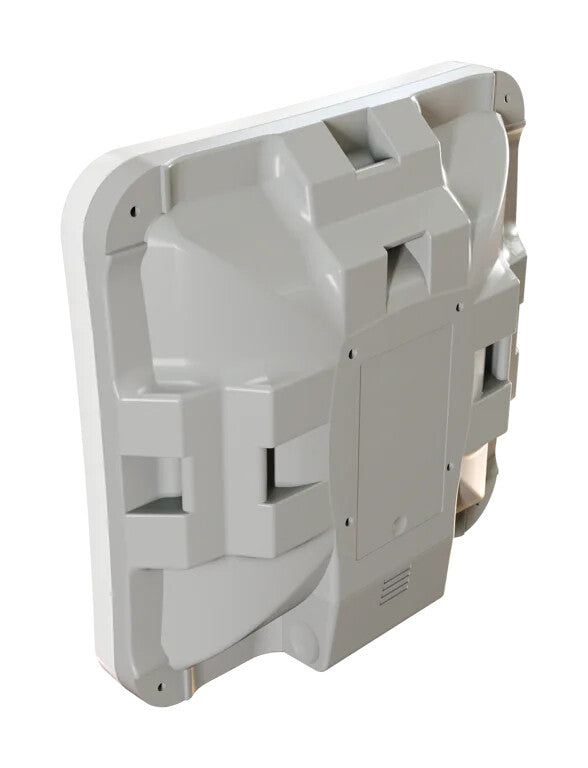

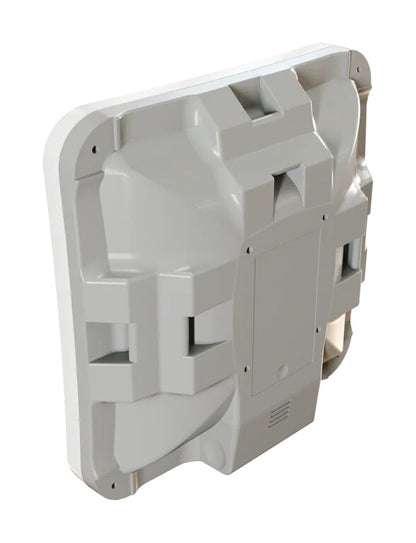

The enclosure can withstand all sorts of unpredictable weather hazards, and it features slots for directly attaching a hose clamp in three different mounting positions, including support for horizontal railings — ideal for masts and poles in rooftop or tower deployments.

3 to 10+ km
Field-tested up to 3 km in high-interference, urban scenarios. Designed with the same trusted long-range architecture as previous SXT models — capable of 10+ km links in line-of-sight deployments.

Pair a mANTBox ax 15s as your uplink with several SXTsq 5 ax units - and you've got everything you need to become the village ISP! No need to wait for large ISPs to reach you.

With RouterOS license level 4, the SXTsq 5 ax isn’t just a client — it can also be configured as a powerful access point, giving you more flexibility in planning your wireless infrastructure. And thanks to its compact square shape, it fits neatly into even the most space-sensitive deployments.


Features
2.4 GHz No
6 GHz Yes
5 GHz Yes
Maximum data transfer rate 1200 Mbit/s
Ethernet LAN data rates 10,100,1000 Mbit/s
Networking standards IEEE 802.11a, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax
Ports & interfaces
Ethernet LAN (RJ-45) ports 1
Power
Power over Ethernet (PoE) Yes
AC input voltage 12 - 28 V
Power consumption (max) 6 W
Design
Product colour White
International Protection (IP) code IP55
Certification CE, FCC, IC, EAC, ROHS
Antenna
Antenna type Internal
Antenna gain level (max) 16 dBi
Performance
Built-in processor Yes
Processor frequency 800 MHz
Internal memory 256 MB
Flash memory 128 MB
Operating system installed RouterOS
Operational conditions
Operating relative humidity (H-H) -40 - 70%
