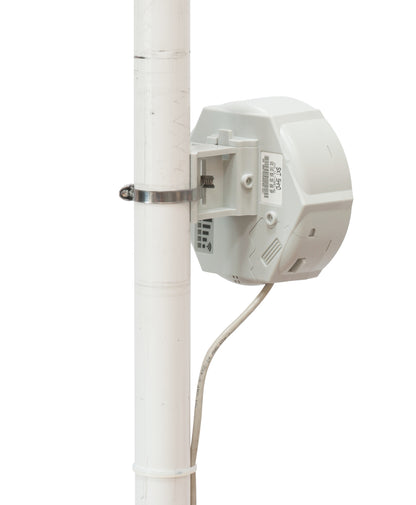

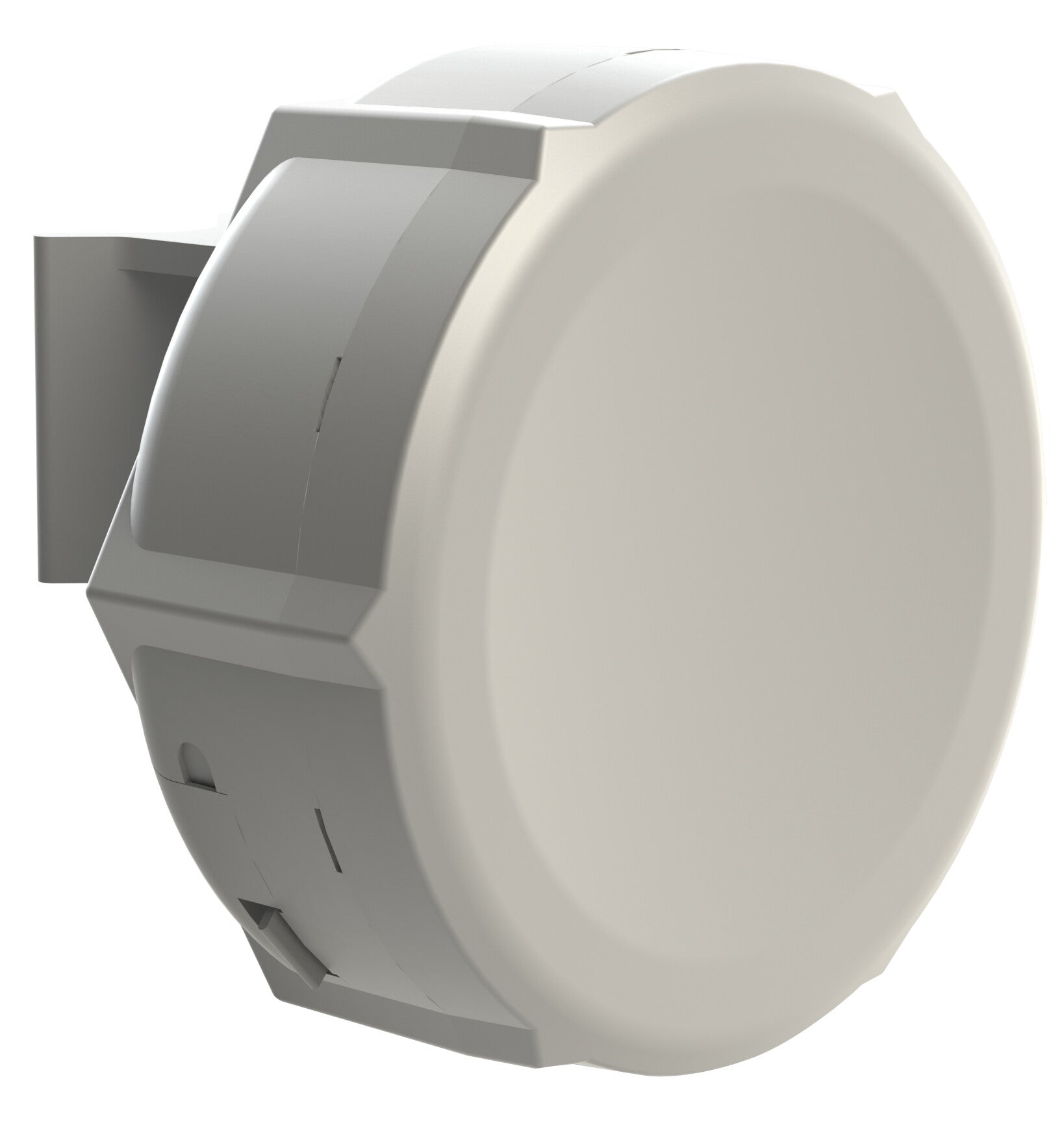

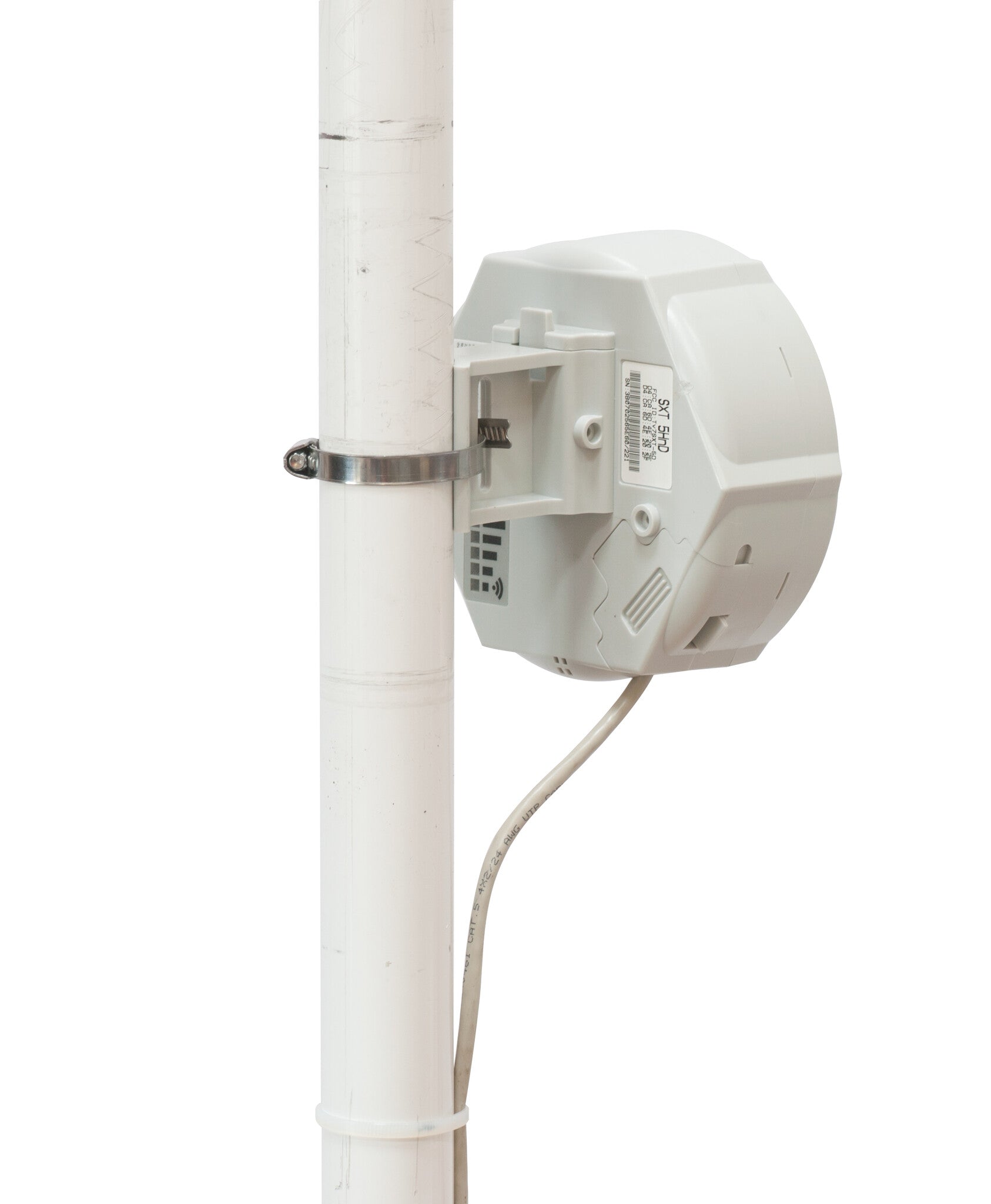

Mikrotik SXT SA5 ac White Power over Ethernet (PoE)
Mikrotik SXT SA5 ac White Power over Ethernet (PoE)
SKU:RBSXTG-5HPACD-SA
Low stock: 4 left
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- 5 GHz
- Power over Ethernet (PoE)
- Integrated antenna
The new AC standard is here, with up to 866Mbit over the air datarate, 256-QAM modulation, and 80MHz channels. 802.11a/n/ac opens up new possibilities and speeds never possible before.
The SXT ac is a new member in our 802.11ac product lineup, currently two models are available — with regular 28 degree antenna, and the SA model with a 90 wide beam- width sector antenna. Also supports 802.11a/n mode and is compatible with all legacy RouterBOARD devices, including Nstream and Nv2 protocols. Both devices come with Gigabit Ethernet.
New products are backwards compatible- for example, you can replace your 5GHz 802.11an legacy Access Point with new 802.11ac product and your existing customers will still be able to connect to it.
| Features | |
|---|---|
| 5 GHz | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Channel bandwidth | 80 MHz |
| Modulation | 256-QAM |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 1 |
| USB connector type | USB Type-A |
| Power | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| AC input voltage | 12 - 57 V |
| Power consumption (max) | 12 W |
| Design | |
|---|---|
| Product colour | White |
| LED indicators | Power, WAN, WLAN |
| Internal | No |
| Antenna | |
|---|---|
| Antenna features | Integrated antenna |
| Antenna gain level (max) | 13 dBi |
| Performance | |
|---|---|
| Chipset | QCA9882-BR4A-R |
| Built-in processor | Yes |
| Processor model | Qualcomm Atheros QCA9557-AT4A-R |
| Internal memory | 128 MB |
| Weight & dimensions | |
|---|---|
| Width | 140 mm |
| Depth | 65 mm |
| Height | 140 mm |
| Packaging data | |
|---|---|
| Package weight | 265 g |
| Packaging content | |
|---|---|
| AC adapter included | Yes |
| Mounting kit | Yes |
| Quick start guide | Yes |
| Other features | |
|---|---|
| Wireless standard | a/n/ac |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -30 - 80 °C |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
