Mikrotik

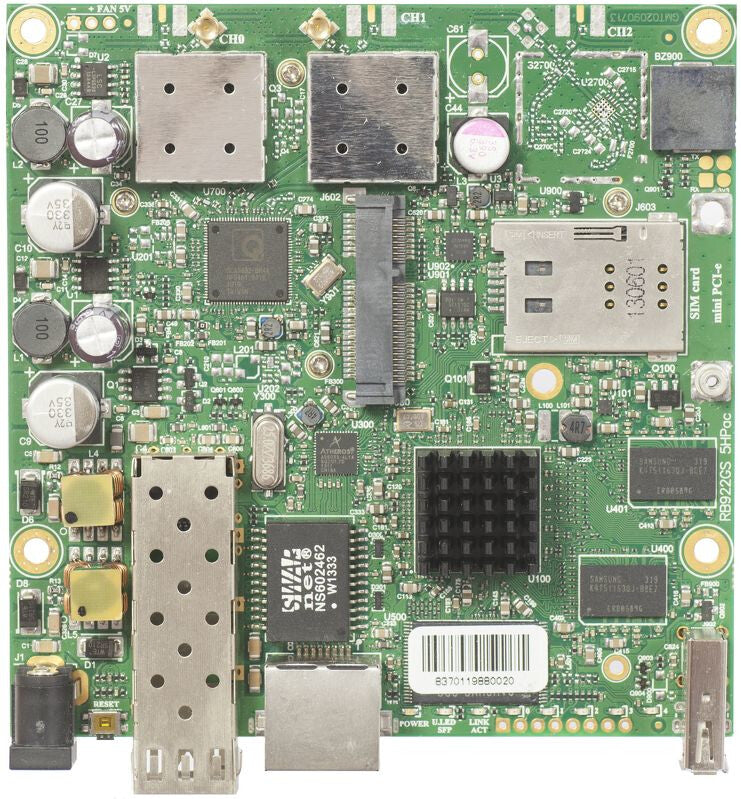

Mikrotik RB922UAGS-5HPacD Motherboard

Mikrotik RB922UAGS-5HPacD Motherboard

£100.74 GBP
£100.74 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

RB922UAGS-5HPACD

Low stock: 9 left

720Mhz CPU, 128MB RAM, 1xGigabit Ethernet, 1xSFP cage, 1xminiPCI-e, 1xSIM, onboard 802.11ac Two Chain 5Ghz wireless, RouterOS L4

RouterBOARD RB922UAGS-5HPacD is a very versatile wireless router, perfect for assembling your own solution. It supports the new 802.11ac standard for high speed wireless (up to 866Mbit datarate and 20/40/80MHz channels). The device has ports and slots for many uses: 1x SFP cage, miniPCIe slot with SIM for 3G/4G modem or another wireless card, USB port, Gigabit Ethernet port and two MMCX connectors for the built in powerful 802.11ac 2x2 radio. Comes with RouterOS L4 (AP) license.

- RB922UAGS-5HPacD-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

- RB922UAGS-5HPacD (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

Features
Reset button Yes
License level 4
Temperature monitoring Yes
Voltage monitoring Yes
Device compatibility Router
Product type Motherboard
Ports & interfaces
SIM card slot Yes
USB ports quantity 1
USB port type USB Type-A
Power over Ethernet (PoE) ports quantity 1
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity 1
Weight & dimensions
Depth 105 mm
Width 105 mm
Power
Power over Ethernet (PoE) voltage range 8 - 30 V
DC input voltage 8 - 30 V
Power consumption (max) 17 W
Power connector DC-in-jack
Performance
Number of SIM cards 1
SIM card type MiniSIM
Internal memory 128 MB
Storage media Flash
Storage capacity 128 MB
Processor cores 1
Processor frequency 720 MHz
Processor model QCA9557
Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n
WLAN data transfer rate (max) 866 Mbit/s
Top Wi-Fi standard Wi-Fi 5 (802.11ac)
