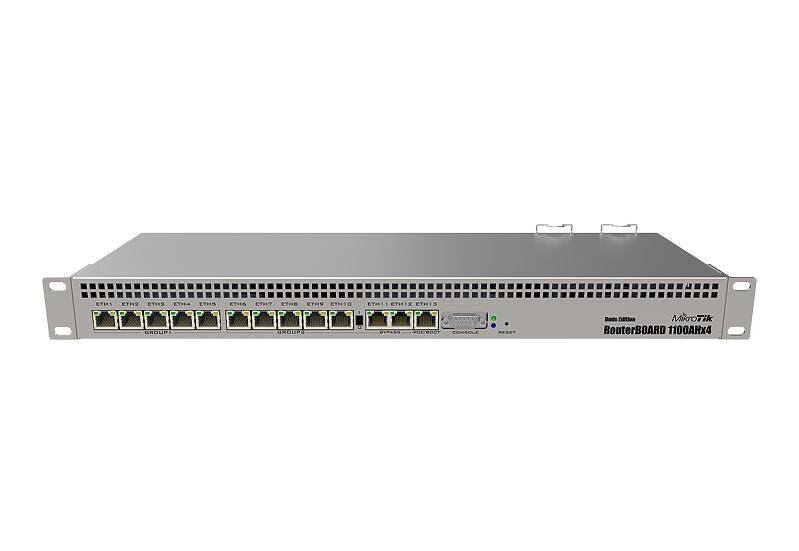

Mikrotik RB1100AHx4 wired router Gigabit Ethernet Aluminium
Mikrotik RB1100AHx4 wired router Gigabit Ethernet Aluminium
SKU:RB1100AHX4
Out of stock
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Ethernet WAN
- IEEE 802.3af, IEEE 802.3at
- Gigabit Ethernet
New RB1100AHx4 Dude Edition has Annapurna Alpine AL21400 CPU with four Cortex A15 cores clocked at 1.4GHz each, for a maximum throughput of up to 7.5Gbps. The device supports IPsec hardware acceleration and is faster at it than any previous RouterBOARD device (up to 2.2Gbps with AES128).

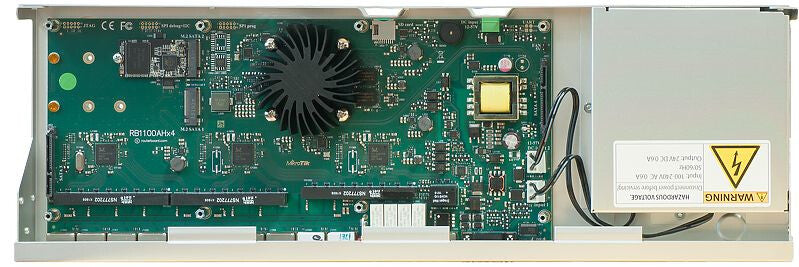

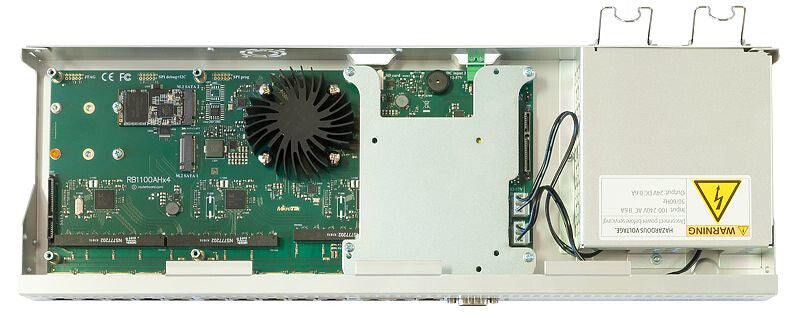

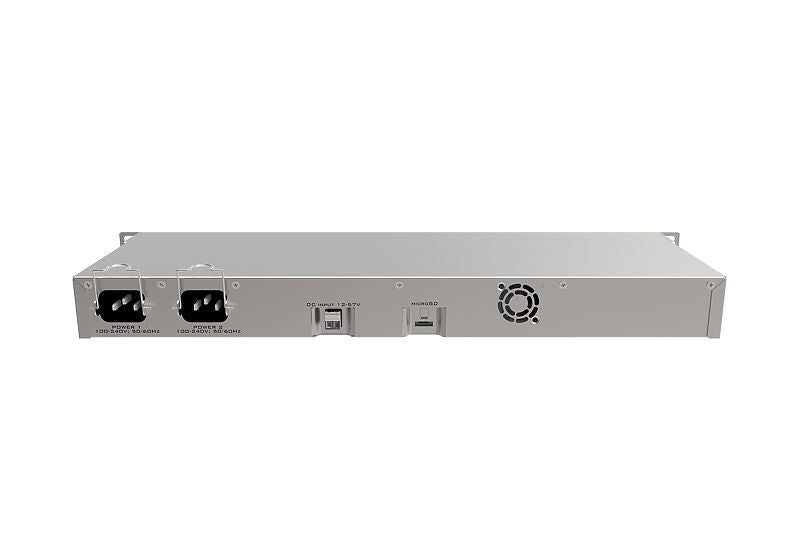

Unit comes with 1U rackmount case, 13x Gigabit Ethernet ports, RS232 serial port and dual redundant power supplies (with -48v DC telecom power and 802.3at/af support). The RB1100AHx4 Dude edition features several high speed storage connectors (two SATA and two M.2) for using a Dude database, proxy cache or any other storage intensive feature. It includes a 60GB M.2 drive already installed.
| WAN connection | |
|---|---|
| Ethernet WAN | Yes |
| Network | |
|---|---|
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 13 |
| Features | |
|---|---|
| Built-in processor | Yes |
| Processor frequency | 1400 MHz |
| Processor cores | 4 |
| Storage media | Flash |
| Internal memory | 128 MB |
| Design | |
|---|---|
| Product colour | Aluminium |
| Rack mounting | Yes |
| Rack capacity | 1U |
| LED indicators | Yes |
| Power | |
|---|---|
| Power consumption (typical) | 25 W |
| Power source type | AC |
| AC input voltage | 100 - 240 V |
| Power over Ethernet (PoE) | Yes |
| Weight & dimensions | |
|---|---|
| Width | 444 mm |
| Depth | 148 mm |
| Height | 47 mm |
| Packaging data | |
|---|---|
| Cables included | SATA |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
