• Mikrotik mAP Black, White wireless access point
1 4

Mikrotik

Mikrotik mAP Black, White Power over Ethernet (PoE)

Mikrotik mAP Black, White Power over Ethernet (PoE)

RBMAP2ND

£48.96 GBP£40.80 GBP
£0.00 GBP £48.96 GBP£40.80 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

15 in stock

Delivery & lead times

Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.

Buying 5 or more? Volume pricing

We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.

Returns & warranty

See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

  • 2.4 GHz
  • IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at
  • Power over Ethernet (PoE)
650 MHz, 64 MB RAM, Wi-Fi 802.11b/g/n, 2.4GHz, PoE, microUSB, 11-57 V, RouterOS, 68 x 68 x 19 mm

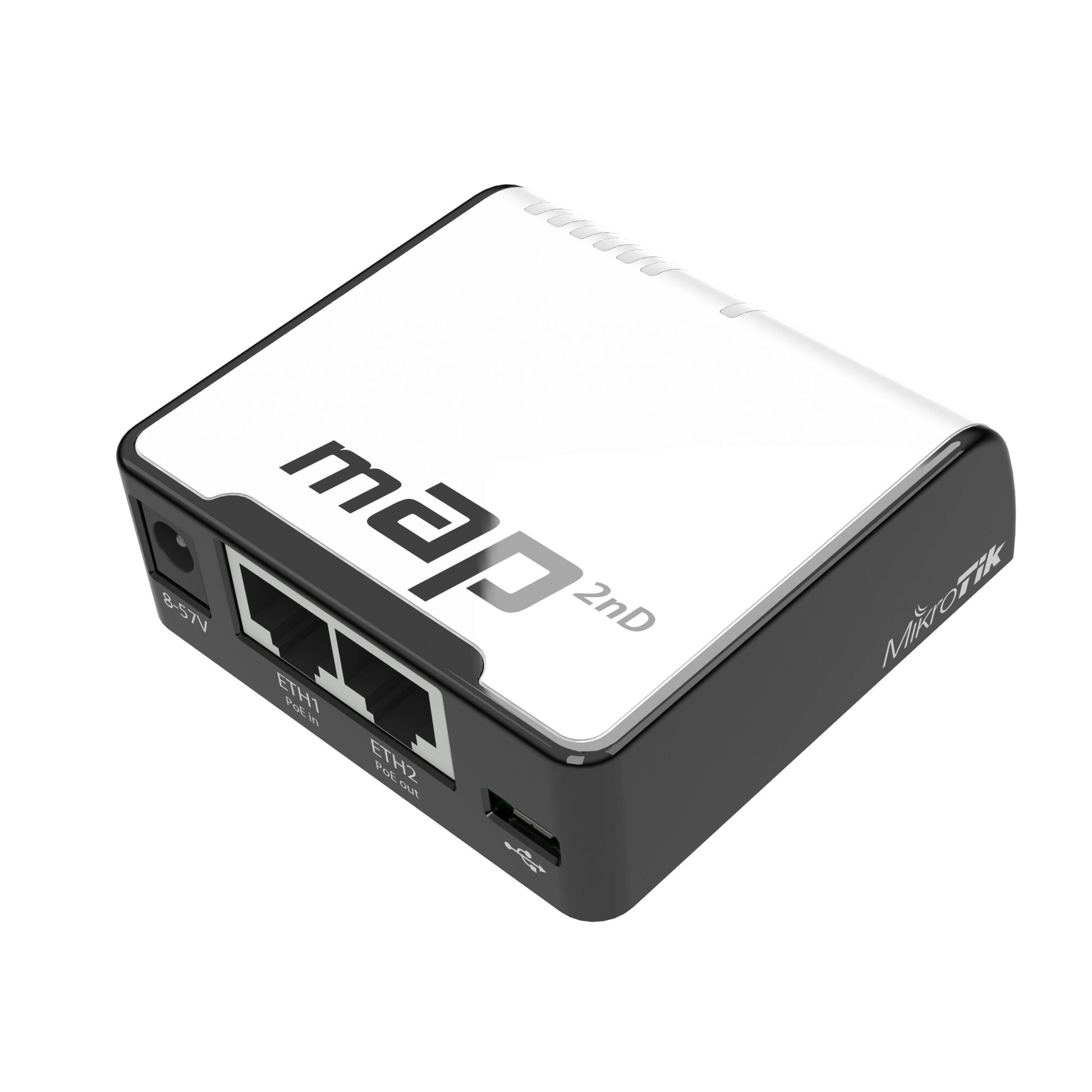

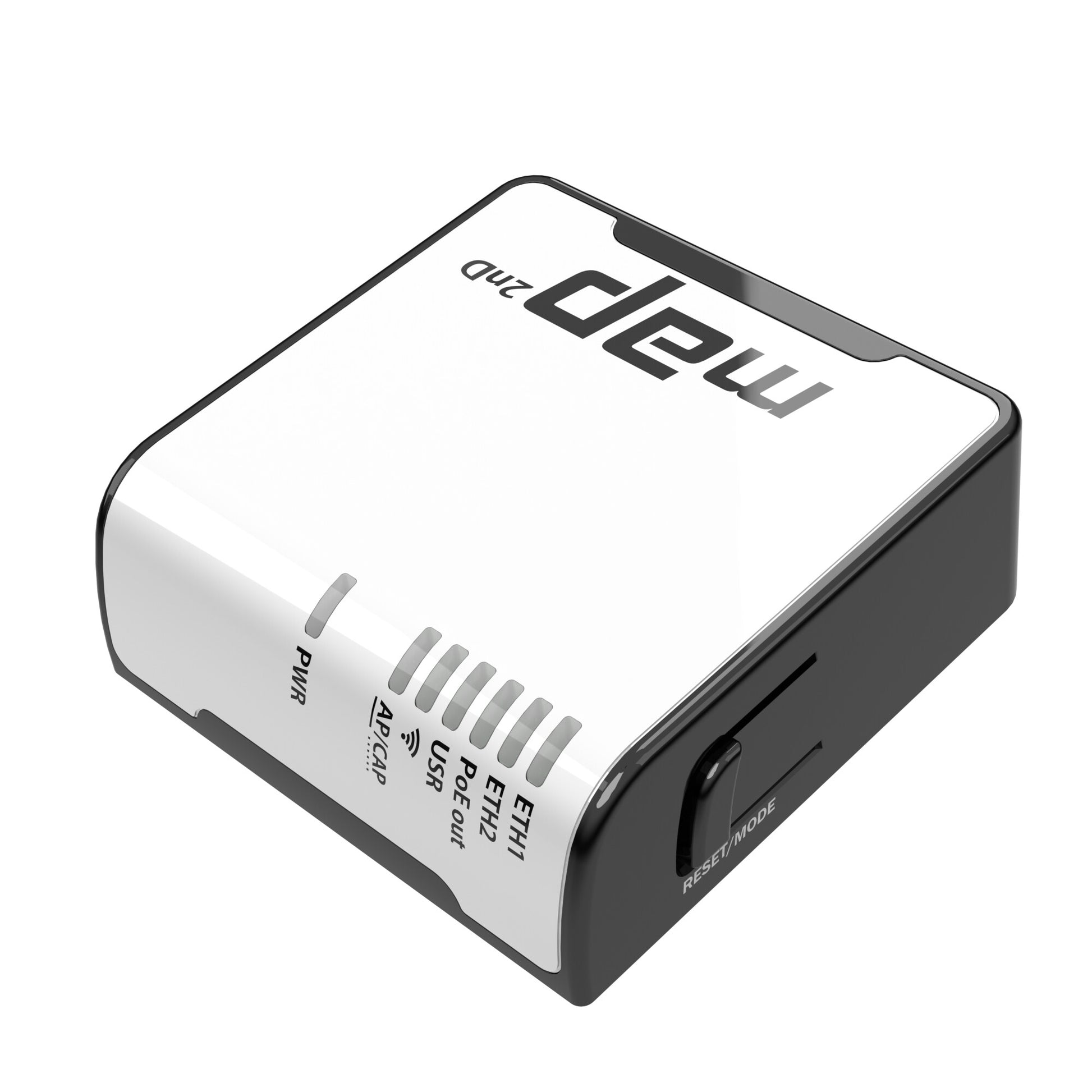

The mAP (micro Access Point) is a tiny size wireless Dual-Chain 2.4GHz Access Point with full RouterOS capabilities. It is very portable, since it accepts power from a wide variety of sources - USB, Passive PoE and power jack. It also works as a PoE injector - the second Ethernet port provides up to 500mA of power to another device, for example, you can connect a SXT CPE device to it.

Features
2.4 GHz Yes
5 GHz No
Ethernet LAN data rates 10,100 Mbit/s
Networking standards IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at
Auto MDI/MDI-X Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports 2
USB 2.0 ports quantity 1
USB connector type USB Type-B
DC-in jack Yes
Power
Power over Ethernet (PoE) Yes
Output voltage 24 V
Output current 0.8 A
Design
Placement Table
Product colour Black, White
LED indicators Yes
Internal No
Antenna
Antenna gain level (max) 1.2 dBi
Performance
Built-in processor Yes
Internal memory 64 MB
Flash memory 16 MB
Operating system installed Linux
Weight & dimensions
Width 68 mm
Depth 68 mm
Height 19 mm
Packaging content

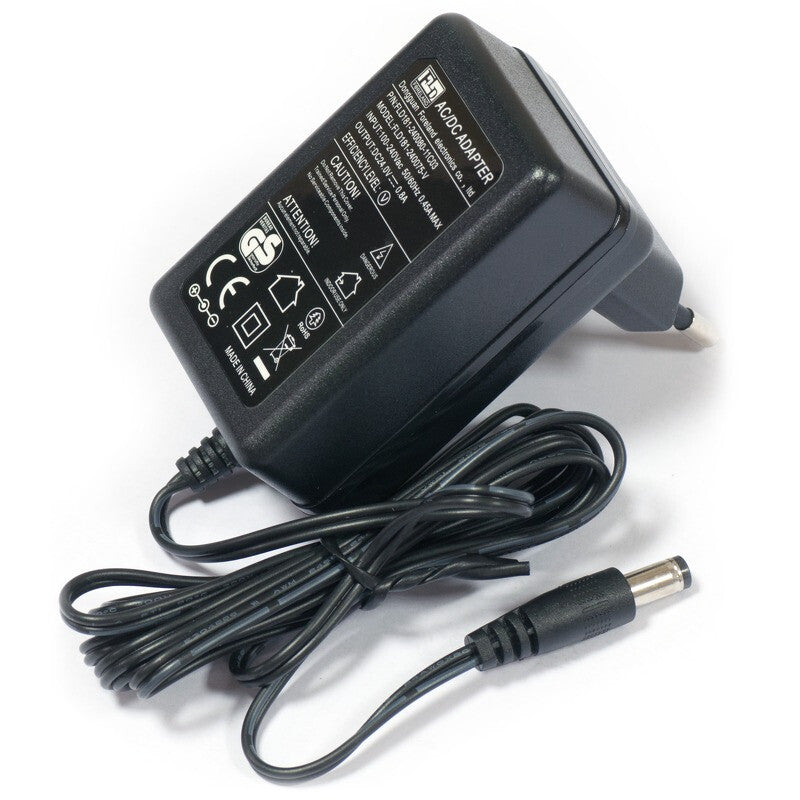

AC adapter included Yes

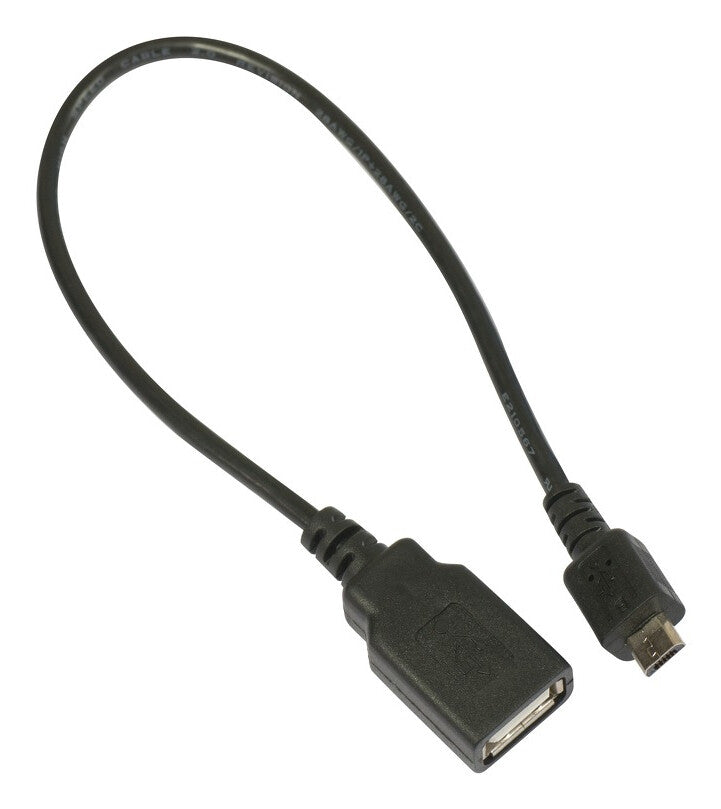

Cables included USB
Operational conditions
Operating relative humidity (H-H) -10 - 70%
Logistics data
Harmonized System (HS) code 85176990
