Mikrotik

Mikrotik mANT30 PA network antenna RP-SMA 30 dBi

Mikrotik mANT30 PA network antenna RP-SMA 30 dBi

MTAD-5G-30D3-PA

£207.24 GBP£172.70 GBP
£0.00 GBP £207.24 GBP£172.70 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Low stock: 2 left

Delivery & lead times

Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.

Buying 5 or more? Volume pricing

We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.

Returns & warranty

See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

  • RP-SMA White
  • 30 dBi
  • 4.7 - 5.9 GHz
  • 50 Ω
  • Dual polarization
4.7 - 5.875 GHz, 30 dBi, 100 W, 50 ohms, Dual Polarization, 201 kph, 3-10 cm Mount Pole, White

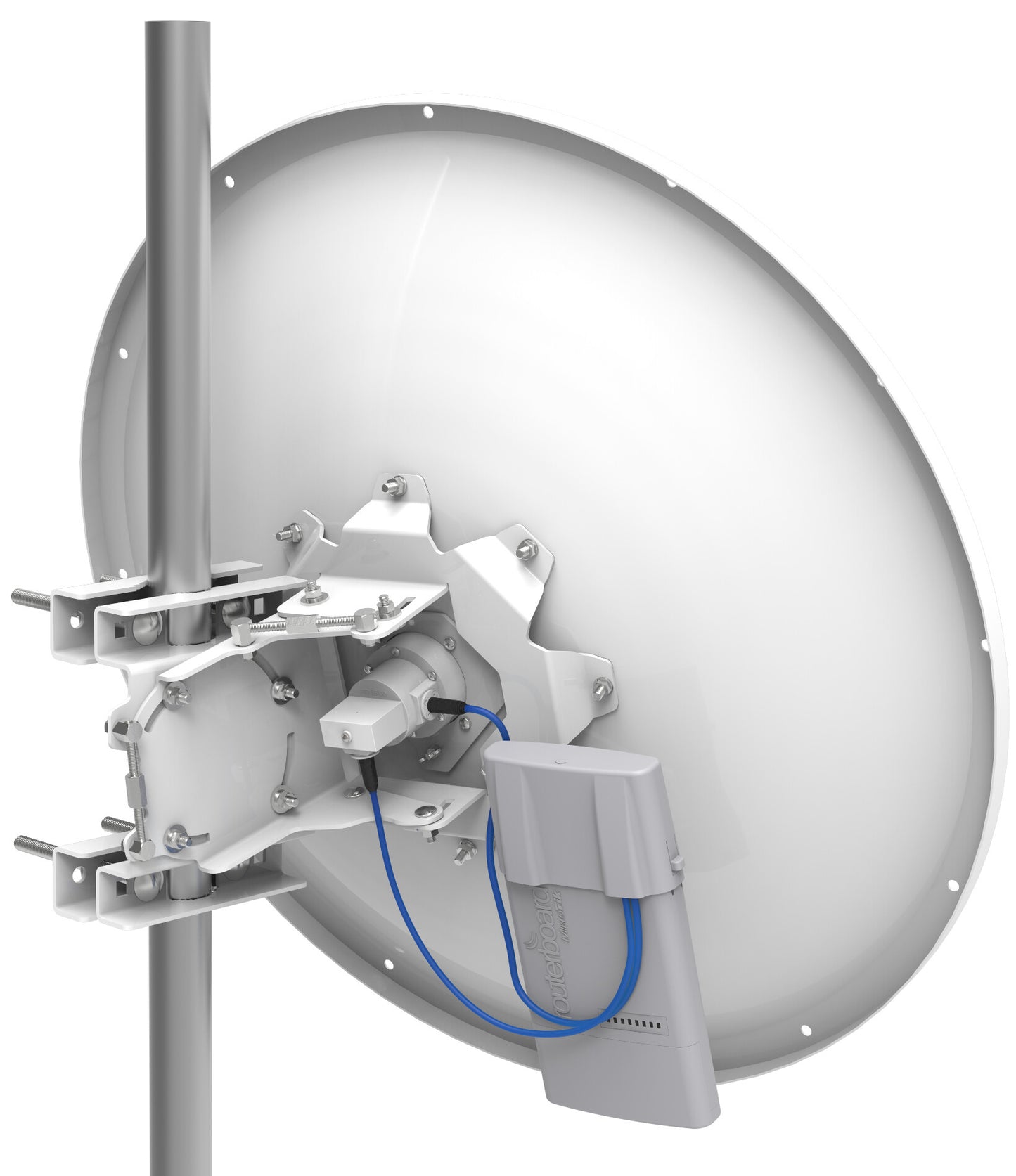

mANT30 is a professional class 5 GHz 30dBi dish antenna, built to the highest industry standards. Built to seamlessly accomodate our Basebox series products, but can be used for any pole mounted wireless device due to the adequate length of the included FlexGuide cable.

Two antennas are available, with a standard type mount (MTAD-5G-30D3), and with a precision alignment mount (MTAD-5G-30D3-PA). The antennas come packaged with all necessary accessories and cables.

Note: Basebox wireless device pictured for illustrative purposes. It is not included

Performance
Antenna gain level (max) 30 dBi
Frequency band 4.7 - 5.9 GHz
Impedance 50 Ω
Vertical beam width 2.5°
Features
Antenna connector type RP-SMA
Polarization Dual polarization
Voltage Standing Wave Ratio (VSWR) 1.8
Power handling 100 W
Purpose Outdoor
Product colour White
Weight & dimensions
Width 700 mm
Depth 450 mm
Weight 5.7 kg
Packaging content
Quantity per pack 1 pc(s)
Logistics data
Harmonized System (HS) code 85177100
