Mikrotik LtAP mini 54 Mbit/s Black

Mikrotik LtAP mini 54 Mbit/s Black

Regular price £89.70 GBP
Regular price Sale price £89.70 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:RB912R-2ND-LTM

Low stock: 1 left

  • 2.4 GHz
  • Maximum data transfer rate: 54 Mbit/s
  • IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at
RB912R-2nD-LTm, none LTE (slot for miniPCI-e LTE card available), 4 W, 139 x 77 x 28,5 mm

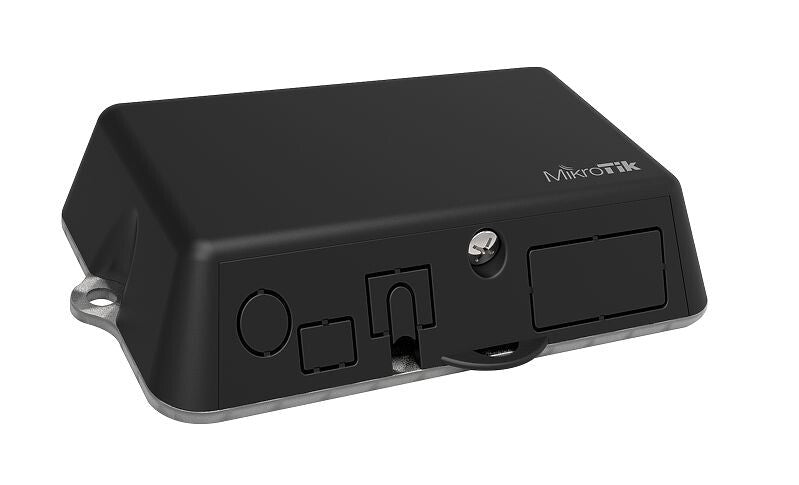

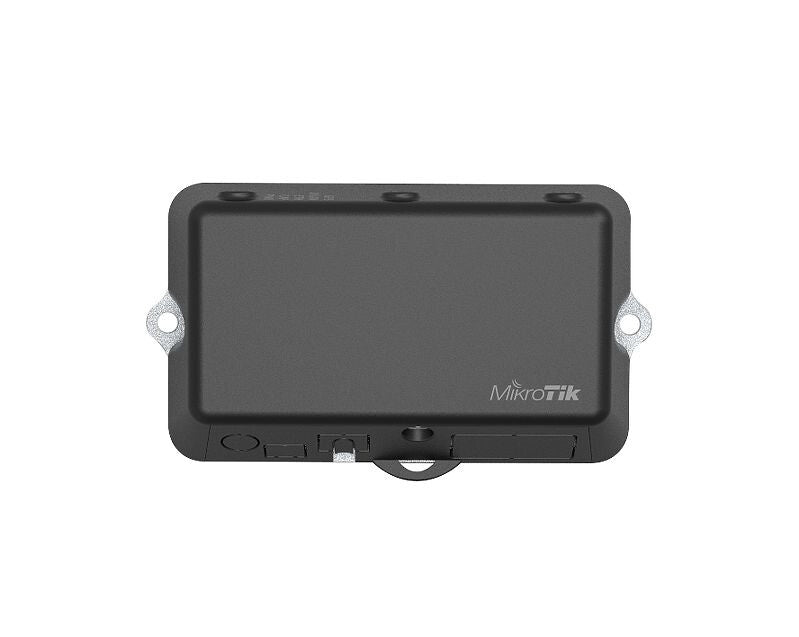

The LtAP mini is a small waterproof wireless access point with integrated LTE antennas (with two u.fl pigtails) and miniPCI-e slot, so you can use your own LTE modem of your choice.

The LtAP mini also has one 10/100 Ethernet LAN port for your wired devices. The RS232 serial port gives you console access for debugging. The unit has several powering options: 9-30 V PoE-in by Ethernet port, DC jack and microUSB.

LtAP mini has a special enclosure with with a wall mounting kit, two SIM slots to alternate between cellular providers, and integrated GPS support, making this a perfect device for use in moving vehicles like cars, buses or trains. Use the built in GPS module to track the location of your vehicle in real time, we have even provided a simple tracking application example in the RouterOS documentation, to help you start development of your platform. External GPS antenna is available for ordering separately (not included, product code GPSANT).

Features
Networking standards IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at
Ethernet LAN data rates 10,100 Mbit/s
Wi-Fi data rate (max) 54 Mbit/s
Maximum data transfer rate 54 Mbit/s
5 GHz No
2.4 GHz Yes
Ports & interfaces
RS-232 interface Yes
WAN connection Mobile network (SIM)
USB connector type Micro-USB
Ethernet LAN (RJ-45) ports 1
Power
Power consumption (max) 4 W
AC input voltage 8 - 30 V
Design
Internal No
Product colour Black
Placement Table
Antenna
Antenna gain level (max) 1.5 dBi
Performance
Operating system installed RouterOS
Flash memory 16 MB
Internal memory 64 MB
Built-in processor Yes
Weight & dimensions
Height 28.5 mm
Depth 77 mm
Width 139 mm
Operational conditions
Operating temperature (T-T) -40 - 70 °C
Logistics data
Harmonized System (HS) code 85176990
