Mikrotik

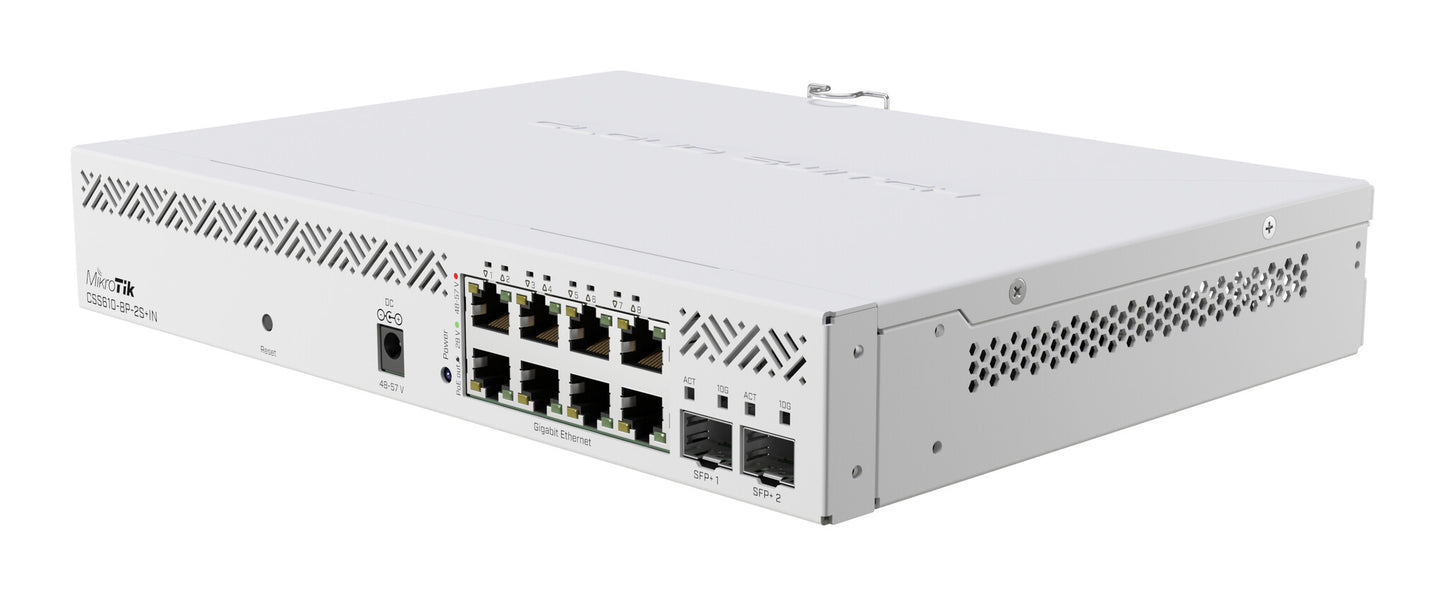

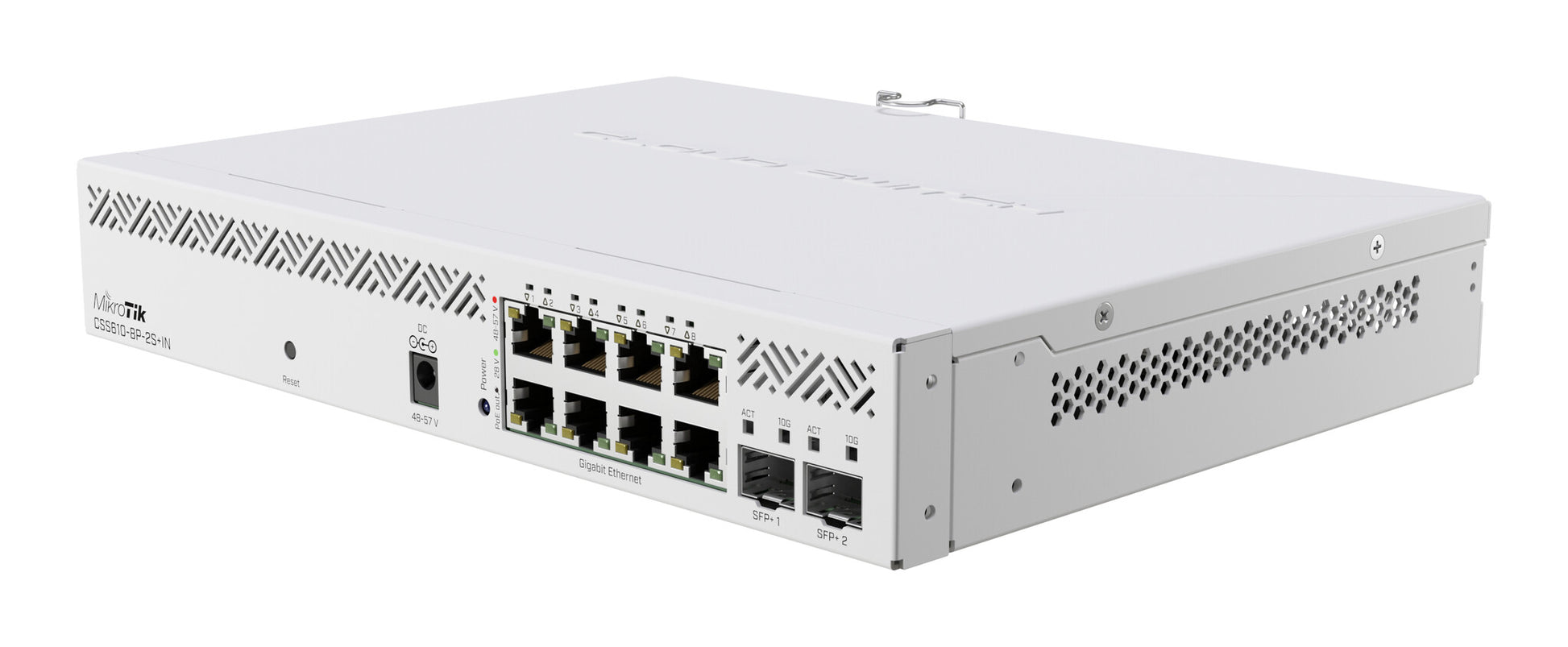

Mikrotik CSS610-8P-2S+IN network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) White

Mikrotik CSS610-8P-2S+IN network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) White

Regular price £203.52 GBP
Regular price Sale price £203.52 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:CSS610-8P-2S+IN

Low stock: 1 left

  • Managed
  • Basic switching RJ-45 Ethernet ports quantity: 8
  • 10G support
  • Switching capacity: 56 Gbit/s
  • Rack mounting
  • AC/DC Power supply included Power over Ethernet (PoE)
8 x 10/100/1000 ethernet ports, 2 x SFP+ ports, SwitchOS Lite, White

CSS610-8P-2S+IN is one of the most well-rounded switches on the market. It is a perfect fit for the most diverse setups: from home networks and small offices to hotels, call centers and so on. The unique combination of size, features, and price offers unbelievable scalability potential.

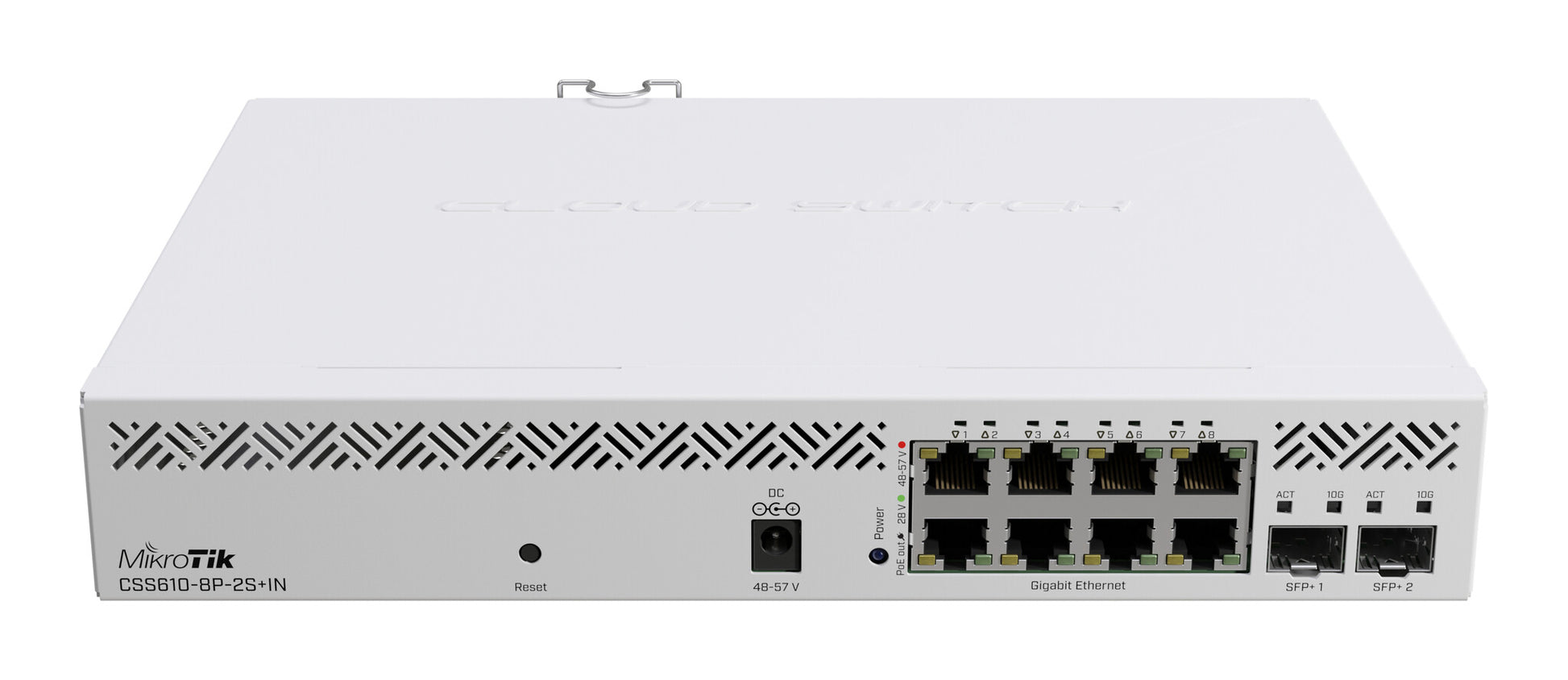

There are two SFP+ ports for 10 Gigabit fiber connectivity and eight Gigabit Ethernet ports with 802.3af/at PoE-out.

This switch is all about nice and easy setups. The compact form-factor means easier shipping and handling, while the lightweight SwOS means easier configuration. You can even configure this switch from your web browser! It gives you all the core functionality of a managed switch, and even more: you can manage port-to-port forwarding, broadcast storm control, apply MAC filters, configure VLANs, mirror traffic, apply bandwidth limitations, and even adjust some MAC and IP header fields.

But the real blessing is the combination of SFP+ and PoE-out Ethernet ports. With this setup, you can do all kinds of things on a tight budget. CSS610 has an impressive total PoE-out budget of 140 W, so you can use even in the most intense scenarios – like hotels, conference halls, or call centers! Use the PoE-out ports to connect the IP-phones while the SFP+ ports connect your primary server to the ISP. Or power a bunch of network cameras and instantly upload the footage to the cloud. And manage a cluster of wireless access points at the same time. Also, scalability is no longer a problem. With our pricing, you can afford a switch on every floor!

Like every toolbox needs screwdrivers and pliers, every network can use a solid PoE switch.

Management features
Switch type Managed
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 8
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Installed SFP+ modules quantity 2
Network
Networking standards IEEE 802.3af, IEEE 802.3at
10G support Yes
Broadcast storm control Yes
VLAN support Yes
Data transmission
Switching capacity 56 Gbit/s
Security
MAC address filtering Yes
Design
Rack mounting Yes
Product colour White
Reset button Yes
LED indicators Yes
International Protection (IP) code IP20
Certification EAC
Performance
Operating system installed SwitchOS Lite
Processor model Marvell 88E6193X
Flash memory 0.064 MB
Fanless Yes
Mean time between failures (MTBF) 200000 h
Technical details
Compliance certificates CE, RoHS

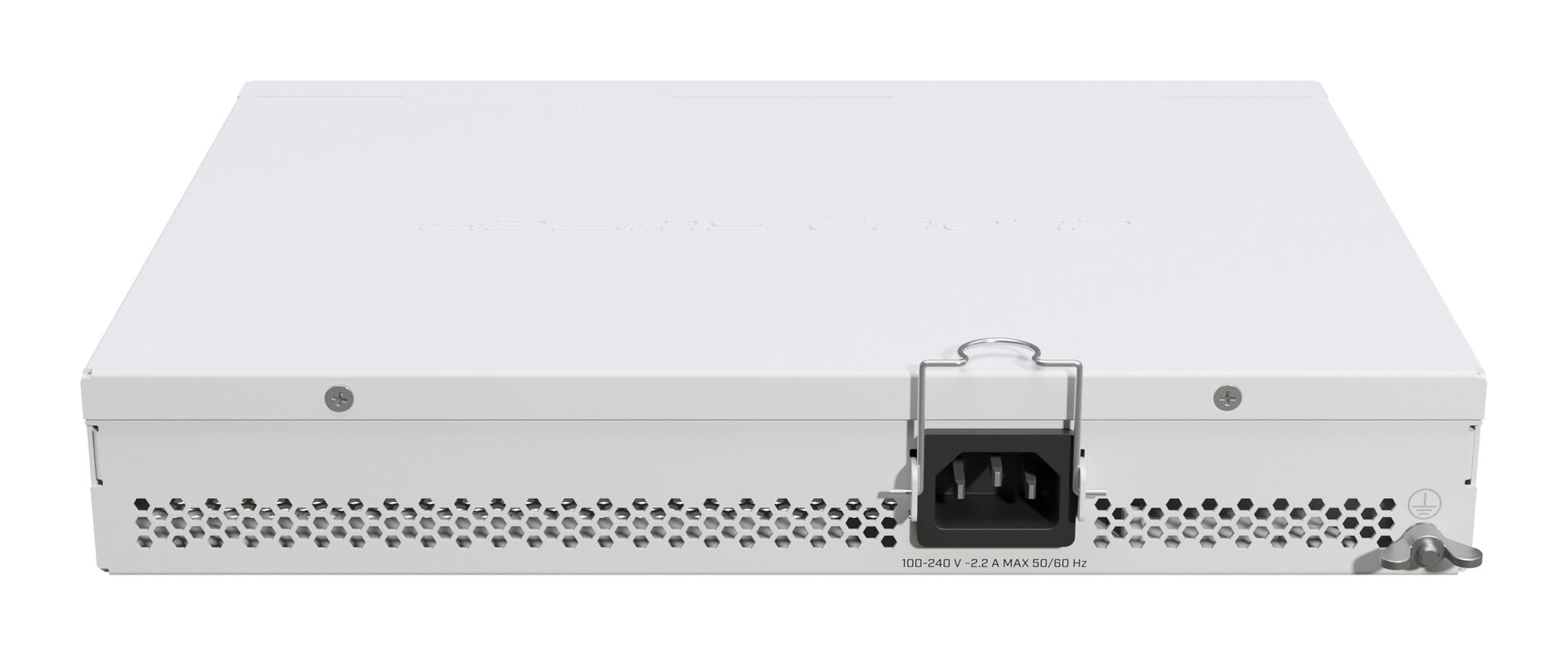

Power
Power source AC/DC
Power supply included Yes
AC input voltage 100 - 240 V
AC input frequency 50 - 60 Hz
DC input voltage 48 - 57 V
Input current 2.2 A
Power consumption (max) 162 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) type supported Passive PoE
Power over Ethernet (PoE) ports quantity 8
Total Power over Ethernet (PoE) budget 140 W
Operational conditions
Storage temperature (T-T) -40 - 70 °C
Weight & dimensions
Width 272 mm
Depth 216 mm
Height 50 mm
Sustainability
Sustainability certificates CE, RoHS
Sustainability compliance Yes
Packaging data
Cables included AC
Rack mount kit Yes
