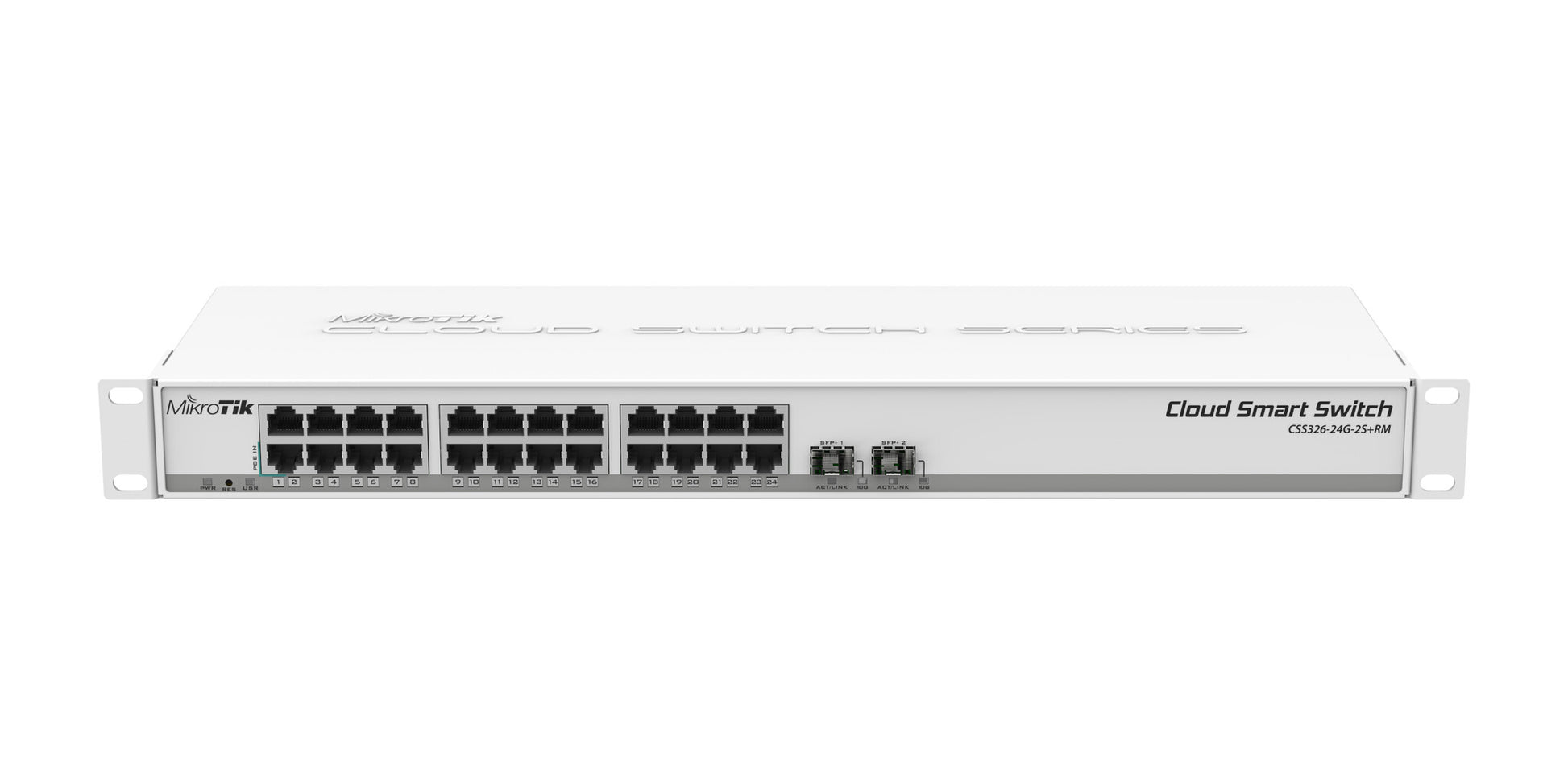

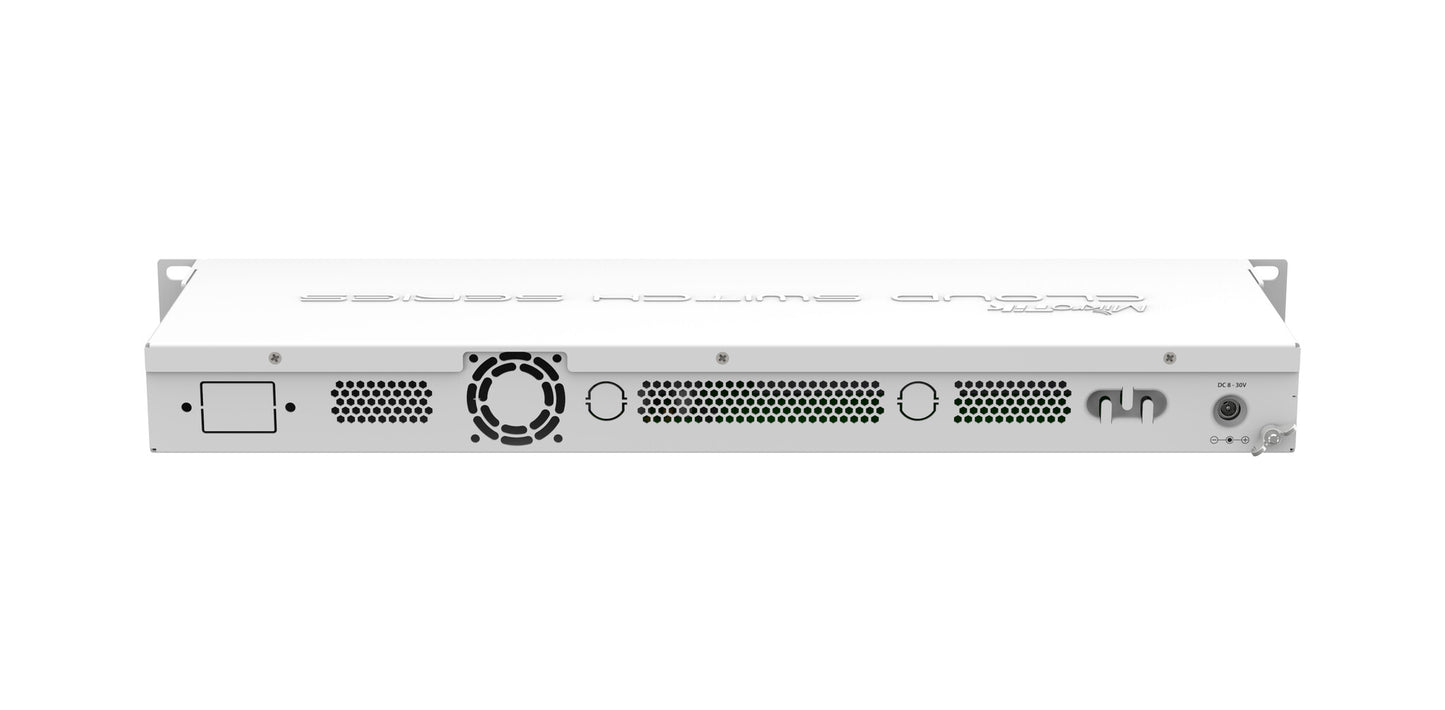

Mikrotik CSS326-24G-2S+RM network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U White
Mikrotik CSS326-24G-2S+RM network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U White
SKU:CSS326-24G-2S+RM
Low stock: 4 left
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Managed Web-based management
- Basic switching RJ-45 Ethernet ports quantity: 24
- 10G support
- Access Control List (ACL)
- 1U Rack mounting
- DC/PoE Power supply included Power over Ethernet (PoE)
SwOS powered 24 port Gigabit Ethernet switch with two SFP+ ports, wire speed connectivity with several new switching features.
The device is powered by a Marvell DX switch chip. The device is running an operating system designed specifically for MikroTik switch products - SwOS. SwOS is configurable from your web browser. It gives you all the basic functionality for a managed switch, plus more: allows to manage port-to-port forwarding, apply MAC filter, configure VLANs, mirror traffic, apply bandwidth limitation and even adjust some MAC and IP header fields. SFP cage supports both 1.25 Gb SFP and 10 Gb SFP+ modules.
| Management features | |
|---|---|
| Switch type | Managed |
| Web-based management | Yes |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 2 |
| Power connector | DC-in jack |
| Network | |
|---|---|
| Networking standards | IEEE 802.1Q |
| 10G support | Yes |
| Port mirroring | Yes |
| Spanning tree protocol | Yes |
| Broadcast storm control | Yes |
| VLAN support | Yes |
| Number of VLANs | 4000 |
| Security | |
|---|---|
| Access Control List (ACL) | Yes |
| Security algorithms | SNMP |
| MAC address filtering | Yes |
| Design | |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | White |
| Reset button | Yes |
| Performance | |
|---|---|
| Built-in processor | Yes |
| Internal memory | 2 MB |
| Flash memory | 2 MB |
| Power | |
|---|---|
| Power source | DC/PoE |
| Power supply included | Yes |
| Number of power supply units | 1 |
| Power consumption (typical) | 19 W |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Passive PoE |
| Power over Ethernet (PoE) voltage range | 10 - 30 V |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -40 - 70 °C |
| Weight & dimensions | |
|---|---|
| Width | 440 mm |
| Depth | 144 mm |
| Height | 44 mm |
| Packaging data | |
|---|---|

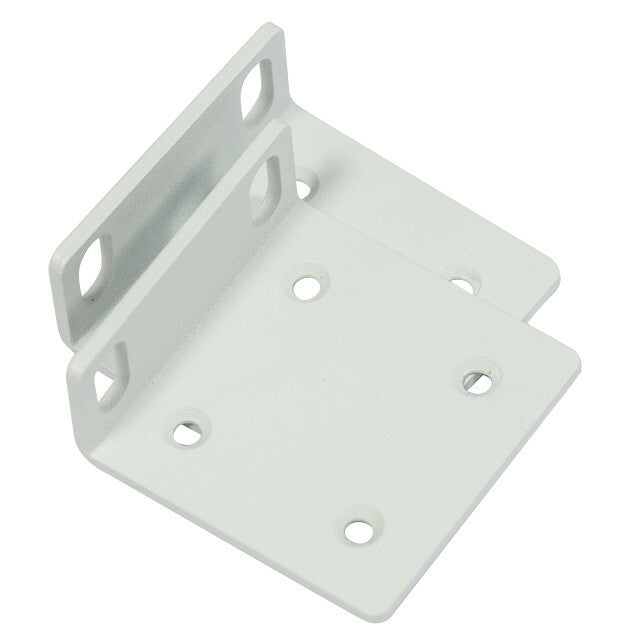

| Mounting brackets included | Yes |
| Manual | Yes |

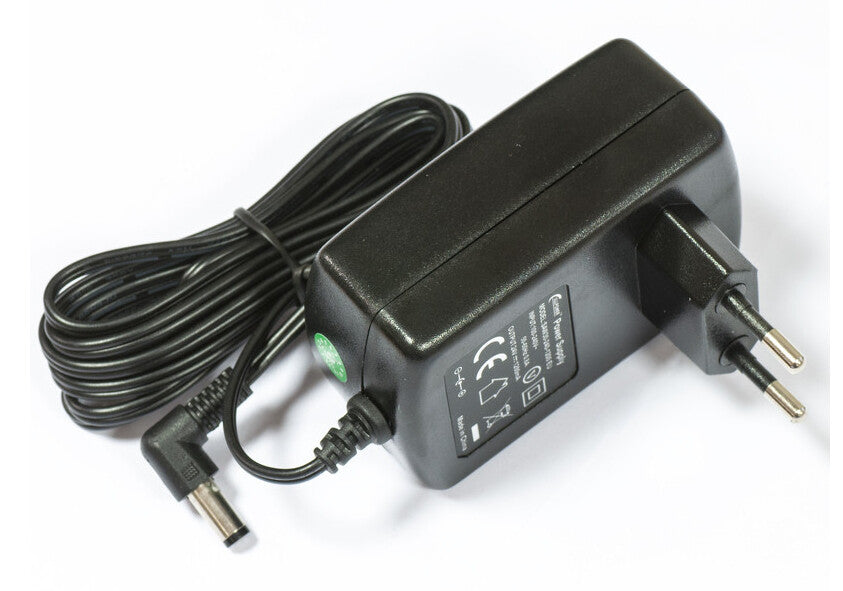

| AC adapter included | Yes |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
