• Mikrotik CRS326-24G-2S+RM network switch, Managed, 24-port, grey
1 3

Mikrotik

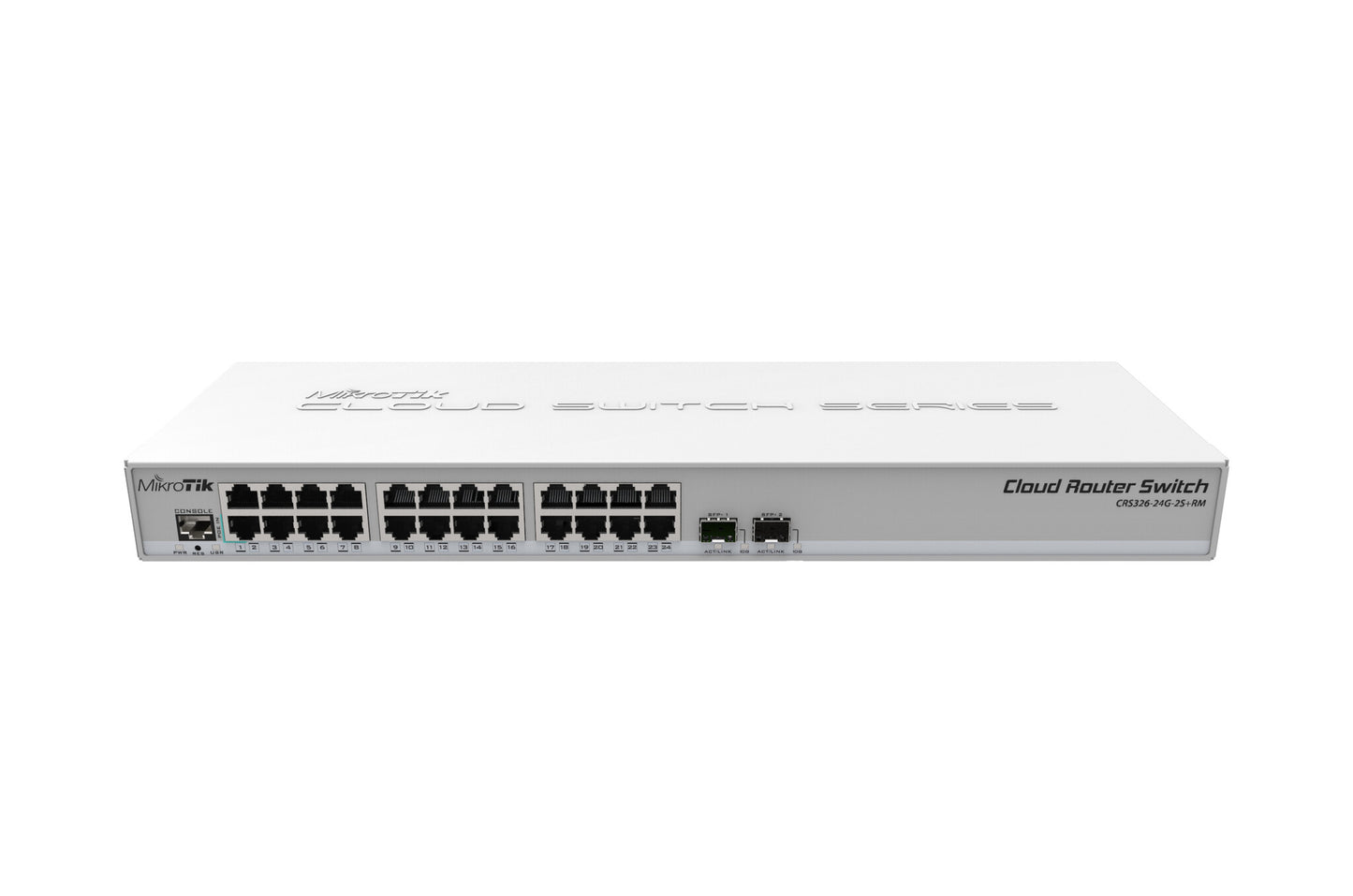

Mikrotik CRS326-24G-2S+RM network switch Managed L2 Gigabit Ethernet (10/100/1000) Grey

Mikrotik CRS326-24G-2S+RM network switch Managed L2 Gigabit Ethernet (10/100/1000) Grey

CRS326-24G-2S+RM

£194.04 GBP£161.70 GBP
£0.00 GBP £194.04 GBP£161.70 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

13 in stock

Delivery & lead times

Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.

Buying 5 or more? Volume pricing

We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.

Returns & warranty

See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

  • Managed L2 Web-based management
  • Basic switching RJ-45 Ethernet ports quantity: 24 Console port: RJ-45
  • 10G support
  • Access Control List (ACL)
  • Power supply included
24x 10/100/1000 RJ-45, 2x SFP+, 800 MHz, 512 MB, 440 x 144 x 44 mm, RouterOS/SwOS

SwOS/RouterOS powered 24 port Gigabit Ethernet switch with two SFP+ ports, wire speed connectivity with several new switching features!

It has “Dual boot” feature that allows you to choose which operating system you prefer to use, RouterOS or SwOS. If you prefer to have a simplified switch only OS with more switch specific features, use SwOS. If you are used to Winbox and would like the ability to use routing and other Layer 3 features on some ports in your CRS, boot and use RouterOS. You can select the desired operating system from RouterOS, from SwOS or from the RouterBOOT loader settings.

It gives you all the basic functionality for a managed switch, plus more: allows to manage port-to-port forwarding, apply MAC filter, configure VLANs, mirror traffic, apply bandwidth limitation and even adjust some MAC and IP header fields. SFP cage supports both 1.25 Gb SFP and 10 Gb SFP+ modules.

Management features
Web-based management Yes
Switch layer L2
Switch type Managed
Ports & interfaces
Console port RJ-45
SFP+ module slots quantity 2
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity 24
Network
Number of VLANs 4000
VLAN support Yes
Broadcast storm control Yes
Spanning tree protocol Yes
Port mirroring Yes
10G support Yes
Networking standards IEEE 802.1Q
Security
Security algorithms SNMP
Access Control List (ACL) Yes
Design
Product colour Grey
Performance
Compatible operating systems RouterOS, SwitchOS
Flash memory 16 MB
Internal memory 512 MB
Processor frequency 800 MHz
Built-in processor Yes
Power
Power consumption (max) 24 W
Power supply included Yes
Operational conditions
Operating temperature (T-T) -40 - 60 °C
Weight & dimensions
Height 44 mm
Depth 144 mm
Width 440 mm
Packaging data

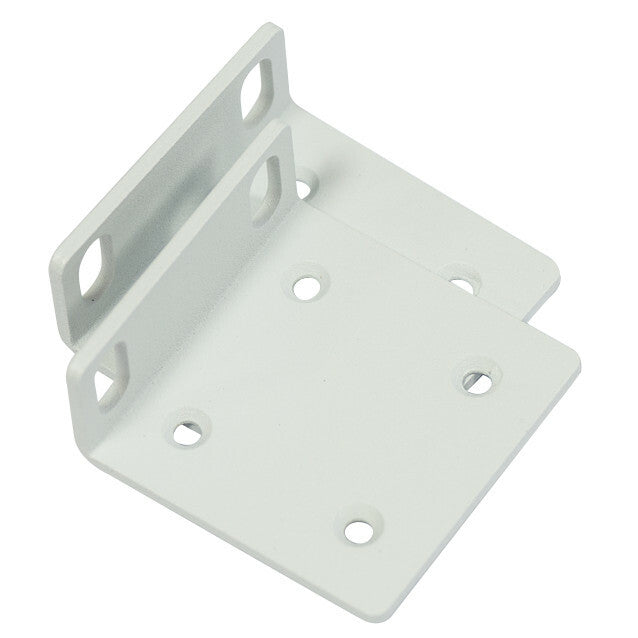

Rack mount kit Yes

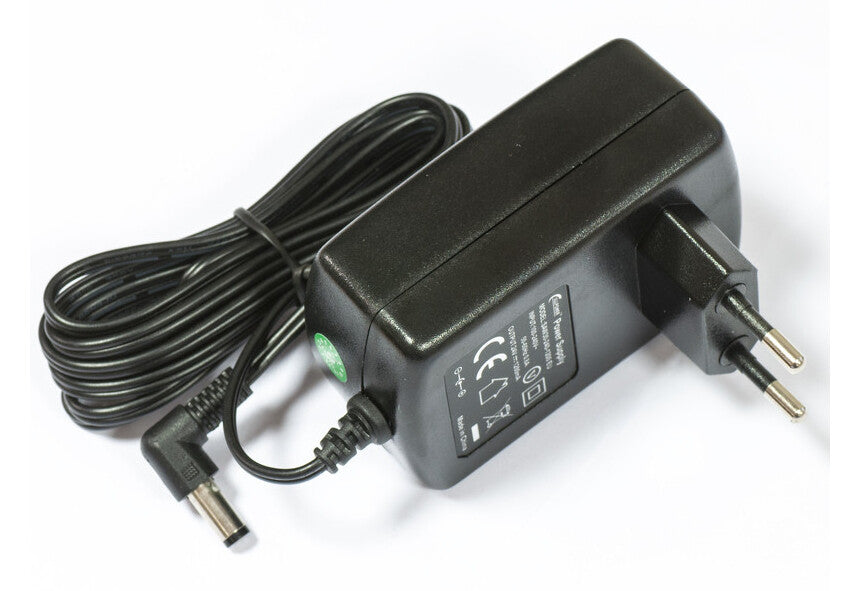

AC adapter included Yes
Logistics data
Harmonized System (HS) code 85176990
