Mikrotik CRS317-1G-16S+RM network switch Managed L3 1U Grey

Mikrotik CRS317-1G-16S+RM network switch Managed L3 1U Grey

Regular price £461.74 GBP
Regular price Sale price £461.74 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:CRS317-1G-16S+RM

Low stock: 3 left

  • Managed L3 Web-based management
  • Console port: RJ-45
  • 10G support
  • 1U Rack mounting

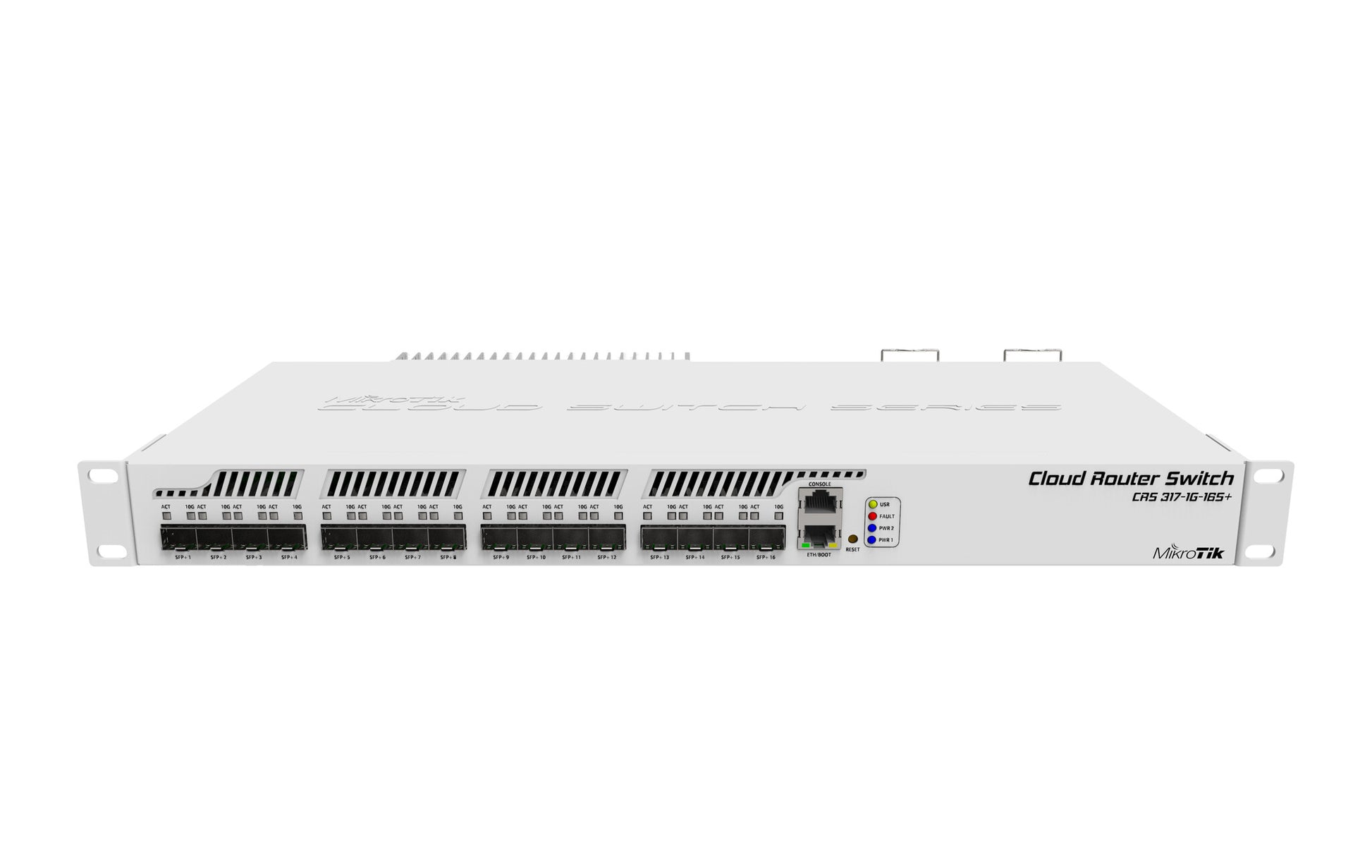

CRS317-1G-16S+RM network switch, 800 MHz, 1 GB RAM, 16 SFP+ ports, 443 x 224 x 44 mm, Grey

The new Cloud Router Switch 317-1G-16S+RM is a rack-mountable manageable switch with Layer3 features, it has 16 SFP+ ports for high performance 10GbE connectivity and a 1GbE copper port for management.

CRS317-1G-16S+RM is powered by a next generation switching chip, giving you wire speed performance for all sixteen 10GbE ports with any Ethernet frame size. New features such as hardware-based Spanning Tree Protocol and Link Aggregation (LACP) provide enhanced protection and true professional performance for your demanding network.

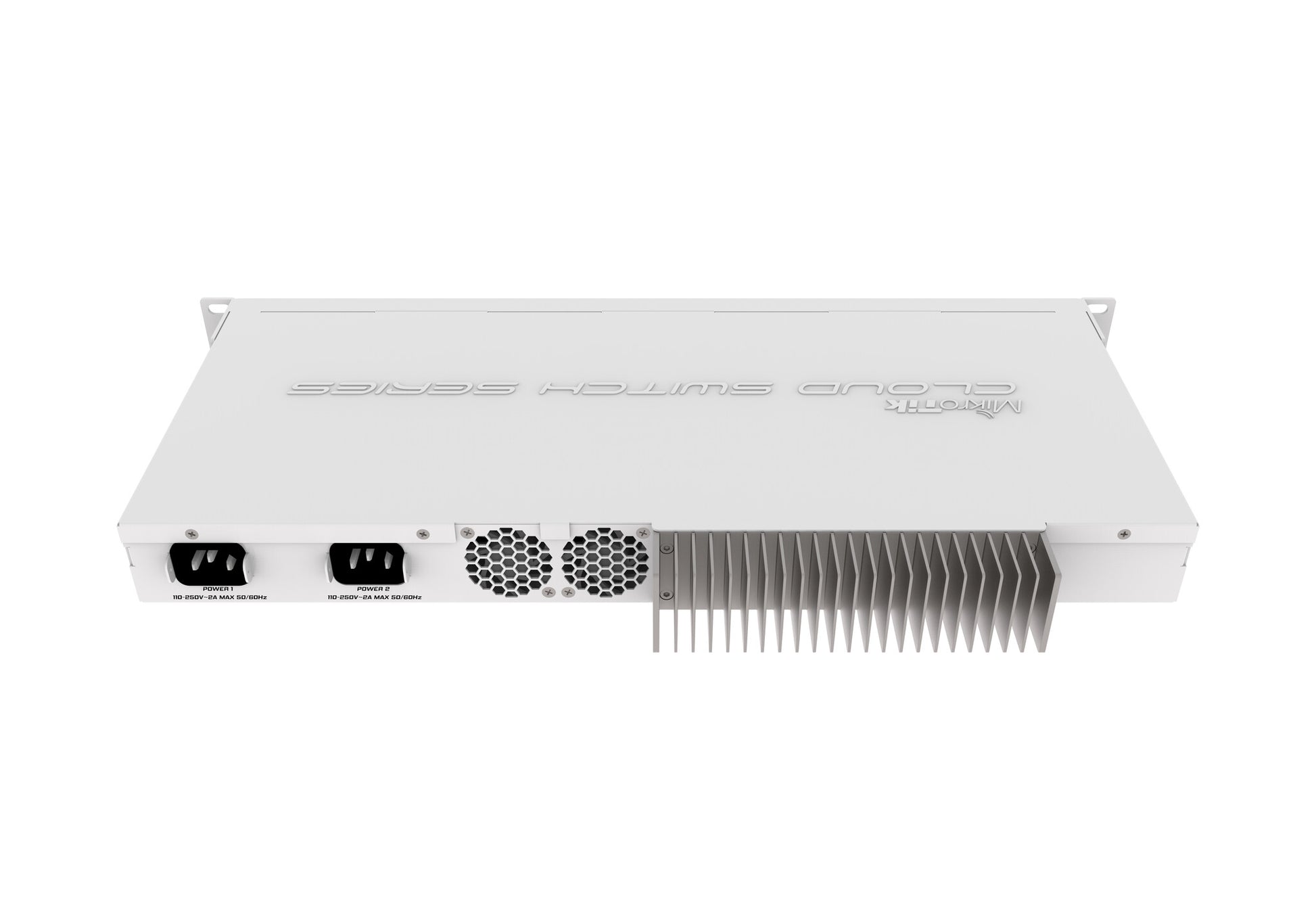

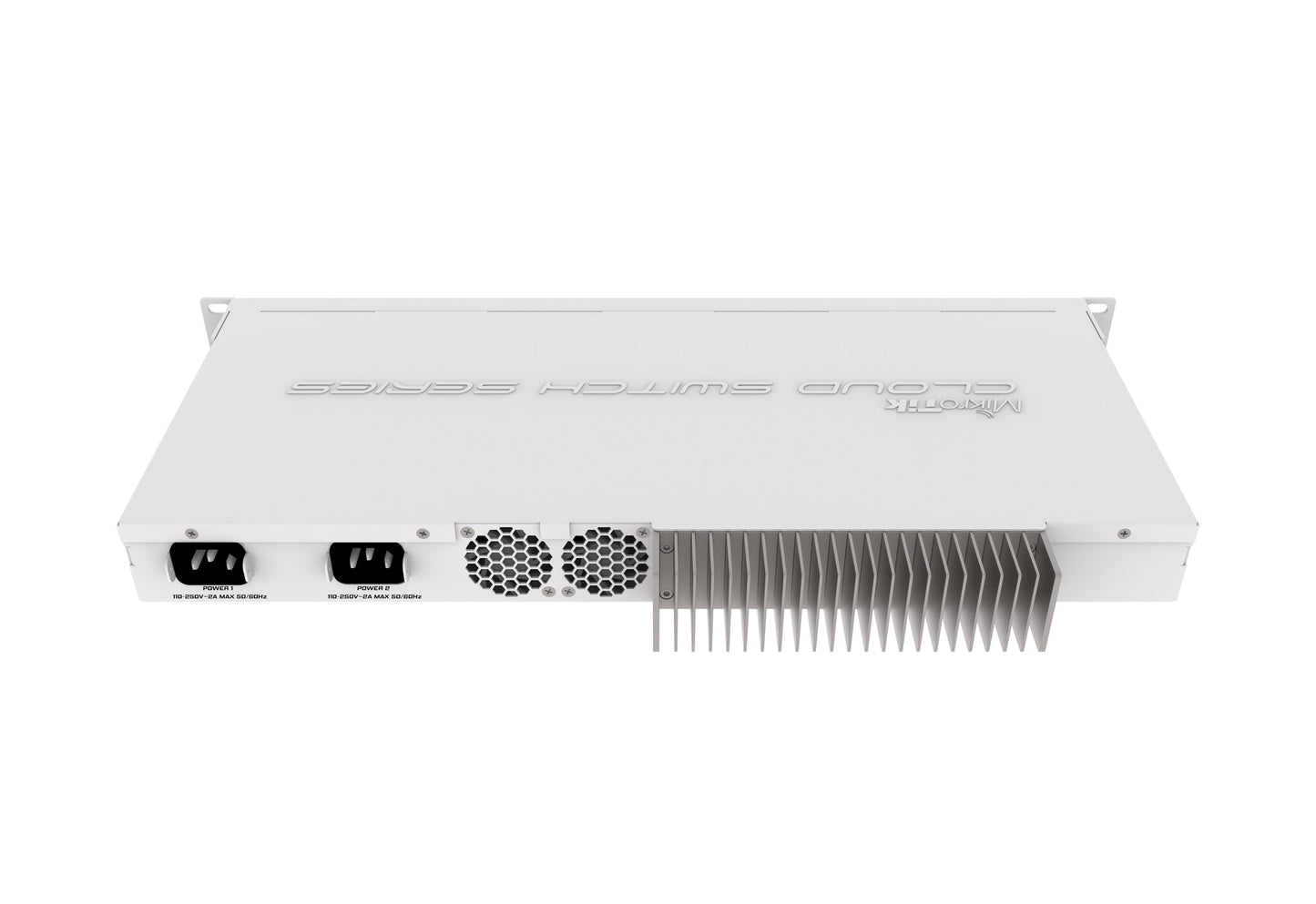

The unit has dual redundant power supplies and passive cooling case, so it’s completely silent - for hot environments two redundant fans will automatically keep the system cool if needed.

Management features
Switch type Managed
Switch layer L3
Web-based management Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports type No
Gigabit Ethernet (copper) ports quantity 1
SFP+ module slots quantity 16
Console port RJ-45
Power connector DC-in jack
Network
Networking standards IEEE 802.1Q
10G support Yes
Port mirroring Yes
Spanning tree protocol Yes
Link aggregation Yes
Broadcast storm control Yes
VLAN support Yes
Number of VLANs 4000
Security
Security algorithms SNMPv2, SNMPv3
Design
Rack mounting Yes
Form factor 1U
Product colour Grey
Reset button Yes
LED indicators Yes
Number of fans 2 fan(s)
Performance
Built-in processor Yes
Processor frequency 800 MHz
Memory type Flash
Internal memory 16 MB
Flash memory 1000 MB
Power
Number of power supply units 2
AC input voltage 110 - 240 V
Power consumption (max) 42 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) No
Operational conditions
Operating temperature (T-T) -20 - 60 °C
Weight & dimensions
Width 443 mm
Depth 224 mm
Height 44 mm
Packaging data

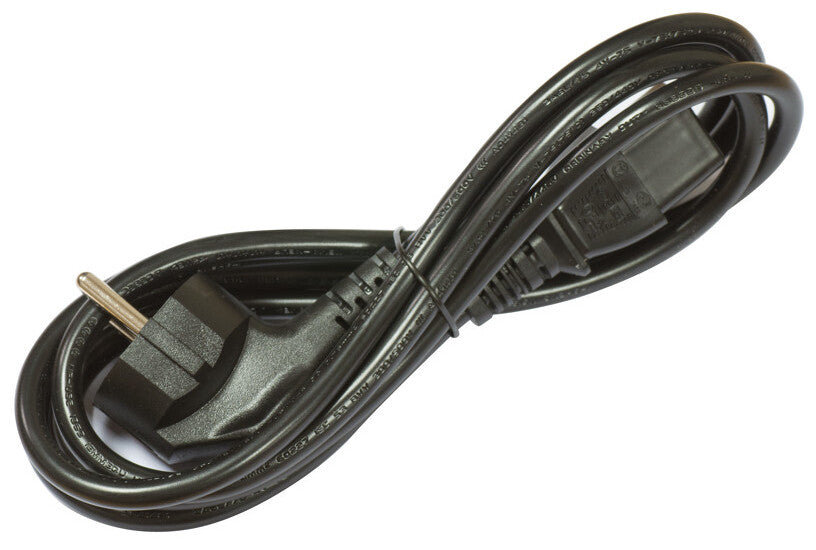

Cables included AC

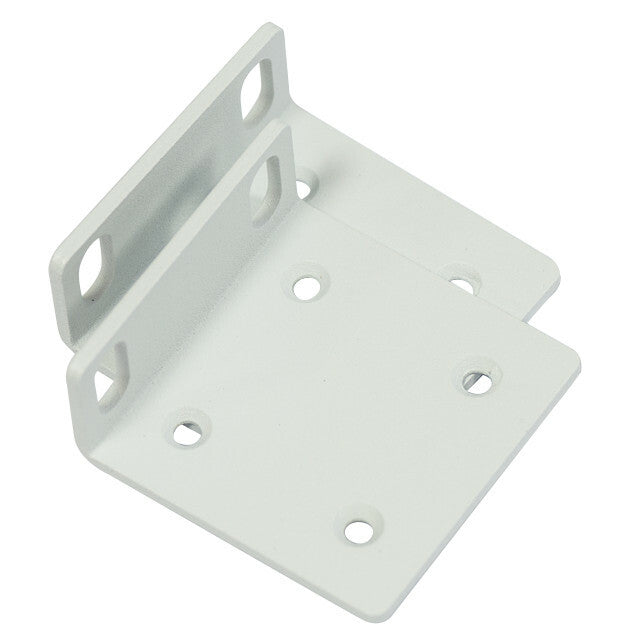

Mounting brackets included Yes
User guide Yes
Logistics data
Harmonized System (HS) code 85176990
