Mikrotik

Mikrotik CRS309-1G-8S+ Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) White

Mikrotik CRS309-1G-8S+ Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) White

£226.42 GBP
£226.42 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

CRS309-1G-8S+IN

Low stock: 4 left

  • Managed
  • Basic switching RJ-45 Ethernet ports quantity: 1 Console port: RS-232
  • 10G support
  • Switching capacity: 162 Gbit/s
  • Rack mounting
  • Power over Ethernet (PoE)
Gigabit Ethernet port, 8x SFP+ ports, PoE-in, 800MHz CPU, 512MB RAM, 16MB Flash, License level 5, RouterOS / SwitchOS

Desktop switch with one Gigabit Ethernet port and eight SFP+ 10Gbps ports

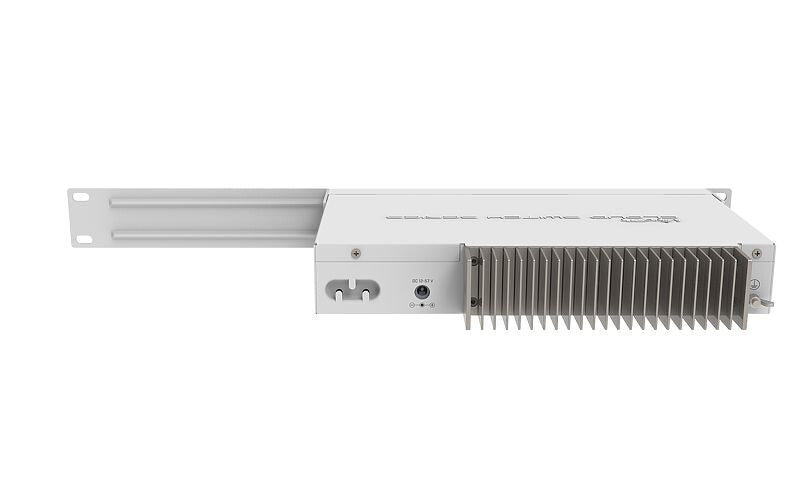

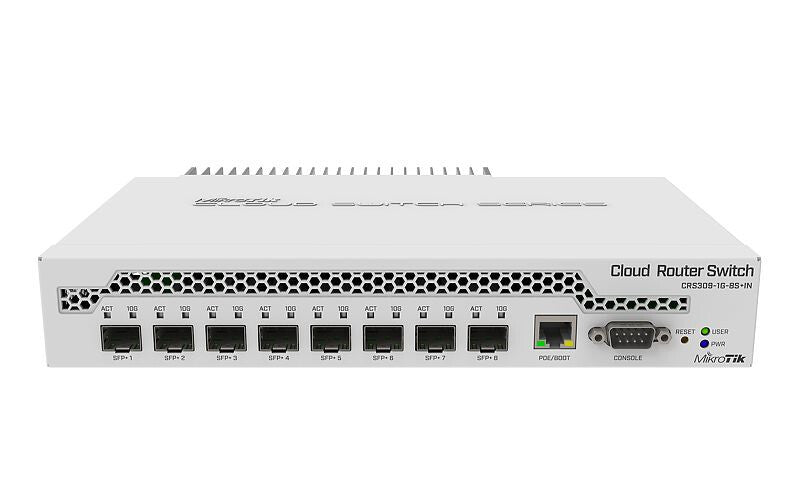

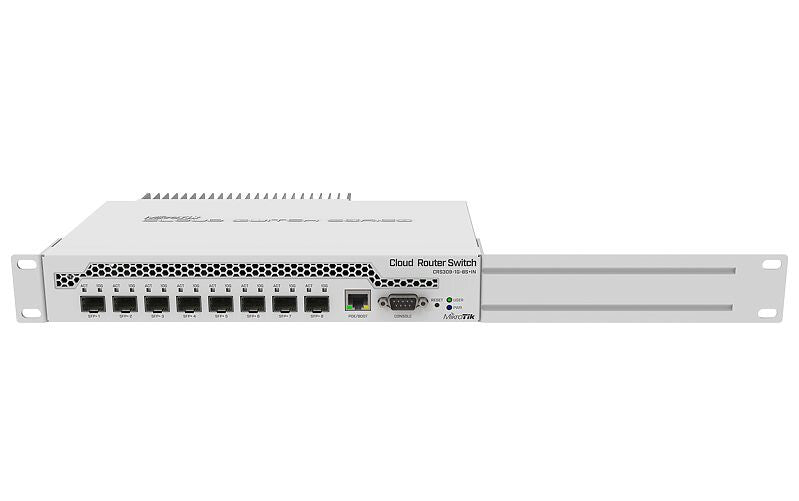

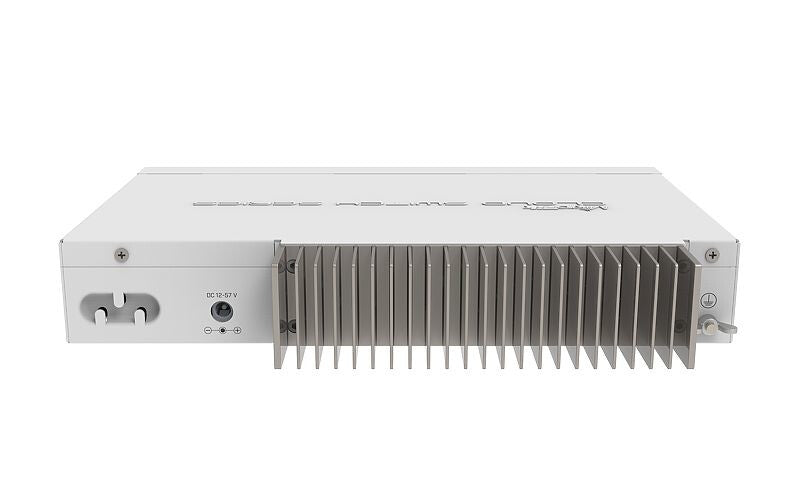

The CRS309-1G-8S+ is a very compact, yet powerful networking switch. It has eight SFP+ slots, supporting up to 10 Gbit module in each, which results in a total switching capacity of 162 Gbps and total non-blocking throughput of 81 Gbps.

The device also has dual-core 800 MHz CPU, 512 MB RAM, a management Ethernet port with PoE power input, RS232 serial port, a grounding terminal and is capable of dual boot (choose which operating system you prefer, RouterOS, or SwOS).

Management features
Switch type Managed
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 1
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity 8
Console port RS-232
Power connector DC-in jack
Network
Networking standards IEEE 802.3af, IEEE 802.3at
10G support Yes
Data transmission
Switching capacity 162 Gbit/s
Design
Rack mounting Yes
Product colour White
Performance
Built-in processor Yes
Processor frequency 800 MHz
Memory type RAM
Internal memory 512 MB
Flash memory 16 MB
Power
DC input voltage 12 - 57 V
Output current 1.2 A
Power consumption (max) 23 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) voltage range 18 - 57 V
Operational conditions
Operating temperature (T-T) -40 - 70 °C
Weight & dimensions
Width 141 mm
Depth 115 mm
Height 28 mm
Packaging data

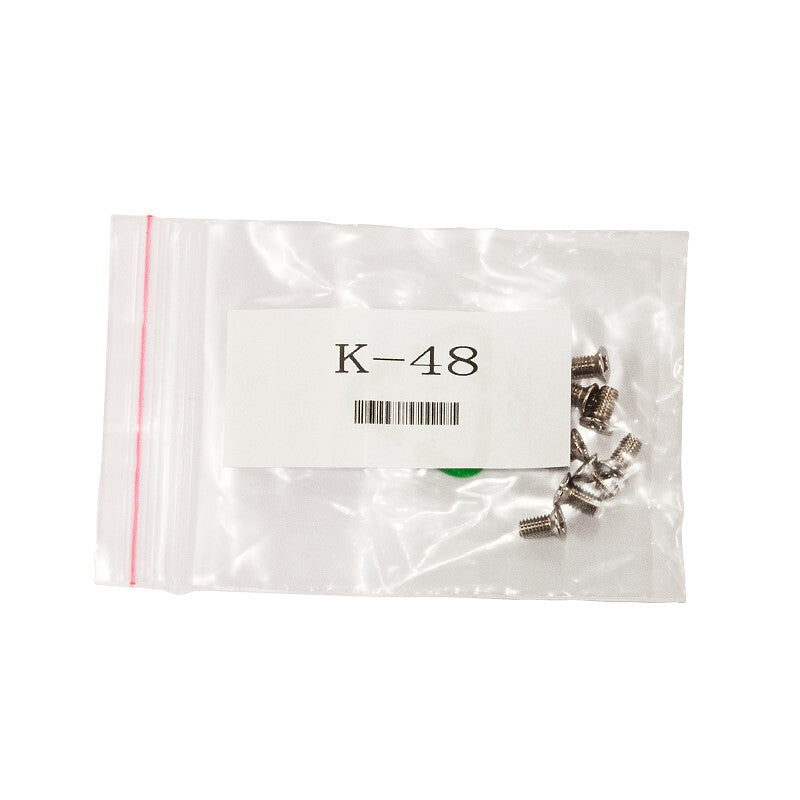

Screws included Yes
Mounting brackets included Yes
AC adapter included Yes
